How to Remove a Car Engine

Here's how to remove a car's engine and transmission.

This my first time removing an engine from a car. It was an
amazing learning experience, and I did (most) of it myself! I documented some of the major steps in the video below:

The engine and transmission were removed from my 2001 Toyota
Corolla. I opted to disassemble major components off of the engine in the car before removing the assembly. If your doing a straight engine swap, you can skip those steps.

Here's what the engine bay looks like, untouched.

Alternator removed

Lower radiator hose, water pump and thermostat

Radiator

A/c Compressor

Air intake, battery and air box

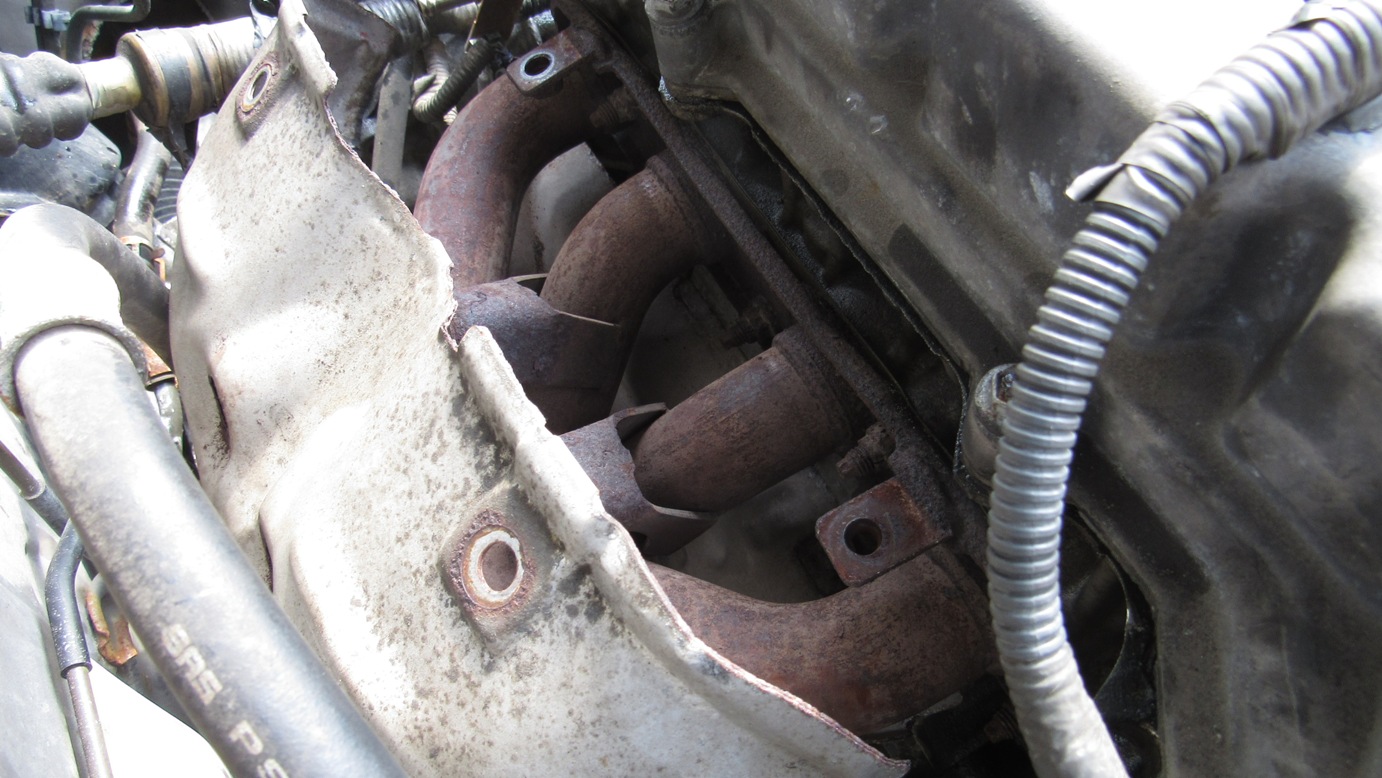

Exhaust manifold

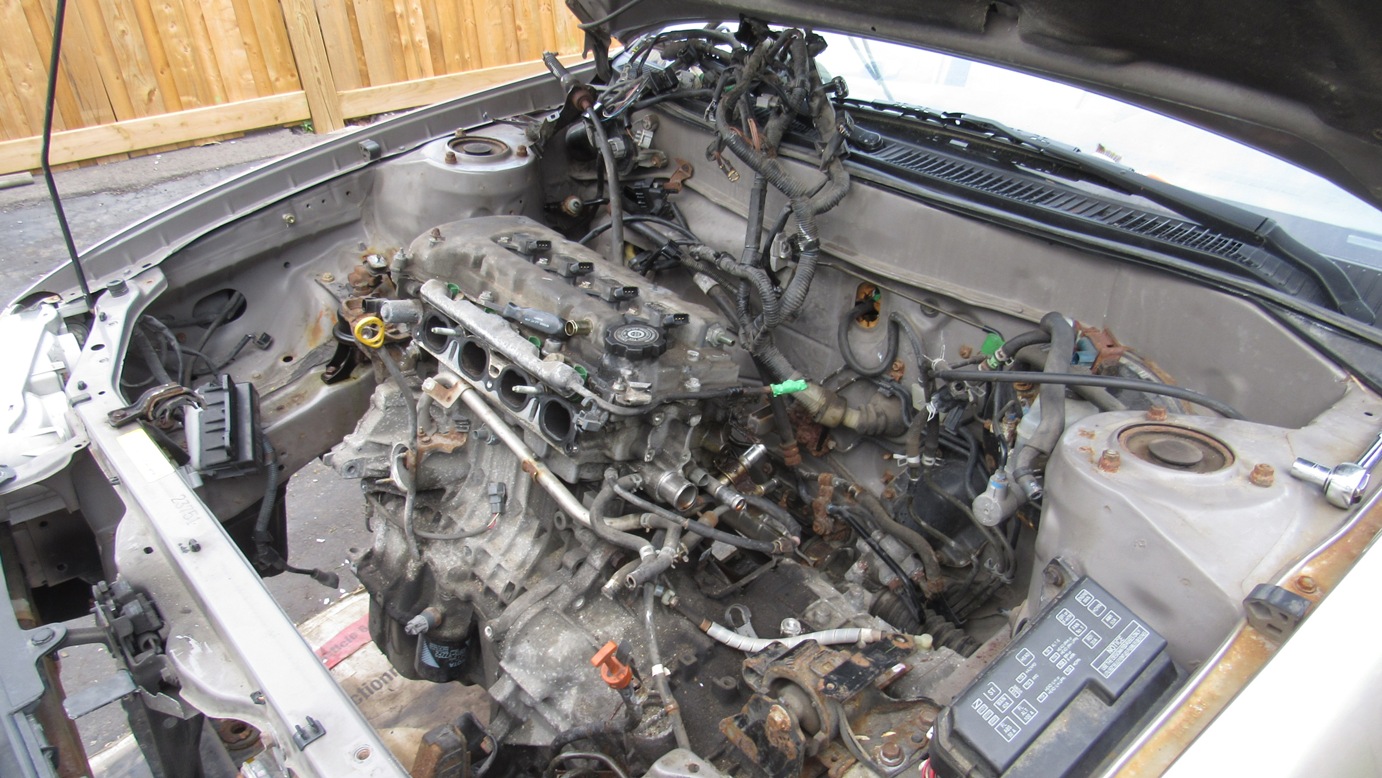

Now the engine bay should look like this with a lot of components removed. Much cleaner!

Now remove:

A/C condenser

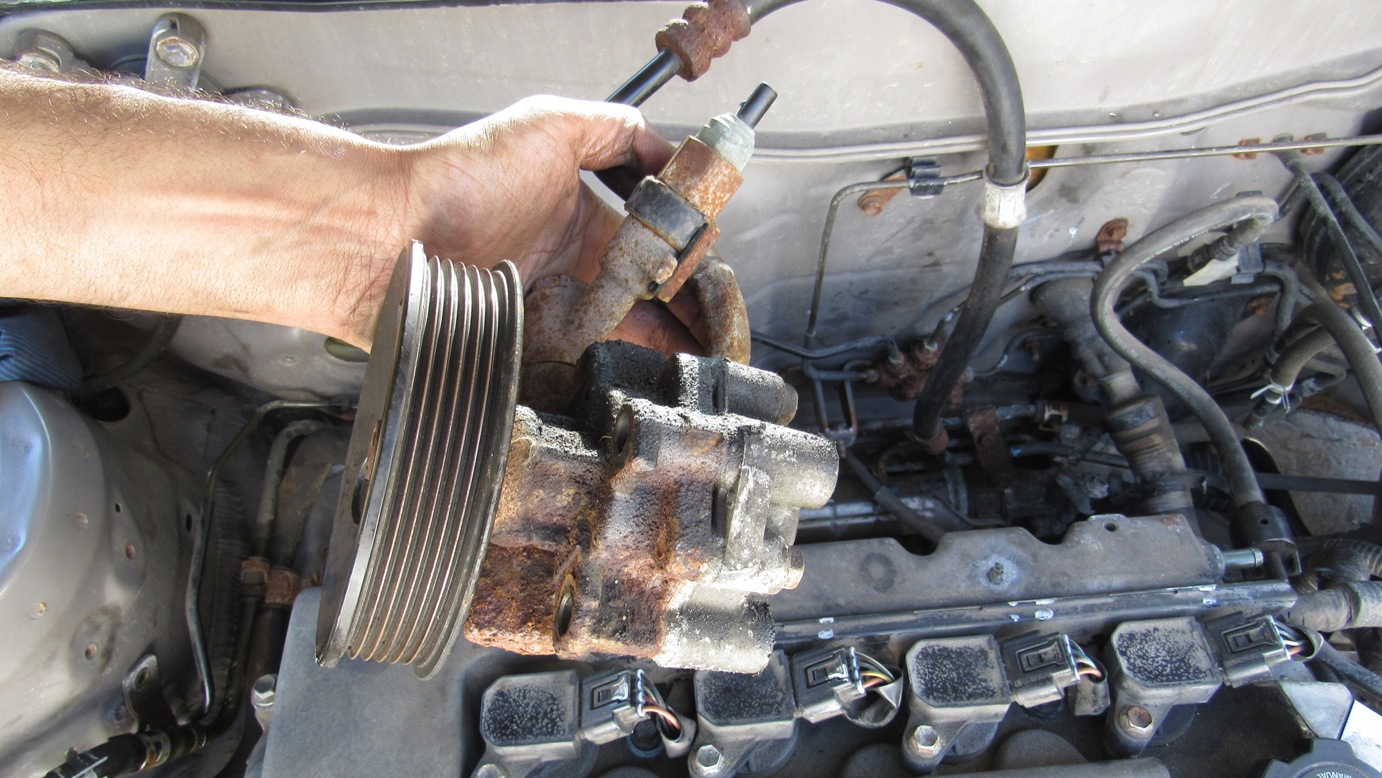

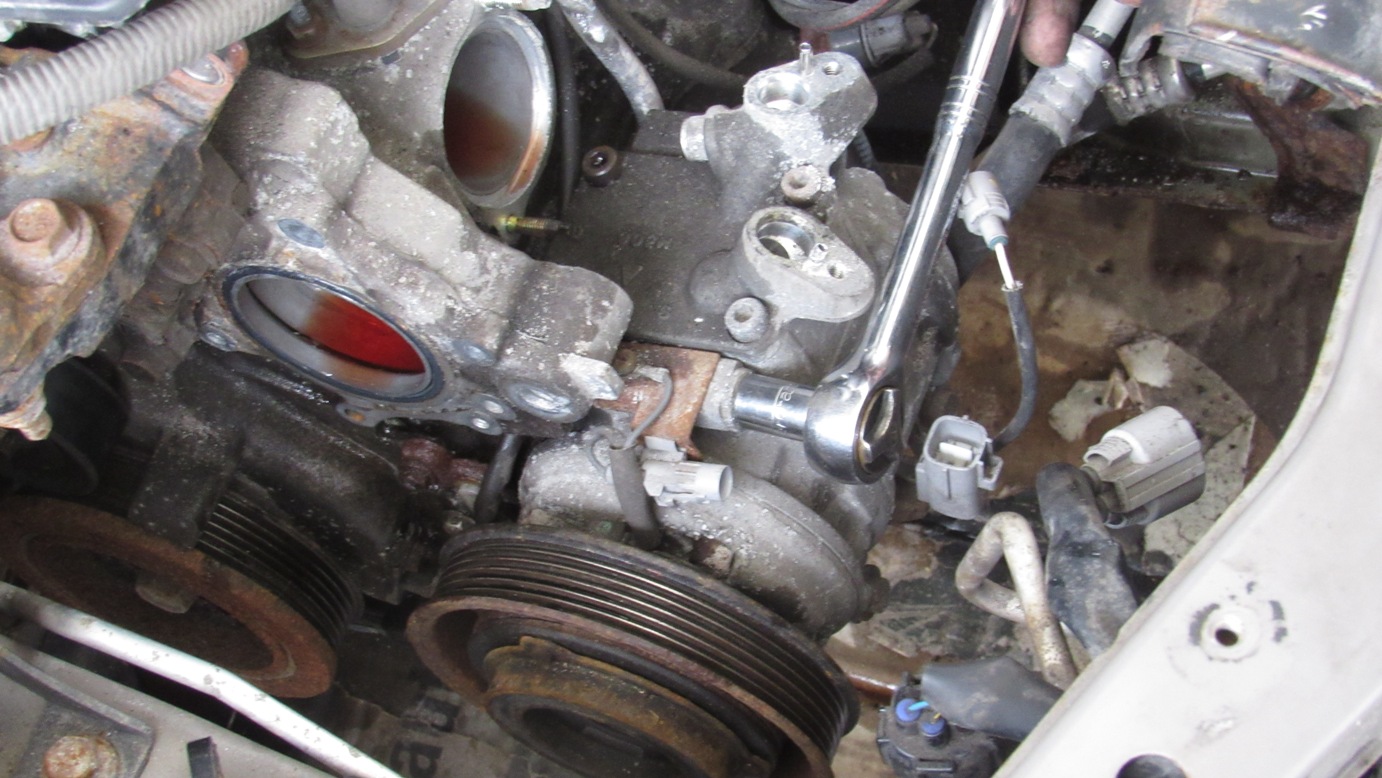

Power steering pump

Starter

Now for the more technical bits, wires, hoses, fluids and axles

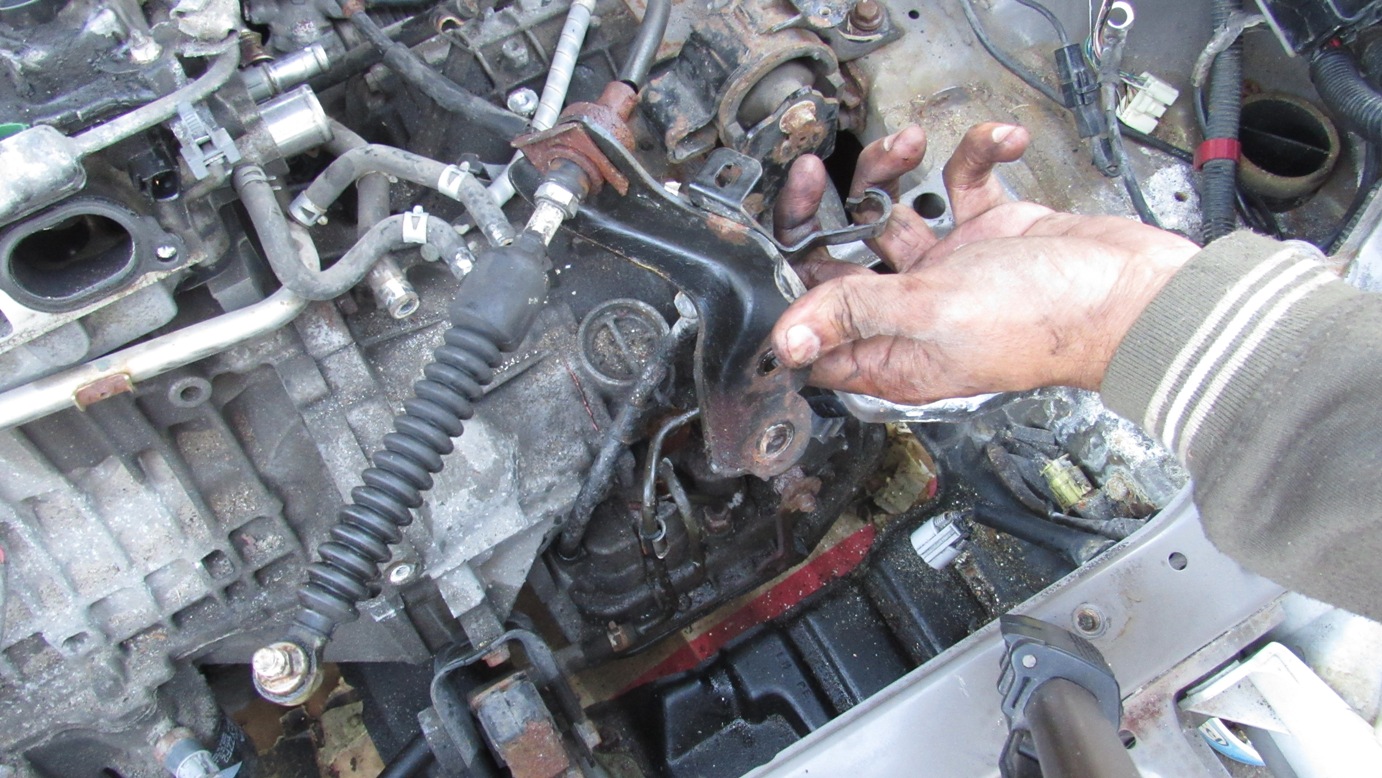

Transmission shift cable and linkage

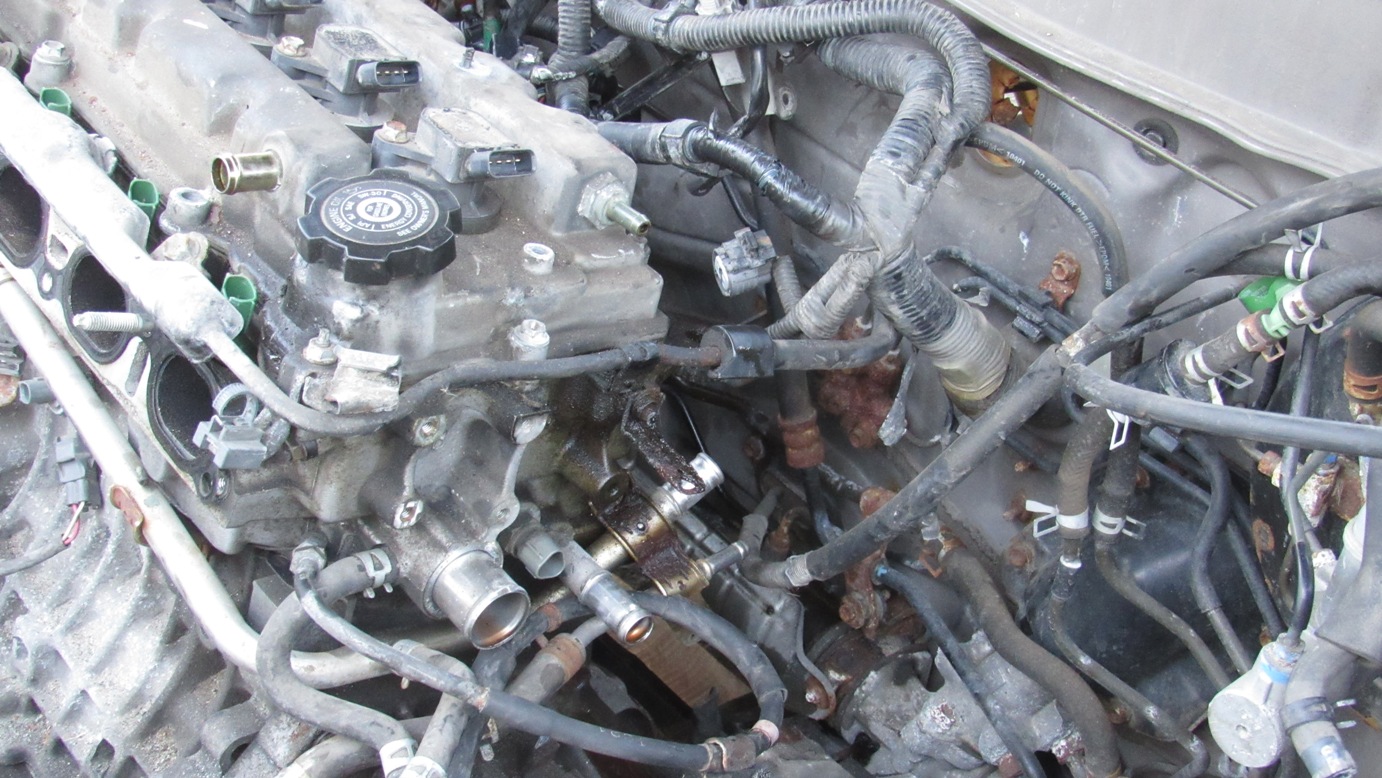

Hoses, fuel lines and wiring harness. Note, the manual says to remove the harness from the ECU inside the car.

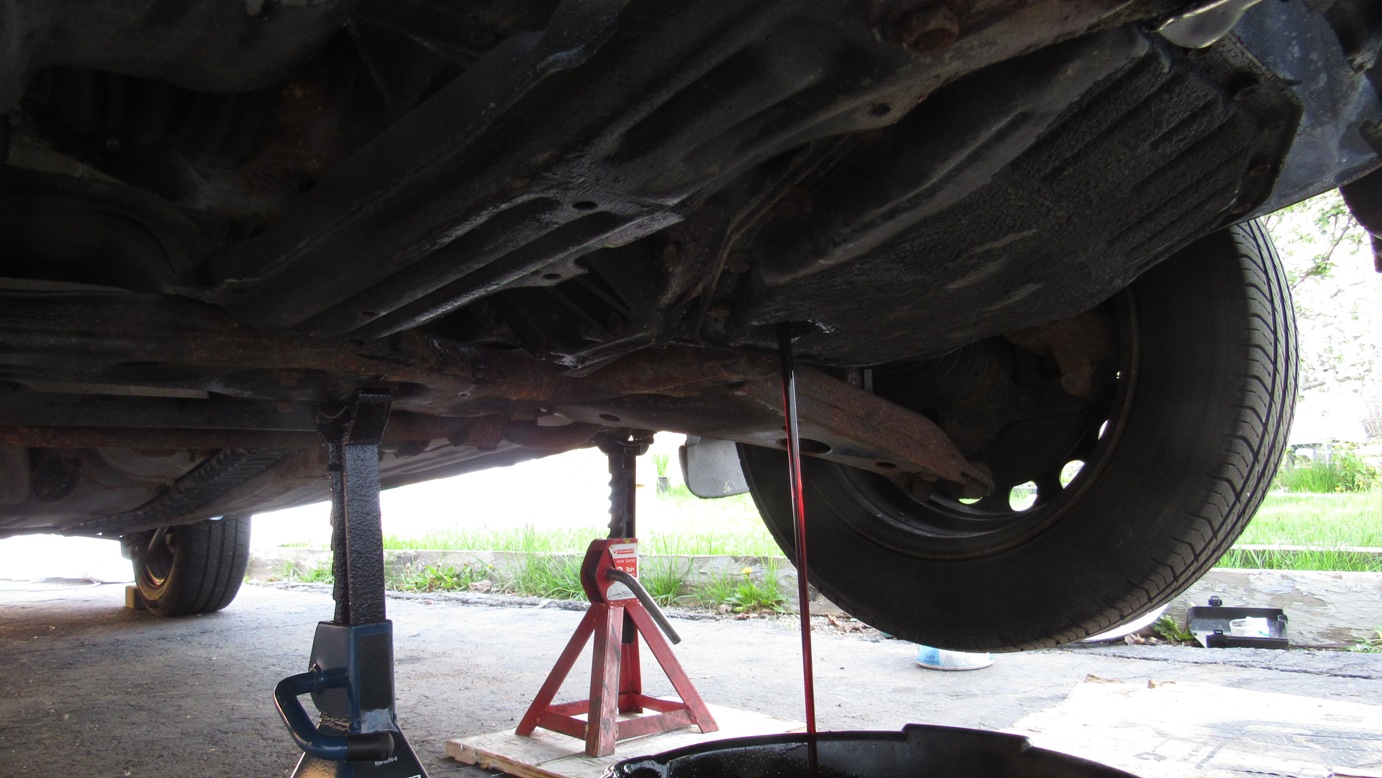

Drain fluids

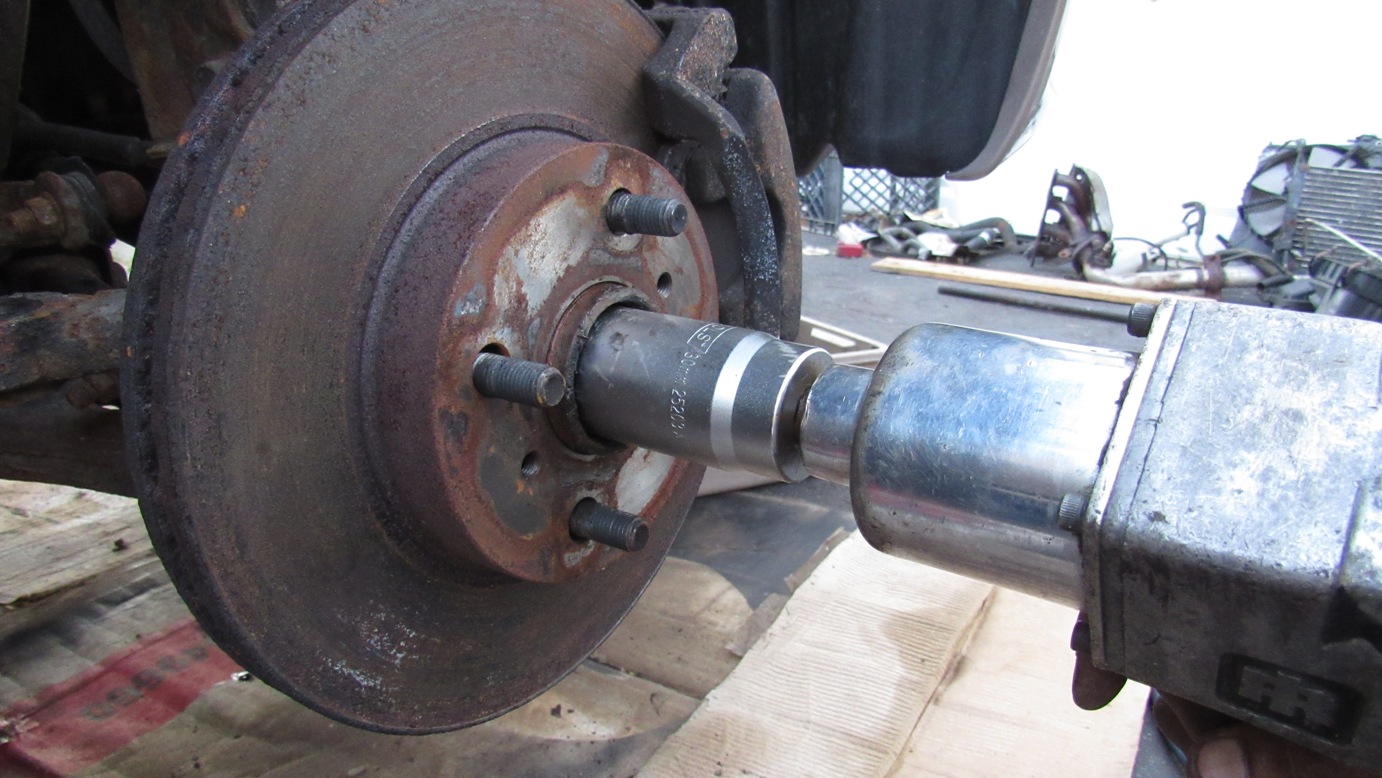

Axle nut

Remove axles

BF pry bar

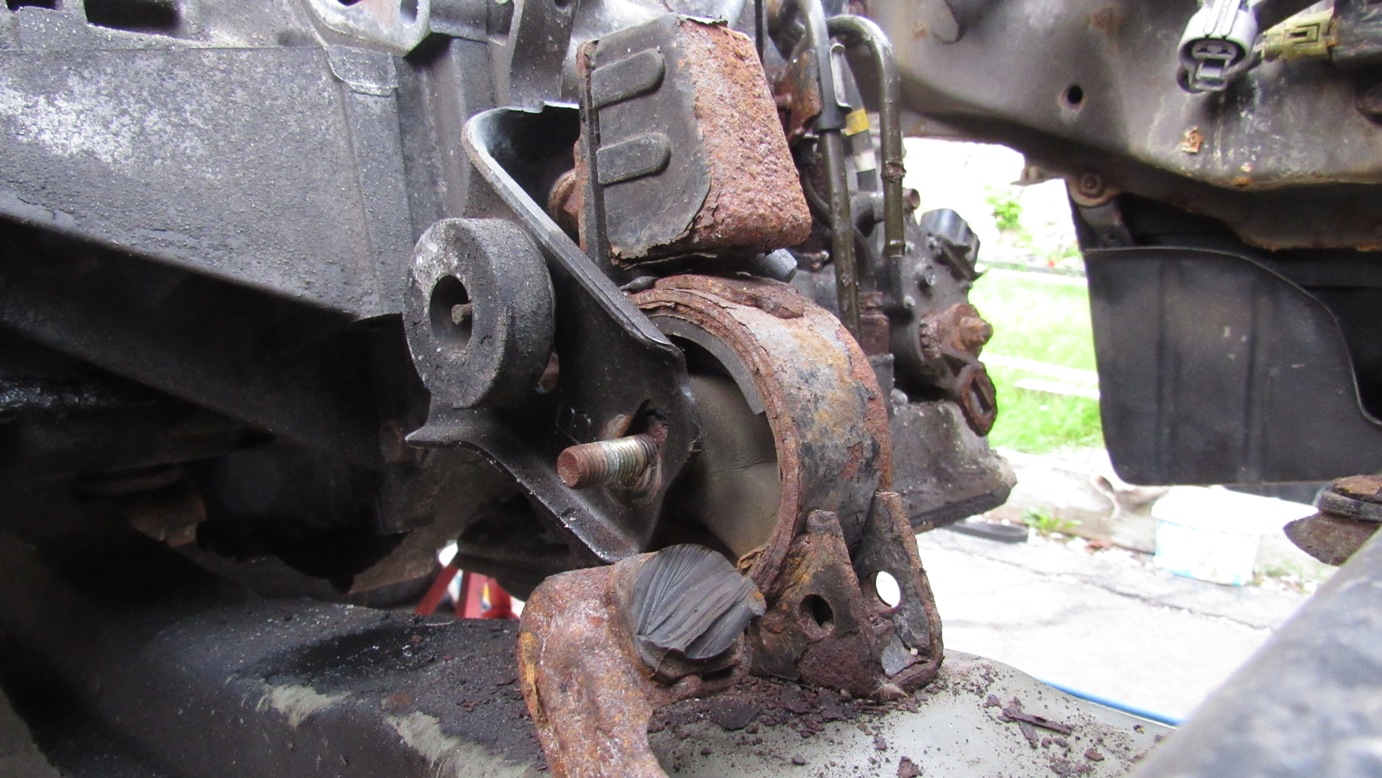

Engine has four engine mounts, front, rear (under the
steering rack), transmission and engine side

Support engine

Rear mount bolts

Front mount bolts. Mine was stuck in the bushing

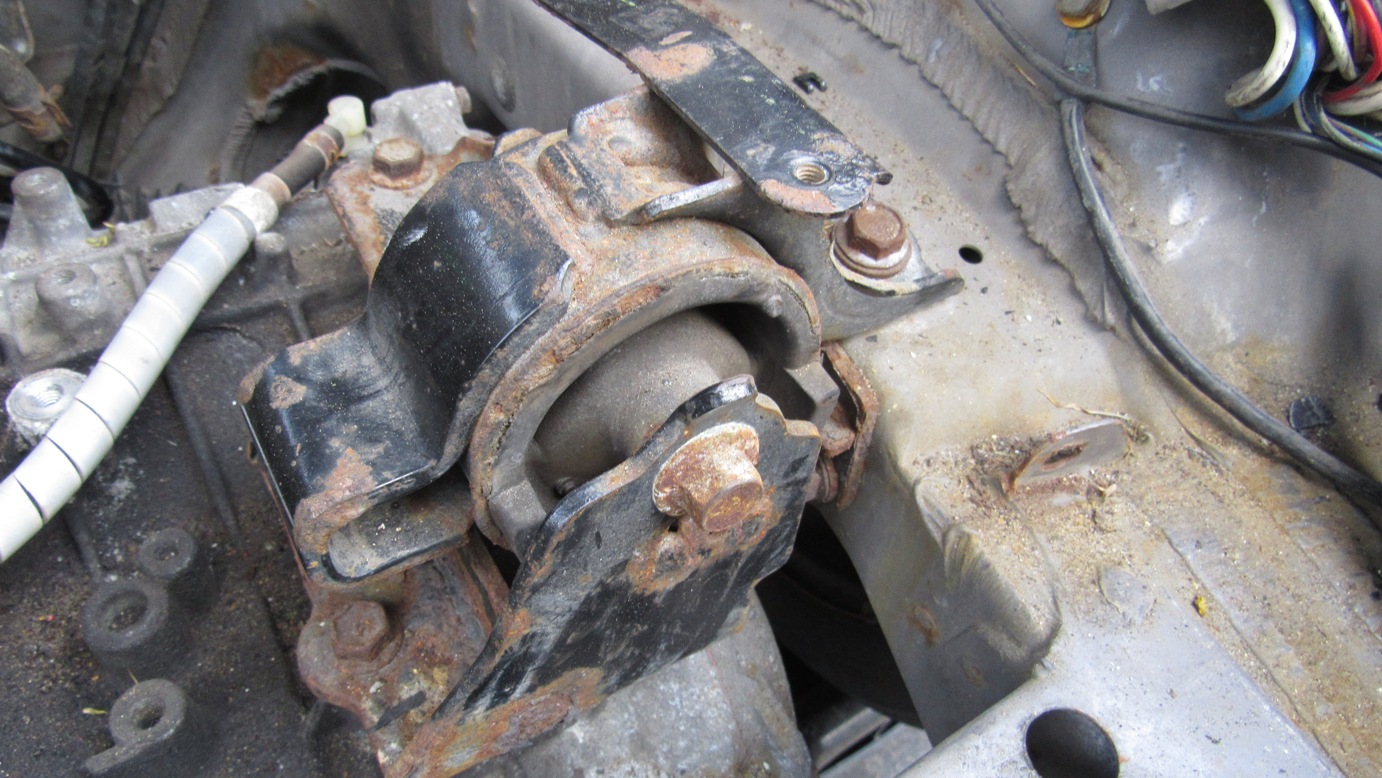

Tranny mount will have to come off the fender to be lifted up

Engine side mount

Now everything is resting on the jack stands below

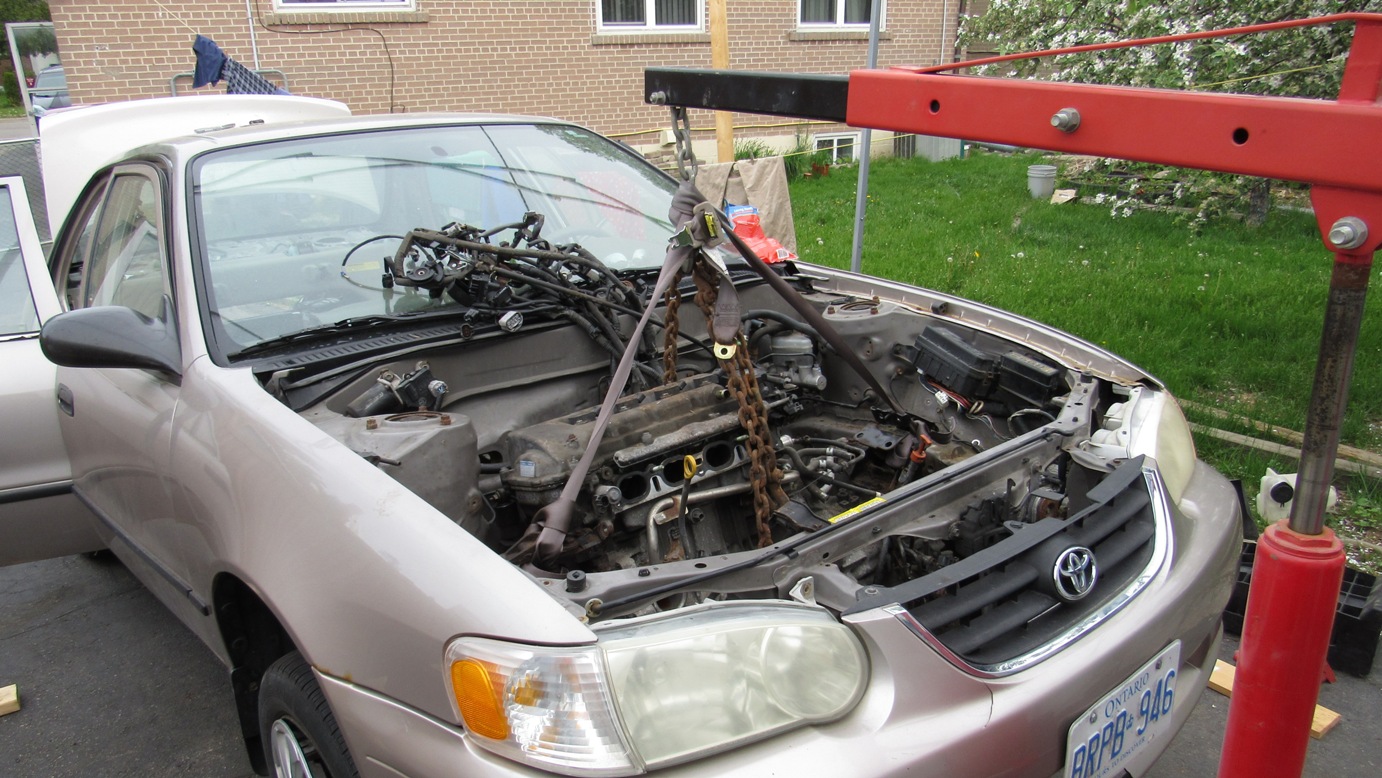

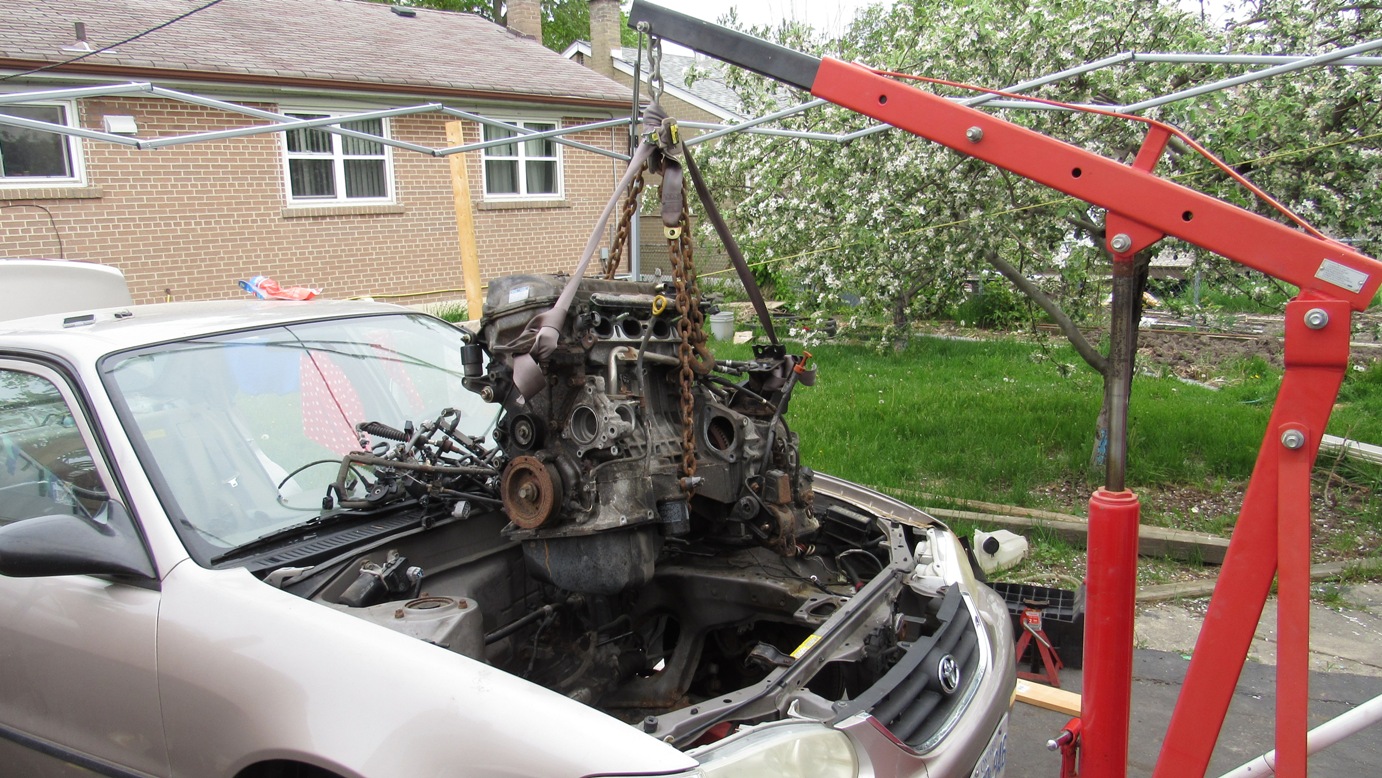

Strap it up. I used a big chain and seat belts to stabilize
it.

Once its high enough, I rolled the car backward

Check out that wheel gap with the weight off the front wheels!

Finally installed the engine on its stand so I can work on it.
