How to Remote Headless Raspberry Pi

by ardhiwahyudhi in Circuits > Raspberry Pi

379 Views, 1 Favorites, 0 Comments

How to Remote Headless Raspberry Pi


Are you confused about how to set up the Raspberry Pi remotely without having a monitor or keyboard? Don't worry! Of course, we can do it.
In this tutorial, I will remotely via SSH my raspberry pi zero with fresh raspbian OS inside.

Supplies

1. Raspberry Pi Zero

2. Adapter + USB Cable

3. 16 GB MicroSD

4. Putty
Download here: Putty's Download Page

5. Advanced IP Scanner
Download here: Advanced IP Scanner's Page

Install Raspbian OS

install os.png

I assume you can install Raspbian OS to SD Card and here I use Raspbian Buster (2019-09-26-raspbian-buster.img)

Adding SSH File and Wi-Fi Configuration

add file.png

1. After installing Raspbian OS has finished, please open the drive named "boot" as shown
2. Add 2 Files (you can download the files below):
- ssh
- wpa_supplicant.conf
3. Edit wpa_supplicant.conf with a text editor like notepad, change the ssid and psk (psk it's mean your Wi-Fi password)
4. Save it!

Downloads

Find the IP Address of Raspberry Pi

ip scan.png

1. Plug in the sd card into Raspberry Pi
2. Turn on raspberry pi
3. Connect your laptop with the same WiFi connection as the Raspberry Pi
4. Open Advanced Ip Scanner
5. Click scan button
6. Copy or Note the IP Address of Raspberry Pi

Login SSH

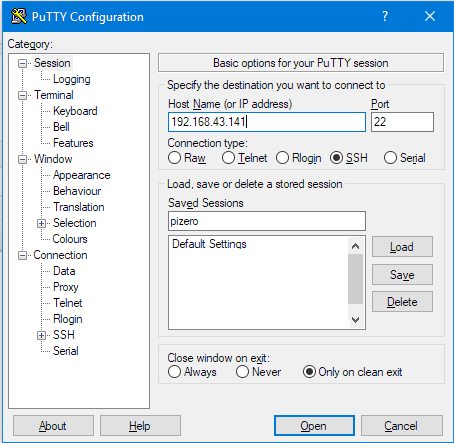

1. Open Putty
2. Enter the Ip address of the raspberry pi
3. Click Open
4. If the putty security alert pop-up appears, select yes

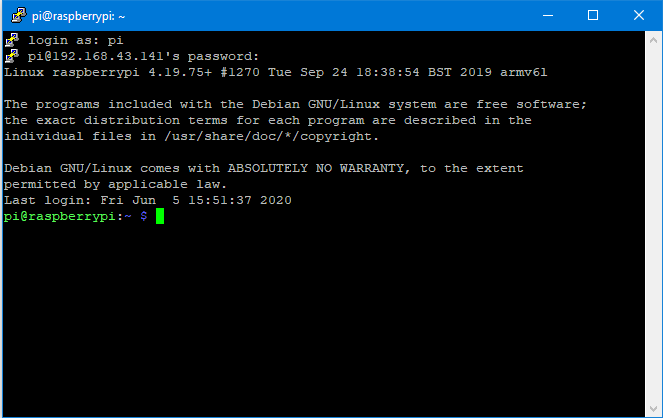

5. Enter login account :
login as : pi
password : raspberry

Congratulations! now you have successfully entered into Raspberry Pi.
