While it may seem to be a very basic skill, being able to read a ruler is the foundation to just about any project you make by hand or even with a Shopbot! Reading a metric ruler is pretty simple- no fractions, everything converts nicely in factors of 10, and its pretty straight forward. The English system, however, can be kind of confusing- fractions, units, and symbols. This instructable will help you understand how to use a "standard" ruler better; specifically being able to read fractions of an inch or "Drawing the Inch" as I call it with my students.
The cool thing about knowing how to label the fractions inside of an inch is that you can use it as a calculator to reduce fractions! Follow along and I'll show you how. This instructable may be a little hard to follow if you don't read it through all the way to the end before trying it out.
Downloads
Start Your Inches!
Gather supplies. See Picture 1. You need:
Paper
Pencil or Pen
That's it!
A few definitions that might help you understand this instructable a little better:
Numerator: The number above the line in a common fraction
Denominator: The number below the line in a common fraction
The easiest way I have found to explain an inch is to draw it out, starting with a mark representing zero and a mark representing 1. These DO NOT HAVE TO BE ACCURATE!!! I find it is a lot easier if you make your "inch" BIG to give you more room to write in the fractions. SO:
On the paper, Draw a rectangle as shown in Picture 2 and 3. This is going to be our "ruler". Remember to make it big! On the ruler, make a mark, also as shown in Pictures 2, 3, and 4. This will be out 1 inch mark.
Paper
Pencil or Pen
That's it!
A few definitions that might help you understand this instructable a little better:
Numerator: The number above the line in a common fraction
Denominator: The number below the line in a common fraction
The easiest way I have found to explain an inch is to draw it out, starting with a mark representing zero and a mark representing 1. These DO NOT HAVE TO BE ACCURATE!!! I find it is a lot easier if you make your "inch" BIG to give you more room to write in the fractions. SO:
On the paper, Draw a rectangle as shown in Picture 2 and 3. This is going to be our "ruler". Remember to make it big! On the ruler, make a mark, also as shown in Pictures 2, 3, and 4. This will be out 1 inch mark.
Cut & Double- Halves
Now that you have your inch started, we can "Cut and Double". Inside of the inch mark you have drawn, put another mark in the middle, cutting the inch in half as shown in Picture 1. Most people understand that this is a half an inch, or 1/2, as shown in Picture 2 and 3.
To explain this further, lets talk about the "Cut and Double" for a minute. When we marked the 1/2 inch on our ruler, we CUT the inch in half, and DOUBLED the denominator of the previous fraction. See Picture 2. For example, we cut the inch in half and made a mark. Then we took the previous fraction- ONE INCH which converted to a fraction with a numerator and denominator is 1/1- and DOUBLED the denominator. 2 x 1 = 2, so our new fraction will be 1/2. See Pictures 3 and 4. Confused? Maybe a little... Lets do it one more time in the next step and see if we start to catch on.
To explain this further, lets talk about the "Cut and Double" for a minute. When we marked the 1/2 inch on our ruler, we CUT the inch in half, and DOUBLED the denominator of the previous fraction. See Picture 2. For example, we cut the inch in half and made a mark. Then we took the previous fraction- ONE INCH which converted to a fraction with a numerator and denominator is 1/1- and DOUBLED the denominator. 2 x 1 = 2, so our new fraction will be 1/2. See Pictures 3 and 4. Confused? Maybe a little... Lets do it one more time in the next step and see if we start to catch on.
Cut & Double- Quarters
If you understood the last step, the rest is simple. Just repeat it as many times as you want!
CUT again! For each section of your inch, cut it in half as shown in Picture 1. Notice there are TWO marks now instead of one, because we have TWO sections- one on each side of the 1/2 inch mark.
DOUBLE again! The denominator of the last fraction is 2, so 2 x 2 = 4 as shown in Picture 2. That means our new fraction is going to be 1/4 as shown in Picture 3.
Here's where it gets a little different. There are TWO unlabeled marks on the ruler. We are going to count them off in quarters- the first mark being 1/4, the second mark would be 2/4, but it's already labeled as 1/2, and the 3rd mark will be labeled as 3/4. Count by 1/4'ths- 1/4, 2/4, 3/4, 4/4. See Picture 4.
CUT again! For each section of your inch, cut it in half as shown in Picture 1. Notice there are TWO marks now instead of one, because we have TWO sections- one on each side of the 1/2 inch mark.
DOUBLE again! The denominator of the last fraction is 2, so 2 x 2 = 4 as shown in Picture 2. That means our new fraction is going to be 1/4 as shown in Picture 3.
Here's where it gets a little different. There are TWO unlabeled marks on the ruler. We are going to count them off in quarters- the first mark being 1/4, the second mark would be 2/4, but it's already labeled as 1/2, and the 3rd mark will be labeled as 3/4. Count by 1/4'ths- 1/4, 2/4, 3/4, 4/4. See Picture 4.
Cut & Double- Eighths
CUT again! For each section of your inch, cut it in half as shown in Picture 1. Notice there are FOUR marks now instead of 2, because we have FOUR sections- one on each side of the 1/4 inch marks.
DOUBLE again! The denominator of the last fraction is 4, so 2 x 4 = 8 as shown in Picture 2. That means our new fraction is going to be 1/8 as shown in Picture 3.

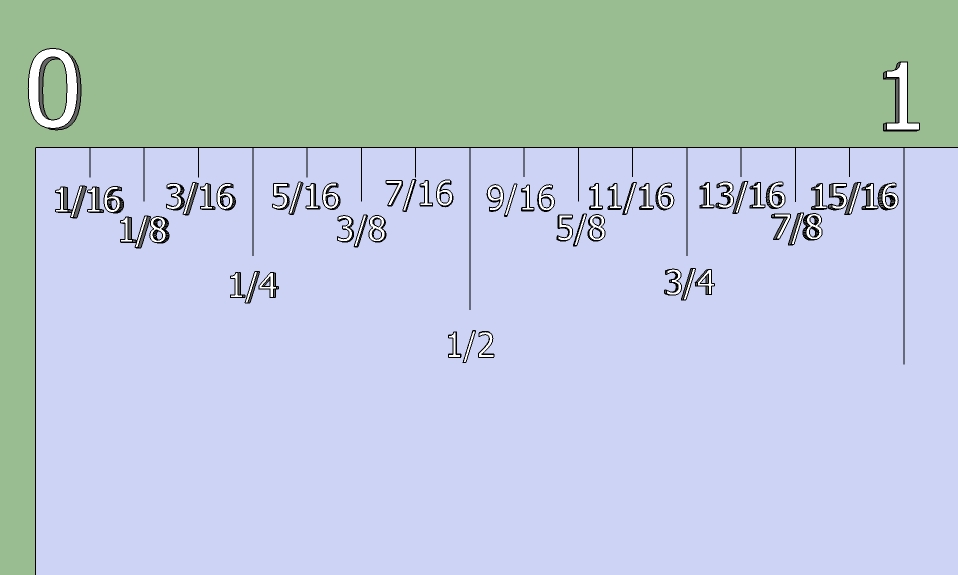

Fill in the missing fractions by counting each mark as an eighth- 1/8, 2/8, 3/8, 4/8, 5/8, 6/8, 7/8, and 8/8. You will ONLY LABEL THE FRACTIONS WITH AN ODD NUMERATOR! See Picture 4.
DOUBLE again! The denominator of the last fraction is 4, so 2 x 4 = 8 as shown in Picture 2. That means our new fraction is going to be 1/8 as shown in Picture 3.
Fill in the missing fractions by counting each mark as an eighth- 1/8, 2/8, 3/8, 4/8, 5/8, 6/8, 7/8, and 8/8. You will ONLY LABEL THE FRACTIONS WITH AN ODD NUMERATOR! See Picture 4.
Cut & Double- Sixteenths
CUT again! For each section of your inch, cut it in half as shown in Picture 1. Notice there are EIGHT marks now instead of 4, because we have EIGHT sections- one on each side of the 1/8 inch marks.
DOUBLE again! The denominator of the last fraction is 8, so 2 x 8 = 16 as shown in Picture 2. That means our new fraction is going to be 1/16 as shown in Picture 3.
Fill in the missing fractions by counting each mark as an eighth- 1/16, 2/16, 3/16, 4/16, 5/16, 6/16, 7/16, 8/16, 9/16, 10/16, 11/16, 12/16, 13/16, 14/16, 15/16, and 16/16. You will ONLY LABEL THE FRACTIONS WITH AN ODD NUMERATOR! See Picture 4.
DOUBLE again! The denominator of the last fraction is 8, so 2 x 8 = 16 as shown in Picture 2. That means our new fraction is going to be 1/16 as shown in Picture 3.
Fill in the missing fractions by counting each mark as an eighth- 1/16, 2/16, 3/16, 4/16, 5/16, 6/16, 7/16, 8/16, 9/16, 10/16, 11/16, 12/16, 13/16, 14/16, 15/16, and 16/16. You will ONLY LABEL THE FRACTIONS WITH AN ODD NUMERATOR! See Picture 4.
Tips, Tricks, and Continuing On.

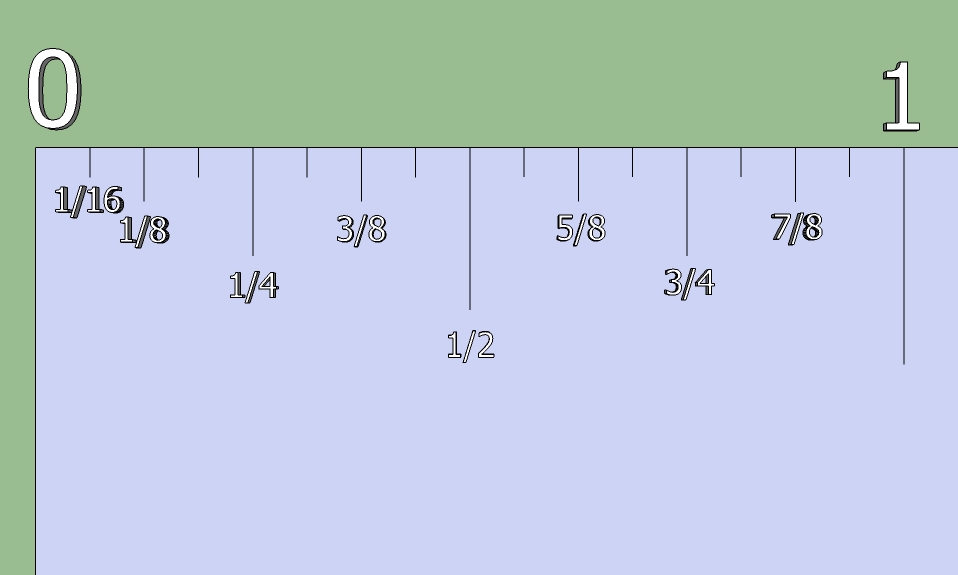

You've Drawn your Inch! Here's what your completed Inch should look like- see Pictures 1 and 4. Now lets show you a couple of patterns and give you some tips and tricks!
Trick 1
Take a minute and look at the fractions. Do you see any patterns? There are two that stand out that can come in handy to check your work to make sure you drew your inch correctly...
1. Look at picture one again. What do you notice about ALL of the numerators?! THEY ARE ALL ODD. If you have an even number as a numerator, it needs to be reduced or you haven't got it in the right spot!

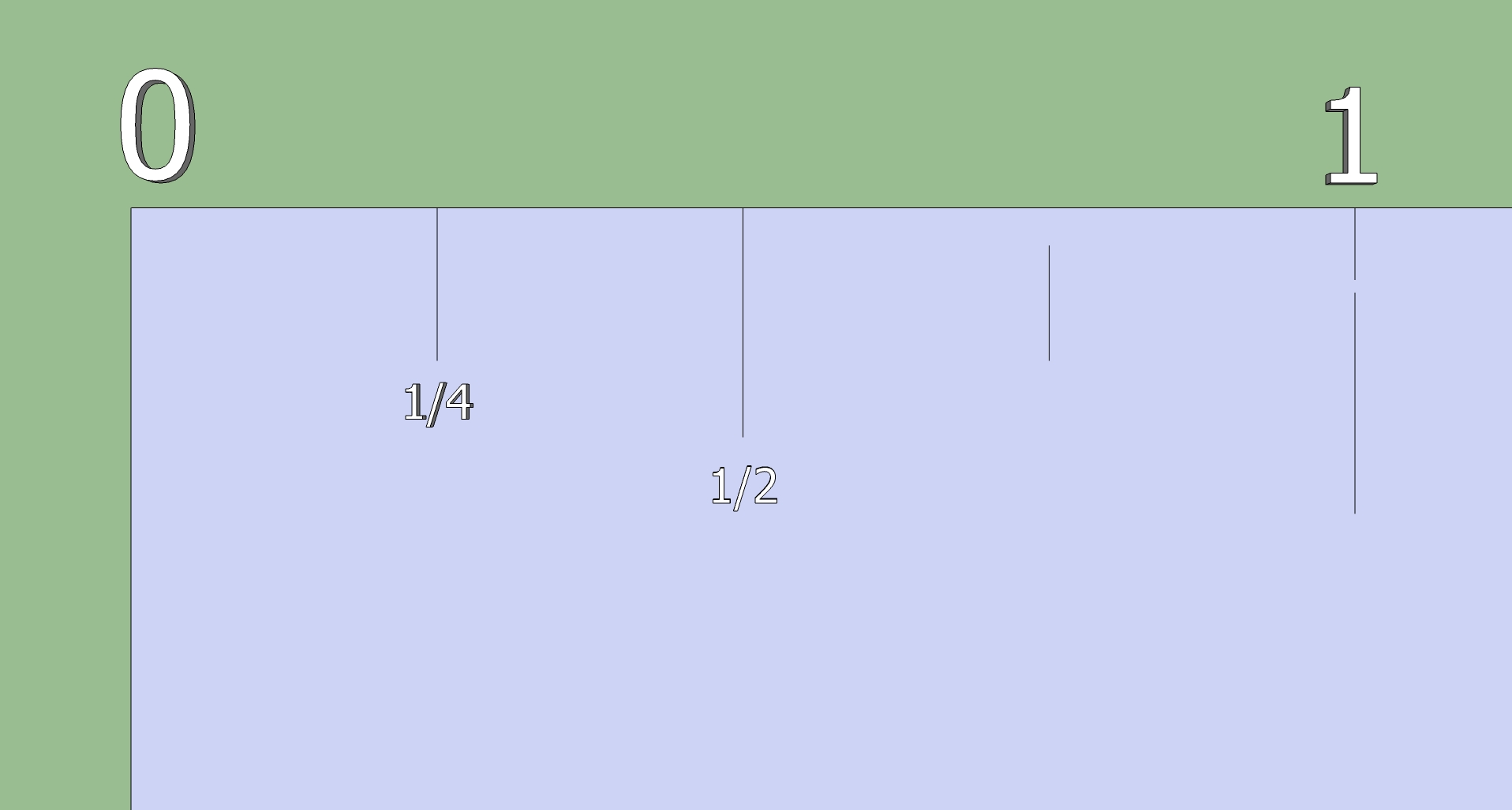

2. Look at the last fraction in each set as shown in Picture 2. Notice that in each fraction, the numerator is ONE LESS than the denominator!
Trick 2
You can use your completed inch as a calculator for reducing fractions. If you were to write ALL of the fractions down every time you did a set, your Inch would look like Picture 3. Each mark on the ruler that ends up with multiple fractions can be reduced to the top most fraction in the set!
Trick 3
Continuing on! You can continue the Cut and Double forever! Each time just split the last section in half and double the denominator of the last fraction. After 16ths, you would have 32nds, 64ths, 128ths, 256ths, 512ths, 1024ths, 2048ths, and on and on and on... But it does get a little hard to draw. :)
I'm sure there are a lot more cool things you can do with a ruler, and I'd love to hear about them! In the meantime, the best way to get good at this is to practice practice practice! After doing this about 20 times, my students can just about do it in their sleep- and their ability to read a ruler shows in their metals projects.
Once you have your Inch down, you can try some of my other projects. Making a Perfect Paper Cube is great practice at reading and using a ruler! See it here: https://www.instructables.com/id/Perfect-Paper-Cube-Laying-out-a-project-using-pa/
