How to Put Light to Epilog Mini 18, 24 and Helix
by emills05 in Workshop > Laser Cutting
2036 Views, 11 Favorites, 0 Comments
How to Put Light to Epilog Mini 18, 24 and Helix
![YDXJ5517.jpg](/proxy/?url=https://content.instructables.com/FZ3/0OJ2/ISCBCSSL/FZ30OJ2ISCBCSSL.jpg&filename=YDXJ5517.jpg)
This is a tutorial to put light to Epilog Mini 18, 24 and Helix.
Materials
![YDXJ5513.jpg](/proxy/?url=https://content.instructables.com/FNY/KE94/ISCBCRFQ/FNYKE94ISCBCRFQ.jpg&filename=YDXJ5513.jpg)
![YDXJ5515.jpg](/proxy/?url=https://content.instructables.com/F5G/WXYA/ISCBCS7M/F5GWXYAISCBCS7M.jpg&filename=YDXJ5515.jpg)
The materials are:
- Epilog Mini 18, 24 and Helix.
- Tape two faces.
- Circuit .
- Led strips 17ยดยด.
- Battery.
Connections
![YDXJ5514.jpg](/proxy/?url=https://content.instructables.com/F84/4B4B/ISCBCRZ8/F844B4BISCBCRZ8.jpg&filename=YDXJ5514.jpg)
![YDXJ5516.jpg](/proxy/?url=https://content.instructables.com/FK5/ZHL3/ISCBCSJ2/FK5ZHL3ISCBCSJ2.jpg&filename=YDXJ5516.jpg)

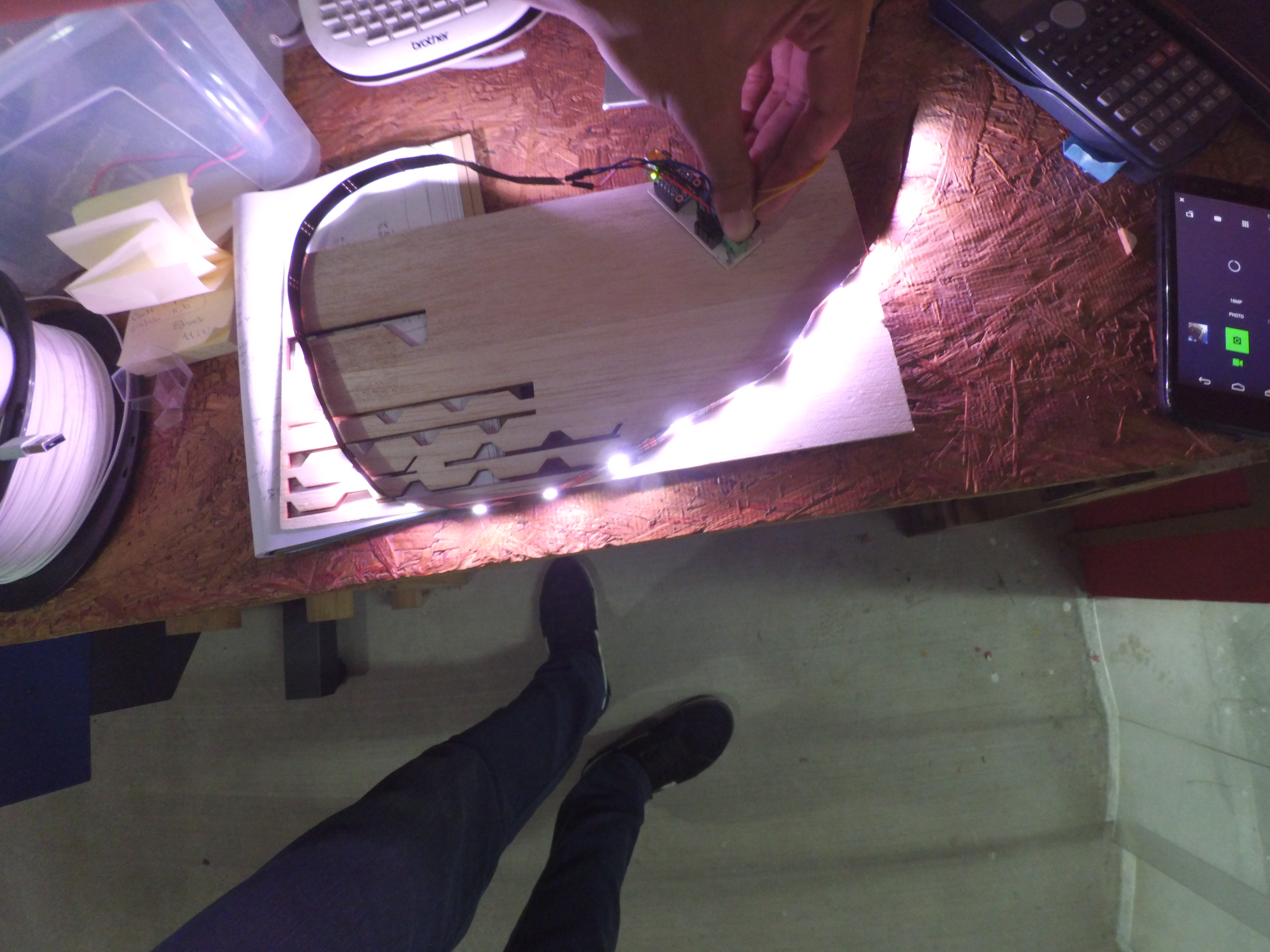

We proceed to make the connections to see if the circuits is fine.
*In case you cant make a circuit , you also can use arduino to program the strips , but i recomend to make a circuit.*
Box
![YDXJ5517.jpg](/proxy/?url=https://content.instructables.com/FB4/KCMV/ISCBD271/FB4KCMVISCBD271.jpg&filename=YDXJ5517.jpg)
Now mount the box , if you dont have a box just use a box generator i will left the link below.
http://www.makercase.com/
Position
![YDXJ5519.jpg](/proxy/?url=https://content.instructables.com/FLB/JKUL/ISCBCSW4/FLBJKULISCBCSW4.jpg&filename=YDXJ5519.jpg)
![YDXJ5520.jpg](/proxy/?url=https://content.instructables.com/FUB/N4Y6/ISCBCT0H/FUBN4Y6ISCBCT0H.jpg&filename=YDXJ5520.jpg)

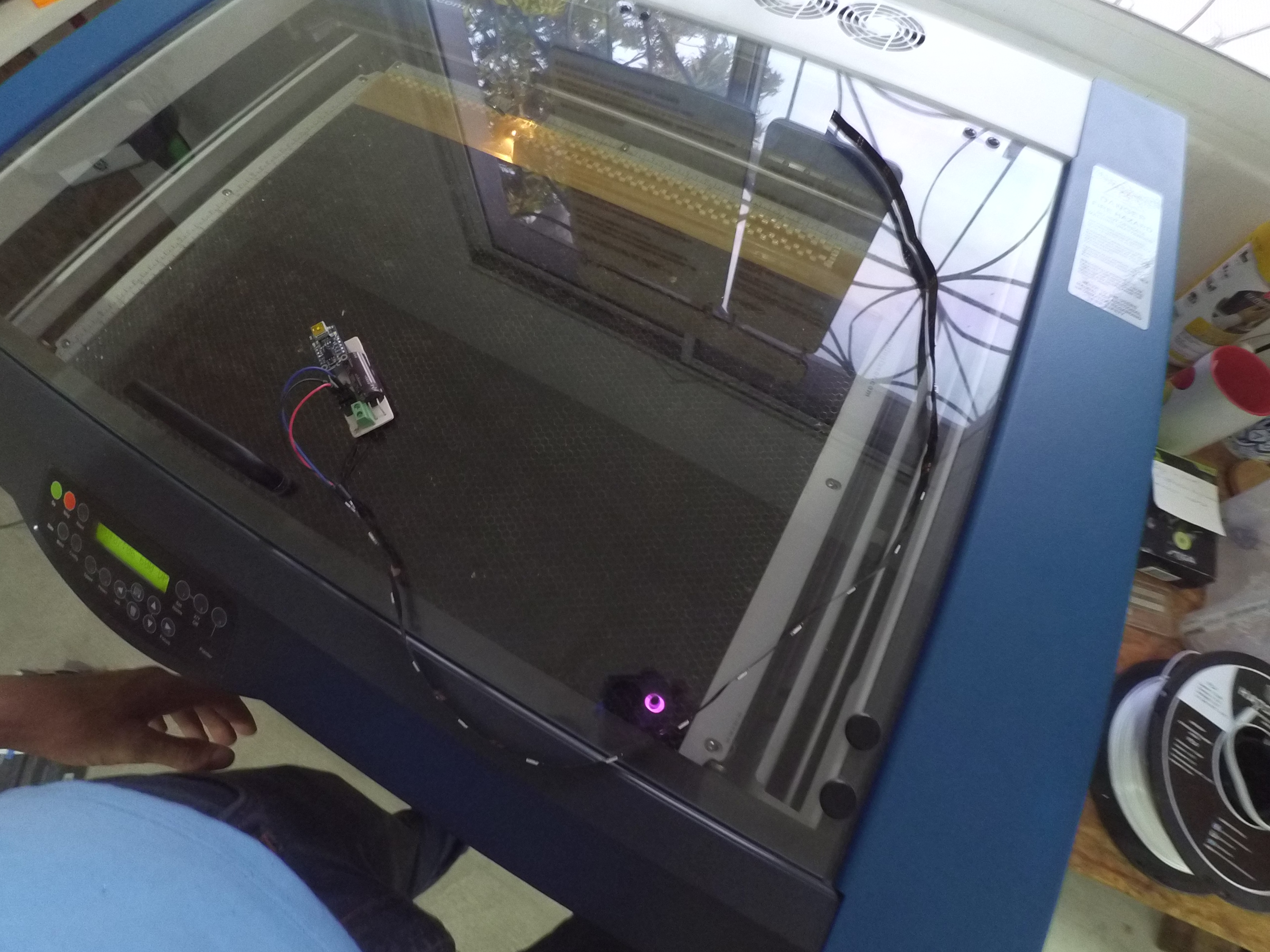

Now we put the circuit and the led strip were we want that they be.
I put the circuit just for demostration.
Ready
![YDXJ5521.jpg](/proxy/?url=https://content.instructables.com/F1X/KN63/ISCBD4OL/F1XKN63ISCBD4OL.jpg&filename=YDXJ5521.jpg)
Now is illuminated the Epilog.
