How to On/Off Room Light With TV Remote Control Very Easy Way

Hello, In this project I will teach you how to make your own remote control switch you need couple of components and your Tv Remote want to know more watch the video bellow.

The video gives you all information you need to recreate the circuit. In the next steps though, I will present you some additional information.

Here you can find a parts list with example seller:

Amazon.in:

TSOP1738 38Khz Infrared Receiver: http://amzn.to/2mAtZzM

CD4017: http://amzn.to/2mB0AW6

D313 Or 1880 Transistor: Find From Your Nearby Electronics Shop

BC557 Transistor: http://amzn.to/2B2wBfh

100uf capacitor: http://amzn.to/2EJEnNk

470uf capacitor: http://amzn.to/2EJEnNk

104 capacitors: http://amzn.to/2B1Ipyj

1k Resistor: Find From Your Nearby Electronics Shop

7805 Voltage Regulator: http://amzn.to/2r7MMZ0

7812 Voltage Regulator: http://amzn.to/2DfjY5D

12v Relay: Find From Your Nearby Electronics Shop

12-0-12 Transformer: http://amzn.to/2B1V4kG

4007 Diode: http://amzn.to/2B2heTK

Led: http://amzn.to/2B0WUm5

Take your own tv remote or any kind of infrared remote like a DVD player remote, DTH remote, Ac Remote etc.

I Have Tv Remote So I Use It.

This Is the overall full Circuit I am also adding only power supply circuit on next step 5.

This Circuit is used to power the circuit and relay

This Is The final result, you can see

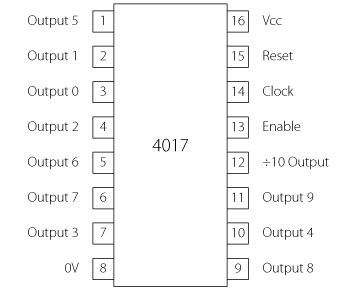

Here I mentioned all important component pin configurations.
