How to Make the Classic Inverter 110v or 220v at Home

Hello friends i will present today how to make a simple inverter called "the classic inverter"

that everybody can do it at home with some components that are cheap easy to find

and no special skills needed.

This is the most simple inverter DIY project that you can make without any skills in electronics so easy and cheap but it comes with a price you have to buy some components and wire them together and this is it you are good to go just prepper your battery and led bulbs.

Parts list:

The oscillator: http://amzn.to/2qXBUKY
The transformer: http://amzn.to/2qsipqt

Power bank: http://amzn.to/2qkWYwv

2n3055 transistor: http://amzn.to/2r7bkiX

An electronic oscillator is an electronic circuit that produces a periodic, oscillating electronic signal, often a sine wave or a square wave.[1][2] Oscillators convert direct current (DC) from a power supply to an alternating current
(AC) signal. They are widely used in many electronic devices. Common examples of signals generated by oscillators include signals broadcast by radio and television transmitters, clock signals that regulate computers and quartz clocks, and the sounds produced by electronic beepers and video games.[1]

In my opinion, the hart of an inverter is the oscillator if you got this part right you are good to go that way

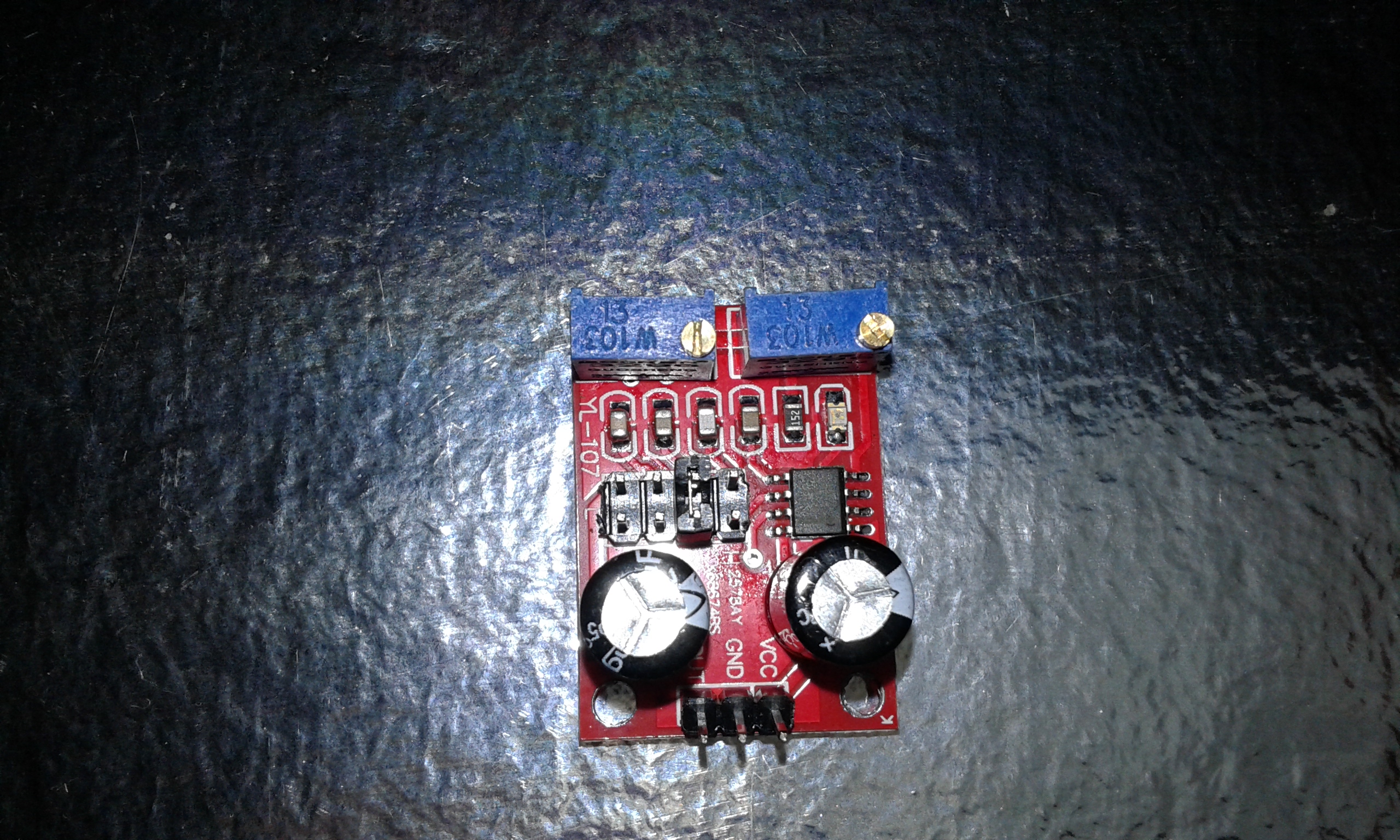

i choose this already made oscillator

http://amzn.to/2qXBUKY is not expensive and save you lots of research parts testing and so on

On the link, you will find all the details.

It has 3 pins VCC, GND,OUT and some jumper witch i connect in the second position

VCC is the + terminal of the power supply in my case was just 5v

GND is the - terminal

Out is the pulsed 5v signal

After this step, you will connect to the transistor.

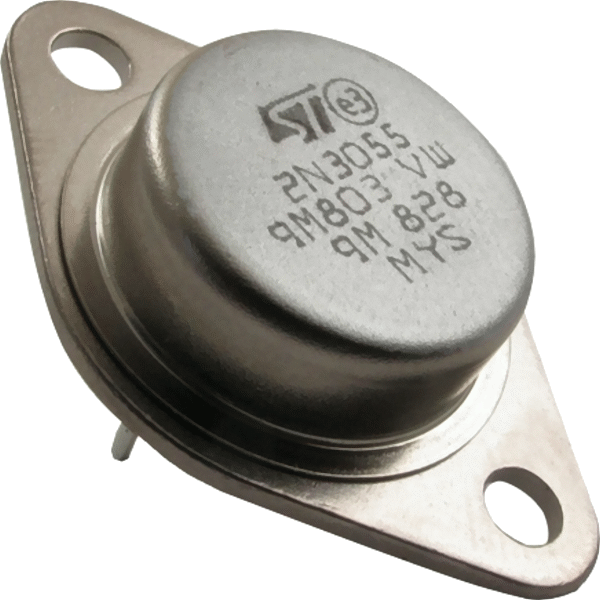

The 2N3055 is a silicon NPN power transistor intended for general purpose applications. It was introduced in the early 1960s by RCA using a homotaxial power transistor process, transitioned to an epitaxial base in the mid-1970s. Its numbering follows the JEDEC standard It is a transistor type of enduring popularity.

Packaged in a TO-3 case style, it is a 15 amp, 60 volts (or more, see below), 115-watt power transistor with a β (forward current gain) of 20 to 70 at a collector current of 4 A (this may be 100 to 200 when testing using a multimeter. It often has a transition frequency
of around 3.0 MHz and 6 MHz is typical for the 2N3055A; at this frequency the calculated current gain (beta) drops to 1, indicating the transistor can no longer provide useful amplification in common emitter configuration. The frequency at which gain begins to drop off may be much lower, see below.

Ok so you have the transistor 2n3055

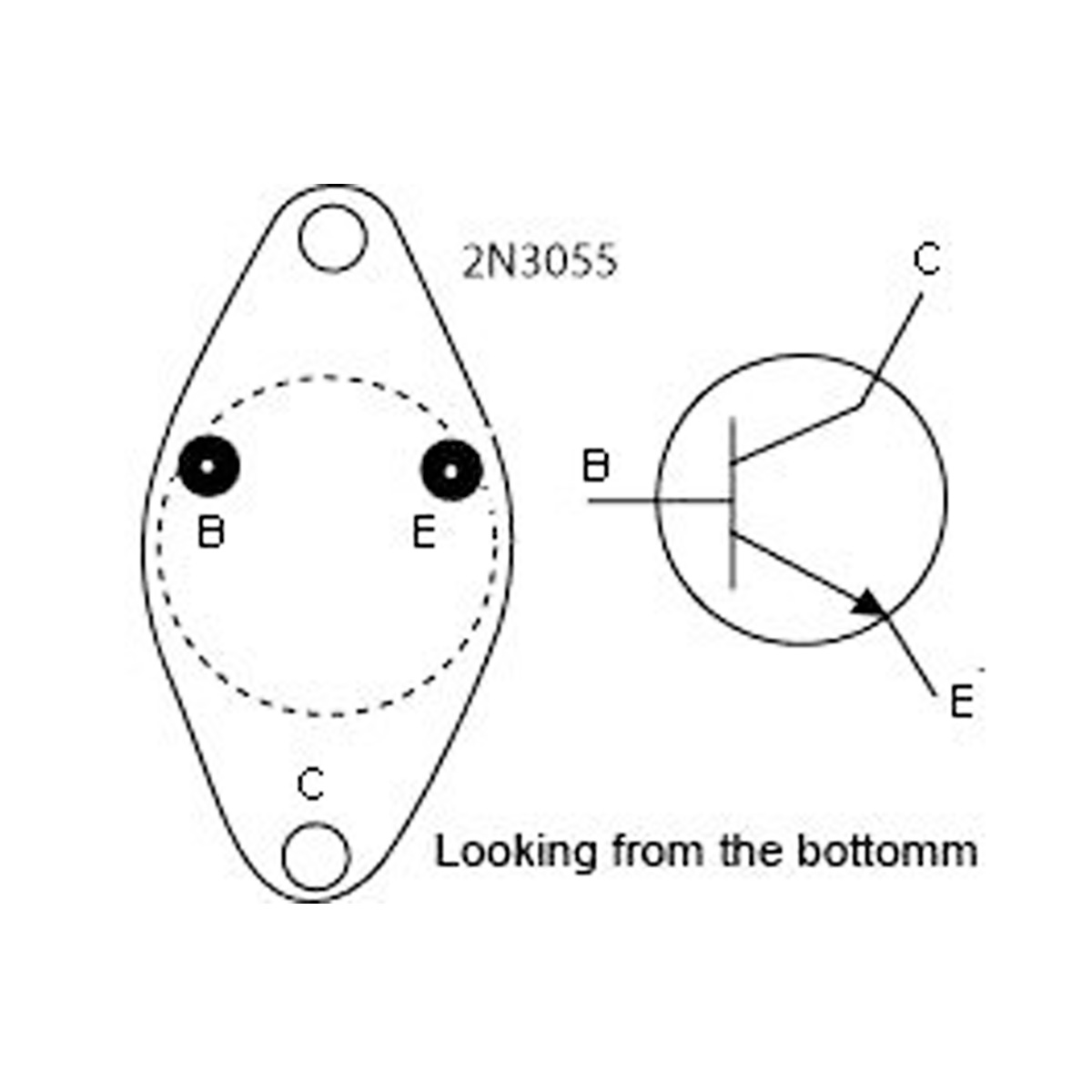

http://amzn.to/2r7bkiX now you have to connect it as a transistor current limiter picture number 3

A transformer is an electrical device that transfers electrical energy between two or more circuits through electromagnetic induction. A varying current in one coil of the transformer produces a varying magnetic field, which in turn induces a voltage
in a second coil. Power can be transferred between the two coils through the magnetic field, without a metallic connection between the two circuits. Faraday's law of induction discovered in 1831 described this effect. Transformers are used to increase or decrease the alternating voltages in electric power applications.

Since the invention of the first constant-potential transformer in 1885, transformers have become essential for the transmission, distribution, and utilization of alternating current electrical energy. A wide range of transformer designs is encountered in electronic and electric power applications. Transformers range in size from RF transformers less than a cubic centimeter in volume to units interconnecting the power grid weighing hundreds of tons.

In the video and instructable, the transformer used is recycled from a car auto battery charger like this

http://amzn.to/2qsipqt but you can buy them from Amazon or eBay, or harvest them from an old radio, power supply, chargers, and so on.In this project, we gonna use the transformer in reverse meaning we gonna supply 12v to the normal output, and the main 220v is gonna become out 220v output.

oK SO WE ARE GETTING CLOSE TO THE CLASSIC INVERTER

We choose for this project a classic 12v lead acid battery but you could be different depending on what you have

also very important the transformer from the previous step needs to be the same voltage so if you power with a 12v battery you will need a 12v output transformer if is the 6v power you will need a 6v output transformer and so on.

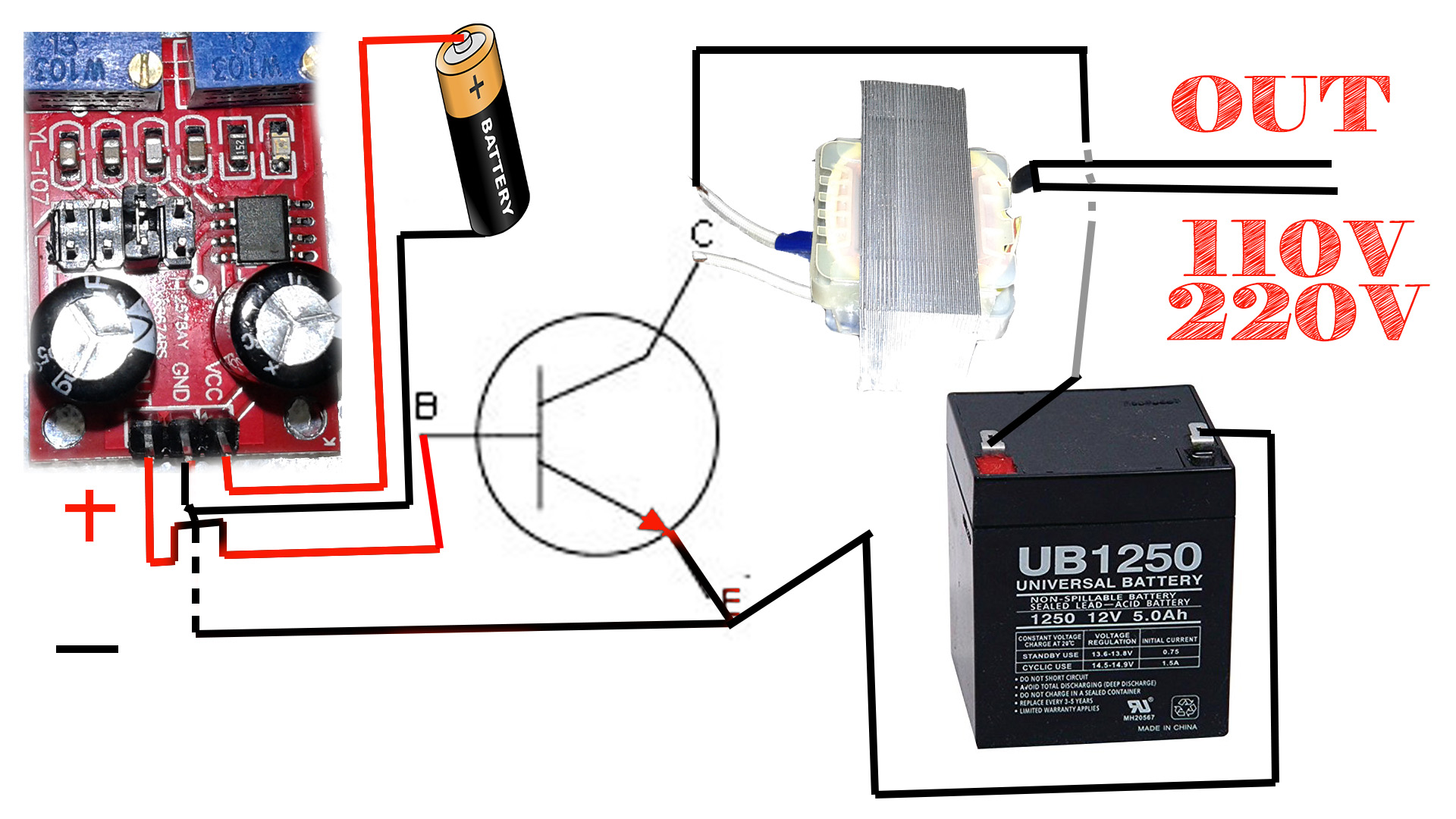

At this step, we will connect the transformer and battery and the previous components and we are almost done

if you want to view a different method of charging 12v battery please visit NoSkillsRequired youtube channel.

You should have at this step the oscillator connected with his own power supply, the output to the transistor 2n3055

but can be any NPN power transistor, connected to the correct transformer, and powered with the proper power supply, if any of this missing please review the steps.

How to make inverter at home 110v or 220v classic design
https://www.youtube.com/watch?v=2QQCxK1yA_s This is the most simple inverter DIY project that you can make without any skills in electronics so easy and cheap but it comes with a price you have to buy some components and wire them together and this is it you are good to go just prepper your battery and led bulbs. Parts list: The oscillator: http://amzn.to/2qXBUKY The transformer: http://amzn.to/2qsipqt Power bank:http://amzn.to/2qkWYwv 2n3055 transistor:http://amzn.to/2r7bkiX And if you want a good USB charger for DIY li-ion battery check this will make a video soon http://amzn.to/2r71Owq So now we got all the components you watch the video pause when you feel like and build your own power inverter at home 110v or 220v depending where you live. If you want to support this channel please visit: https://www.patreon.com/user?u=5137443

If you like and find this video useful please visit the channel https://www.youtube.com/noskillsrequired
