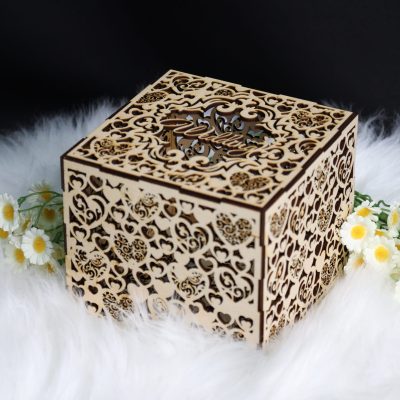

How to Make an Elegant Laser-Cut Wooden Box

There’s something timeless about a handcrafted wooden box—especially when intricate patterns bring it to life. With a laser cutter, you can turn an ordinary piece of wood into an elegant keepsake box that’s both functional and artistic. Whether you’re making it as a personal storage piece or a thoughtful handmade gift, this project combines craftsmanship with creativity. Let’s dive in and see how you can make your own beautifully detailed wooden box with your Thunder Laser machine.

Machine Used

Thunder Bolt 30W

Material Needed

3mm Plywood

Settings

Cutting

Speed:10mm/s

Max Power:35%

Min Power:10%

Number of Passes:1

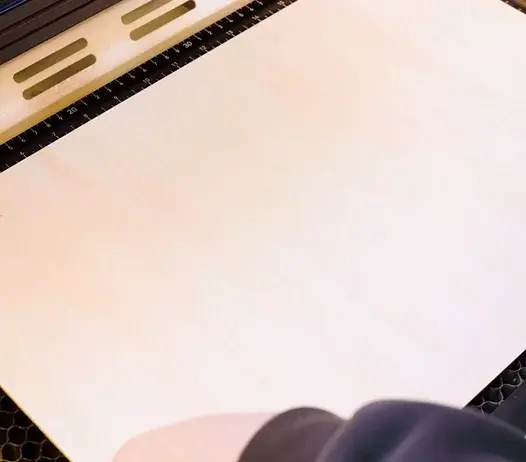

Lay your wooden sheet flat on the honeycomb worktable. Ensure it’s well-aligned and firmly secured to prevent any movement during cutting.

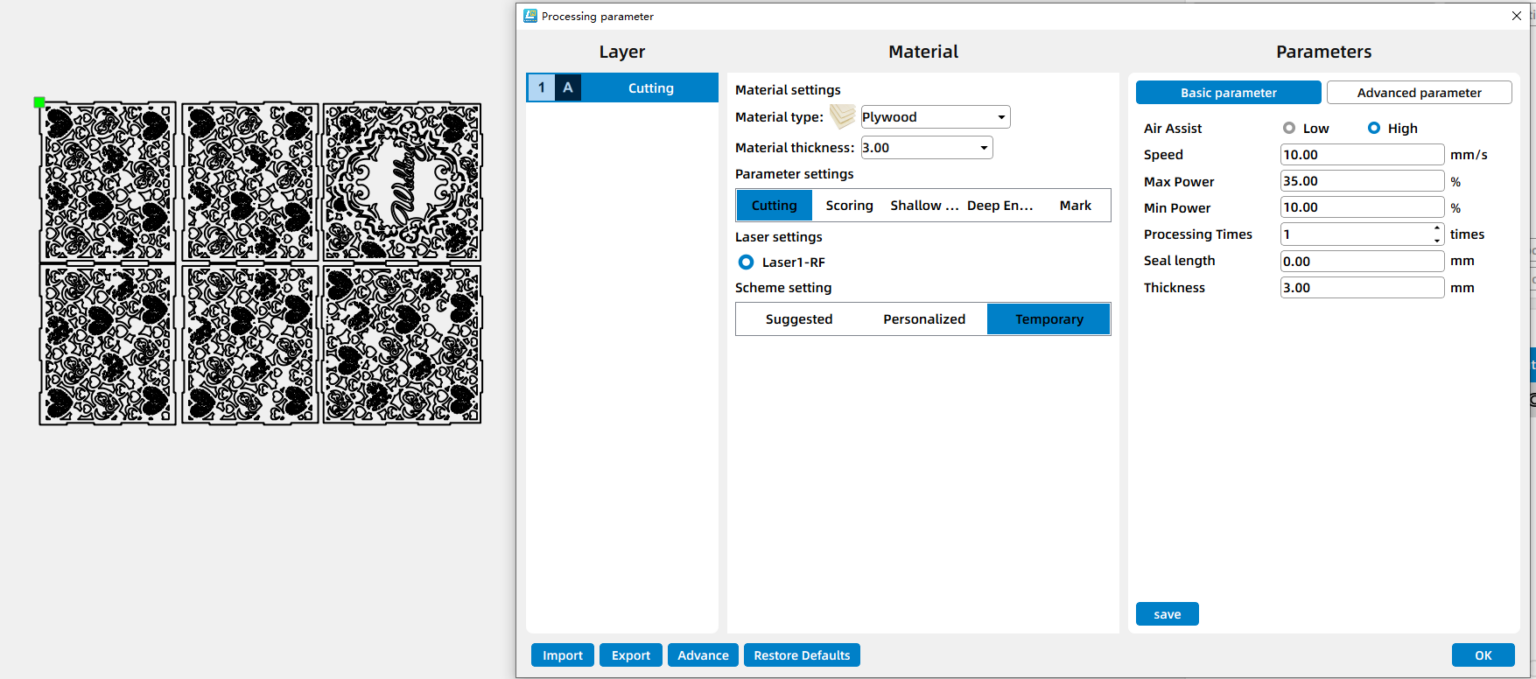

Open your design in LightBurn, LaserMaker, or your controller. Assign colors/layers for engraving vs cutting. Scale the design to the final physical dimensions. Double-check everything, and decide if you want to add or subtract elements according to your preferences. For the laser cutting layers, pay extra attention to the power setting.

Proper focusing ensures neat, polished edges. If your machine has auto focus, use it for quick setup. For manual focusing, lower the laser head with the focus stick until it touches the wood surface at a perfect angle. Always double-check before cutting.

Then click “Frame” or “Border” to preview your cutting area and make sure the design fits nicely on your board. This confirms your material placement and avoids wasting wood. Adjust as necessary. Once everything is set, start the laser job.

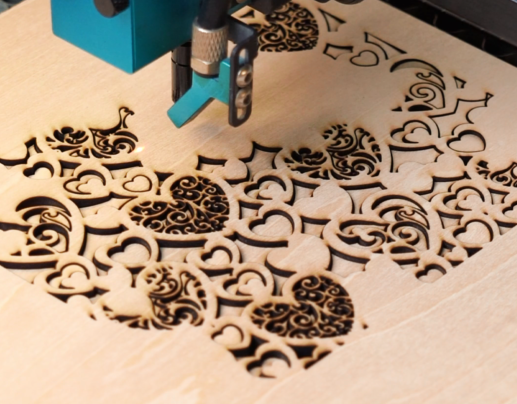

Stay close to the machine while it’s running and watch the cutting and engraving progress. Keep an eye out for excessive smoke, small flame-ups, or any movement of the material that could affect the outcome. Make sure your workspace is well-ventilated, and rely on air assist if available to achieve cleaner edges on the wood.

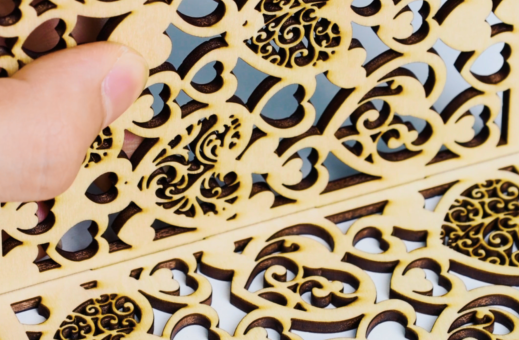

When the cutting is done, remove all pieces carefully and start assembling. Each part should fit snugly into its slot — no glue needed! The interlocking design ensures a solid and durable build.

And that’s it! You’ve built a personalized, perfectly fitted box using just your laser machine and a few sheets of material.
