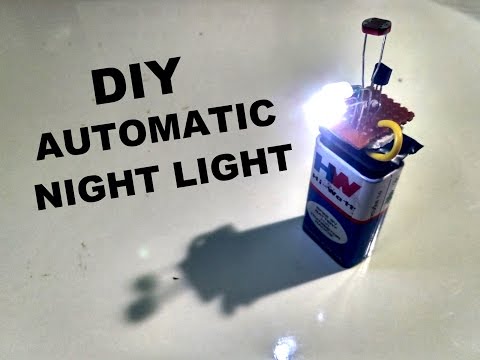

How to Make an Automatic Night Light

Automatic night light is a device with turns on light when there is darkness in the surrounding.

Its a portable version of automatic street lights. In this I used LDR (Light Dependent Resistor) which varies resistance with respect to light intensity.

For more projects subscribe my youtube channel [ Subscribe ]

Now I am going to instruct how to make an Automatic Night Light with less number of components.
Get Started..

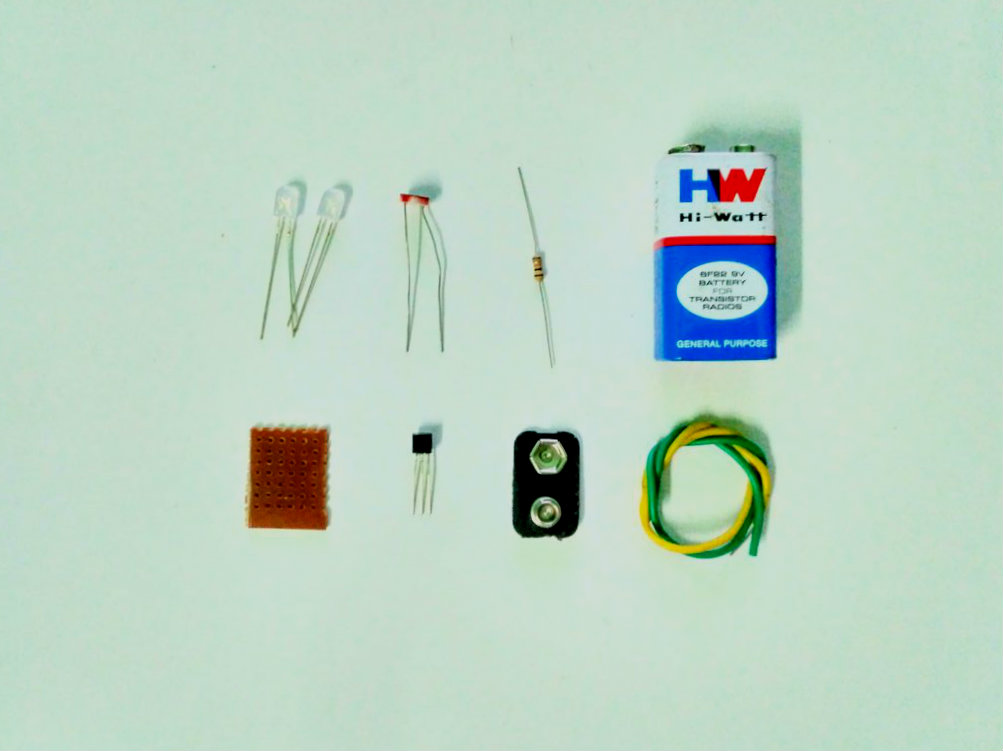

LDR -1 ebay / Amazon

Resistor - 10k (x1)

Transistor - BC547 (x1) ebay / Amazon

9V Battery and Snap - 1

PCB -1 ebay / Amazon

LED -2

Place all components on PCB according to Circuit given above.

Note: adding a resistor of 330 ohms in series with led improves the lifetime of led.

Now solder all components.

Now solder 9V battery snap at respective terminals.

Place a piece of double sided tape on snap and stick the pcb to it.

Now connect battery to it.

For simulation fritzing file is attached

For more projects subscribe my youtube channel [Click Here]

Feel free to comment.
