How to Make a Speedometer Housing (on a Budget).
How to Make a speedometer housing (on a budget).

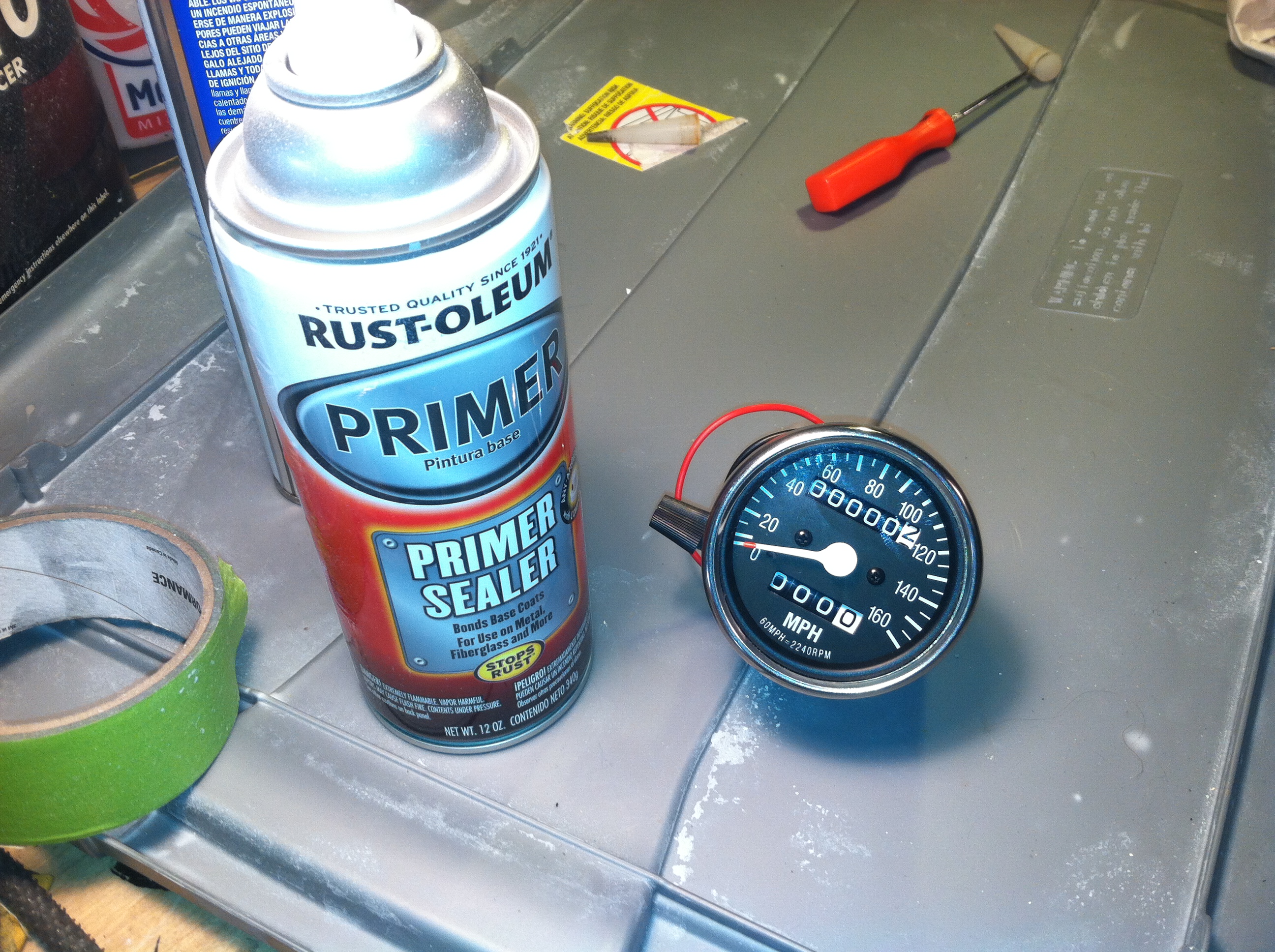

Some times you just have to be creative when you have already gone over budget on your project, don’t have a budget, or sometimes there is no other option. So I had this nice mini speedo for my chopper/bobber project bike, I wanted to hide it as much as possible but it needed to be close to the front wheel as well. I found the perfect spot just below the lower triple tree, but needed to find a way to mount it to the bike. I figured out the best thing to do was to create a housing it would sit in and mount that to the lower triple tree. This meant I was doing to need something that was the perfect diameter for the speedo to sit in. Then it hit me all the primer cans I just emptied we be perfect. I MADE IT AT TECH SHOP.
Some times you just have to be creative when you have already gone over budget on your project, don’t have a budget, or sometimes there is no other option. So I had this nice mini speedo for my chopper/bobber project bike, I wanted to hide it as much as possible but it needed to be close to the front wheel as well. I found the perfect spot just below the lower triple tree, but needed to find a way to mount it to the bike. I figured out the best thing to do was to create a housing it would sit in and mount that to the lower triple tree. This meant I was doing to need something that was the perfect diameter for the speedo to sit in. Then it hit me all the primer cans I just emptied we be perfect. I MADE IT AT TECH SHOP.
Step 1:
Step 1: I firmly placed the COMPLETELY EMPTY / depressurized primer can into the bench vise but not to firmly as to deform the can. Using a hack saw, I slowly cut the end of can off to open it up. I was still a little nervous as to the outcome of opening the can, it turned out ok. If you choose to try this make sure you have completely emptied the can, even then I am not making any guarantees.
Step 2:

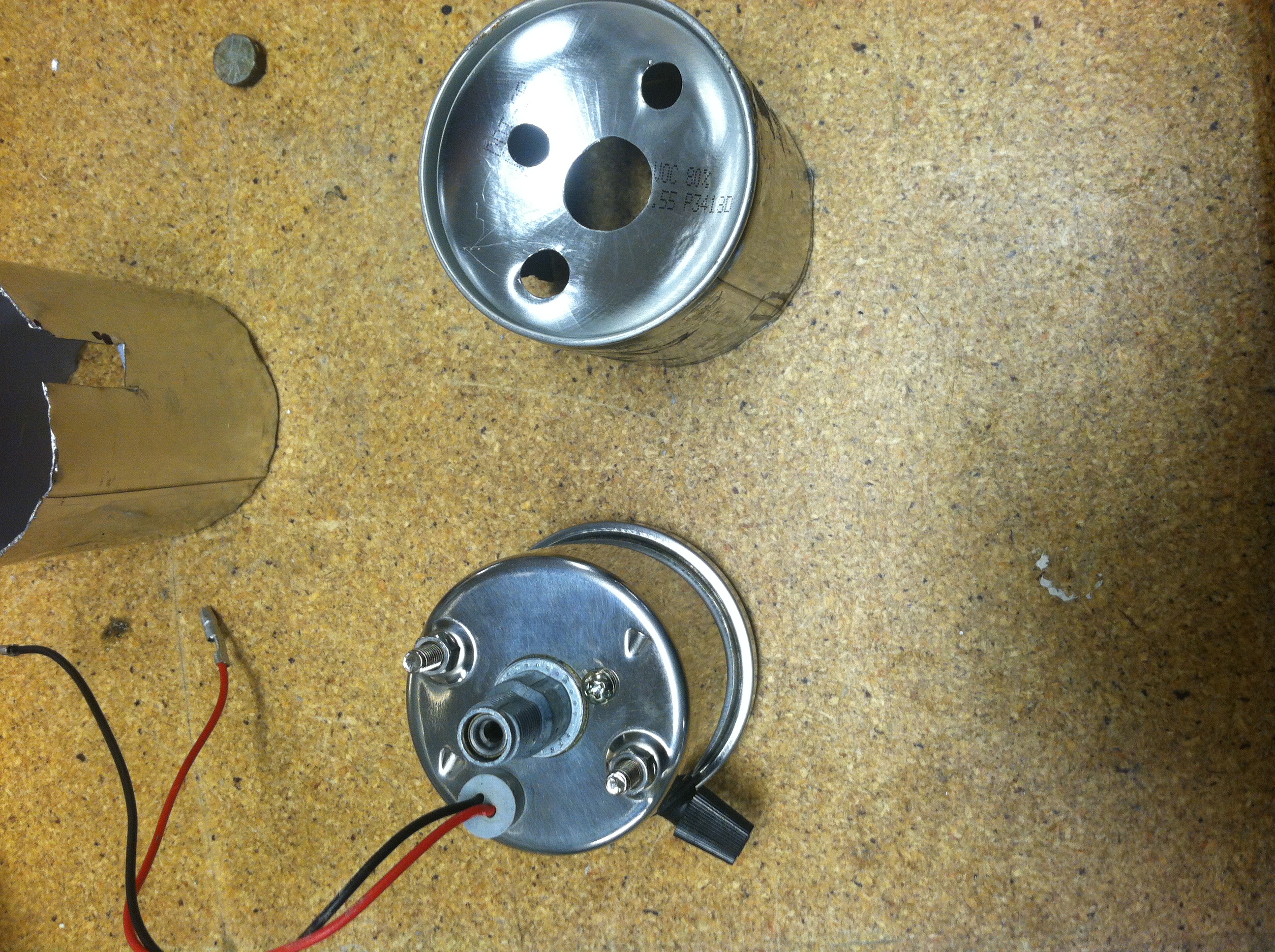

Step 2: Once I had the cand open and the remaining paint had time to dry I cut the can down to the size I would need. I then made a chanel for my odometer dial to slide into. And drilled holes in the bottom for the speedo cable and power cord as well as the screw mounts.
Step 3:
Step 3: I used a piece of corigagated cardboard to determing the shape of a mounting tab and mocked it up. I then translated that shape onto some scrap steel with a scribe and cut it out.
Step 4:
Step 4: Once cut out I used a MIG welder to fix it to the housing cup in the correct location.
Step 5:

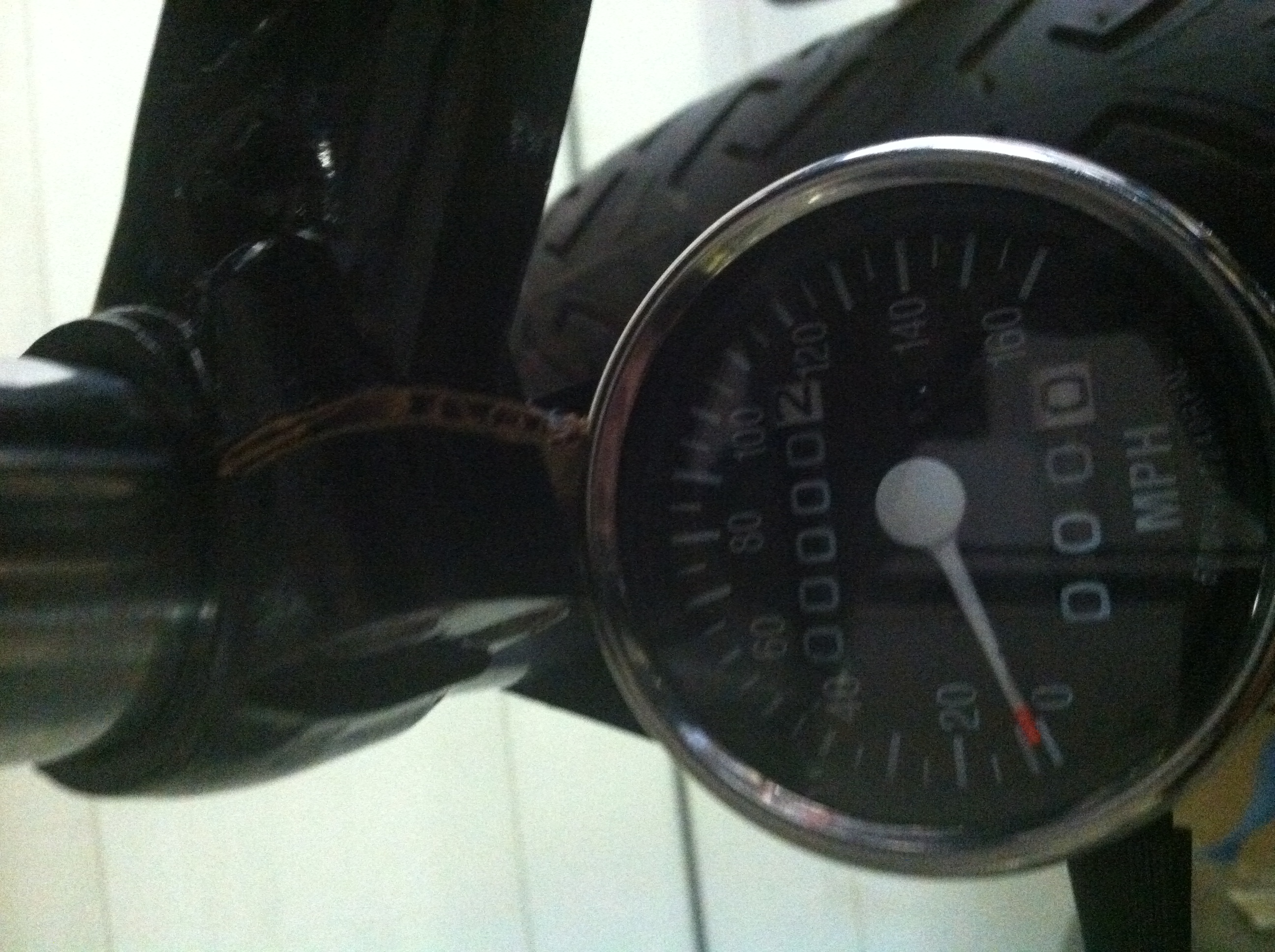

Step 5: Now its time to fit the new speedo and housing to the bike. If you like what you see you can give it some a protective coating such as paint or powder coat. As I am out of the Powder I need for this project that step has not been completed as of yet.
