How to Make a Wand Without a Lathe
by danthemakerman in Living > Toys & Games
7419 Views, 44 Favorites, 0 Comments
How to Make a Wand Without a Lathe
![Instructables cover.jpg](/proxy/?url=https://content.instructables.com/FZ1/ND0A/JP8Z60W3/FZ1ND0AJP8Z60W3.jpg&filename=Instructables cover.jpg)
My son started reading the Harry Potter books recently and as one would expect upon completion he wanted a wand. I originally tried to make him one out of brass and wood but that didn't work out. After letting that failure marinate for a while this idea popped in to my head. I could use my 1 x 30 belt sander to make an ornate, all be it rustic but somewhat ornate handle for the wand if I used smaller/thinner belts. I have used this method in the past to sand small metal pieces or really tight spots before but I just never tried or thought about contouring wood with a thin sanding belt.
While this may not be anything new to some of you I do have to admit I feel very clever for thinking this up. I hope this is helpful to anyone who wants to make a wand without a lathe.
Build video:
If this gets accepted in to the Toy Contest and you think I deserve it please take the time to vote for this Instructable. Thanks!
![1.png](/proxy/?url=https://content.instructables.com/FRL/CVAA/JP8Z60U0/FRLCVAAJP8Z60U0.png&filename=1.png)
![2.png](/proxy/?url=https://content.instructables.com/F26/UYXT/JP8Z60U7/F26UYXTJP8Z60U7.png&filename=2.png)
This is some scrap walnut that I had, it measures 3/4 of inch by 3/4 and is about 13 inches long.
![3.png](/proxy/?url=https://content.instructables.com/F2Q/RLB0/JP8Z60UA/F2QRLB0JP8Z60UA.png&filename=3.png)
![4.png](/proxy/?url=https://content.instructables.com/F6X/D3OH/JP8Z60UC/F6XD3OHJP8Z60UC.png&filename=4.png)
![5.png](/proxy/?url=https://content.instructables.com/FX0/6PT5/JP8Z60UD/FX06PT5JP8Z60UD.png&filename=5.png)
![6.png](/proxy/?url=https://content.instructables.com/FPQ/IBDE/JP8Z60UG/FPQIBDEJP8Z60UG.png&filename=6.png)
I used my 1x30 belt sander fitted with a 120 grit sanding belt to round off all the edges. First I sand off the corners then I start to twist the wood as I pull the piece through the sander which achieves the twisted look. I start sanding from the top to the bottom and try to match up the same entrance of the twist each time I take another pass. The key here is to keep the piece moving as you twist this will give a more uniform result.
![2eoR45w - Imgur.gif](/proxy/?url=https://content.instructables.com/FPB/JFBA/JP8Z63MN/FPBJFBAJP8Z63MN.gif&filename=2eoR45w - Imgur.gif)

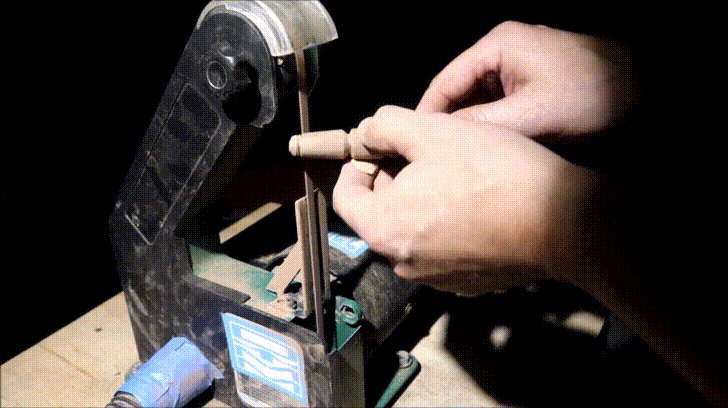

This is a short clip of the twisting while sanding method that I used. FYI this clip is sped up 4X.
![7.png](/proxy/?url=https://content.instructables.com/F4G/Y2OH/JP8Z60UH/F4GY2OHJP8Z60UH.png&filename=7.png)
![8.png](/proxy/?url=https://content.instructables.com/FJG/4KO2/JP8Z60UI/FJG4KO2JP8Z60UI.png&filename=8.png)
Once I was happy with the twist I hand sanded the wand with 220 grit and then 400 grit sand paper. I also prepared another wand in the same fashion except I terminated the twist at a handle. You can see the second pic shows the wand with the twist but a rounded handle. I will use this wand to show how I contoured the handle using my belt sander.
![9.png](/proxy/?url=https://content.instructables.com/FLY/YDXL/JP8Z60UJ/FLYYDXLJP8Z60UJ.png&filename=9.png)
![10.png](/proxy/?url=https://content.instructables.com/FEW/NR0P/JP8Z60UK/FEWNR0PJP8Z60UK.png&filename=10.png)
![11.png](/proxy/?url=https://content.instructables.com/F9R/PMYT/JP8Z60UL/F9RPMYTJP8Z60UL.png&filename=11.png)
![12.png](/proxy/?url=https://content.instructables.com/FME/Q8S3/JP8Z60UM/FMEQ8S3JP8Z60UM.png&filename=12.png)
In order to do the contouring on the handle I take an old 120 grit sanding belt and cut it in to smaller strips. So a 1 inch belt can become a 1/2 inch belt or a 1/4 inch belt. First I use a razor blade to make a 1-2 inch vertical cut through the section where the belt is spliced together, this is the diagonal line that goes across the sanding belt. Then I pull the two pieces apart creating two smaller belts or rather thinner belts.
Sometimes when you pull the belt apart it starts to wander and you end up with a not so uniform belt so just take your time when pulling the belts apart.
![13.png](/proxy/?url=https://content.instructables.com/F3K/MRPR/JP8Z60UN/F3KMRPRJP8Z60UN.png&filename=13.png)
![14.png](/proxy/?url=https://content.instructables.com/FUJ/ZTL0/JP8Z60UO/FUJZTL0JP8Z60UO.png&filename=14.png)
![15.png](/proxy/?url=https://content.instructables.com/FTZ/SE28/JP8Z60UP/FTZSE28JP8Z60UP.png&filename=15.png)
![16.png](/proxy/?url=https://content.instructables.com/FNG/JO65/JP8Z60UQ/FNGJO65JP8Z60UQ.png&filename=16.png)
![17.png](/proxy/?url=https://content.instructables.com/F5A/R911/JP8Z60UR/F5AR911JP8Z60UR.png&filename=17.png)
Next I put the thinner belt in my sander making sure to center it over the guide wheels and started working on the handle. I did not make any marks or reference lines I was just free handing it and started making different shapes as I went along.
![05EiSwU - Imgur.gif](/proxy/?url=https://content.instructables.com/FEQ/SC0V/JP8Z64R8/FEQSC0VJP8Z64R8.gif&filename=05EiSwU - Imgur.gif)

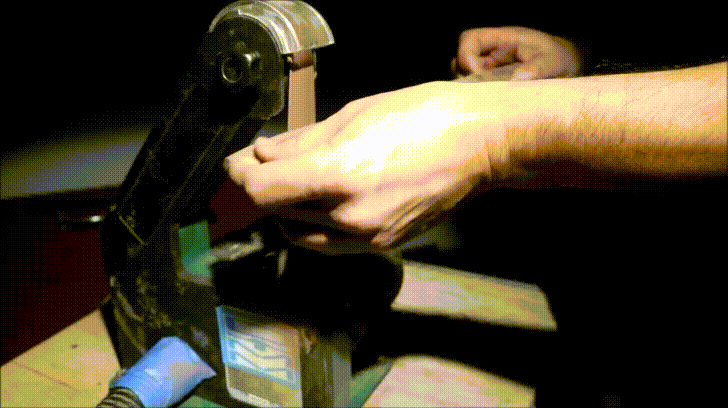

Here you can see how I shape the handle. The thinner belt bends and flexes more easily allowing me to make the shapes. I switch between sides of the belt as well to get both sides of the shape I am after.
![HKpp7Sy - Imgur.gif](/proxy/?url=https://content.instructables.com/FYS/1S2O/JP8Z656Q/FYS1S2OJP8Z656Q.gif&filename=HKpp7Sy - Imgur.gif)
![19.png](/proxy/?url=https://content.instructables.com/FME/FD5I/JP8Z60UT/FMEFD5IJP8Z60UT.png&filename=19.png)

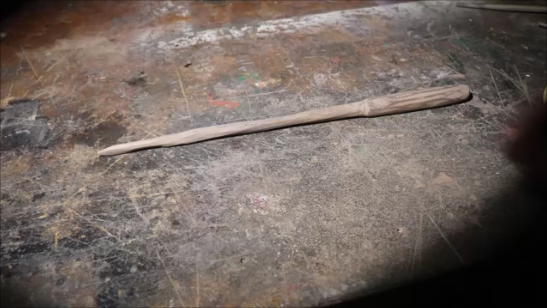

In this gif you can see how I used the edge of the belt to make a spiral effect on the end of the wand. The edge of the belt sort of acts like a knife and cuts in to the wood.
![20.png](/proxy/?url=https://content.instructables.com/FT0/1SVU/JP8Z60UU/FT01SVUJP8Z60UU.png&filename=20.png)
![21.png](/proxy/?url=https://content.instructables.com/FJW/HTYO/JP8Z60UV/FJWHTYOJP8Z60UV.png&filename=21.png)
After sanding all the wands up to 400 grit I apply 3-4 coats of Danish oil and once that dries I spray two coats of shellac for protection.
![25.png](/proxy/?url=https://content.instructables.com/FPR/26HH/JP8Z60V4/FPR26HHJP8Z60V4.png&filename=25.png)
![26.png](/proxy/?url=https://content.instructables.com/FJU/QILN/JP8Z60V6/FJUQILNJP8Z60V6.png&filename=26.png)
![27.png](/proxy/?url=https://content.instructables.com/FFB/YMU3/JP8Z60V7/FFBYMU3JP8Z60V7.png&filename=27.png)
Here are some close up shots of the wands. I made a third wand off camera that was Walnut glued to a piece of curly Maple.

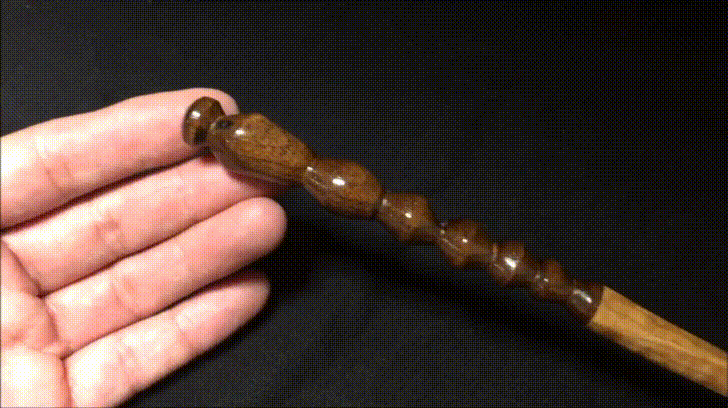

![5diRL5S - Imgur.gif](/proxy/?url=https://content.instructables.com/F1Y/UQK9/JP8Z67KS/F1YUQK9JP8Z67KS.gif&filename=5diRL5S - Imgur.gif)
This is not a replacement for a lathe but it is quite effective considering just the lathe alone will cost you $200+ and that doesn't even include the cost of the tools. The end result is somewhat rustic, which I personally like, but I do think that with some practice I could get much finer results.
More importantly my son and my daughter (who was not in to Harry Potter) both really liked the wands there was a lot "Wingardium Leviosa" spells cast that day.
Hope you all find this helpful! Don't forget to vote! Thanks!
