How to Make a Sorting Machine

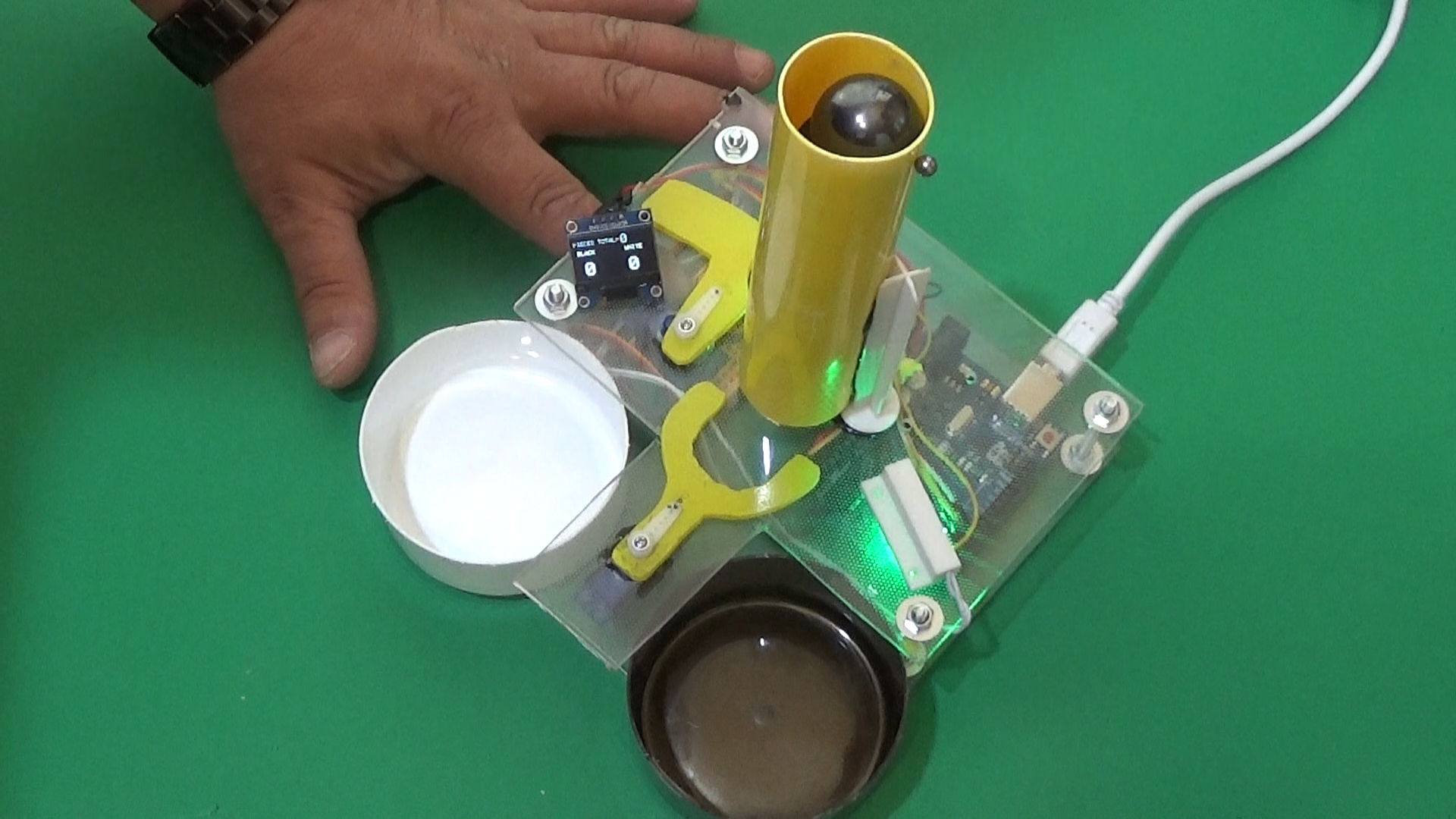

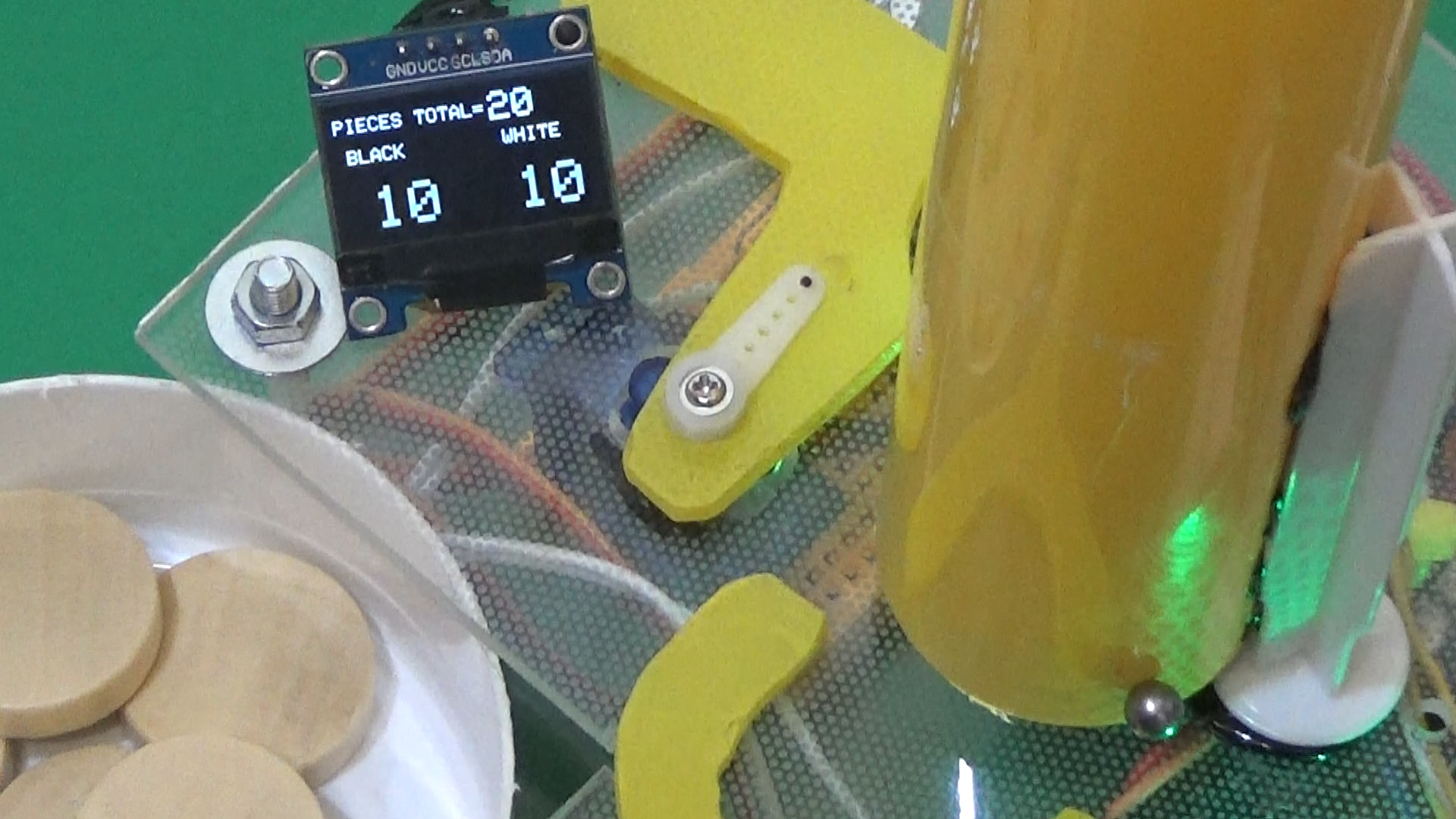

In this tutorial we see how we can build a sorting machine in two colors, black and white, with the display of the number of white, black and total parts.

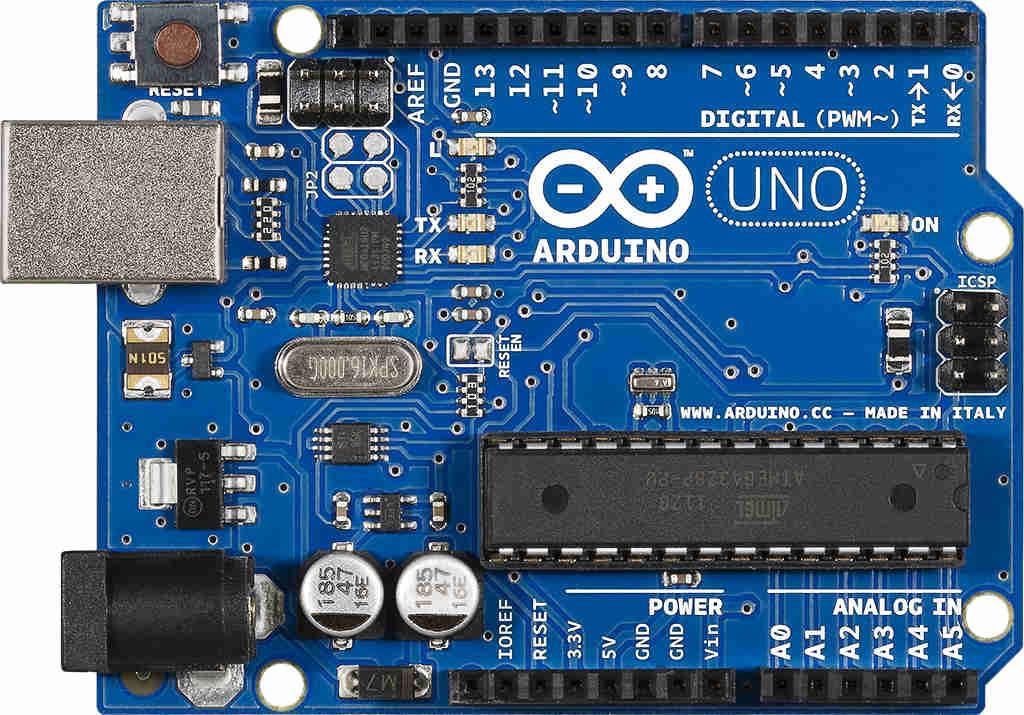

1. Arduino UNO board
2. Push button

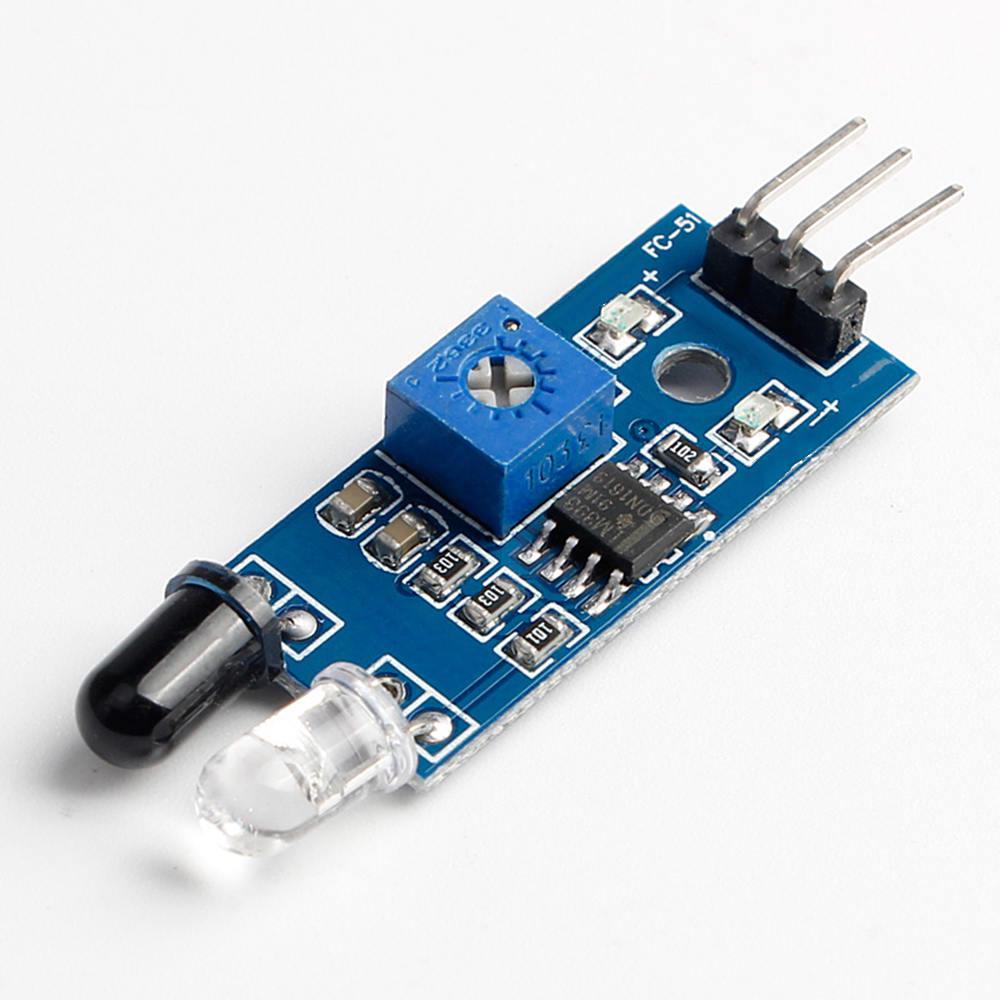

3. Infrared module
4. Reed switch

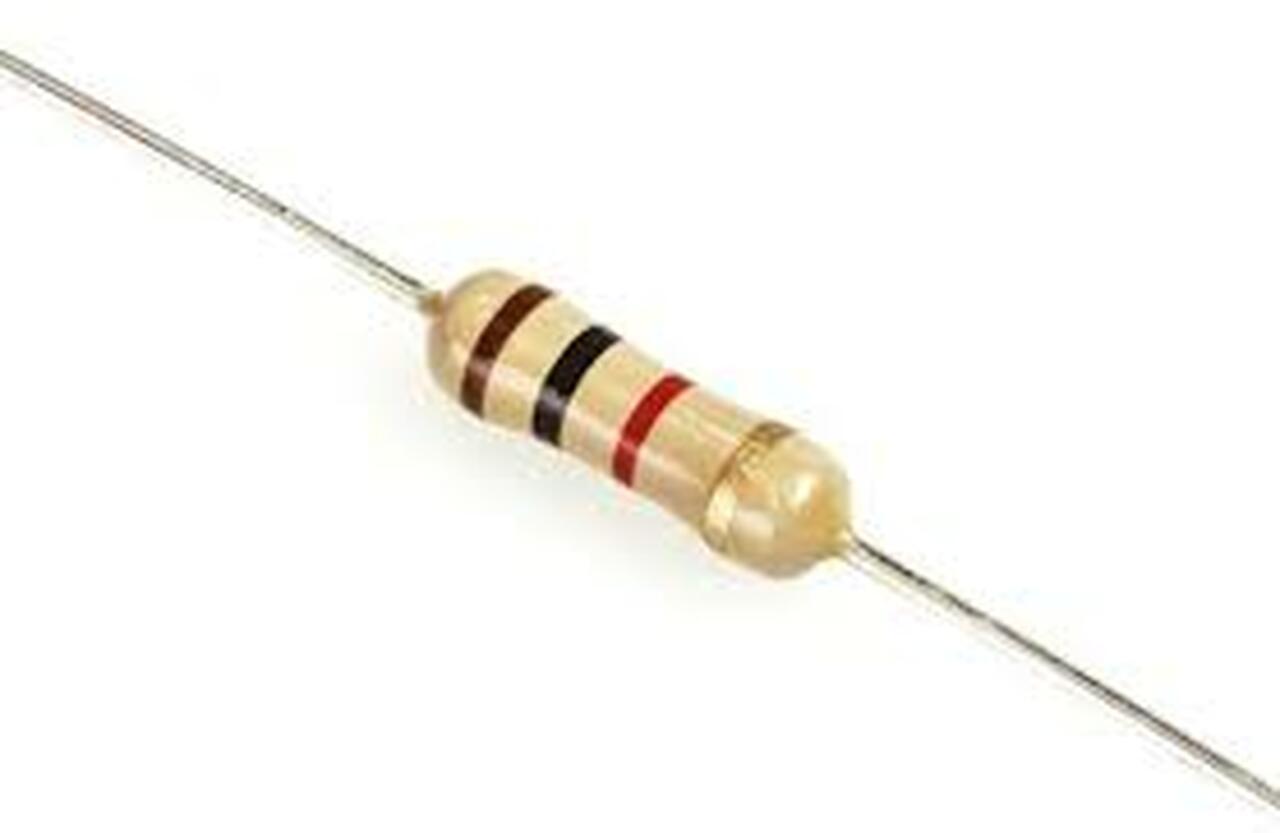

5. 2x1k resistors
6. Oled display
7. 2x servo motors
8. Visuino software

Make the connections of the components according to the diagram below

Strat Visuino and upload the code. Upload code in Arduino I recommend watching the video before uploading
 the code to Arduino.Software is free version,
 download here: https://www.visuino.com/download

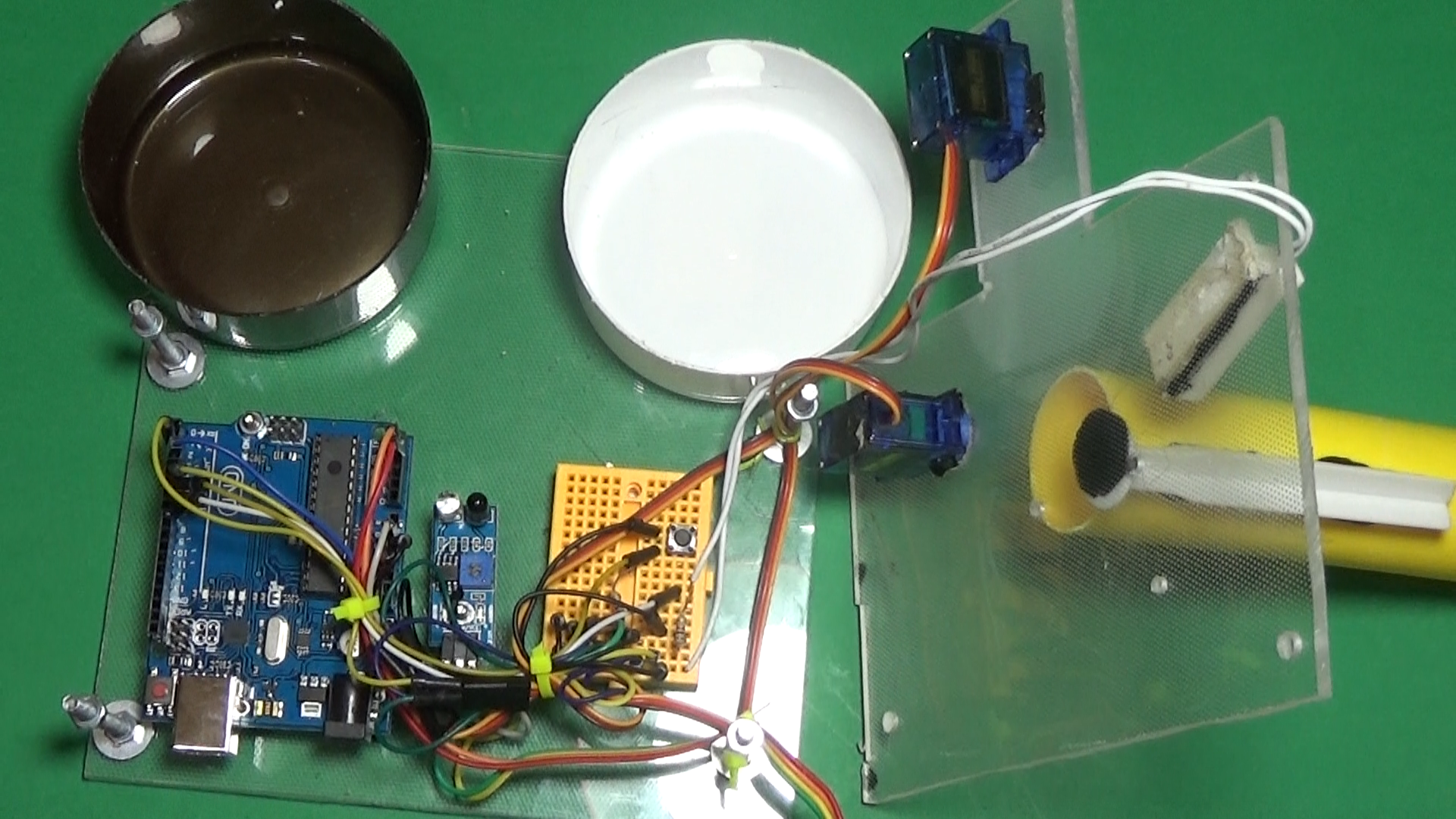

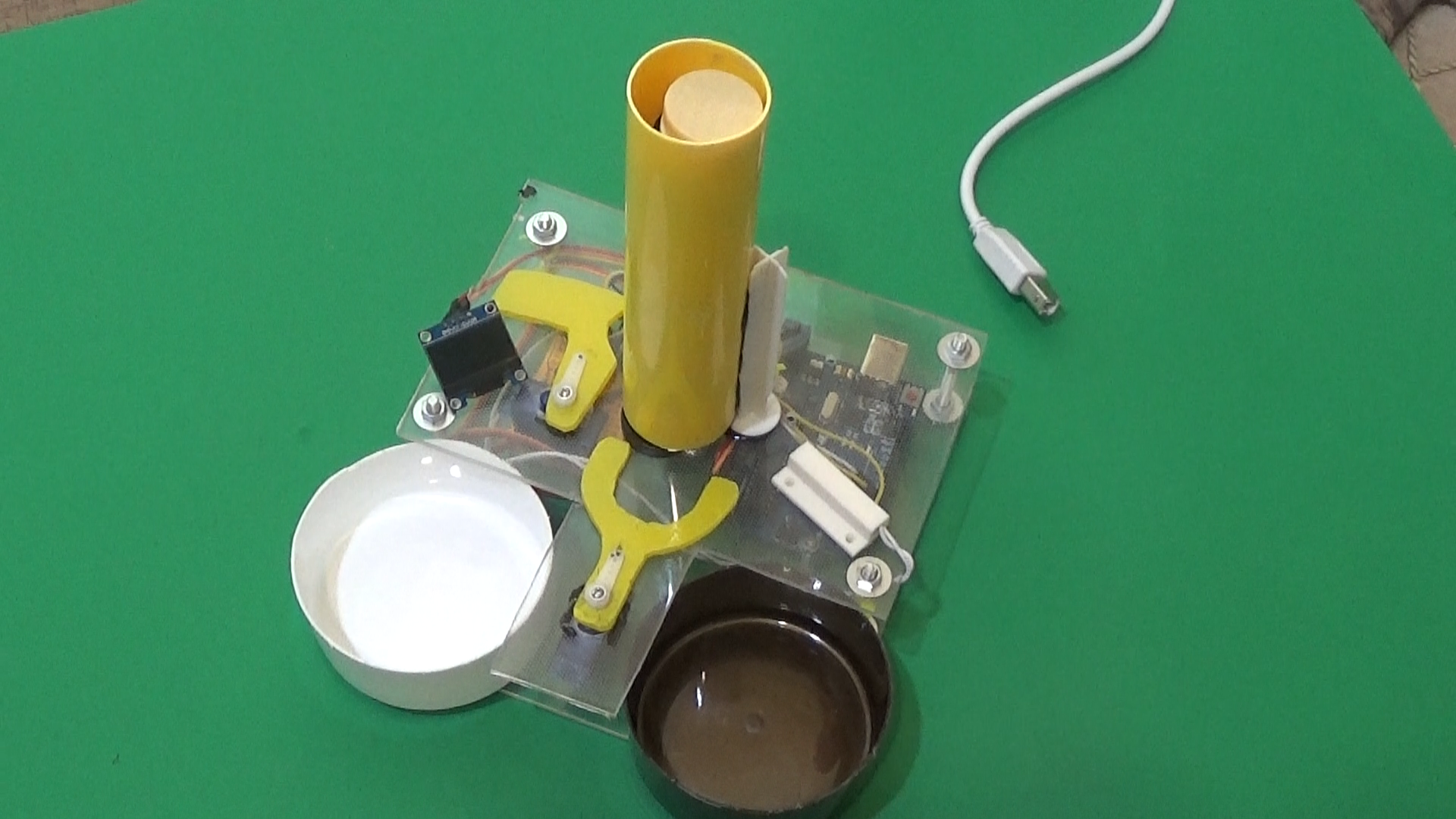

At this point we connect the components according to the diagram.In this stage the mechanisms are assembled, the   device is calibrated and tested some assembly ideas you have in the photo. Obviously, different constructive ideas can be approached, depending on one's imagination.

at this point we power the device, supply the tube with parts and press the START button. At this point, the device will perform sorting movements of the parts depending on the color and the two operating modes, as shown in the    video. I hope you like my project, there will be other interesting ones. Good luck!
