How to Make a Small Weaving Loom at Home

This is a small home-made weaving loom which you can use to weave a 12 " x 12" size table mat.

My wife wanted a small weaving loom after watching some youtube videos. So I decided to make one for her from some left-over 3/4" thick plywood. This instructable will guide you on how to make the loom at home.

You can also see the mat weaved using this frame at the following link

https://www.instructables.com/id/How-to-Weave-a-Sm...

• 3/4" thick left-over Plywood from which you can cut 14 inches by 14 inches square piece
• 1-1/2 " long nails about 100 grams (You need 104 of them)
• Fevikwick instant glue

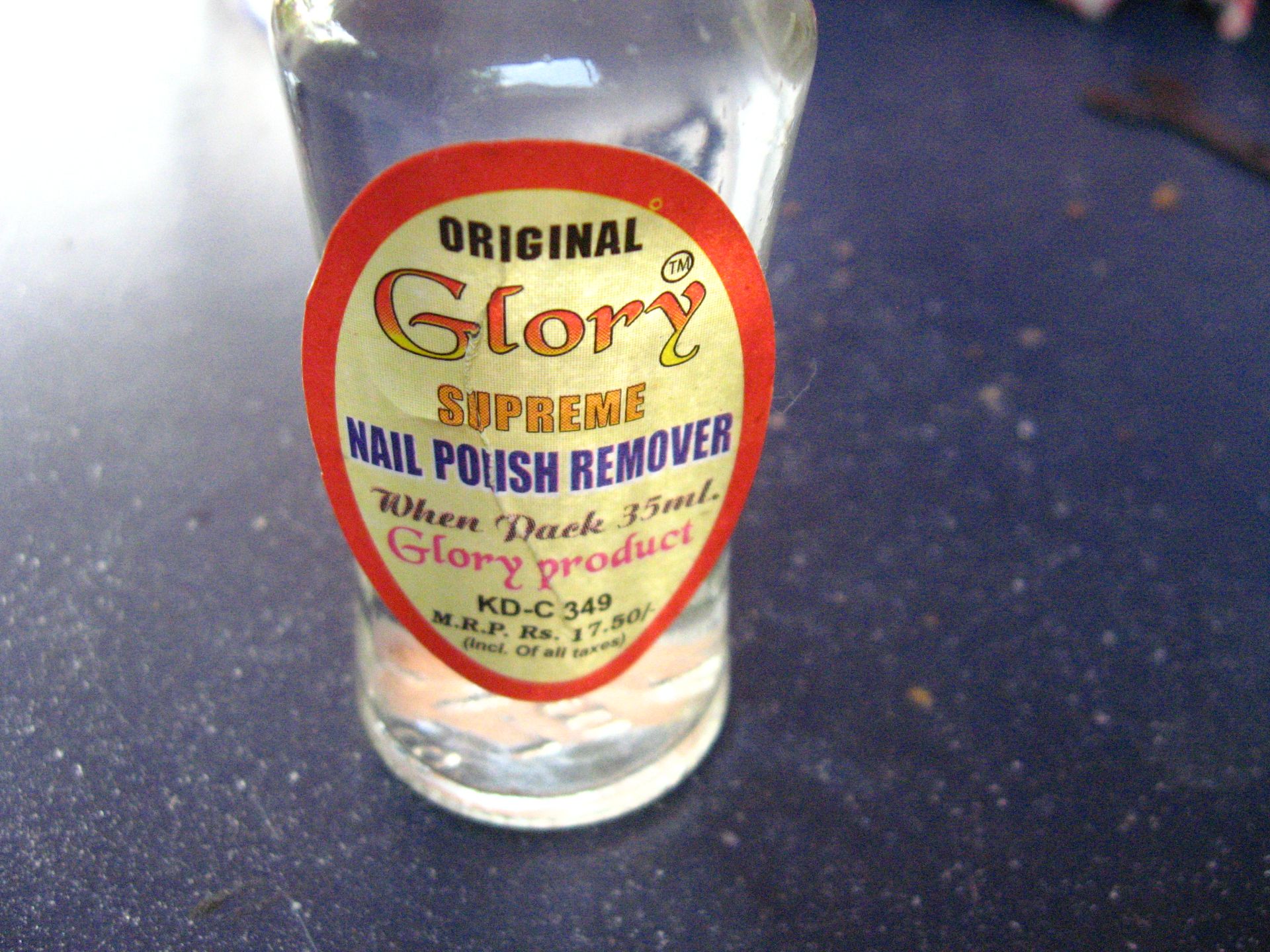

• Nail Polish remover to clean rust from the nails

• A Jigsaw for cutting plywood. Here I have used the metal cutting blade to have a thin cut line
• A Rotary tool with 1-1/2" dia cutting blade and a suitable drill bit
• 3 or 4 'G' clamps
• Marker pen

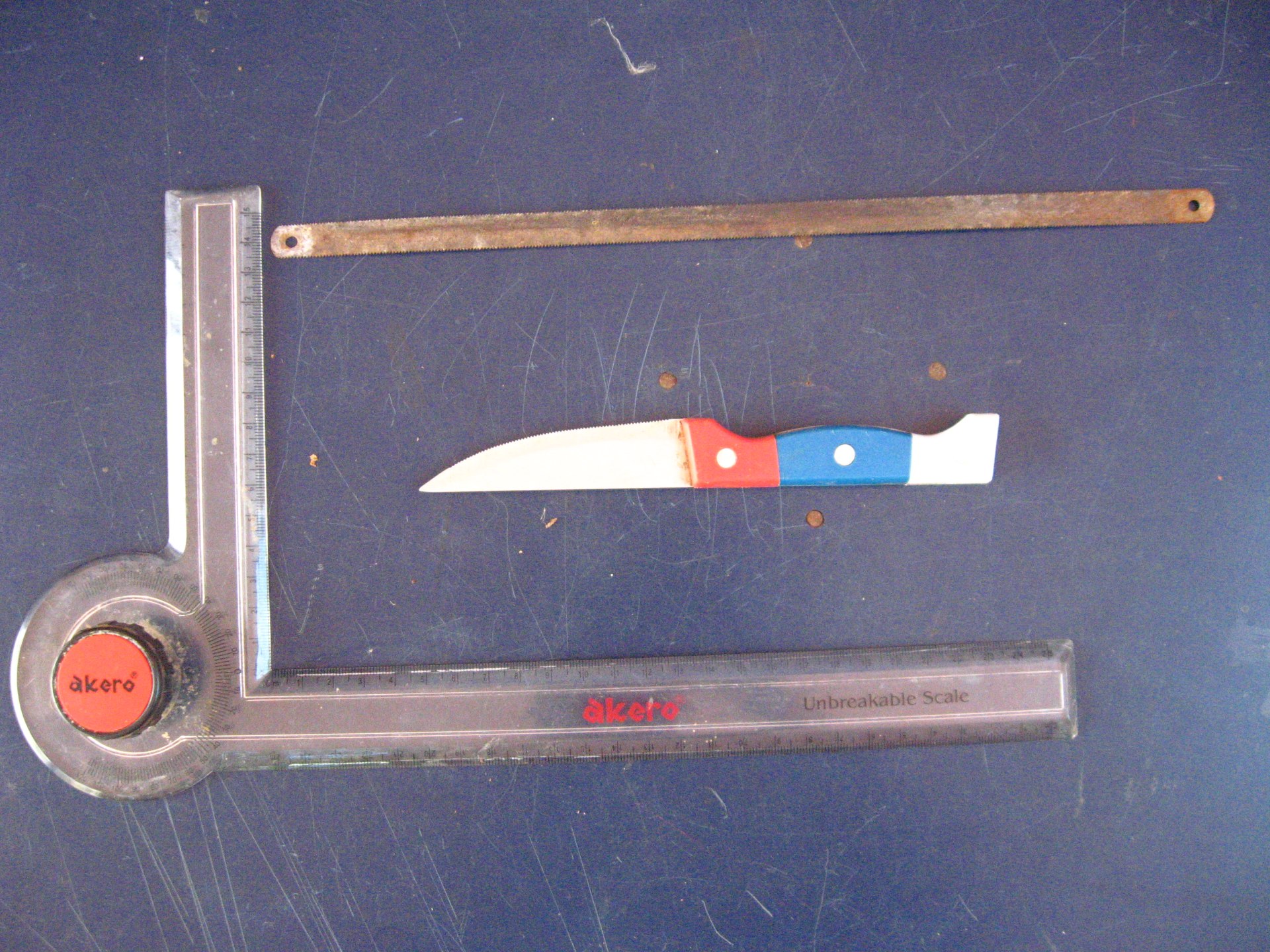

• A Drawing Square
• Hacksaw Blade
• A knife

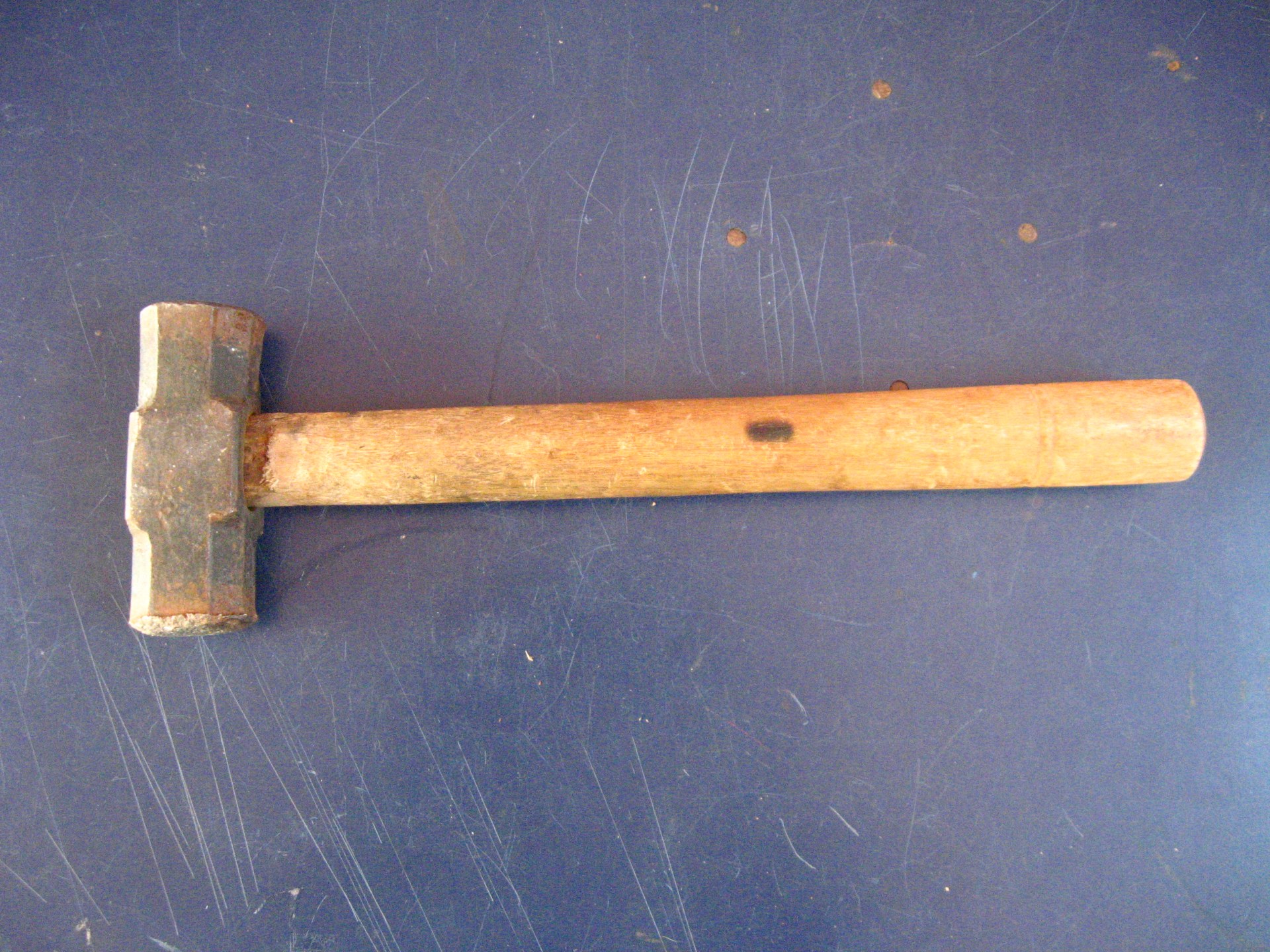

• A hammer

• Measure 14" x 14" square from the left-over plywood

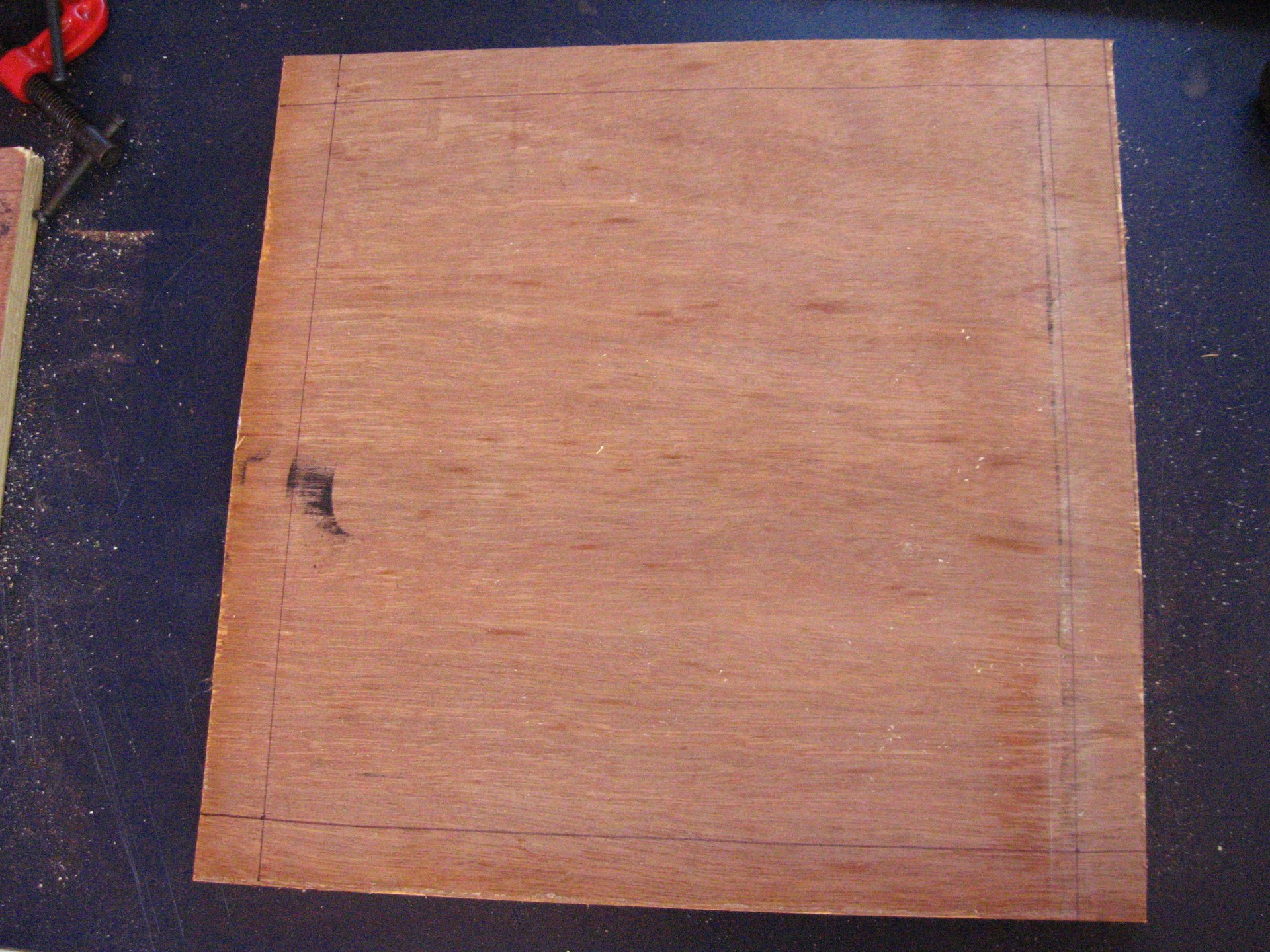

• Mark inside line leaving one inch from all sides. This will give you a 12" size inside dimension
• Cut the measured board using the Jigsaw cutter

Now we need to cut and remove the inside portion

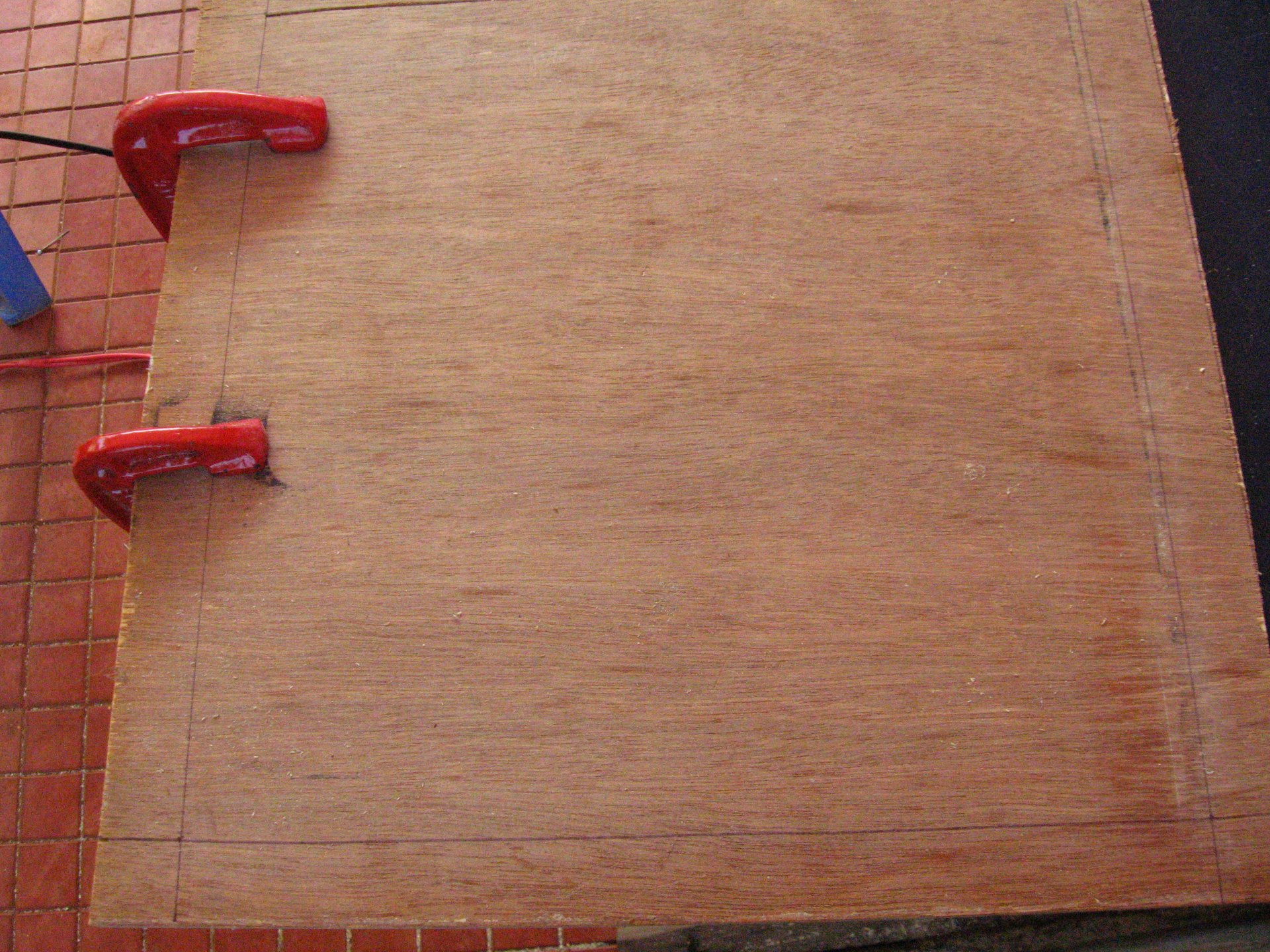

• Clamp the board to the work-bench using G clamps
• Make initial cut using the rotary tool and the blade as shown

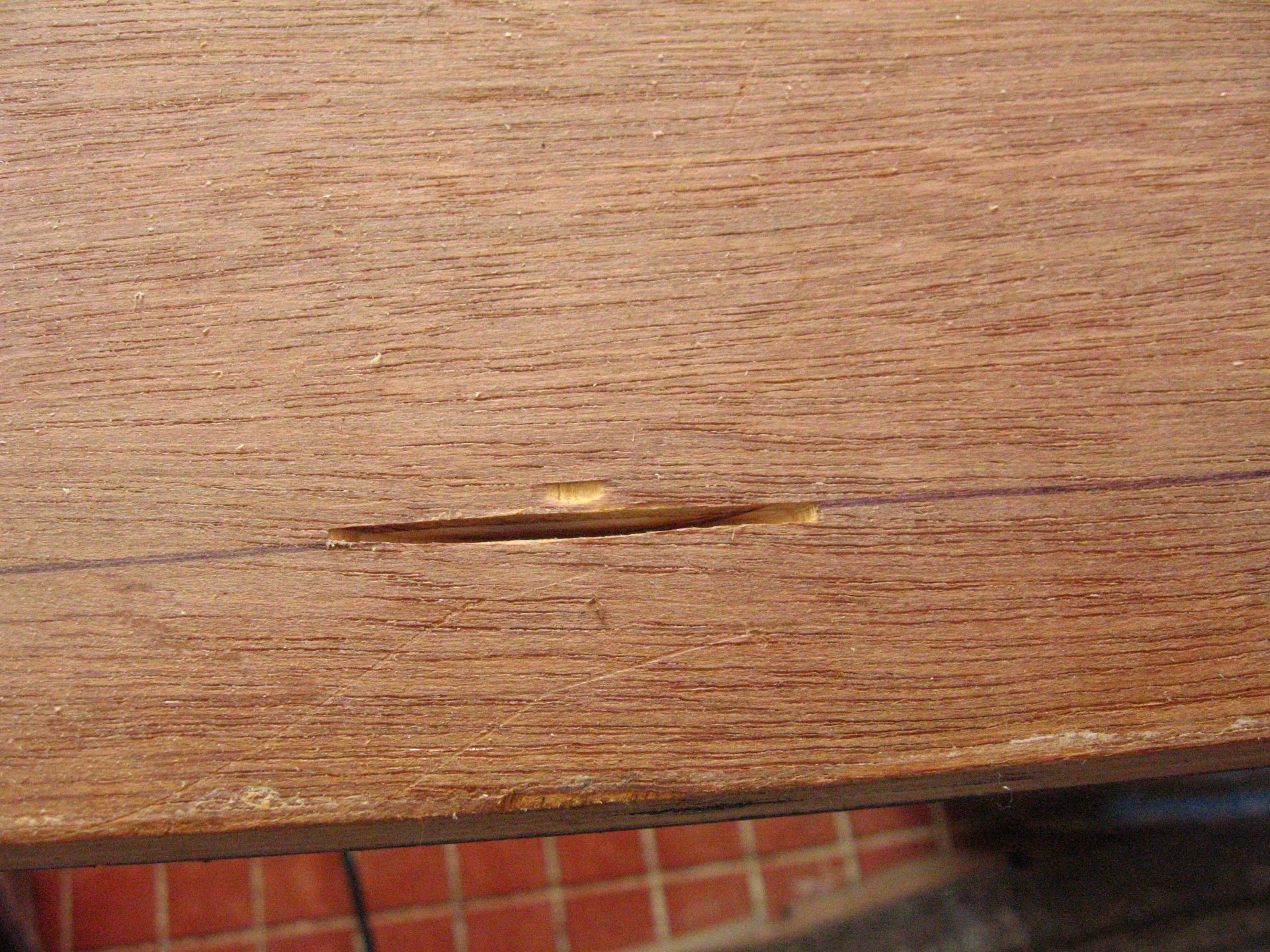

• The rotary cutting tool I have used did not cut full depth of the plywood. So I used a knife to make a slit to the full depth of the board

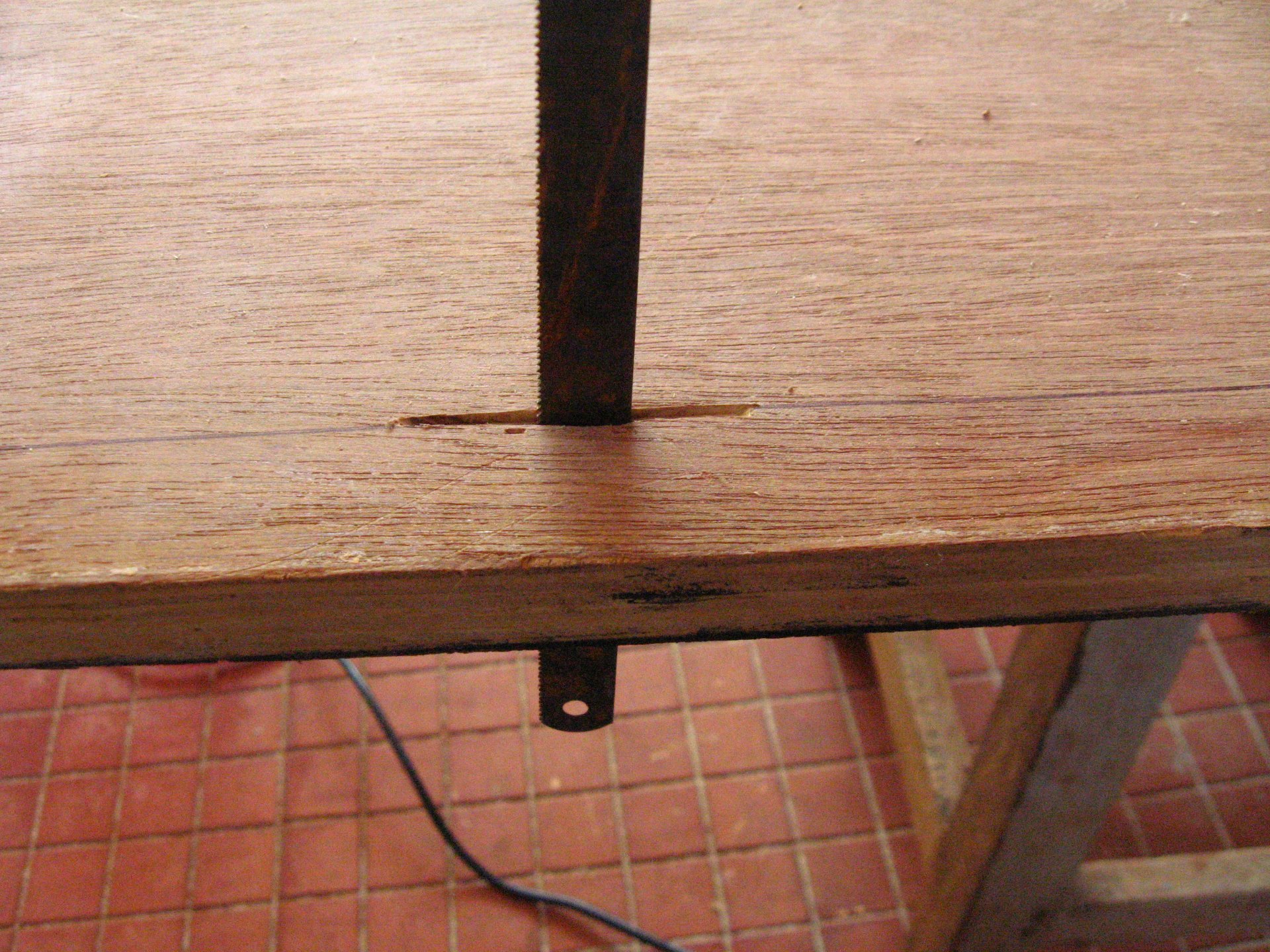

• Using a hacksaw blade, make a cut so that the jigsaw blade can be inserted

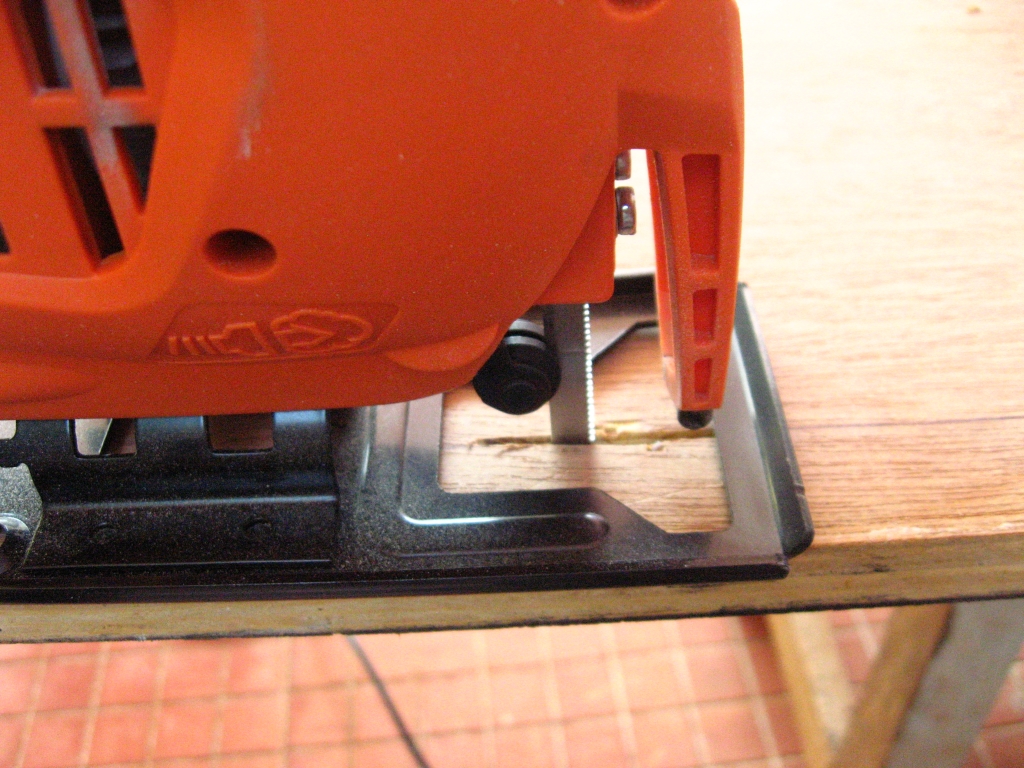

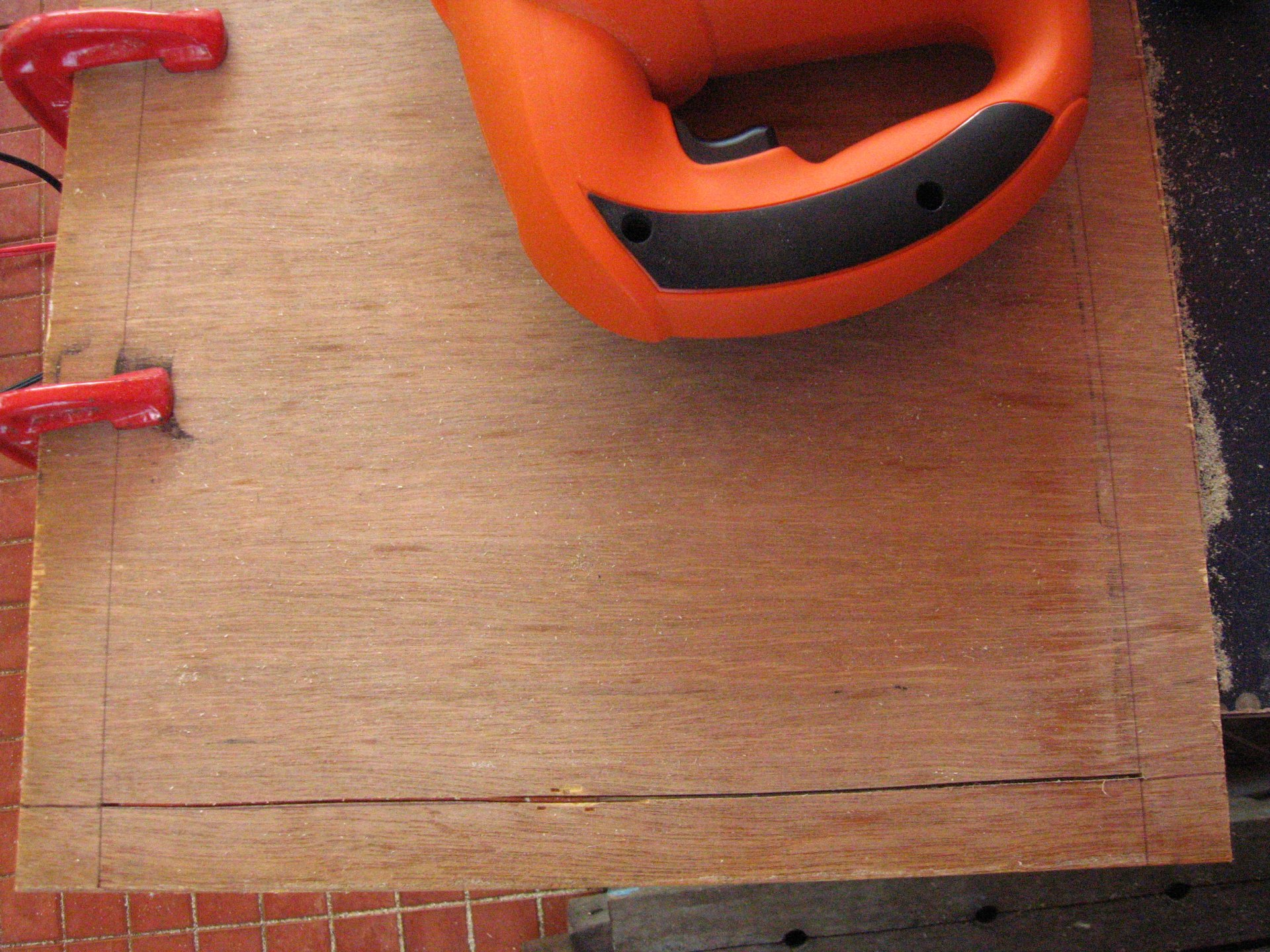

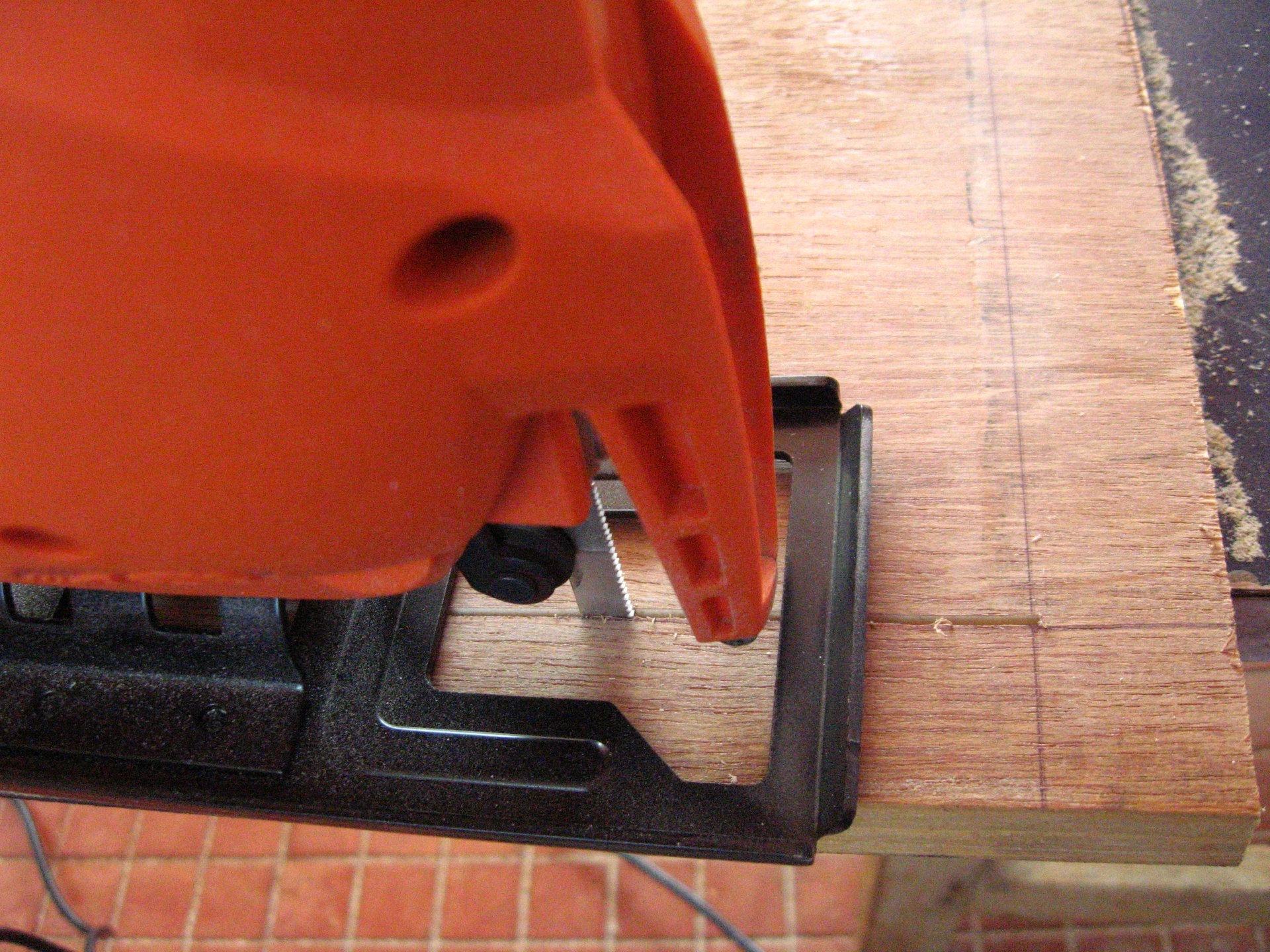

• Insert the Jigsaw blade in the slit we made and cut to the required length
• Rotate the board, clamp with G clamps, cut on all sides and remove the center portion

Now our frame is ready

• Mark the center line on all sides of the frame
• Mark the points over the center line at 1/2 " distance for fixing nails

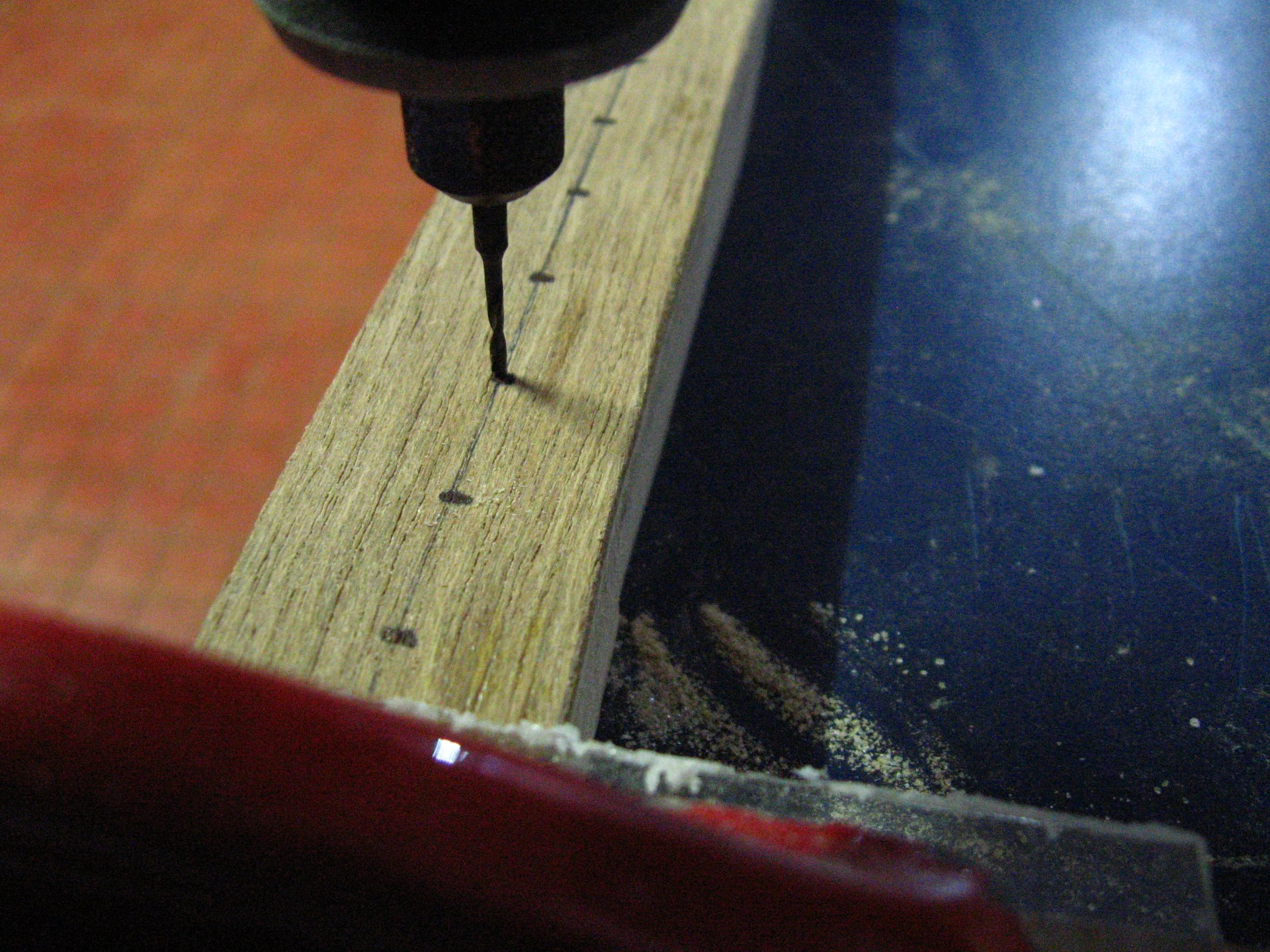

• Using the rotary tool and 1.5 mm drill bit, drill holes at all the marked portions

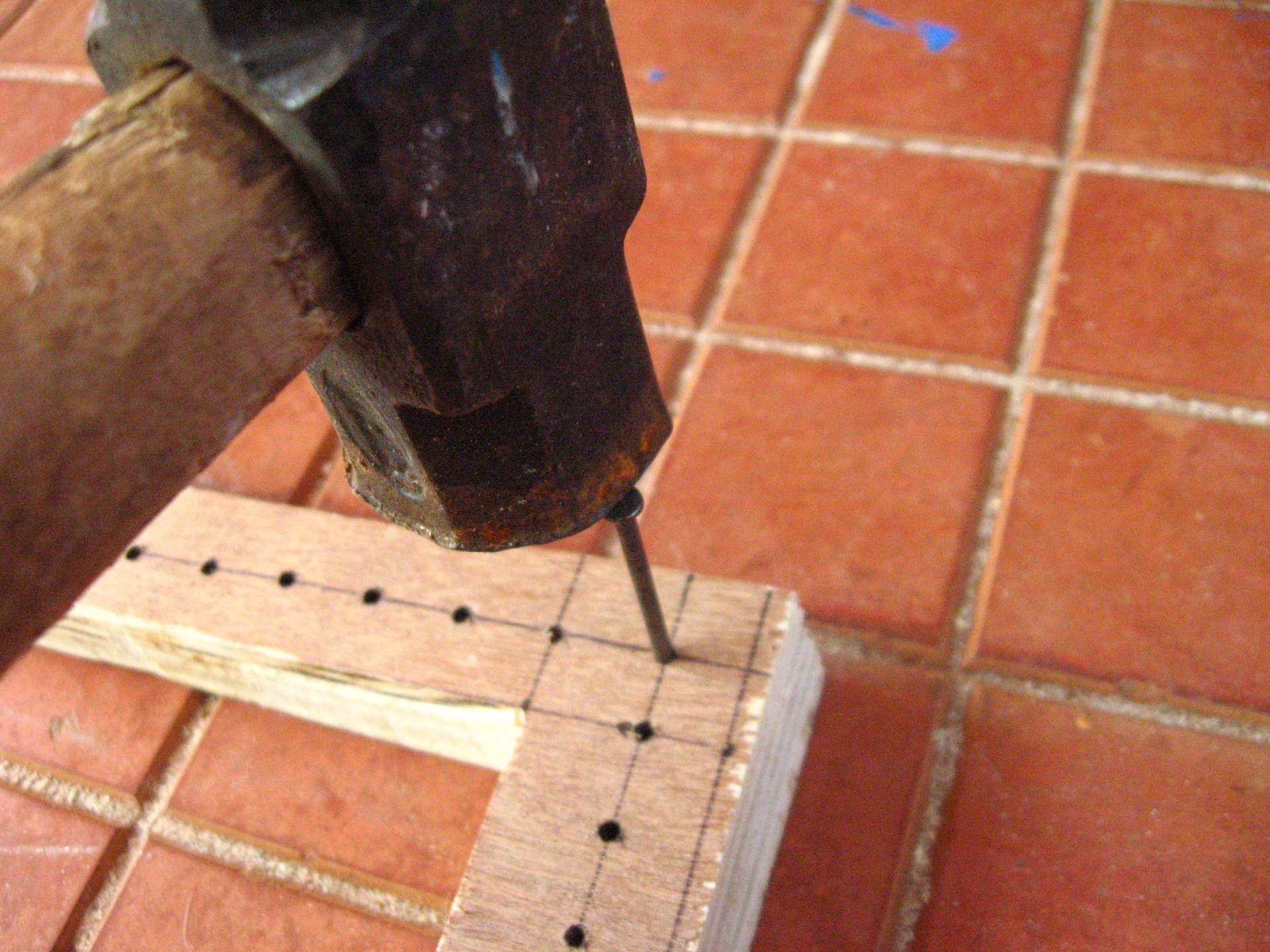

• Nail 1-1/2 " nails in all the drilled holes using a hammer. Use a straight edge on top of nails so that all nails remain at the same height

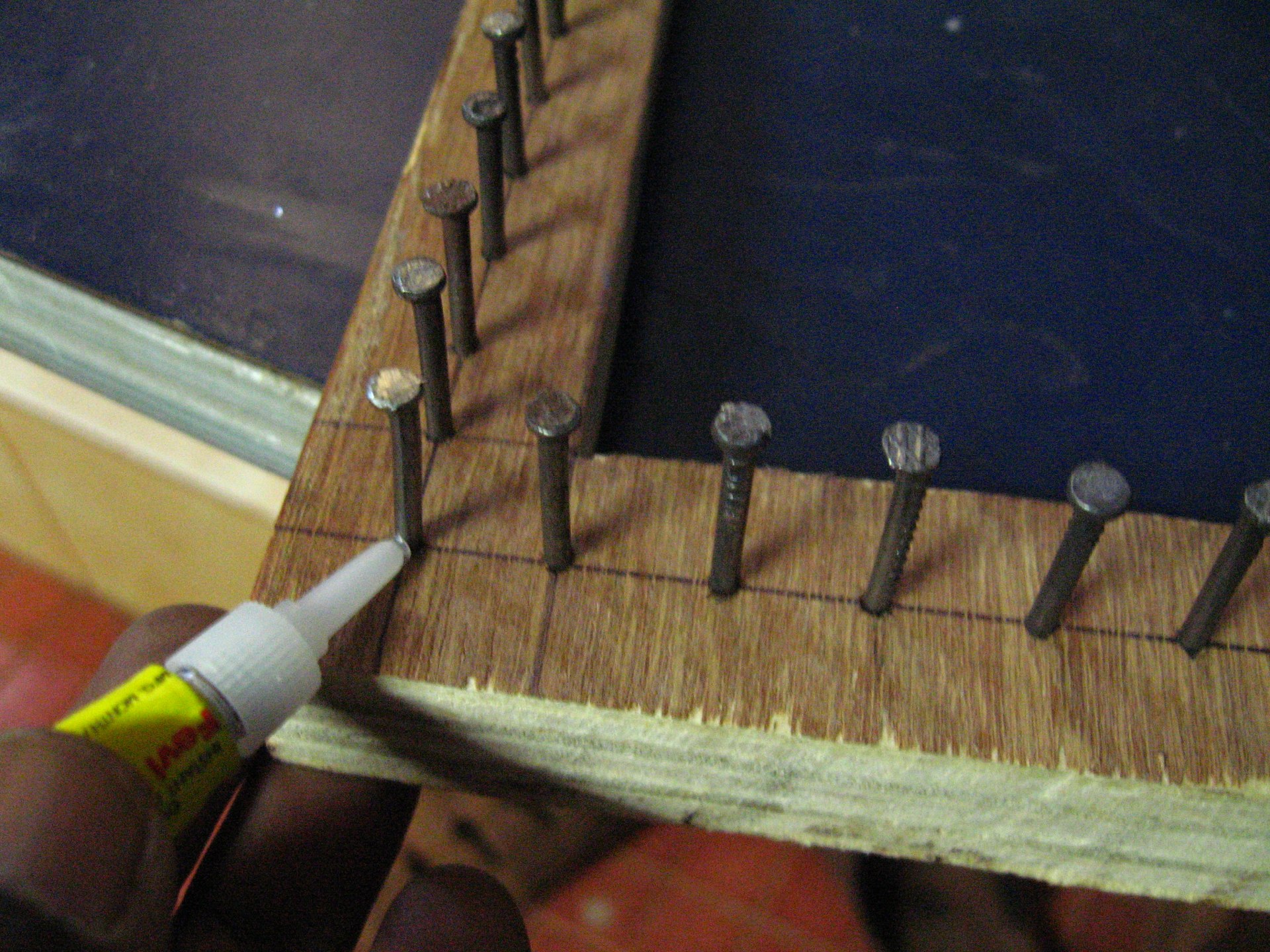

• Apply Fevikwik or any such instant glue to the nails, so that they are fixed firmly to the board and will not come out during weaving
• Using nail polish remover on a soft cloth, clean and remove rust from the nails

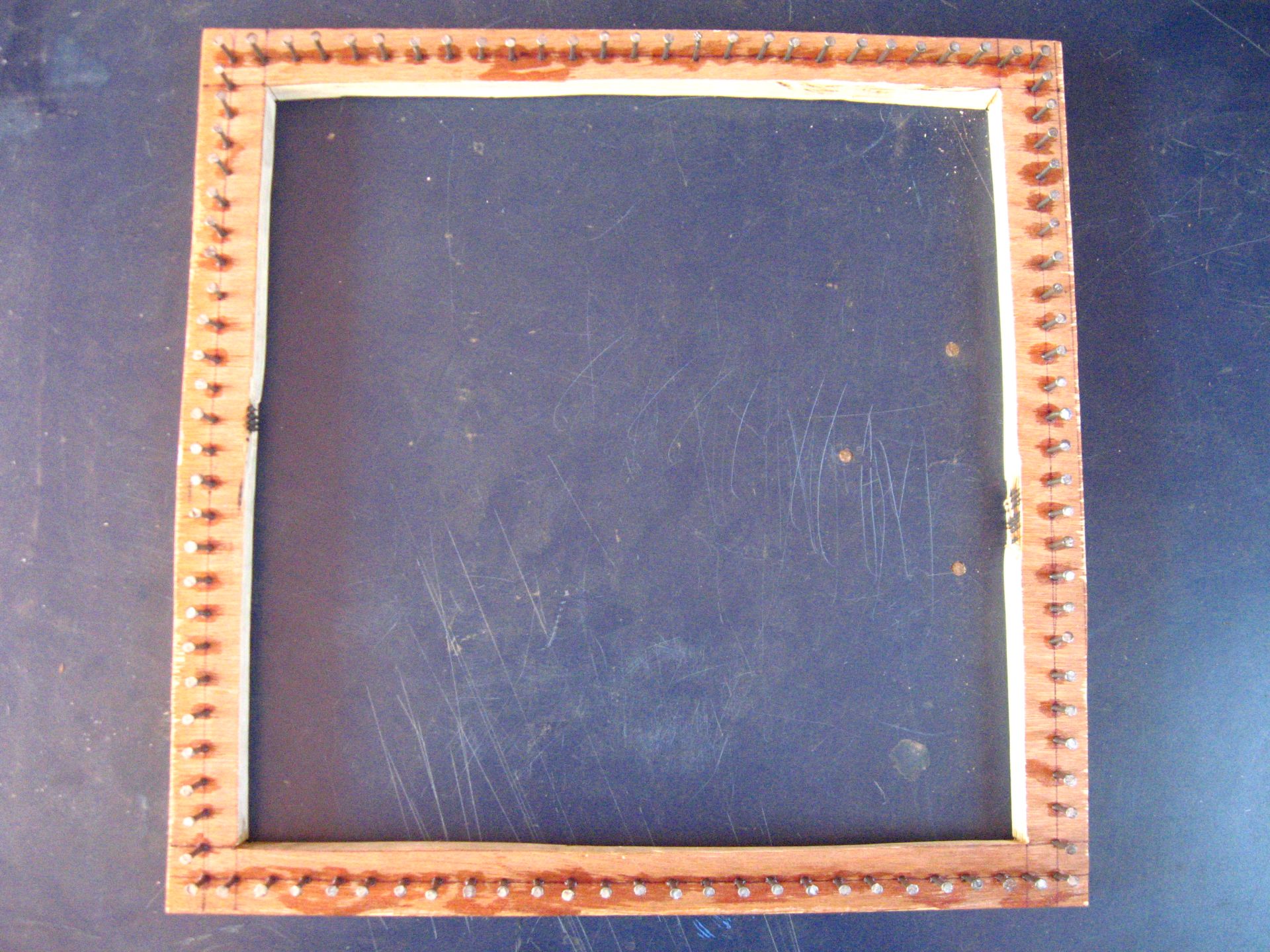

Our small table mat weaving frame is ready.

My wife used this frame to weave a table mat which you can see at this link

https://www.instructables.com/id/How-to-Weave-a-Sm...
