How to Make a Simple Water Level Indicator

by TECHY SAM in Circuits > Electronics

29357 Views, 14 Favorites, 0 Comments

How to Make a Simple Water Level Indicator

20170501_134055 copy.jpg

Hello friends, welcome you to my instructable . This instructable has been made because of the reason that sometimes the water tank is empty and that time the light goes off , then there is a big problem of use of water .so, I had made this tech that you can easily use to visualize your tank level which you can use to on/off the water pump in time.

So let's start .....

Simple Water Level Indicator

How to make a simple Water Level Indicator at home

if you don't want to read the whole instructable .then , simply watch the video till end and learn easily everything step by step.

Things Needed

100Pcs-Lot-Rocker-switch-small-switch-KCD1-101-21X15-feet-black-base-and-a-single-red.jpg
unnamed (1).jpg
unnamed (2).jpg
unnamed (3).jpg
unnamed (4).jpg

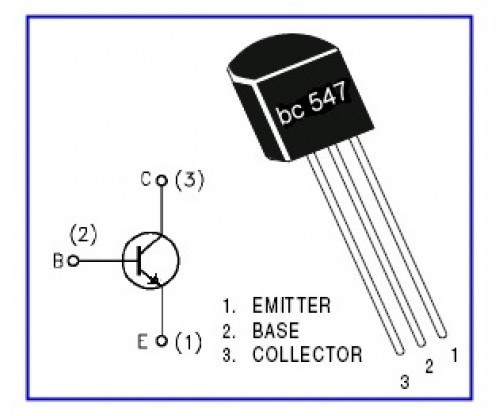

> BC547 Transistor - 5 Pieces.

> 100 Ohm Resistor - 10 Pieces.

> Red LED - 2Pieces.

> Green LED - 3 pieces.

> 9v Battery - 1 Piece.

> 9v Battery Cap - 1 Piece.

> Rainbow Cable - 1m.

> Project Circuit Board (PCB).

> Small Switch - 1piece.

You can easily get these things from your local electronics store.Now, after getting things let's start making the water level indicator.....

Circuit Diagram

CIRCUIT DIAGRAM1.png

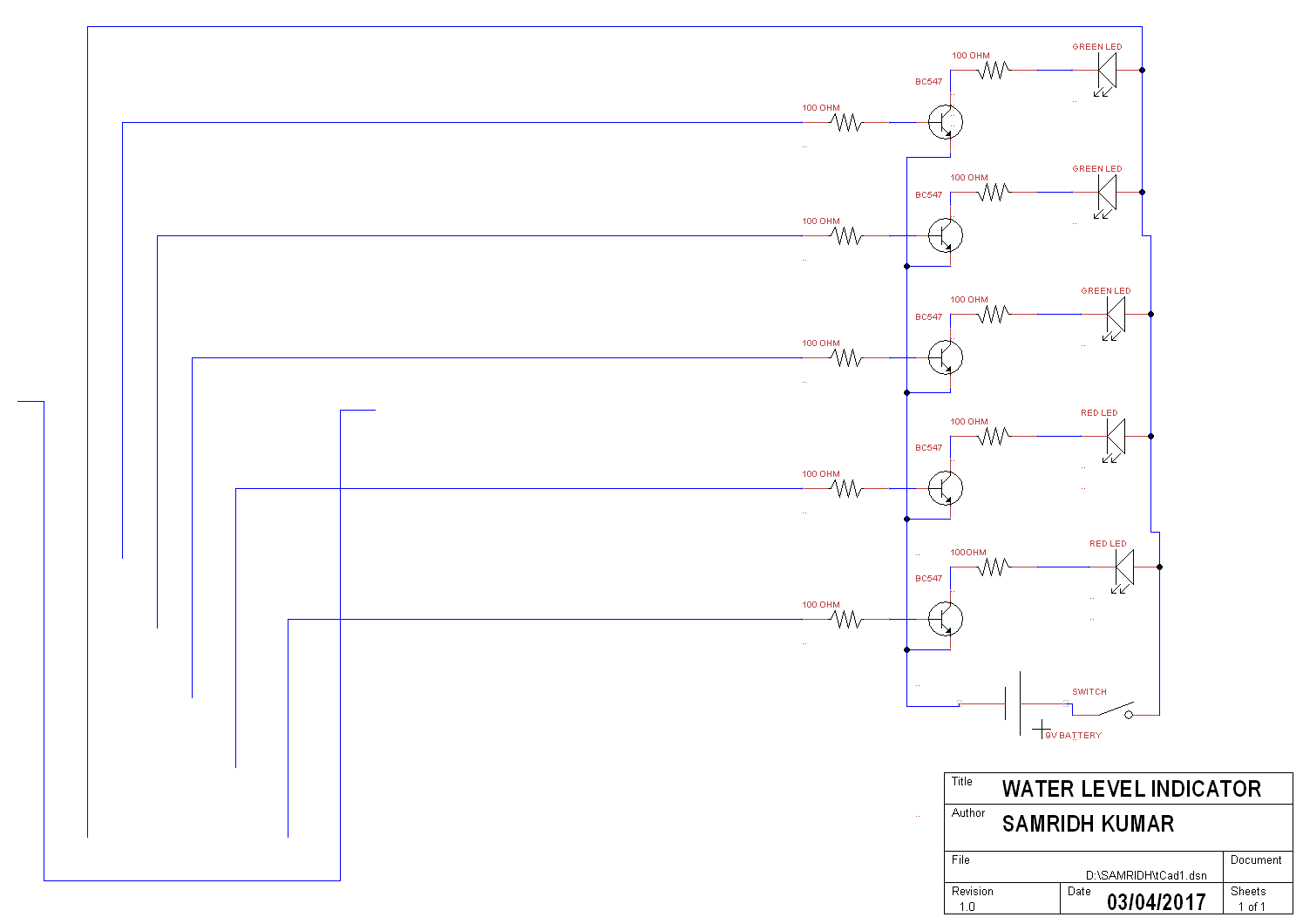

Just Connect all the needed components according to circuit diagram and make the water level indicator easily. if you want to download the circuit diagram then download it from the given link -Circuit Diagram

Working of Water Level Indicator

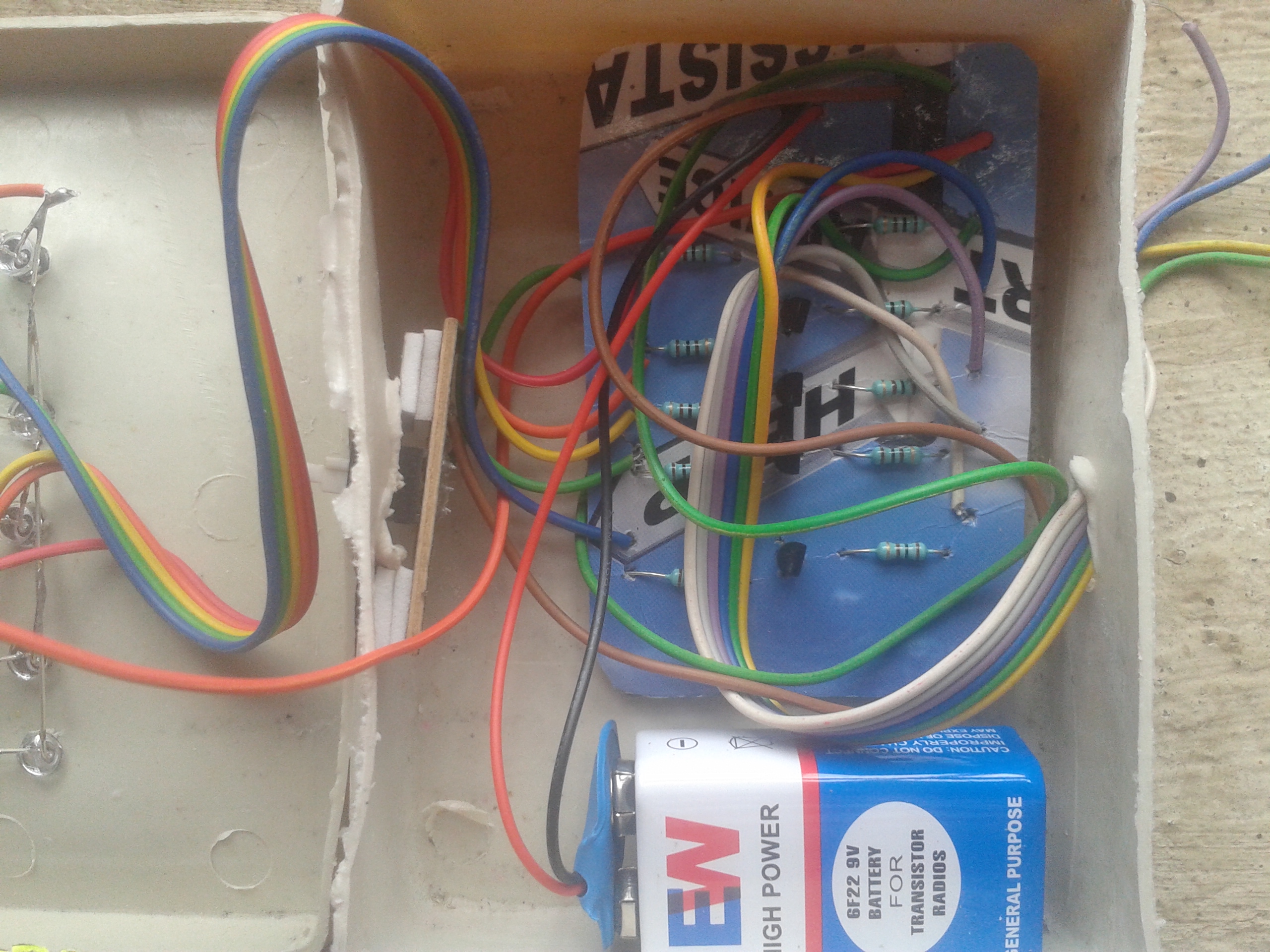

unnamed (5).jpg

The circuit works as that like the first LED positive lead is connected to battery positive and for glowing it the negative lead of LED is need to be connected to battery negative pole. so the negative lead of led is connected to collector(load) of BC547 and the emitter pin of BC547 is connected to negative and we know that when we want to trigger the transistor then we had to apply a small voltage at the transistor base pin so when the sensor probe is in water then a small voltage get on the base pin and it switches the transistor . As a result the negative lead of LED gets connected to battery negative via emitter pin and LED glows.and hence, the whole circuit works.

Thanks...

if you like my instrutable then vote me in the lights contest.....
