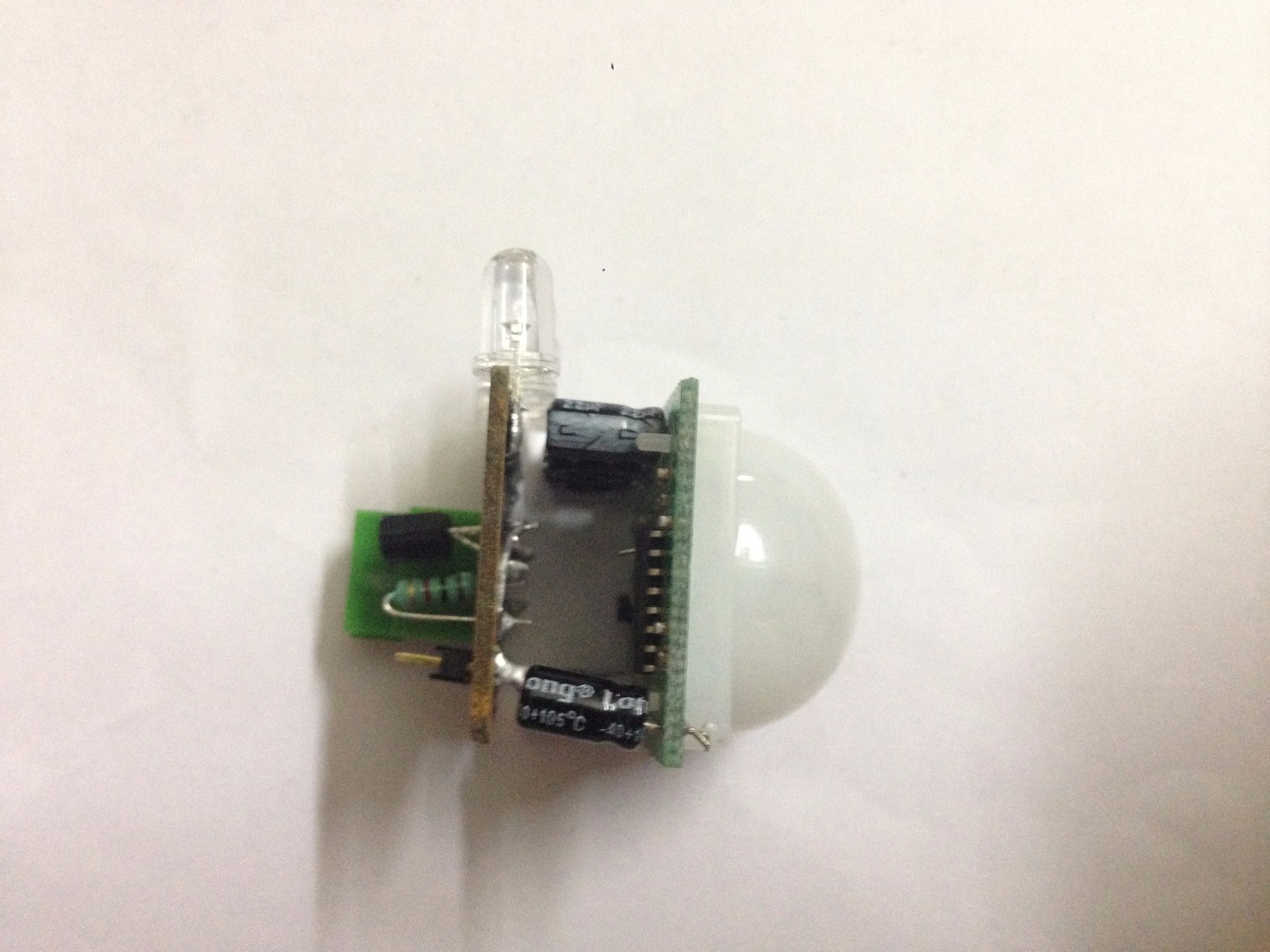

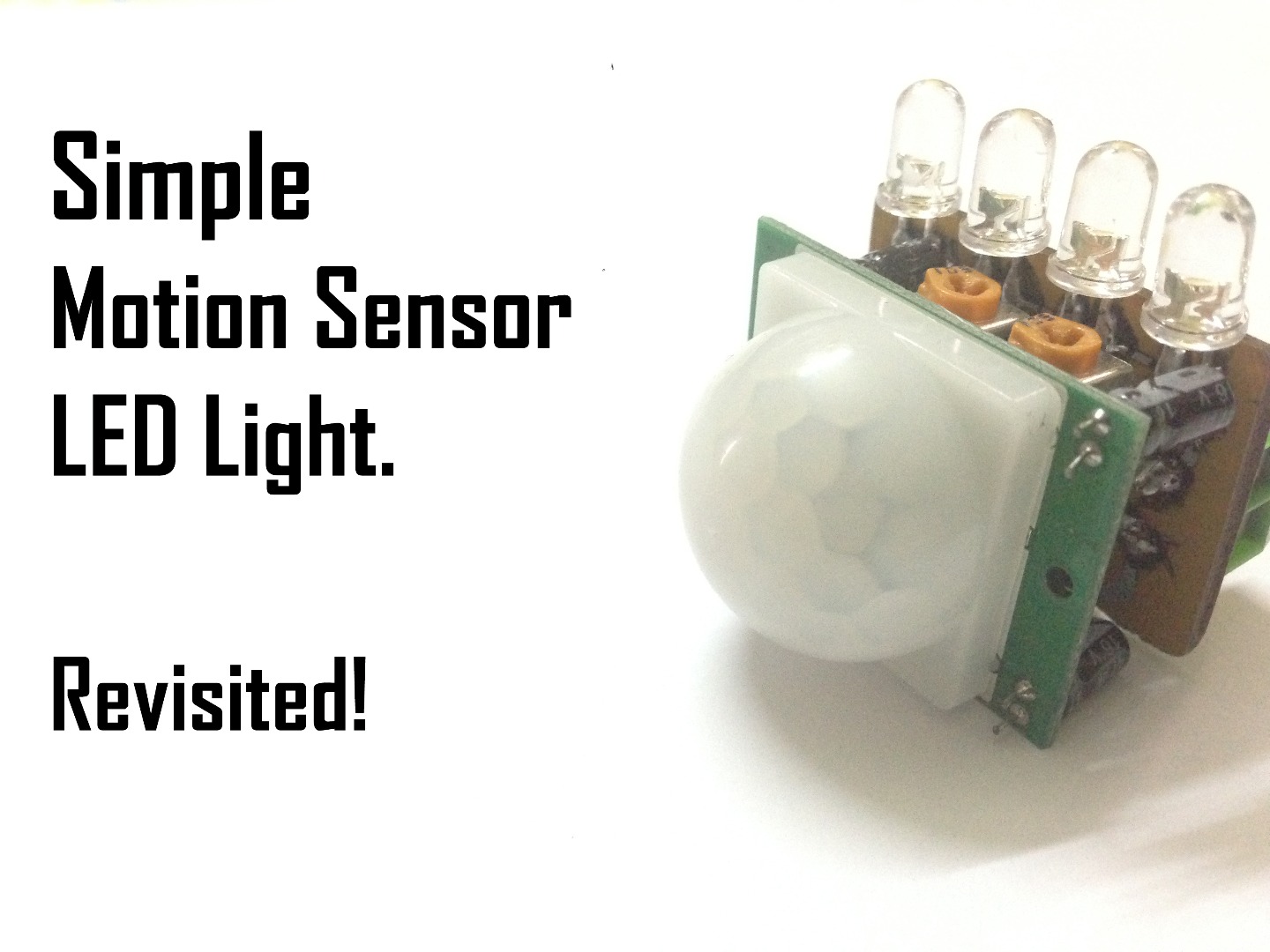

How to Make a Simple Motion Sensor Led Light (Revisited) (PIR)
![IMG_3319(2).jpg](/proxy/?url=https://content.instructables.com/FAJ/4OXC/IBAA9JFO/FAJ4OXCIBAA9JFO.jpg&filename=IMG_3319(2).jpg)
![IMG_3283.JPG](/proxy/?url=https://content.instructables.com/FZ0/NTSO/IBAA9I5L/FZ0NTSOIBAA9I5L.jpg&filename=IMG_3283.JPG)
![IMG_3287.JPG](/proxy/?url=https://content.instructables.com/FKV/16O4/IBAA9IBW/FKV16O4IBAA9IBW.jpg&filename=IMG_3287.JPG)
![IMG_3284.JPG](/proxy/?url=https://content.instructables.com/FAB/5UZO/IBAA9I5Y/FAB5UZOIBAA9I5Y.jpg&filename=IMG_3284.JPG)
Hi Again!
Now, I am here with a new Model of PIR Simple Motion Sensor Led Light!
The Previous Instructable had Portability Issues and a Resistor Problem.
In this Version i have made it more Compact and Easy to keep with a little improvement which i got from comment.
Kits would be soon available for Grabs.
Message me to Book one. Price would be Only 7$ + Shipping ( would be estimated according to country)
Do Vote me for Home Automation Contest :)
Gather All the Parts
Let's Make!
First of all List of Parts Required:
1) PIR
2) PCB
3) BC547
4) 1k
5) Screw Terminal (2 Pin)
6) 4 White Leds.
7) Long Male Header (3Pin)
Sorry.. forgot to click pictures of parts.
But you could search the part image on google ;)
Circuit
![ssch.PNG](/proxy/?url=https://content.instructables.com/FD9/J4BH/IBAA9RW9/FD9J4BHIBAA9RW9.png&filename=ssch.PNG)
I Slightly Modified it from my previous instructable.
Now it has 1k in between transistor and pir. by which it reduces the drop out voltage of transistor.
PCB Eagle Board File.
![measurments.PNG](/proxy/?url=https://content.instructables.com/FOE/NTLN/IBAA9LOB/FOENTLNIBAA9LOB.png&filename=measurments.PNG)

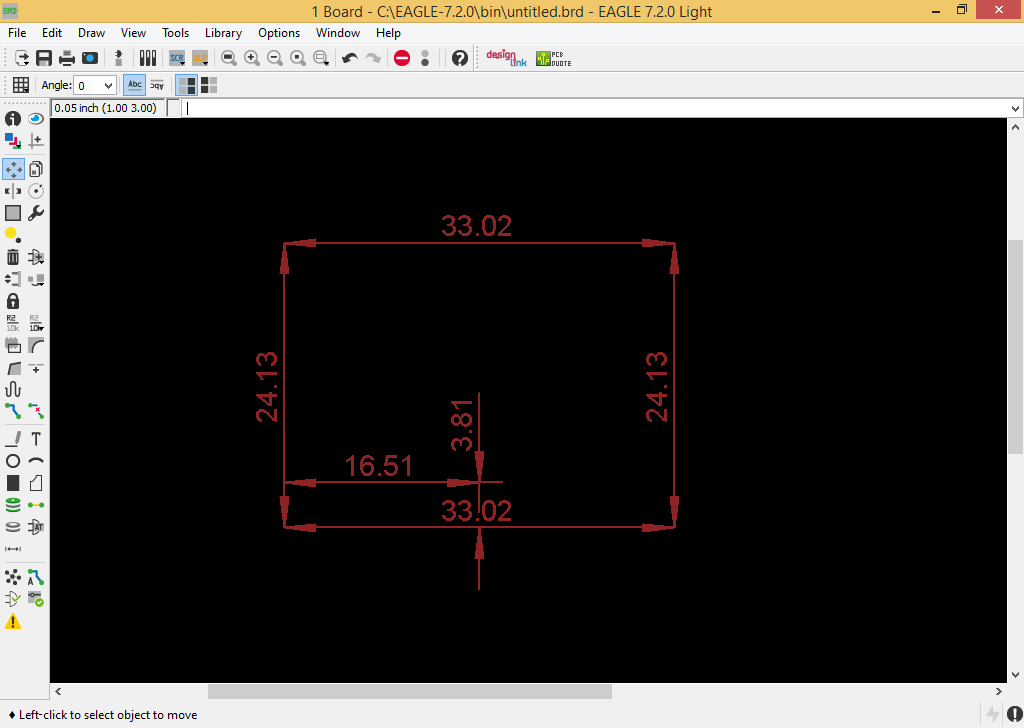

Taking measurments of PIR Was a Lot difficult but the measurment tool in eagle cad, made my day.
It helped me take a good measurments and helped to find the middle of the board
See Picture how i figured out the size and where to place components.
Downloads

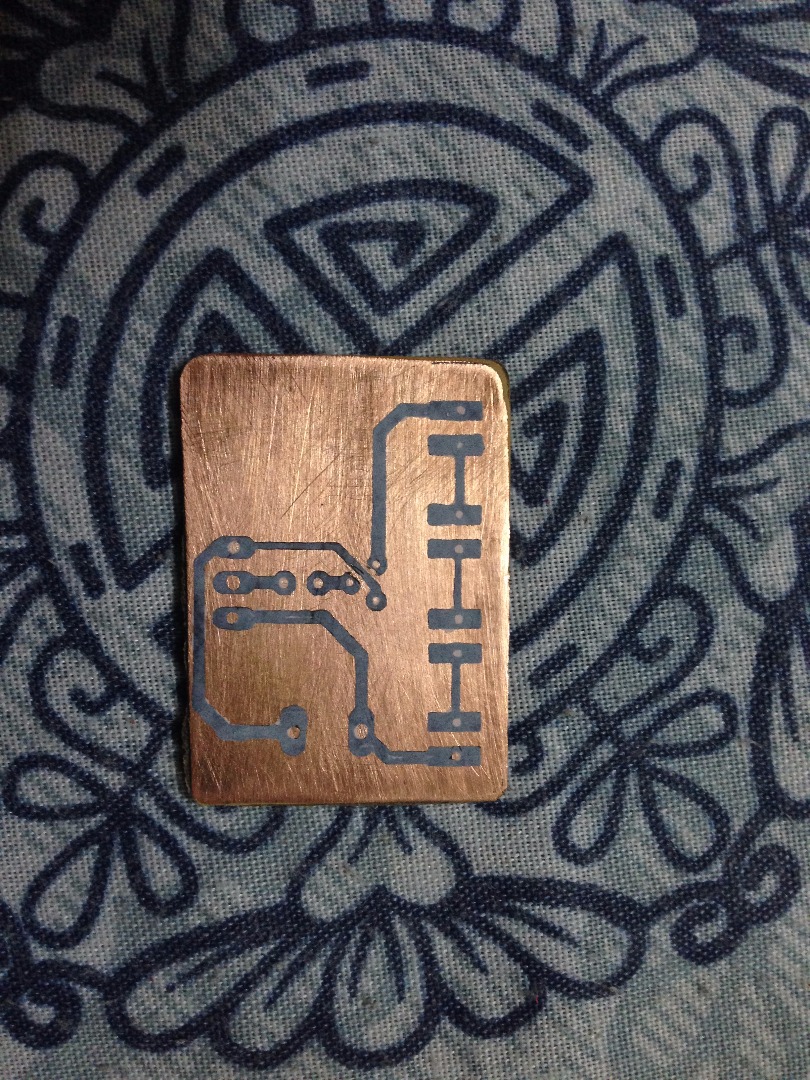

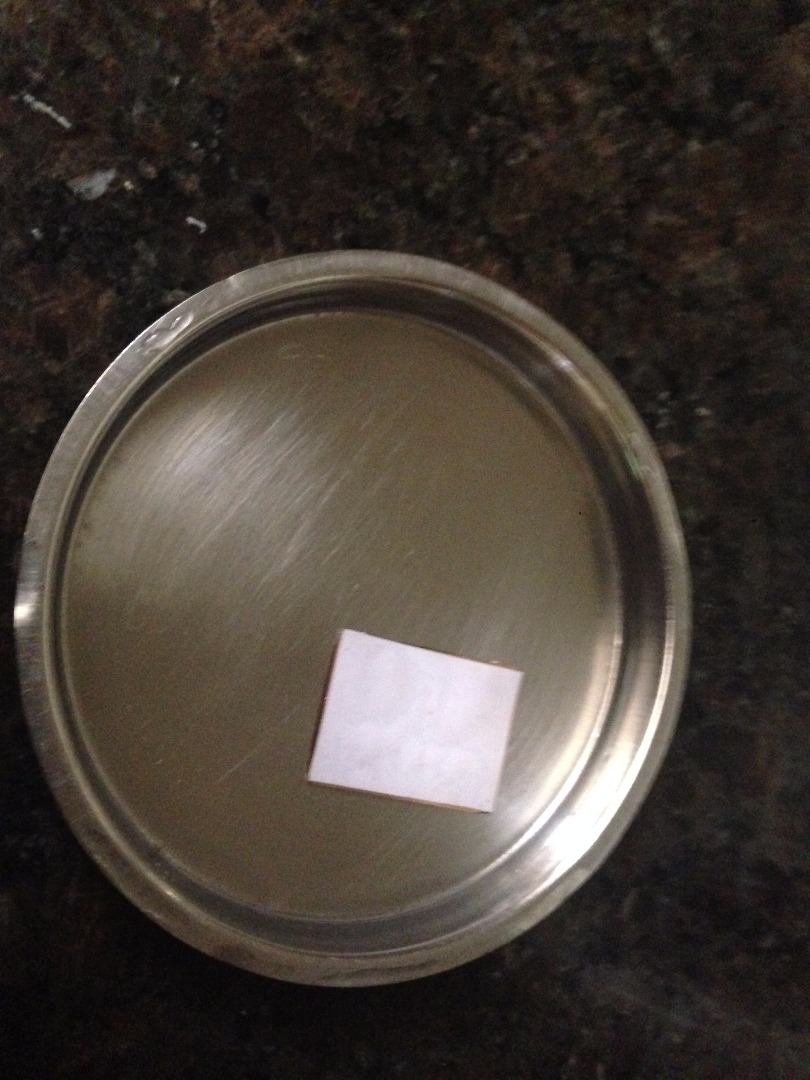

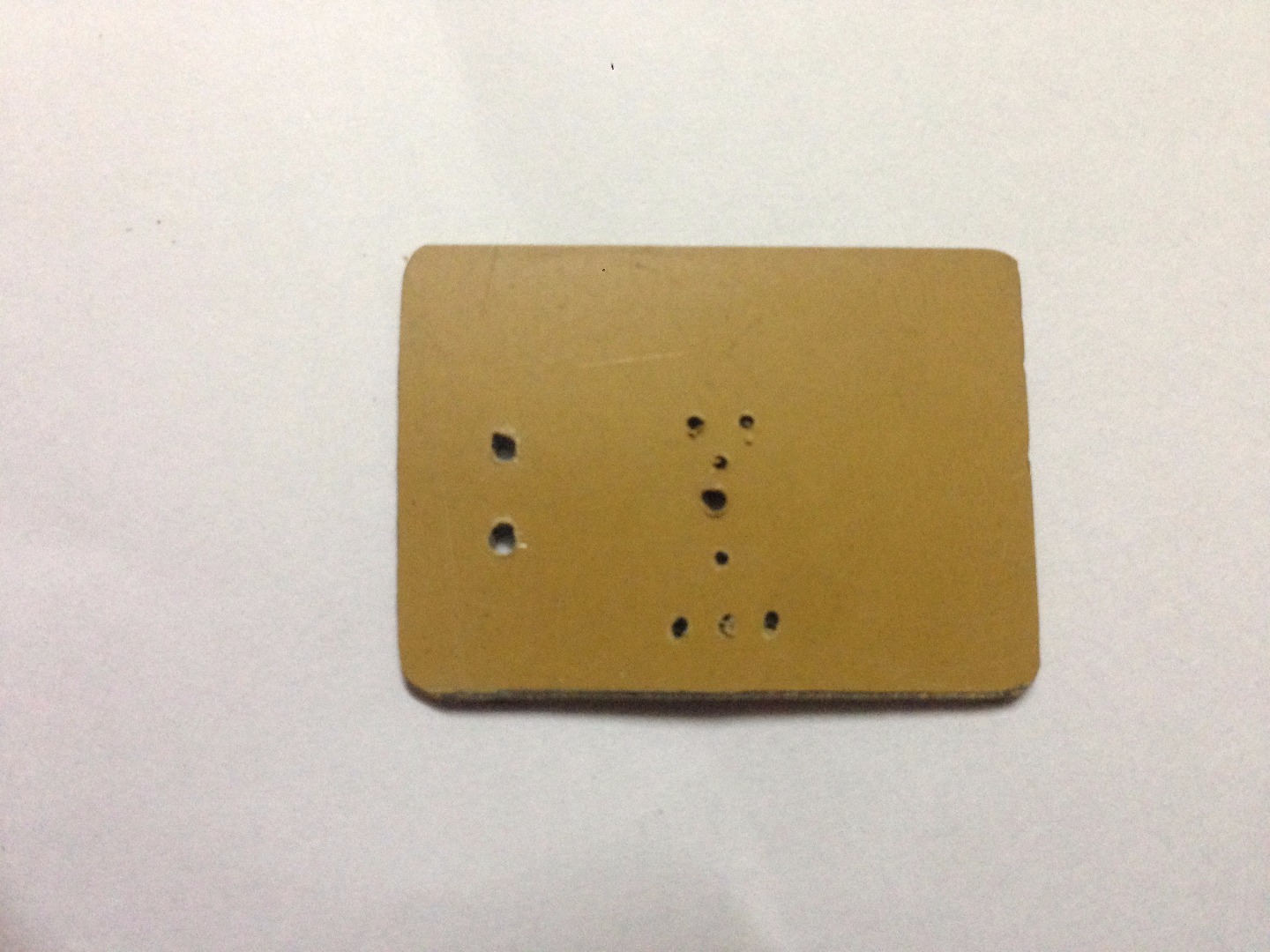

Toner Transfer , Etching , Drilling ....
![IMG_3267.JPG](/proxy/?url=https://content.instructables.com/FSL/J7YX/IBAA9HY8/FSLJ7YXIBAA9HY8.jpg&filename=IMG_3267.JPG)
![IMG_3268.JPG](/proxy/?url=https://content.instructables.com/FRY/63EI/IBAA9HY9/FRY63EIIBAA9HY9.jpg&filename=IMG_3268.JPG)
![IMG_3269.JPG](/proxy/?url=https://content.instructables.com/FPK/ITZZ/IBAA9HYP/FPKITZZIBAA9HYP.jpg&filename=IMG_3269.JPG)
![IMG_3273.JPG](/proxy/?url=https://content.instructables.com/FTR/JD9S/IBAA9I06/FTRJD9SIBAA9I06.jpg&filename=IMG_3273.JPG)
If you don't know how to do this then Please see these steps in my previous Instructable Here.
Let's Start Soldering - Solder Screw Terminal
![IMG_3272.JPG](/proxy/?url=https://content.instructables.com/F80/WQ6S/IBAA9HZQ/F80WQ6SIBAA9HZQ.jpg&filename=IMG_3272.JPG)

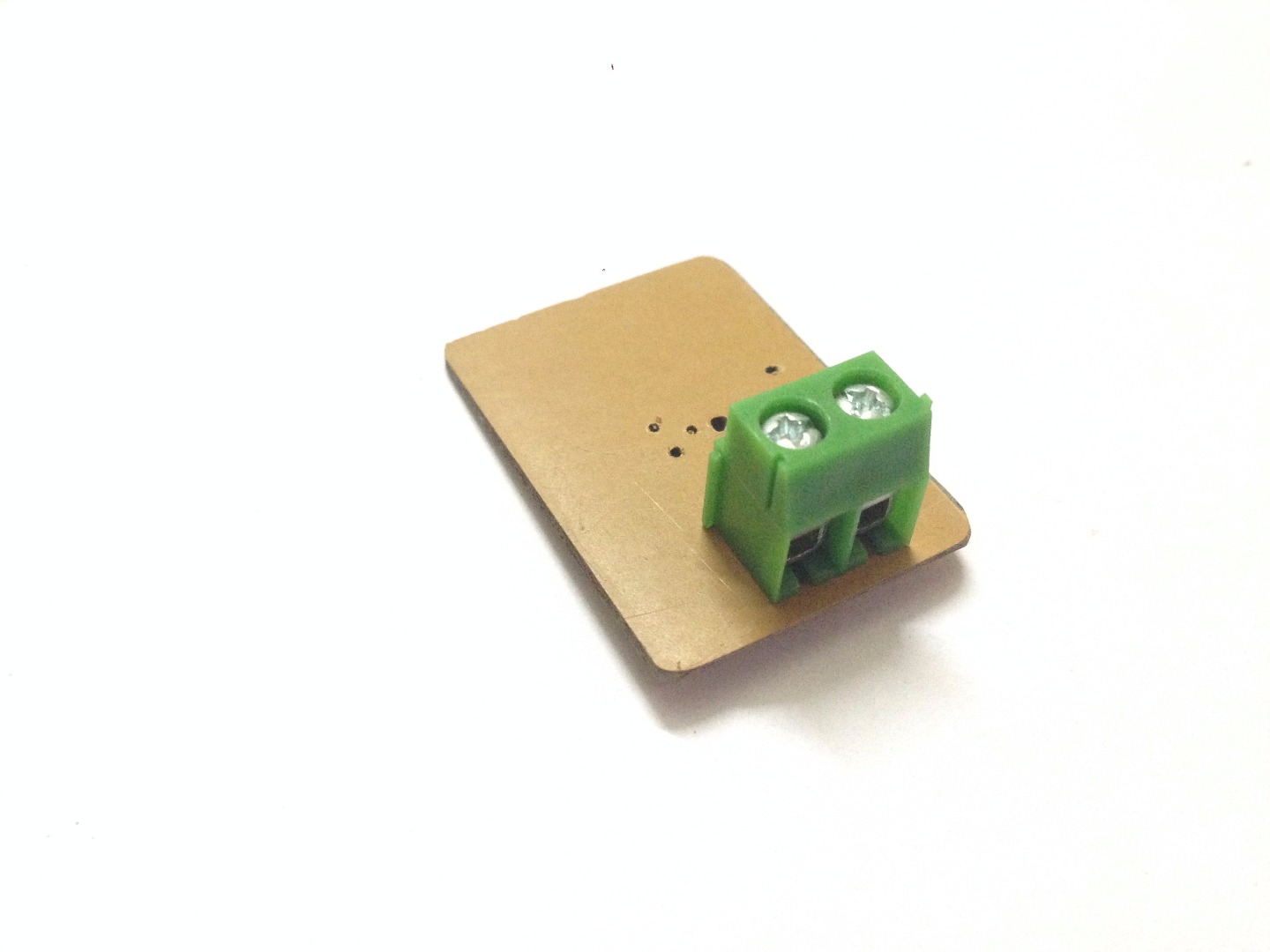

Solder the Screw Terminal...
Solder BC547 Transistor
![IMG_3274.JPG](/proxy/?url=https://content.instructables.com/F71/DLYI/IBAA9I13/F71DLYIIBAA9I13.jpg&filename=IMG_3274.JPG)
Solder BC547...
Remember The Position.
Solder 1K Resistor
![IMG_3276.JPG](/proxy/?url=https://content.instructables.com/FGI/UEMQ/IBAA9I2B/FGIUEMQIBAA9I2B.jpg&filename=IMG_3276.JPG)
Solder the Resistor...
Solder the Leds
![IMG_3277.JPG](/proxy/?url=https://content.instructables.com/F6U/9K9M/IBAA9I2U/F6U9K9MIBAA9I2U.jpg&filename=IMG_3277.JPG)
Now Solder Those Leds.
No Need to Drill holes for it.
Because these would be soldered directly to board.
Now Solder the Header & Join the PIR
![IMG_3282.JPG](/proxy/?url=https://content.instructables.com/FXC/O2IE/IBAA9I54/FXCO2IEIBAA9I54.jpg&filename=IMG_3282.JPG)
![IMG_3278.JPG](/proxy/?url=https://content.instructables.com/FV9/3G83/IBAA9I39/FV93G83IBAA9I39.jpg&filename=IMG_3278.JPG)
![IMG_3316.JPG](/proxy/?url=https://content.instructables.com/F96/EPZ7/IBAA9IDL/F96EPZ7IBAA9IDL.jpg&filename=IMG_3316.JPG)
Now Solder The Header to the Board and then with the other header on the PIR.

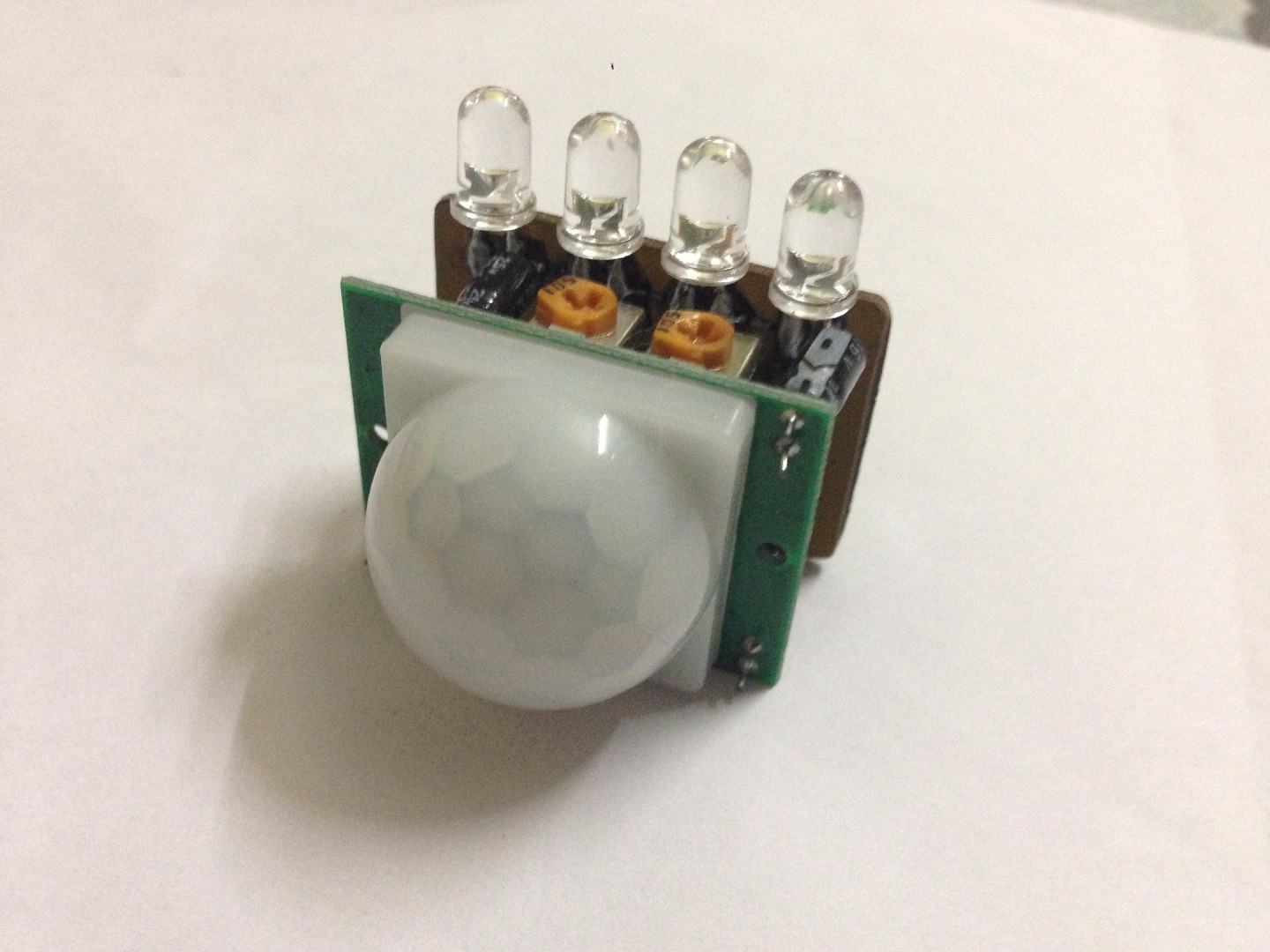

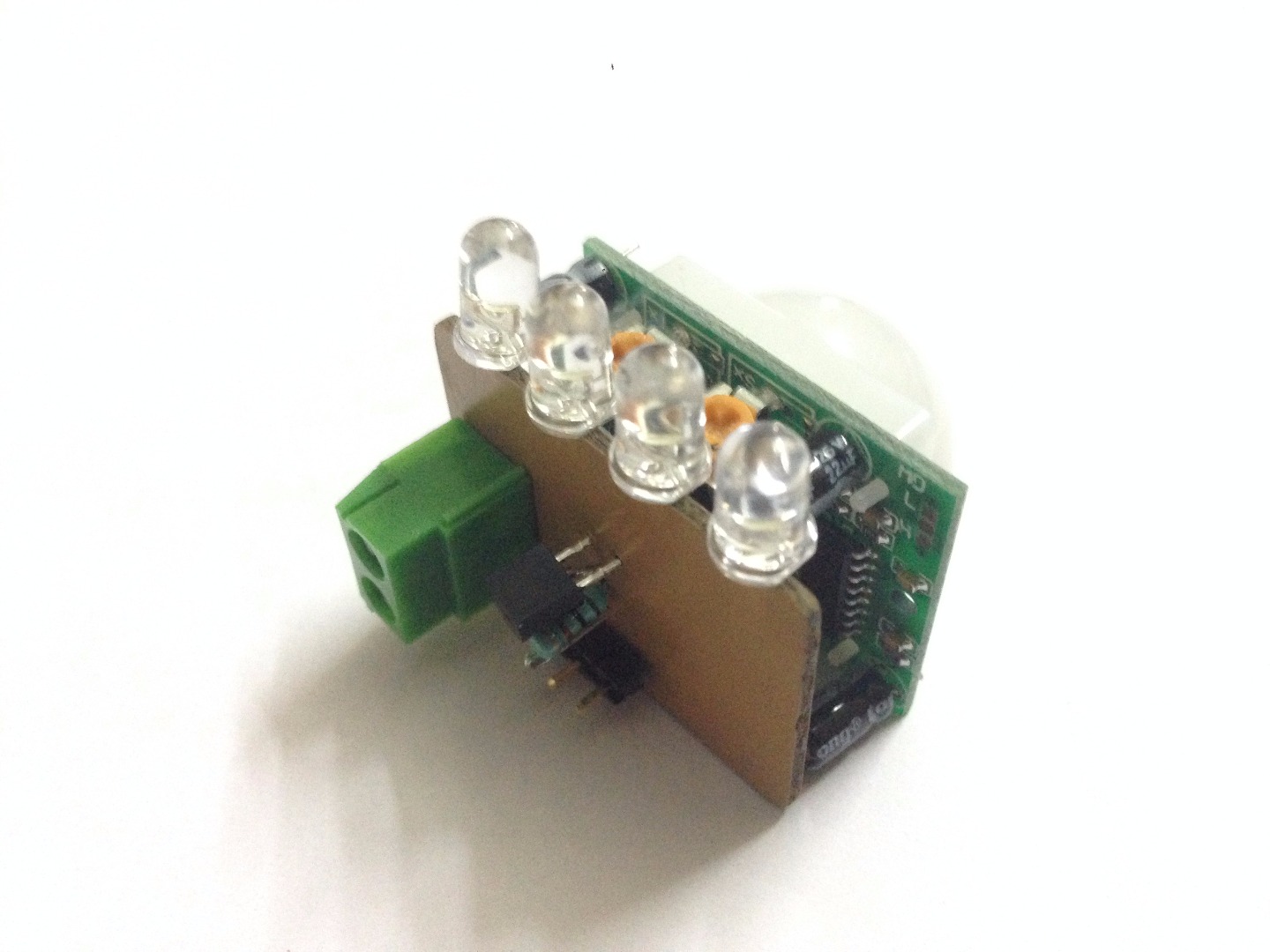

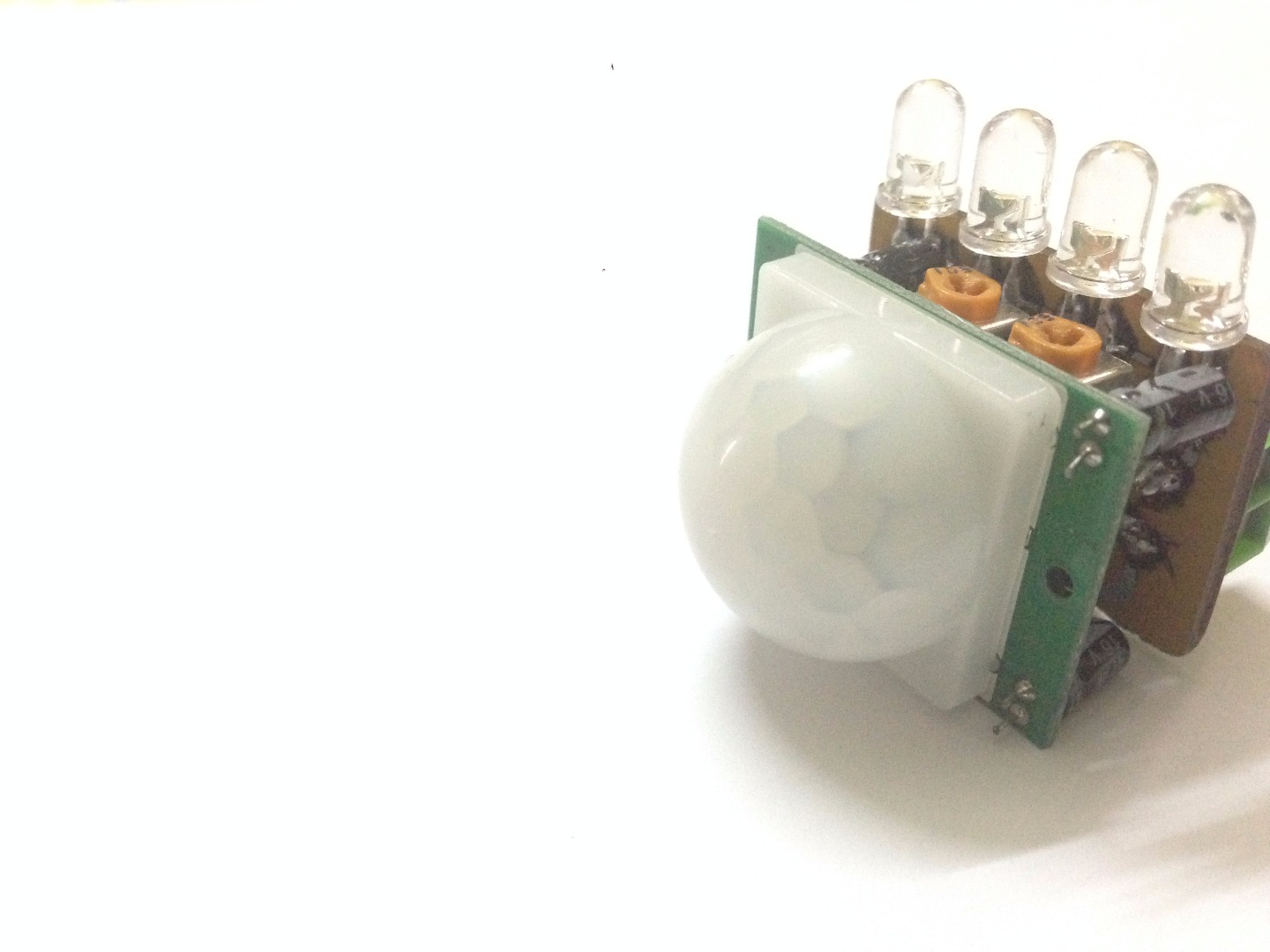

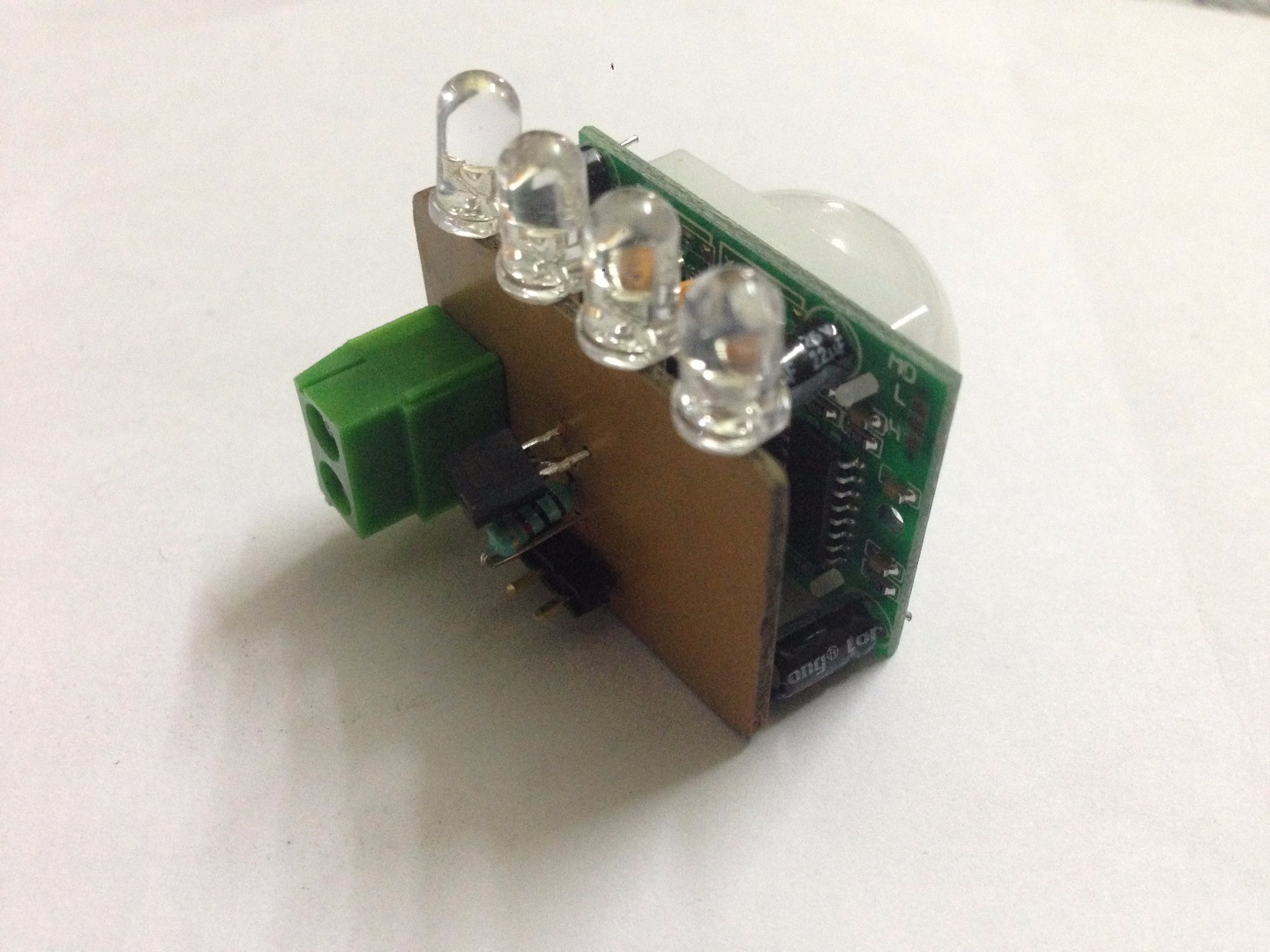

Finished!
![IMG_3319.JPG](/proxy/?url=https://content.instructables.com/FPT/2R5Z/IBAA9IE4/FPT2R5ZIBAA9IE4.jpg&filename=IMG_3319.JPG)
![IMG_3285.JPG](/proxy/?url=https://content.instructables.com/FDR/R4GO/IBAA9I6F/FDRR4GOIBAA9I6F.jpg&filename=IMG_3285.JPG)
![IMG_3286.JPG](/proxy/?url=https://content.instructables.com/F9E/5WNN/IBAA9I78/F9E5WNNIBAA9I78.jpg&filename=IMG_3286.JPG)
That's it!
We have made a Cool Looking Compact Motion sensor Light.
Now Power It ON with 12v Regulator.
Give it a warm up time of 20 sec.
Now it should light up leds when motion is sensed.
