How to Make a Shoe-box Projector!

The Backstory:

So. Last week while I was soldering, I accidentally burned myself (and it hurt really bad!) I may have dropped a few expletives, as well as my grandfather’s old third-hand. (Please don’t tell him) Upon impact, the lens frame cracked, which rendered the magnifying glass useless. At first, I was pretty upset, but I decided to give the lens another life and create a shoe-box projector! This is how I did it…

Project Introduction:

What exactly is a shoe-box projector? Glad you asked. A shoe-box projector, as the name implies, is a projector made from a shoe-box...

*MIND BLOWN*

Sorry... but jokes aside, how exactly does this thing work? Well first, we place our smartphone inside of the shoe-box. The light coming from the phone is then carried through the lens at one end of the shoe-box, and projected onto a wall. The final image can be a bit blurry, but what you end up with is a dirt-cheap, make-shift projector.

Note: The image seen on the wall, will be an inverted version of the original, so you'll have to lock your phone screen rotation and flip it upside down. The horizontal axis will still be inverted, but hey, at least it's great for watching pirated movies? (Just to be clear, I DO NOT CONDONE PIRACY. You wouldn't download a car, would you?)

So what do we need to build this awesome piece of recycled garbage? Well, for starters...

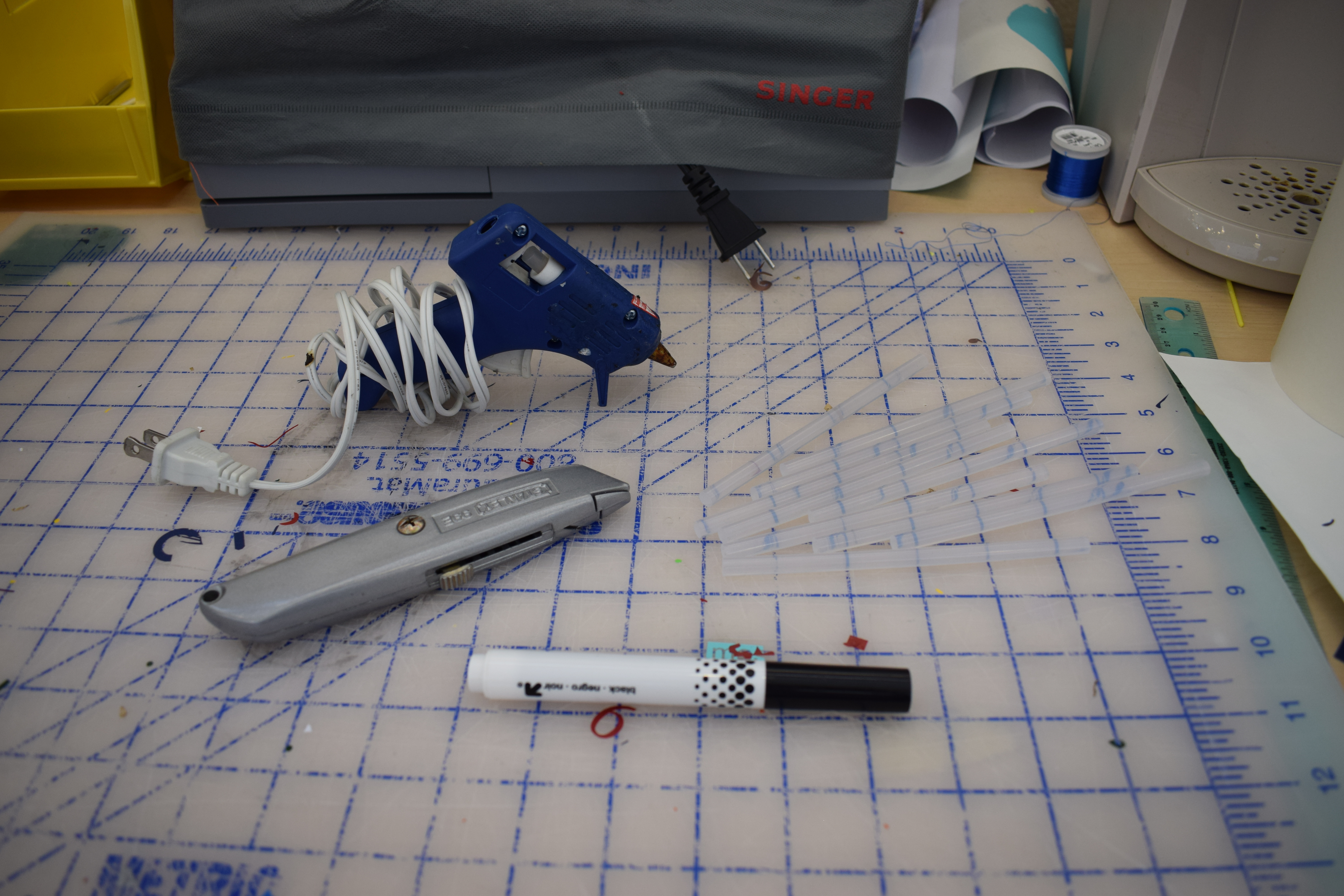

Tools -

• Hot Glue Gun

- As the name implies, these are very hot! Please be careful when using this, always get permission and ask for an adult's help if you need it. We don't need any more broken third-hands, now do we?

• Marker/Pencil

(Probably the least dangerous item on this list.) We will be using this for marking the outline of the lens on the box for cutting.

• Box Knife

- Another useful, but dangerous tool. Knives are sharp, so please use adult supervision. Remember, never cut towards yourself, and always make sure to clear a Blood Circle, which is the radius around you that a knife could reach in an outstretched arm. (Any Boy Scouts here?)

That's all the tools we will need. Onto materials!

Materials -

• Shoe-box

- This probably seems pretty obvious, but one thing to note: it does matter what size of box you use. I've found that smaller (narrower) boxes work better. Mine was pretty large so the picture wasn't as good. Also, the phone will fit better in a thinner box.

• Magnifying Lens

- Probably also a given, but once again, size matters. Contrary to the box, the larger the magnifying glass is, the better the image. I'd suggest having one at least the size of the phone if not larger. My image was distorted around the edges because of how small the lens was.

• Smartphone

- This is what powers the whole projector. I suggest using a large phone screen, with a brightness turned all the way up. Make sure it fits in your box!

• Phone Beanbag

- Found mine ages ago at an old RadioShack... Let's take a moment of silence to remember our fallen... Thank you. (Luckily, you can find one just like it here.)

Update: Hindsight is 20/20. Now that I'm done with the project, I'd rather have used cardboard to make a custom phone stand. The beanbag tends to slouch and sometimes covers the bottom bit of screen.

And that's it! It's a pretty short list actually.

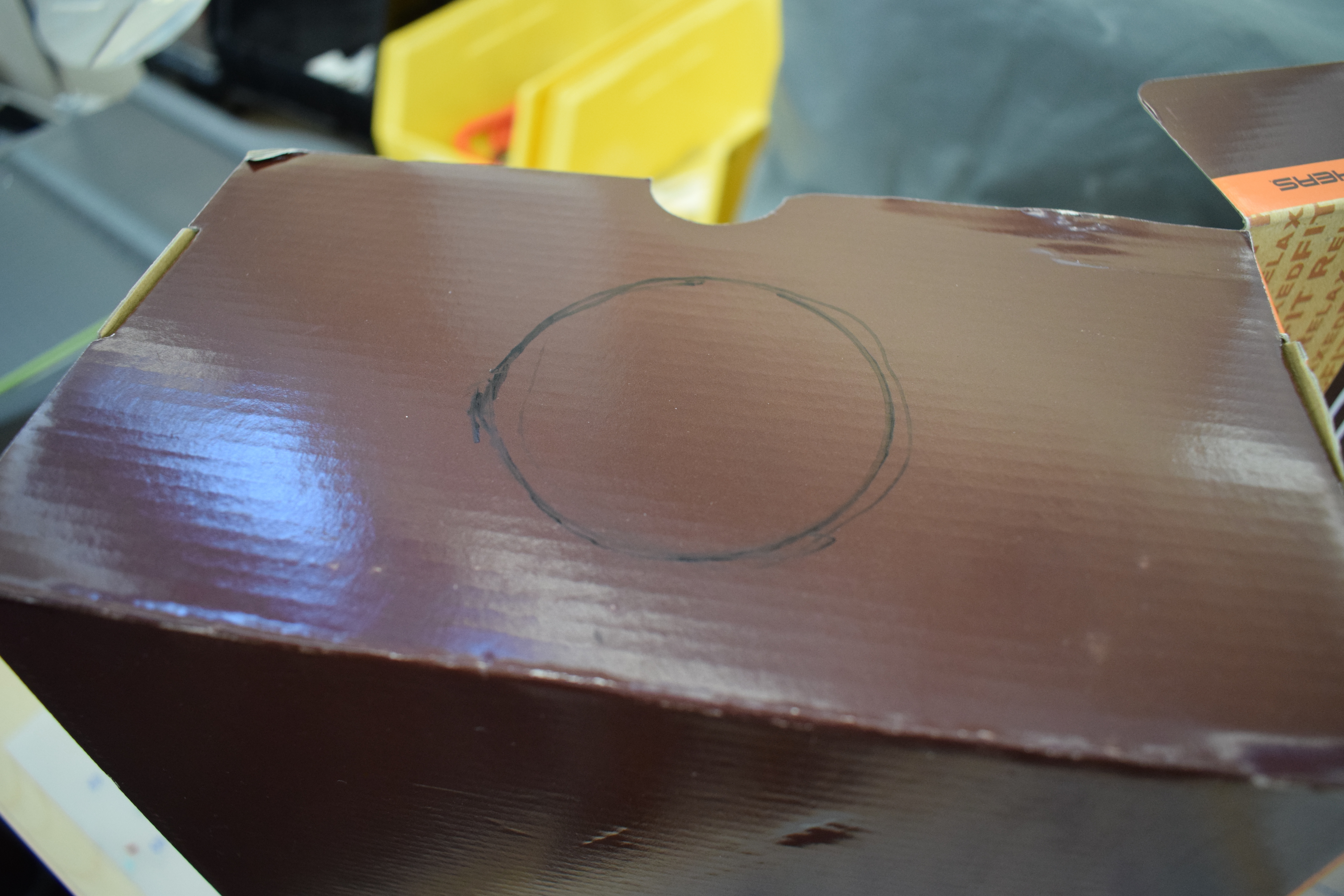

Let's get to making! For this step, we will be tracing and cutting out a circle that the lens can fit into. Pick one end of the shoe-box, and set the lens on top. Then, take a marker and begin tracing the lens.

Note: I tried to use one hand to draw so I could film, but I suggest using two hands. Your line will turn out better, trust me.

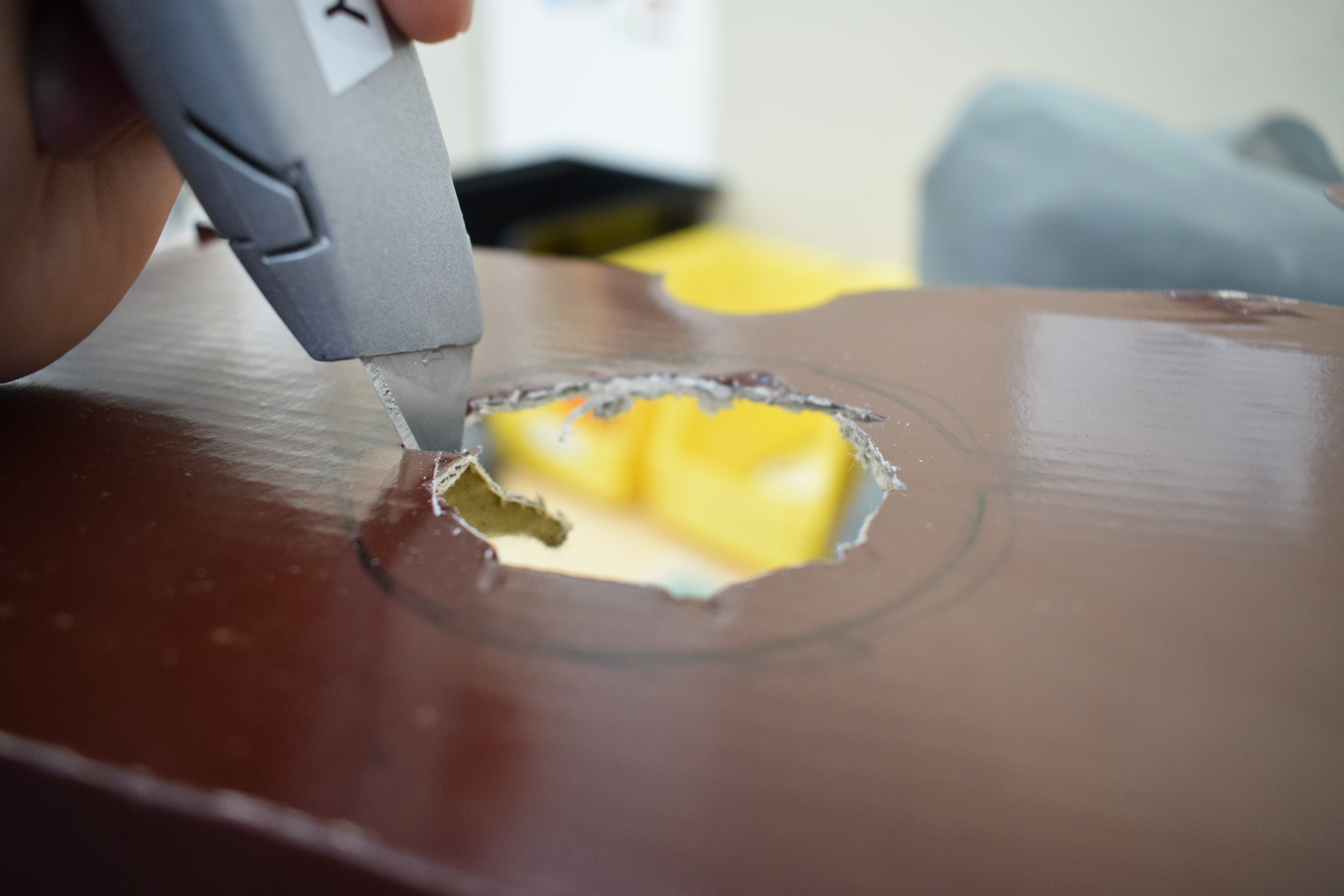

After you've drawn the line, use the box knife to puncture a hole in the middle and start cutting out the circle. Take your time, the better the cut, the cleaner the edges of your image will be in the long run.

Note: Make sure your hole is slightly smaller than the lens. If it's too big, the lens will fall through it, and it will be a pain to try and glue in.

Once you have a hole made, it's time to move onto the next step!

Let's get that lens attached! Flip the shoe-box over so you can see the inside of the hole you just cut. (It helps to have a flat surface.) Then, we'll plug in the hot glue gun and wait for it to heat up.... Any minute now... just another... sec... annnndd.... almost there...

Okay! Great, now that the hot glue gun is heated, we can glue the lens. Place the lens down onto the hole, rotation doesn't matter since this is a convex lens. Begin applying copious amounts of hot glue all around the lens. We don't want it falling out!

Just as a reminder, please be careful with the hot glue gun. Don't touch the glue until it dries. Hot glue is really good at retaining heat, and if you get some of that melty stuff on your finger, it's not going to be a fun time.

Once the glue is cooled, we are done! Time to setup the phone.

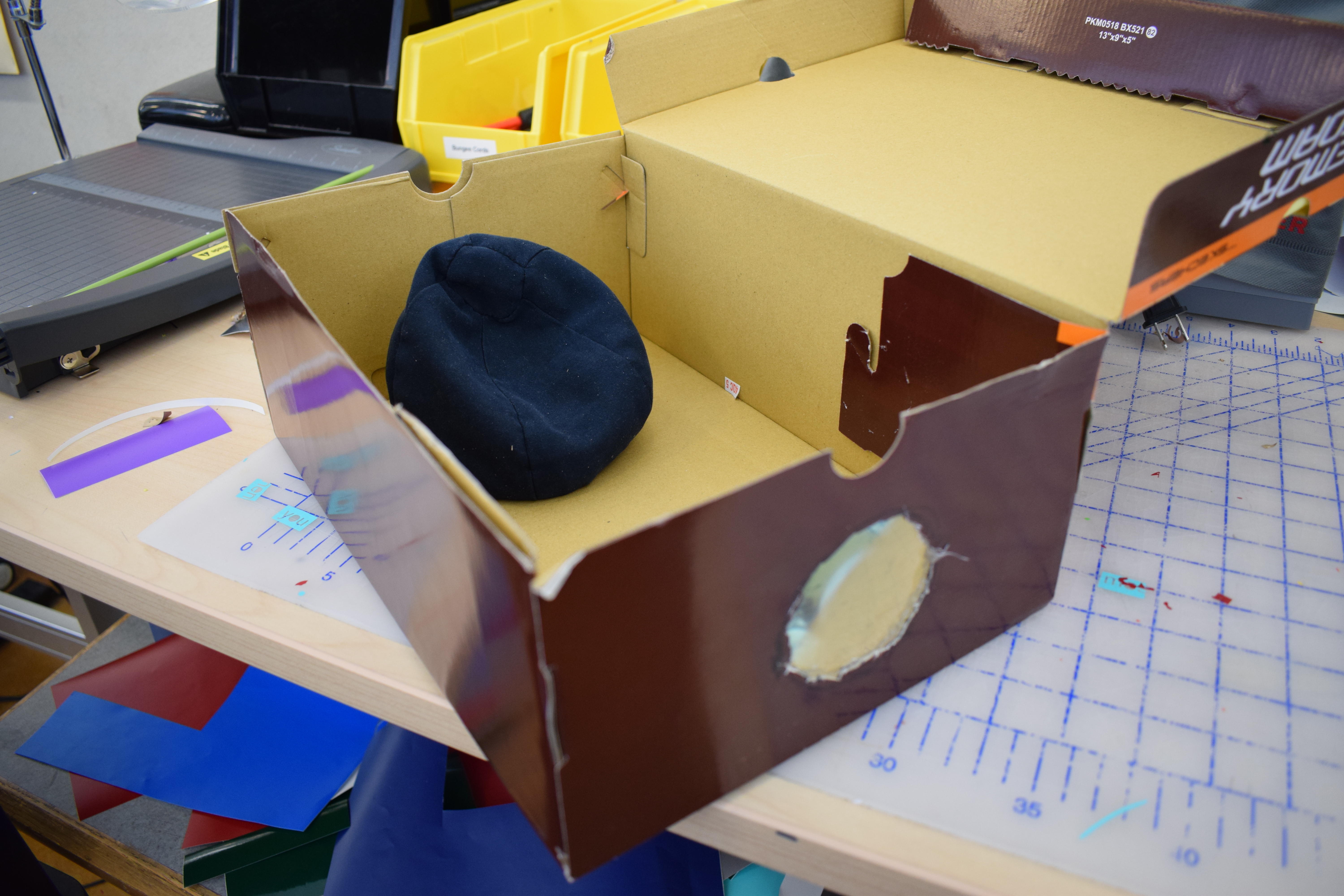

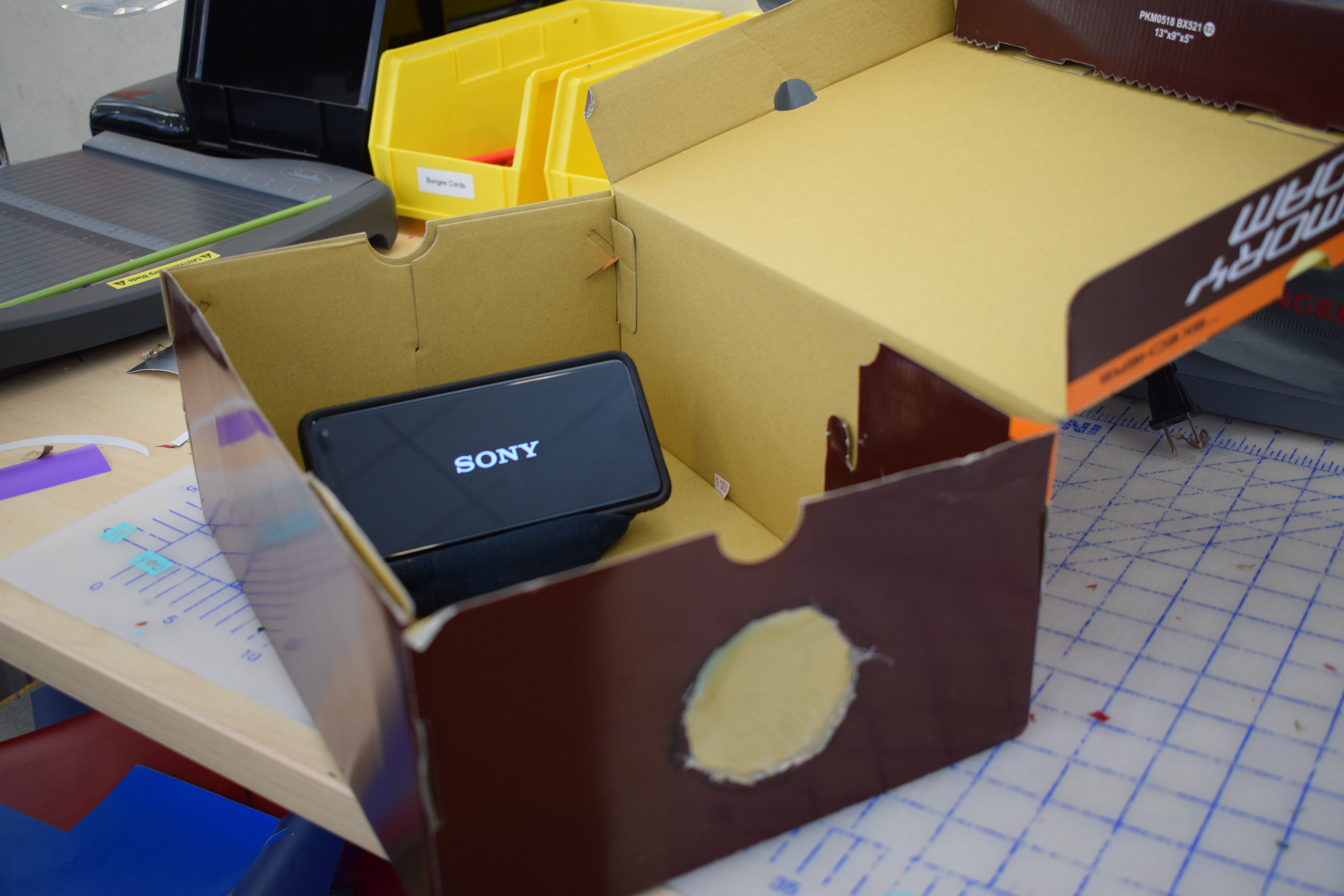

This is probably the simplest step. Set the beanbag in the box, and the phone in the beanbag.

Viola!

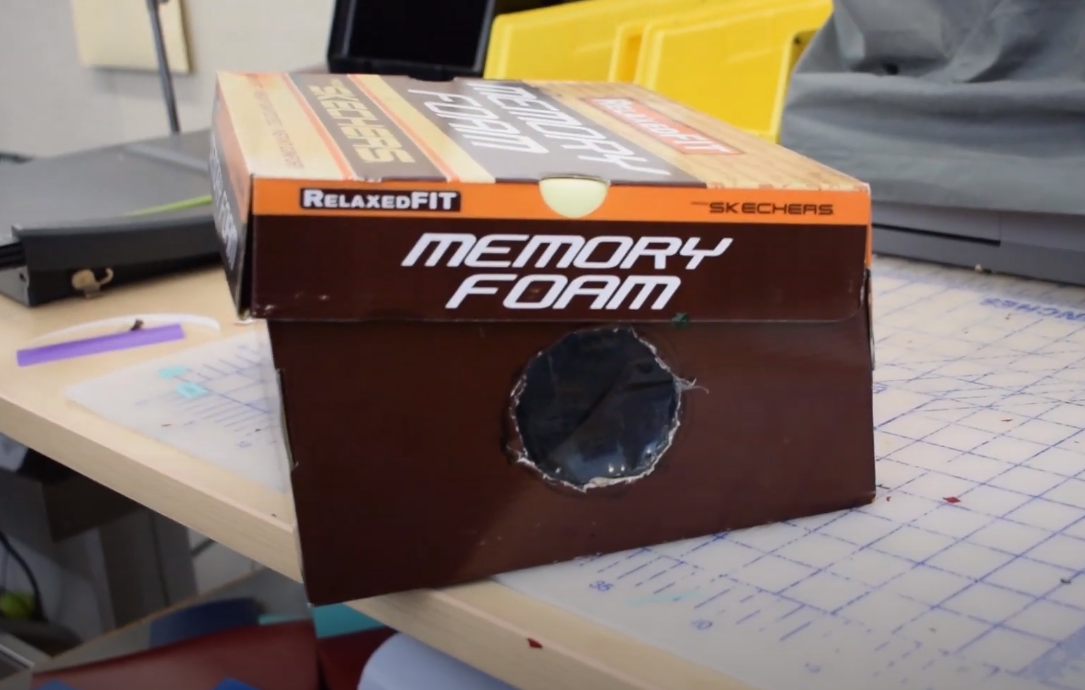

You now have a functional shoe-box projector!

So how do you use it?

First, open a movie on your phone. Turn off auto rotation, and lock it in landscape mode. Then set your phone in the beanbag, upside down. (The lens will flip this image when it's projected onto the wall.) Make sure to prop the phone up so it's almost exactly vertical.

Update: This is where a custom phone prop would come in handy... maybe try a pop-socket?

To focus the image, move the phone away from/towards the lens, and move the projector closer/farther away from the wall.

That's all you need to know to use your brand new shoe-box projector. Congratulations!

Now you can watch as many movies on the ‘big screen’ as you want!

Thanks for checking out my short little Instructable, hope you enjoyed it! Also make sure to check out the YouTube video for this project. It's linked in the introduction, plus it's pretty funny and might give you a better visual on how this project was made. Oh, and be sure to follow me for more projects like this!

Happy Holidays!
