DIY: Learn how to make an Ultra Slim Portable Folding Chair.

Let's check out website for all major details: https://navinkhambhala.com/mr-nk

Main channel - crazyNK: https://www.youtube.com/user/nfornavin?sub_confir...

List of Materials


Take a one plywood or blockboard sheet of 19mm and cut in the size of 90 cm x 58 cm.

Also take four 2 inches hinge and few black form sheet.

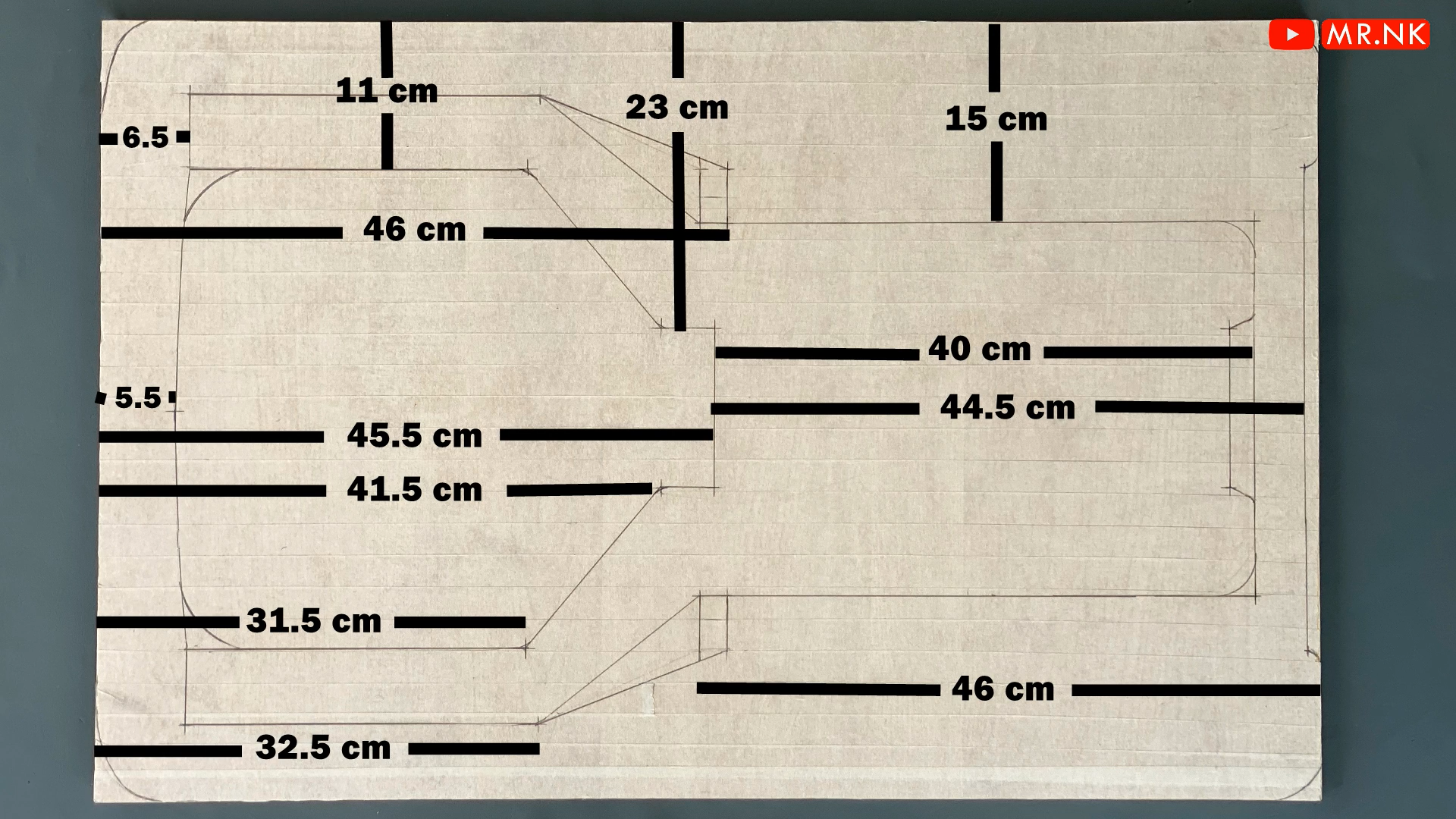

Make Drawing


Make drawing on wooden sheet as per plan, All measurement are shown in plan image.

Cutting of Wooden Sheet


Cut the wooden sheet using Drill machine and Jig saw. Finally Plywood is divided into three part.

Extra Cutting to Make Chair Attractive


First, make round cutting at center of middle part of chair. Second, make two handle shape cutting at the outer part of chair.

Fix the Hinge


Attach the hinge using screwdriver to make fully functional chair.

Make Cutting for Support


Make the two square hole at seating part of chair, It will make chair stable when it is opened.

Fix Form Sheet


Glue the black form sheet at seating area on bottom and at support area at back.

Glue Small Round Form Sheet


Glue the small round form sheet at the side of seat area and at the leg of bottom. It will help to fix the chair when it will not in use.

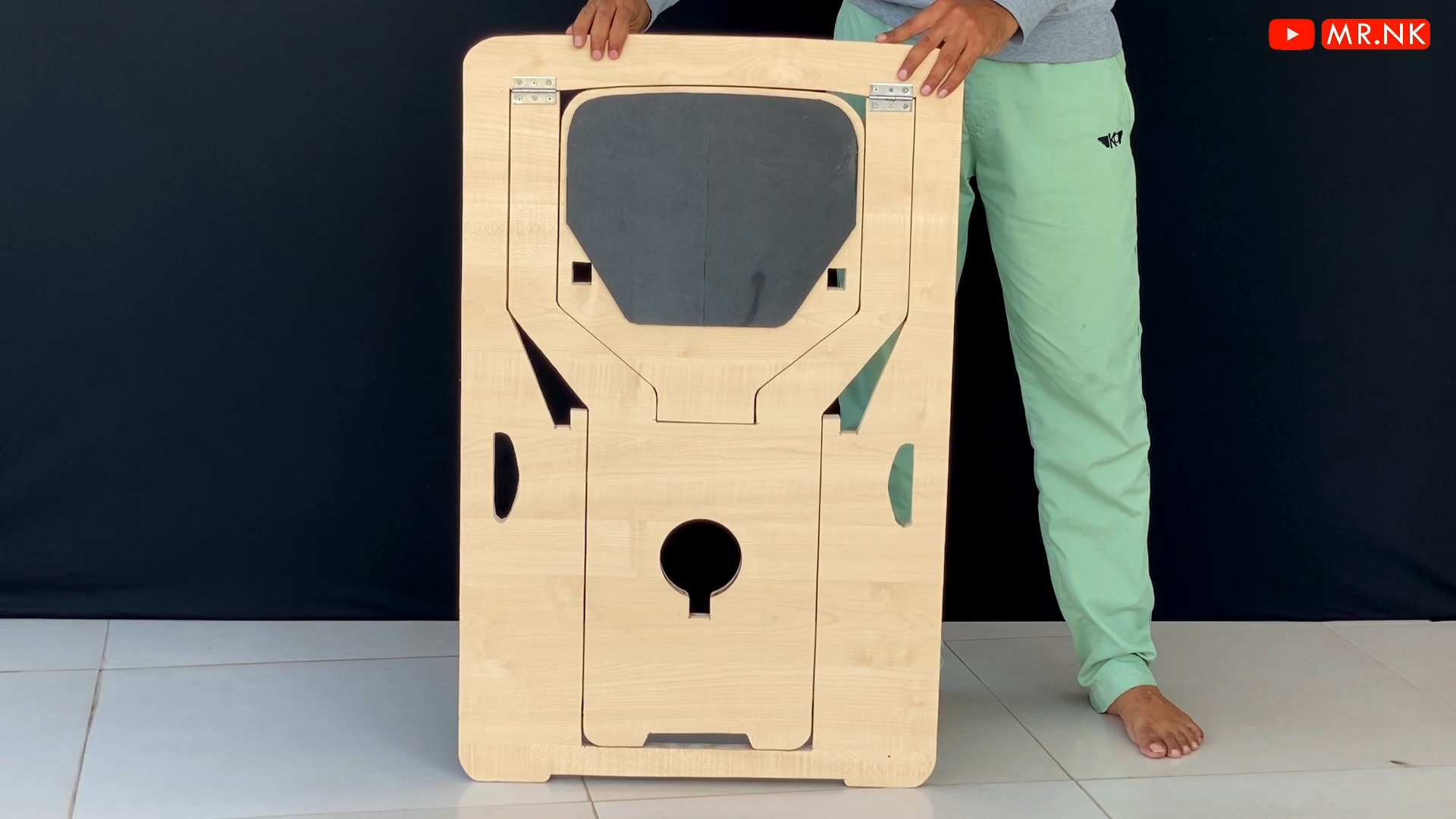

Finally Chair Is Ready


Finally Ultra slim portable chair is ready to use. Thanks
