How to Make a Secret Commiunicator Using Micro Bit

I was inspirated in 'othermachines' you tube chanal.

here what i got from it -https://youtu.be/mqlMo4LbfKQ

Here what i added on my self -
- lcd displays
- key pad for other micro bit
- power banks
- Extra code for it

Supplies

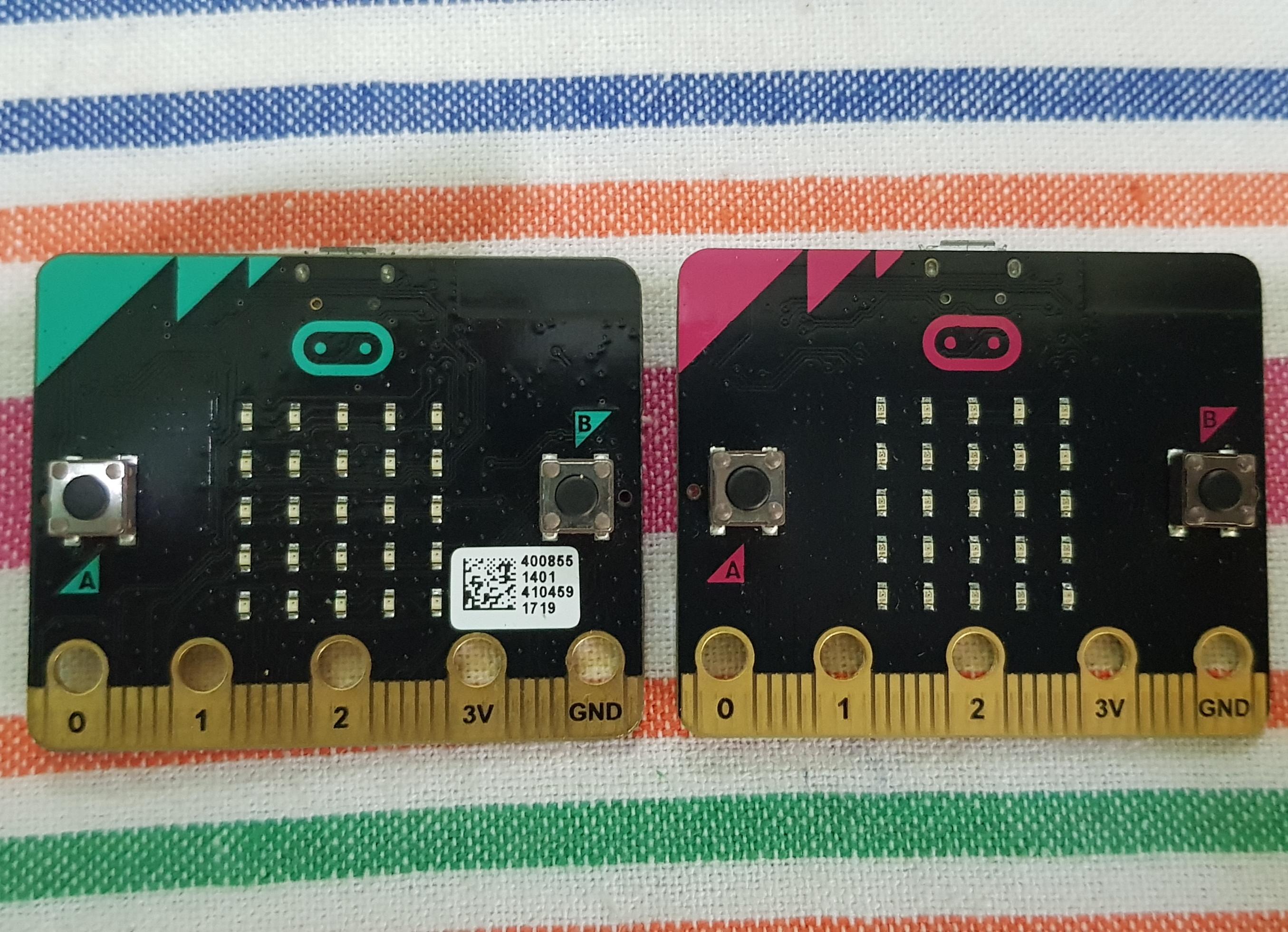

2 - micro bits

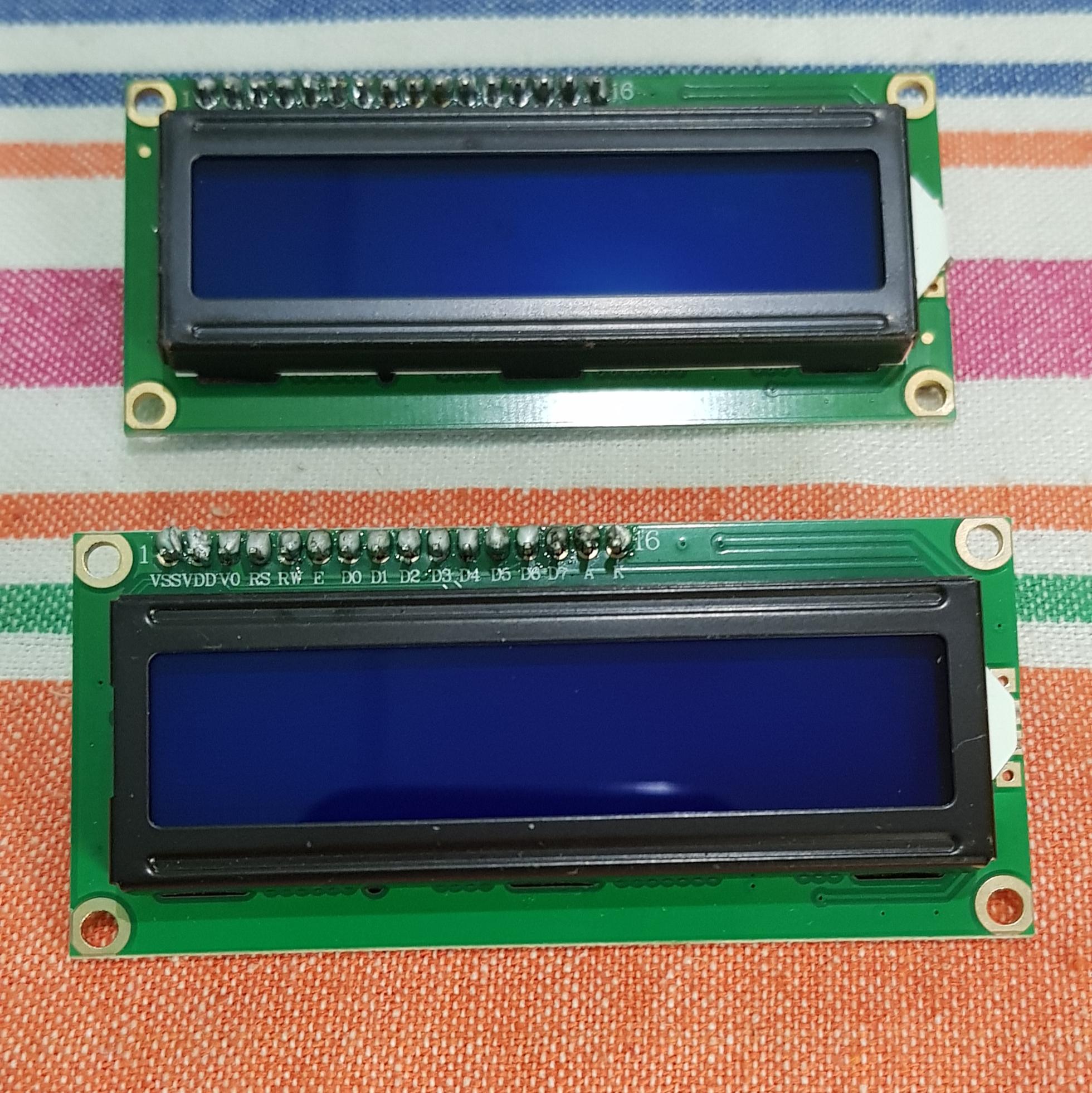

2 - lcd displays with i2c modules
2 - 4×4 matrix keypad
2 - mini breakout boards for microbit
2 - power banks

Suplying Items

Fitstly supply these all items

Plug in Micro Bits to Mini Breakout Boards

It's very easy to plug in.
You want to do is just push inside micro bit to break out board

Connect 4×4 Matrix Keypad to Micro Bit


Connect 16×2 Lcd Display to Micro Bit

Connect lcd display using jumper wiers

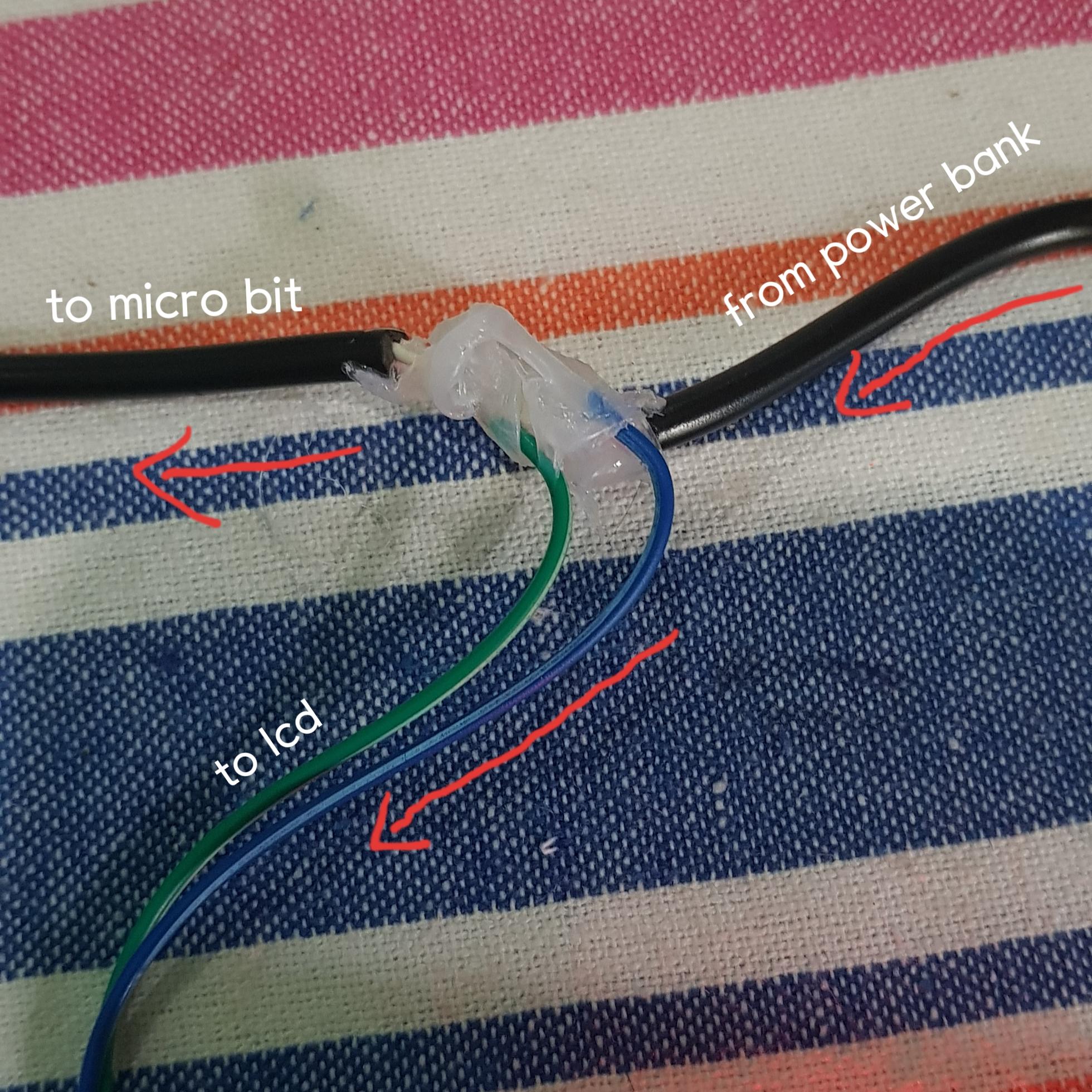

Get Power to Lcd Display From Power Bank

Micro bit's output voltage is 3V but lcd display needs minimum 5V. There for i used two female jumper wiers
and connected to usb cable

Lettering Key Pads

Write letters on paper and stick it to keypad using double tape.
pressing 'shift' will call the shift function.
Shift function sets A to O , B to O , C to Q etc...
(It is showed in a picture)

Assembling All Items Together

Assembling all items will make it portable.

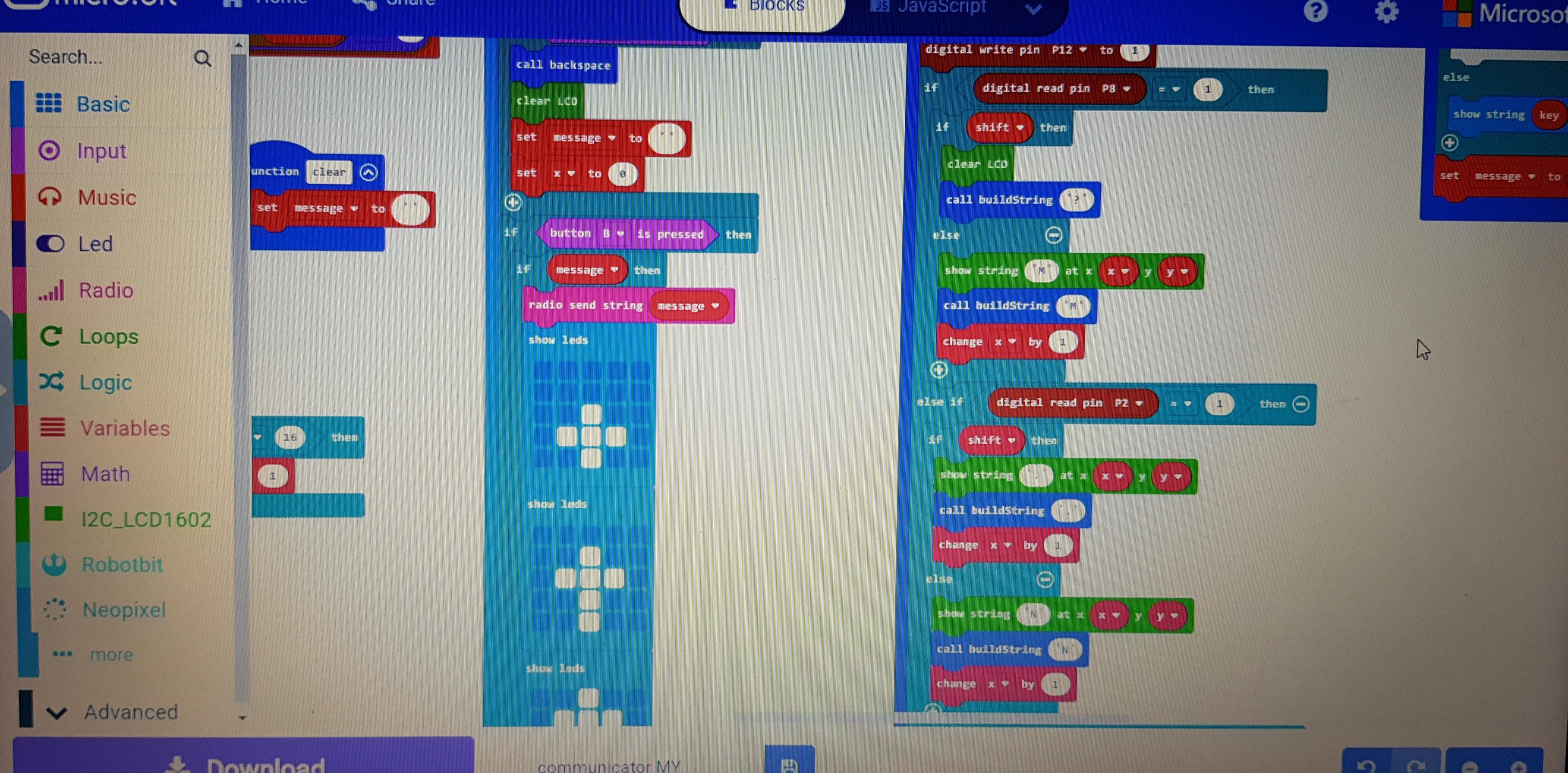

Coding

Get source code here-
https://makecode.microbit.org/_A6wE8CD4fhA1

How to Use

Type words and press 'B' button in micro bit
Words can be see in other micro bits lcd display.
