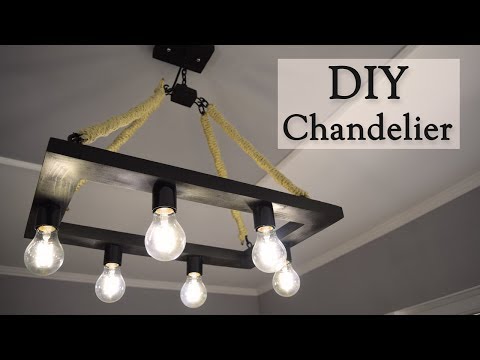

DIY Rustic Industrial Style Hemp Rope Chandelier for 35$

In this Instructable I’ll be making a rustic industrial style hemp rope chandelier. I’ve noticed this beautiful chandelier at the lighting store and I thought it would be a perfect addition to my living room.

It has a rectangular wooden base with 6 lights and 4 iron chains covered by hemp rope and iron hooks to hang it up. It cost around 300$, so I decided to challenge myself and recreate it for less than 40$. I enjoyed the process of creating this chandelier because it was on my wish list for a while, and also I like to learn new stuff. This is my absolute favorite DIY project so far.

Here are the materials I used:

• Wood strip 6 cm wide, 3 cm thick (your local hardware store)
• Wood board 15 cm long; 10 cm wide, 2 cm thick
• Wood board 9 cm long; 6 cm wide, 3 cm thick
• Chain
• Hemp rope
• LED vintage filament light bulbs http://amzn.to/2hHWigu
• Light bulb sockets http://amzn.to/2vCKHFv
• Canopy kit http://amzn.to/2vgGhD6
• Black spray paint http://amzn.to/2fqeavy
• Wood glue http://amzn.to/2vk45od
• Electrical tape http://amzn.to/2vhd236
• Hooks http://amzn.to/2hGCJoS
• Wood filler http://amzn.to/2hHTMH5
• Hot glue sticks http://amzn.to/2wFDzF2

Types of tools I used:

• Cordless drill http://amzn.to/2frP8MD
• Random orbit sander http://amzn.to/2fqHQJ3
• Dremel tool http://amzn.to/2fsxg4n
• Soldering iron http://amzn.to/2vj45q5
• Mitre box with saw http://amzn.to/2fpNFqp
• Glue gun http://amzn.to/2wrLAhN
• Ruler http://amzn.to/2tdTM5v
• F-Clamps http://amzn.to/2sCW6UQ
• 90 degree angle clamps http://amzn.to/2sJHkac
• Doweling jig http://amzn.to/2fqn64o
• Forstner bit http://amzn.to/2fr0GQA
• Wire strippers http://amzn.to/2wrmZtb

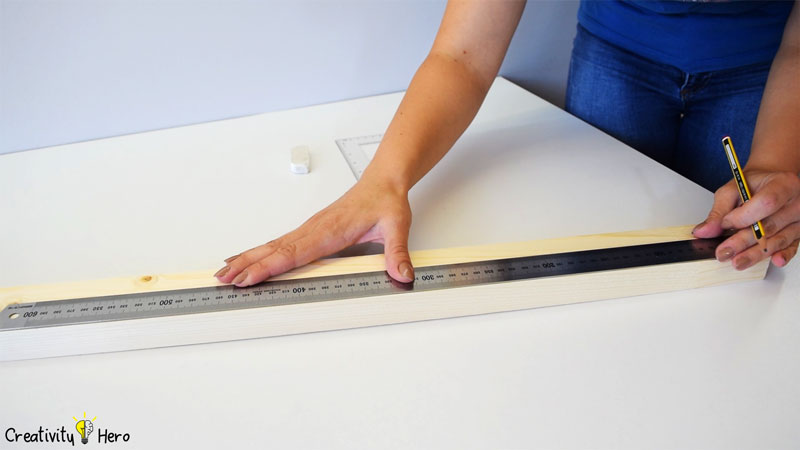

For this project I’m using 3 by 6 cm wood strip. The dimensions of the wooden frame are 55 x 35 cm, so I’ve measured and marked two pieces 55 cm long, and another two pieces 35 cm long.

I’ve cut the wood pieces at a 45 degree angle with a handsaw and a miter box. The wood strip was pretty much thick and it took me some time until I finished with all the cuts.

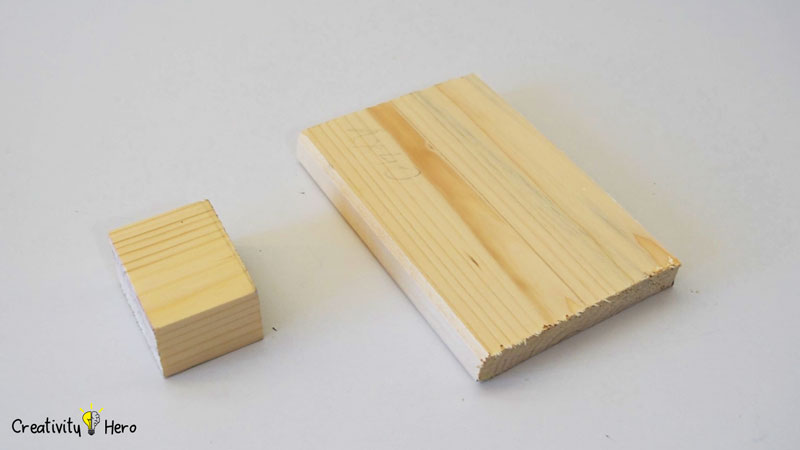

Also, I needed to cut another two pieces of wood with different sizes which will be used as a support for the chandelier. So, I’ve cut one piece 9 x 6 cm, 3 cm thick, and another piece 15 x 10 cm, 2 cm thick.

To hold this entire frame together I’m going to use dowels. I’ve marked the connection points on each corner, so that the dowels go through both pieces of wood.

Then, I drilled holes using a drill, a guide and some clamps for more precision.

I’ve put one dowel per corner, because the chandelier weighs around 3 kg (which is less than 7 pounds). I applied wood glue and joined the pieces together.

Then, I clamped down the frame with some corner clamps and F-clamps and left it to dry out.

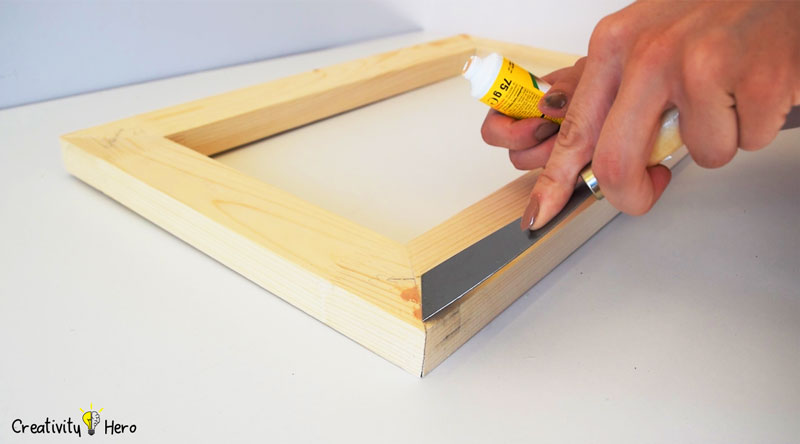

I applied a wood filler to fill in all the imperfections.

Once I’m done cutting and gluing, now I can move on to sanding. I was excited to try my new Random Orbit Sander, because in my previous projects I’ve spent so much time sanding by hand.

First, I’m just going to sand it down with 80 grit sandpaper, and then come back with 120, and then 220 to smooth the surface of the wood.

The next step is marking the center points for the location of the light bulb sockets because I would like them to line up. There are a total of 6 sockets.

I used a 35 mm forstner bit to countersink holes halfway through the wood, around 15 mm, which is enough to fit in the sockets.

In the center of these holes I made additional holes with 6 mm bit all the way through the wood for the cord to pass through.

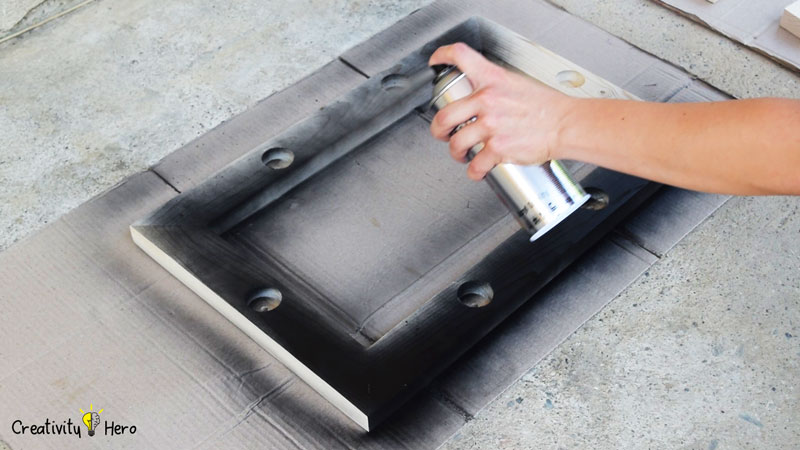

Now it is time for painting. I’m going to use black spray paint in order to make the chandelier look similar to the one that I saw in the lighting store.

I applied 2 coats of spray paint and left it to dry out.

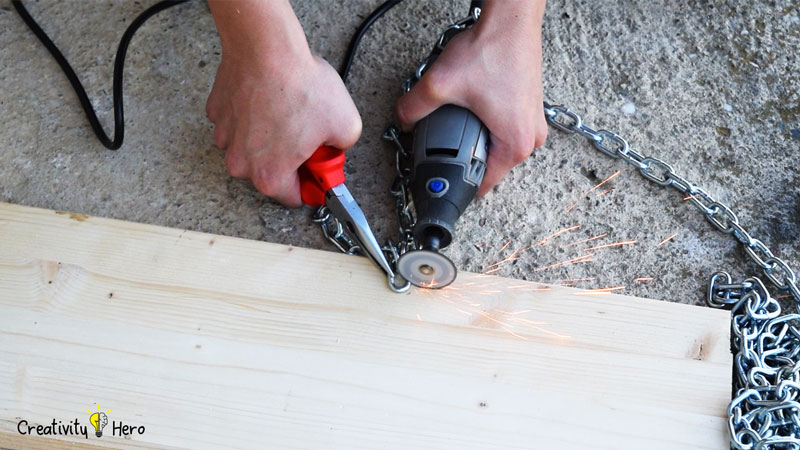

Next, I used Dremel tool to cut 4 equal lengths of chain. I cut these to 40 cm length. Also, I cut one small piece, 10 cm long.

The chain and the hooks were silver, but I wanted black ones, so I painted them with a black spray paint. I actually liked how they turned out.

The last thing I need to do with the chain is to wrap it around with a hemp rope. I wrapped one of the chains together with a cable that will actually connect the cable from the sockets and the cable that comes from the ceiling.

I thought it would be much thicker from the rest three chains, but in the end I could barely see the difference between them.

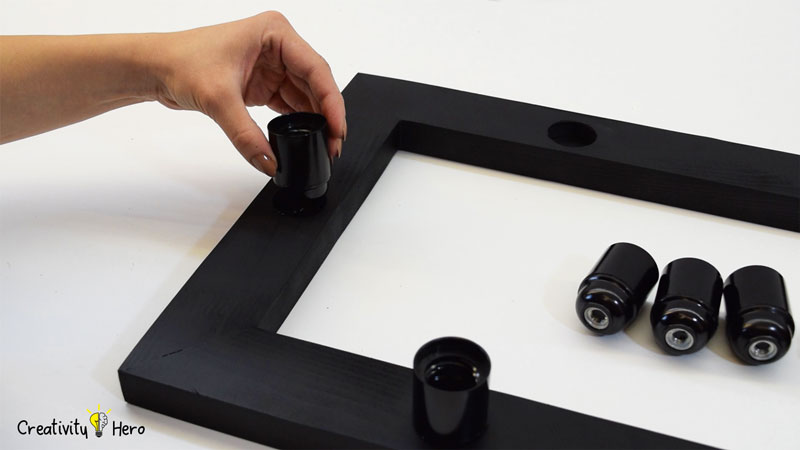

Now, let’s go back to the installation of the lights. I used a hot glue gun to secure the socket caps into the pre-drilled holes.

As you can see, the caps are round, so I needed to apply large amount of hot glue so that they can stick better onto the wood.

Next, I’ve cut six pieces of the cable, around 5 cm long and removed the jacket with a sharp cutter.

I’ve used my wire strippers to remove the insulation off of the ends of the wires. I’ll need half cm of the copper wires to show from one side, and at least one cm from the other side.

Then, I’ll attach the wires into the socket interior. I’ll tighten the screws with a screwdriver to keep them in place, and then I’ll use an electrical tape to wrap the wires together. I will repeat this steps with all the remaining wires.

Next, I’ll insert the wires into the drilled holes, and screw on the shells in order to complete the entire sockets.

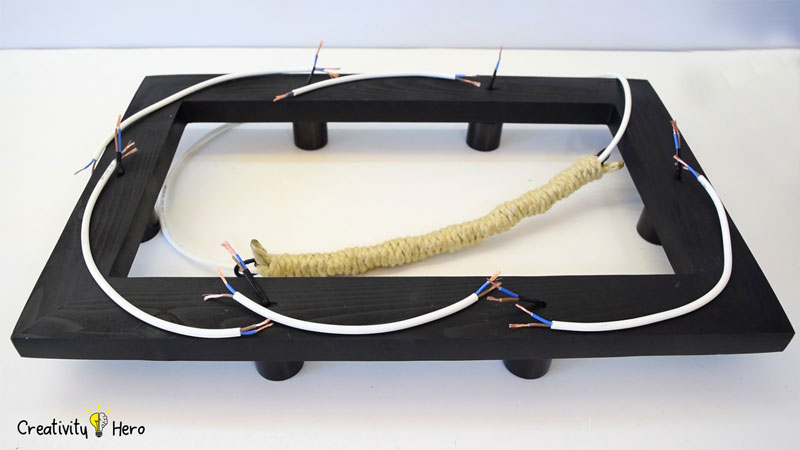

I’ve measured and cut 5 pieces of the cable. The sixth one will be the cable wrapped with the rope. Their length depends on the distance between the sockets.

So, I’ve removed 2 cm of the outer jacket, and 1 cm of the wire insulation. As you can see, I joined three wires of the same color together using my thumb and index finger.

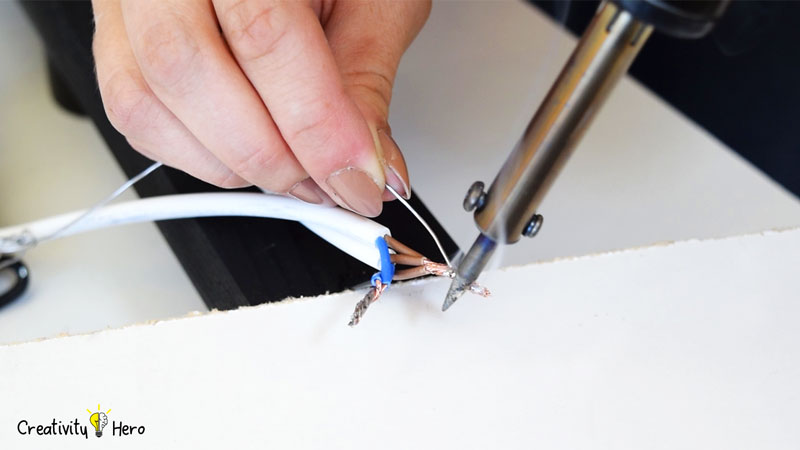

Instead using connectors, I decided to connect them permanently with a soldering iron and a solder. Then, I wrapped them with an electrical tape.

In fact, I figured out that I can wrap the entire cable with an electrical tape, so it would match the color of the wooden frame.

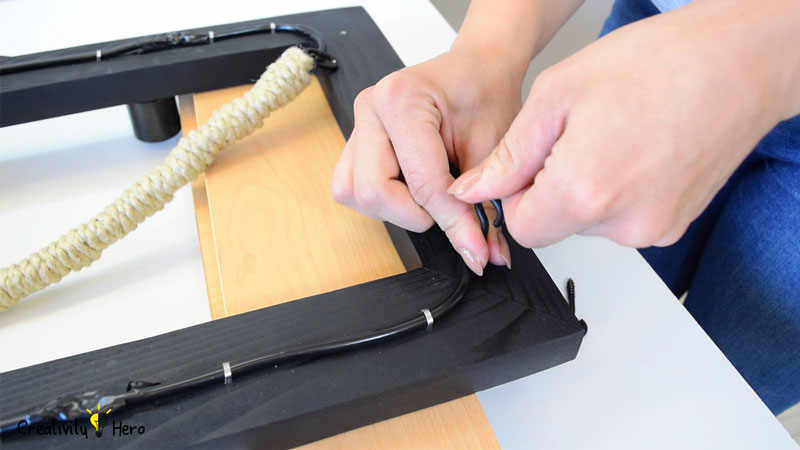

To keep everything in place, I’m securing the cable with staples and a mallet so it won’t pop up and be visible. I’ve nailed two staples on each place, because I wanted to secure them well.

I’ve drilled four holes on the corners of the frame and attached the hooks into place.

Also, I drilled five holes into the small piece of wood, and carefully attached the hooks, because it was really tight fit.

After I drilled the holes into the last piece of wood I realized that I needed to add a wooden frame to it and turn it into a junction box area for the wire connectors, the cable, and the mounting bracket. These holes are made for the screws that will hold it tight to the ceiling, and those in the middle are for the hook and for the cable.

Then I attached the hook in the middle of the junction box.

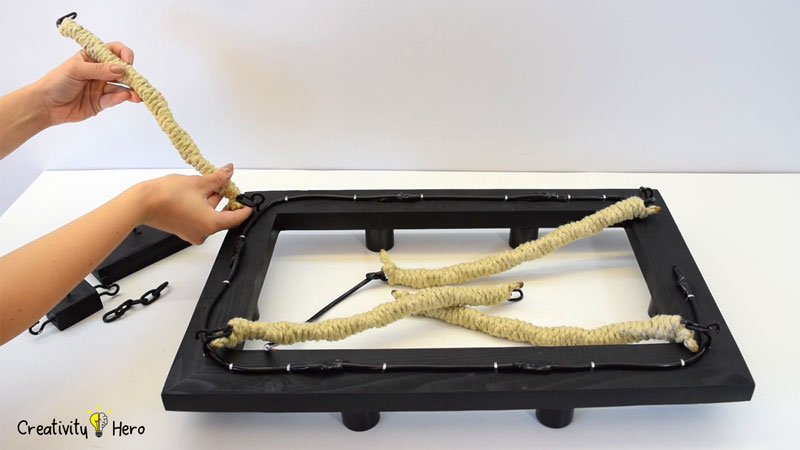

Finally, I can put all the parts of the chandelier together and see if everything is OK. I attached the chains onto the hooks, and pulled the cable through the junction box.

The total length of the chandelier is 55 cm, but you can adjust the dimensions depending on your taste and needs.

Now it is time to mount the chandelier to the ceiling.

Everything needs to be done carefully. If you’re not comfortable doing this, then ask a friend to help you, or hire a professional. I asked my boyfriend to help me, because I didn’t want to make a mistake that could ruin all the work I’ve put into this project.

Remember, the first thing you need to do is to go to the electrical panel and turn off the circuit breaker before installing the light. Use a circuit tester to ensure that the power is off before you touch any of the electrical wiring.

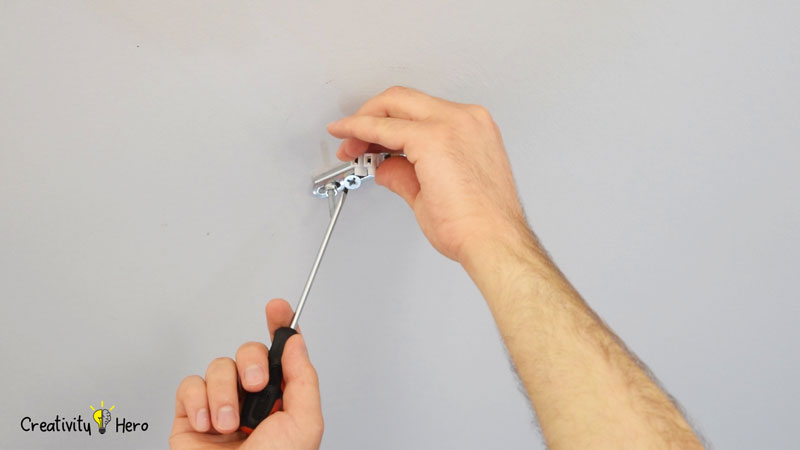

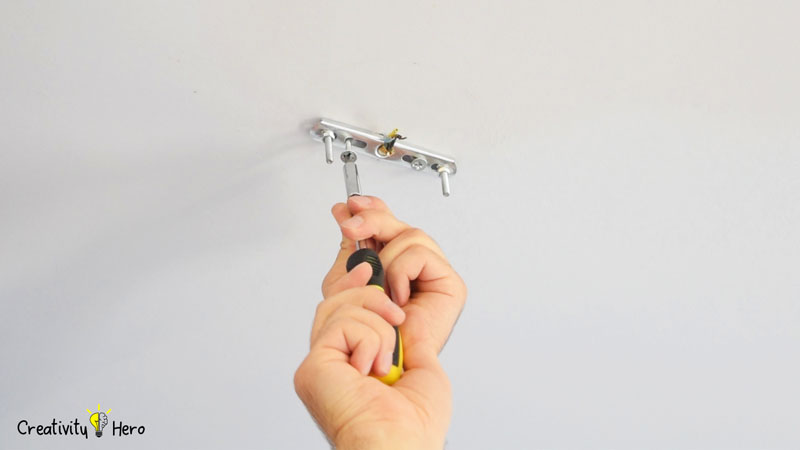

Attach the mounting bracket to the ceiling using provided screws and a screwdriver. Make sure the bracket is snugly attached and rests level.

Three wires are visible: two for power and the third wire is used as an electrical ground. On my fixture, I also have two wires for the power with the same color.

So, I need to connect the wires with connectors. I want to make sure that the blue wire is connected to the blue wire, and the brown wire is connected to the brown wire.

So, once I’m done with that I slide the junction box into place and tighten the other screws that go below the box.

The final thing I need to do is to screw in the light bulbs. I’ve chosen to install LED Vintage Filament light bulbs to fit in its rustic style. And that’s it.

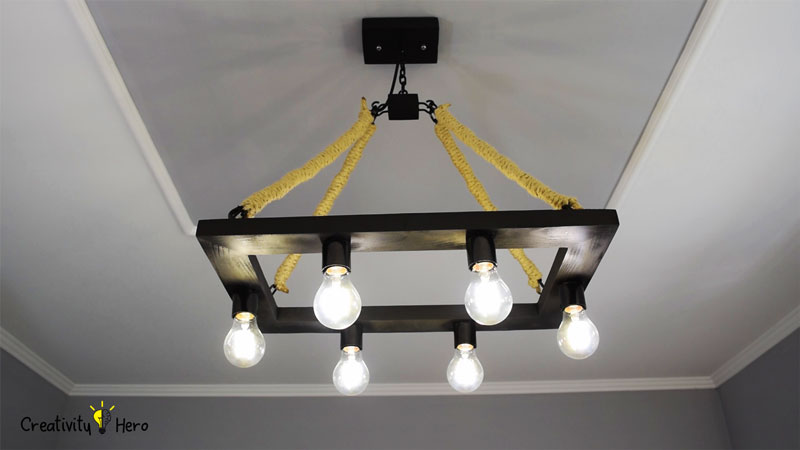

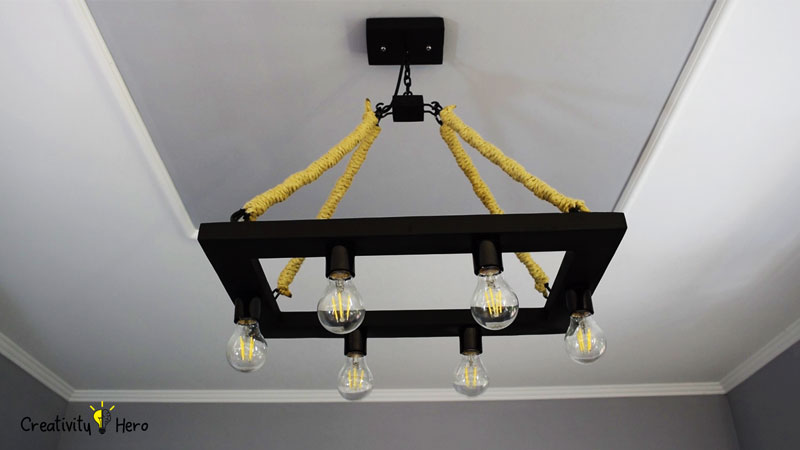

Now that I’m done, I’ll turn the power back on, turn my new chandelier on and enjoy the light. I know it will be the center of attention no matter if it's on or off. I just love it.

Let me know what you think in the comments down below. Thank you so much for watching and don’t forget to share, like and subscribe to my YouTube channel.
