How to Make a Pencil Sharpener Dispenser Machine From Cardboard DIY at HOME
by diy_ocean in Craft > Cardboard
7036 Views, 12 Favorites, 0 Comments
How to Make a Pencil Sharpener Dispenser Machine From Cardboard DIY at HOME
Materials you will need:
- Cardboard
- Cutter
- Glue Gun
- Wooden sticks
-Super glue
- Rubber bands
- Sharpener
- Pencils
- Bottle cap
- Tape
Make the Following Cardboard Cutouts and Stick Them As Shown.
Take Cardboard Pieces of 20cm*7cm and 20cm*2cm Are Place Them As Shown. Take Another Cardboard Piece of 20cm*7cm and Place It As Shown.
Make the Following Cardboard Cutouts and Stick Them Together As Shown. the Gap in Between Allows One Pencil to Pass at a Time. Place This Entire Piece As Shown.
Take 2 Cardboard Pieces of 3cm*1cm and Place Them in the Corners As Shown.Make Holes in Front of Both These Pieces by a Pencil, As Shown. Insert a Small Wooden Stick in Each of These Holes and Apply Super Glue.

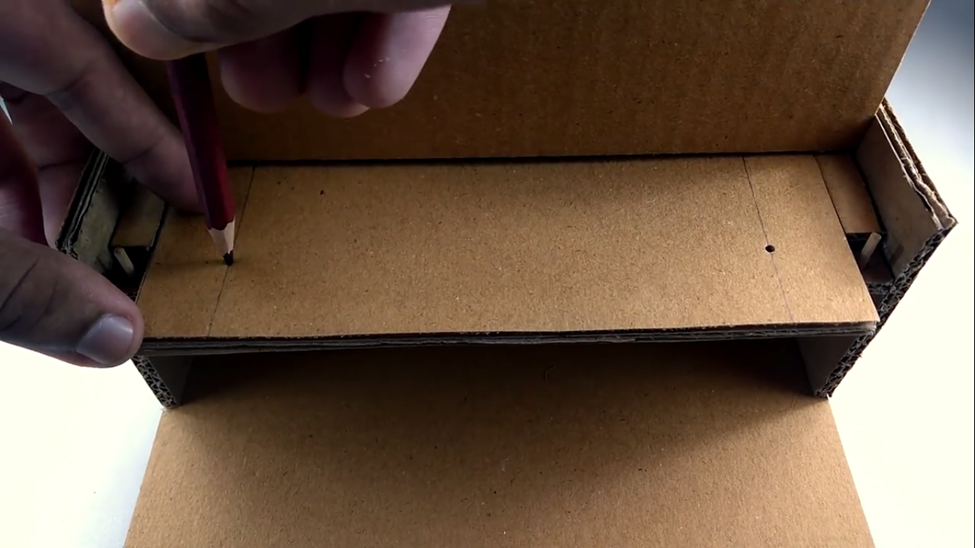

Take a 18cm*6cm Cardboard Piece, and Make a 2cm Marking on Either Side. Insert This Piece As Shown, But Not Completely. Keep 2cm Outside the Boundary.
Make Holes on Both Sides on the Markings, As Shown, Insert Small Wooden Sticks in Both, and Apply Super Glue. Now, Attach the Rubber Bands As Shown.
Use Cardboard Pieces to Cover the Dispenser As Shown.
Take a Cardboard Piece of 21cm*21cm, and Stick Cardboard Pieces of 21cm*2cm on Either Side As Shown. Now, Place the Entire Dispenser on the Above Piece, As Shown.
Take a Cardboard Piece of 8cm*11cm and Glue It to the Dispenser As Shown

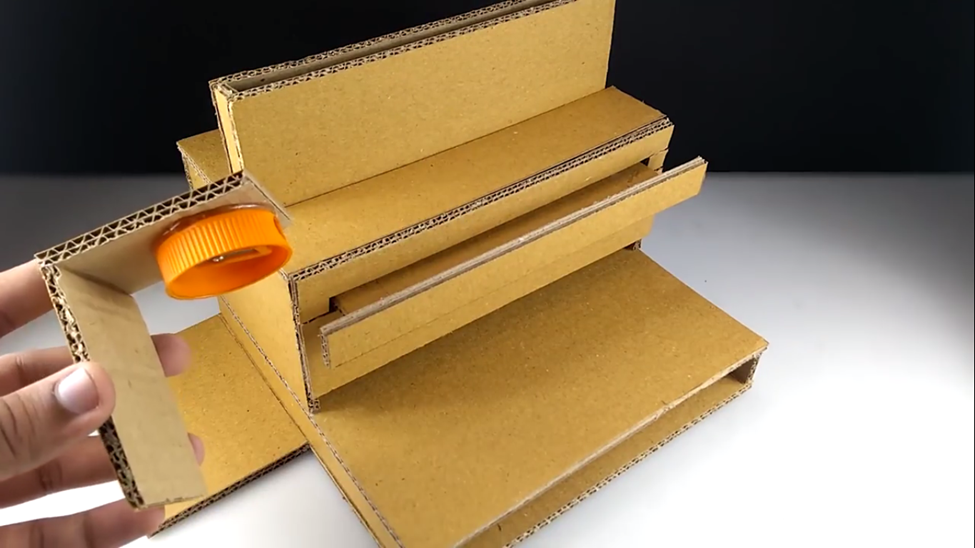

Take a Cardboard Piece of 5cm*6cm, and Glue the Sharpener to It As Shown. Take Cardboard Pieces of 5cm*8cm and 5.5cm*7.5cm Respectively, Glue It to the Above Piece, and Place the Entire Piece on the Dispenser As Shown.

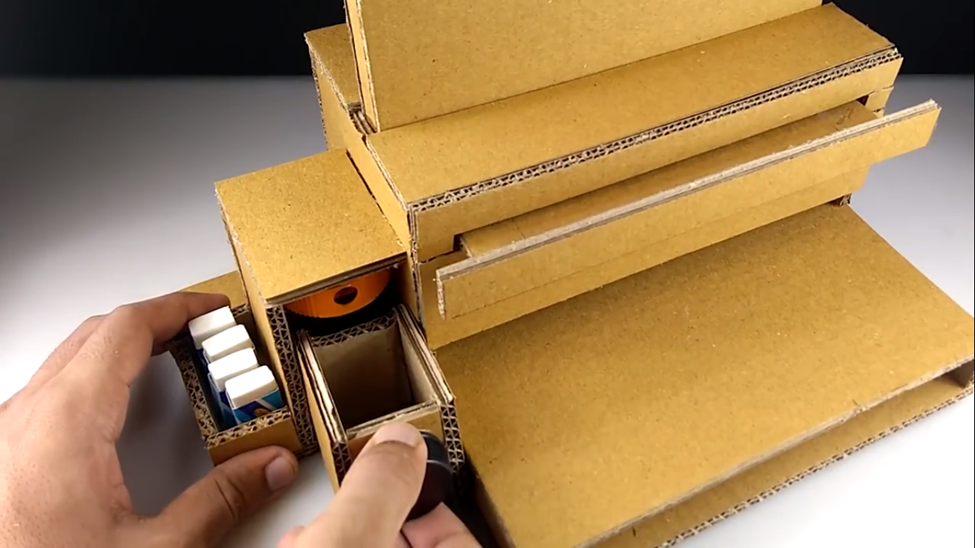

Make a Small Cardboard Case to the Left Side of the Above Piece, As Shown. It Can Be Used to Keep Erasers.
Make Another Cardboard Case to Be Inserted in the Space Below the Sharpener, As Shown.
Take a Cardboard Piece of 21cm*2.5cm, and Place It on Top of the Dispenser As Shown. Apply Tape As Shown. It Will Act As a Lid for the Dispenser.

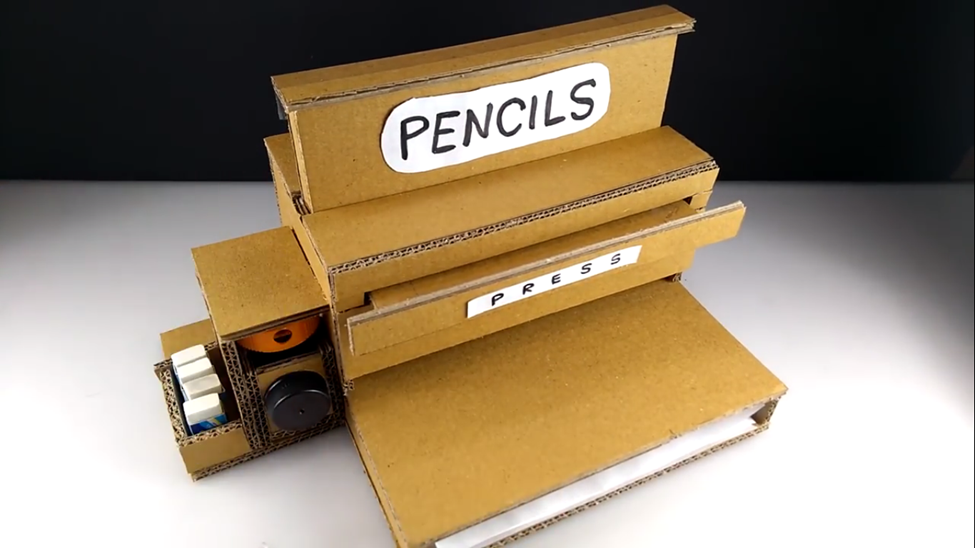

Label the Dispenser As Desired and It Is Ready for Use.
Watch the Video for a Detailed Tutorial !
