How to Make a Movie Theater Poster Frame
by MakeItYoutube in Circuits > Electronics
9082 Views, 186 Favorites, 0 Comments
How to Make a Movie Theater Poster Frame
![posterinstructablesthumbnail.jpg](/proxy/?url=https://content.instructables.com/FSB/N1LT/IEY36YW8/FSBN1LTIEY36YW8.jpg&filename=posterinstructablesthumbnail.jpg)

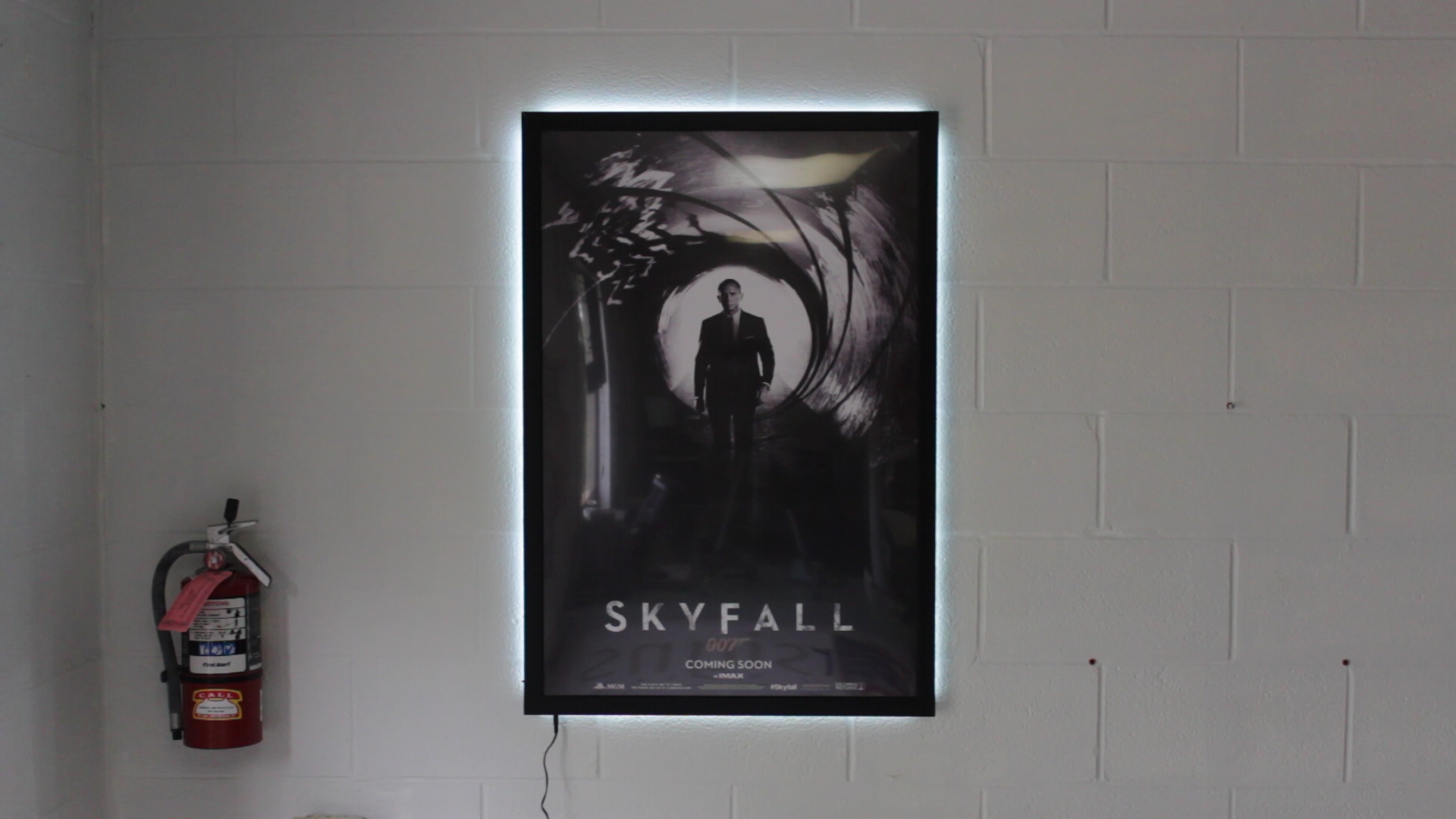

Create your own movie theater style poster frame!
Video Tutorial
![How to Make a Movie Theater Poster Frame](/proxy/?url=https://content.instructables.com/FOD/P6CW/IEY3AAU1/FODP6CWIEY3AAU1.jpg&filename=How to Make a Movie Theater Poster Frame)
Watch this video instead of the written tutorial, or use it to see the steps performed while following along!
Materials and Tools
![Sequence 01.Still001.png](/proxy/?url=https://content.instructables.com/FYQ/I352/IEY35QQY/FYQI352IEY35QQY.png&filename=Sequence 01.Still001.png)
![IMG_5320.JPG](/proxy/?url=https://content.instructables.com/F8A/J9OT/IEY39Y5X/F8AJ9OTIEY39Y5X.jpg&filename=IMG_5320.JPG)
Parts:
Tools:
Drill
Soldering Tools
Knife
Carving the Frame
![Sequence 01.Still002.png](/proxy/?url=https://content.instructables.com/FS4/6PCB/IEY35QR4/FS46PCBIEY35QR4.png&filename=Sequence 01.Still002.png)
![Sequence 01.Still003.png](/proxy/?url=https://content.instructables.com/FP5/91KO/IEY35QR5/FP591KOIEY35QR5.png&filename=Sequence 01.Still003.png)
![Sequence 01.Still004.png](/proxy/?url=https://content.instructables.com/FK3/TBSD/IEY35QR6/FK3TBSDIEY35QR6.png&filename=Sequence 01.Still004.png)
![Sequence 01.Still005.png](/proxy/?url=https://content.instructables.com/F5R/3EPU/IEY35QR7/F5R3EPUIEY35QR7.png&filename=Sequence 01.Still005.png)

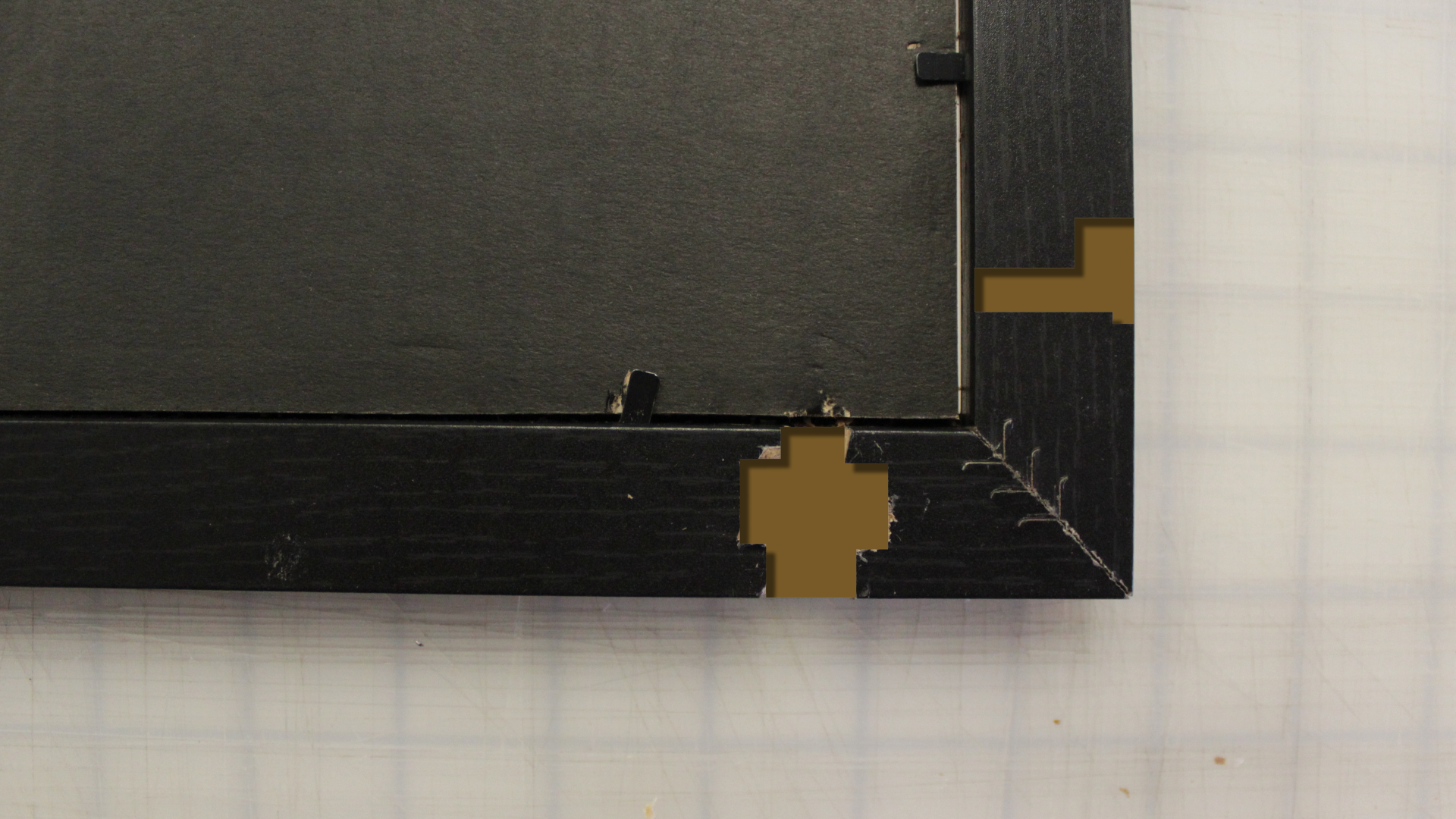

We're going to recess the switch and power adapter into the frame. I was without carving tools, so I drilled a series of holes and carved the frame with a knife instead. I kept test fitting the part and then carving out the shape until it fit properly.
Applying the LEDs
![Sequence 01.Still006.png](/proxy/?url=https://content.instructables.com/FH5/XGCR/IEY35QRB/FH5XGCRIEY35QRB.png&filename=Sequence 01.Still006.png)
![Sequence 01.Still007.png](/proxy/?url=https://content.instructables.com/FZJ/7X5N/IEY35QRE/FZJ7X5NIEY35QRE.png&filename=Sequence 01.Still007.png)
![Sequence 01.Still008.png](/proxy/?url=https://content.instructables.com/FU0/S3FE/IEY35QRF/FU0S3FEIEY35QRF.png&filename=Sequence 01.Still008.png)
![Sequence 01.Still009.png](/proxy/?url=https://content.instructables.com/F2V/LMZF/IEY35QVZ/F2VLMZFIEY35QVZ.png&filename=Sequence 01.Still009.png)

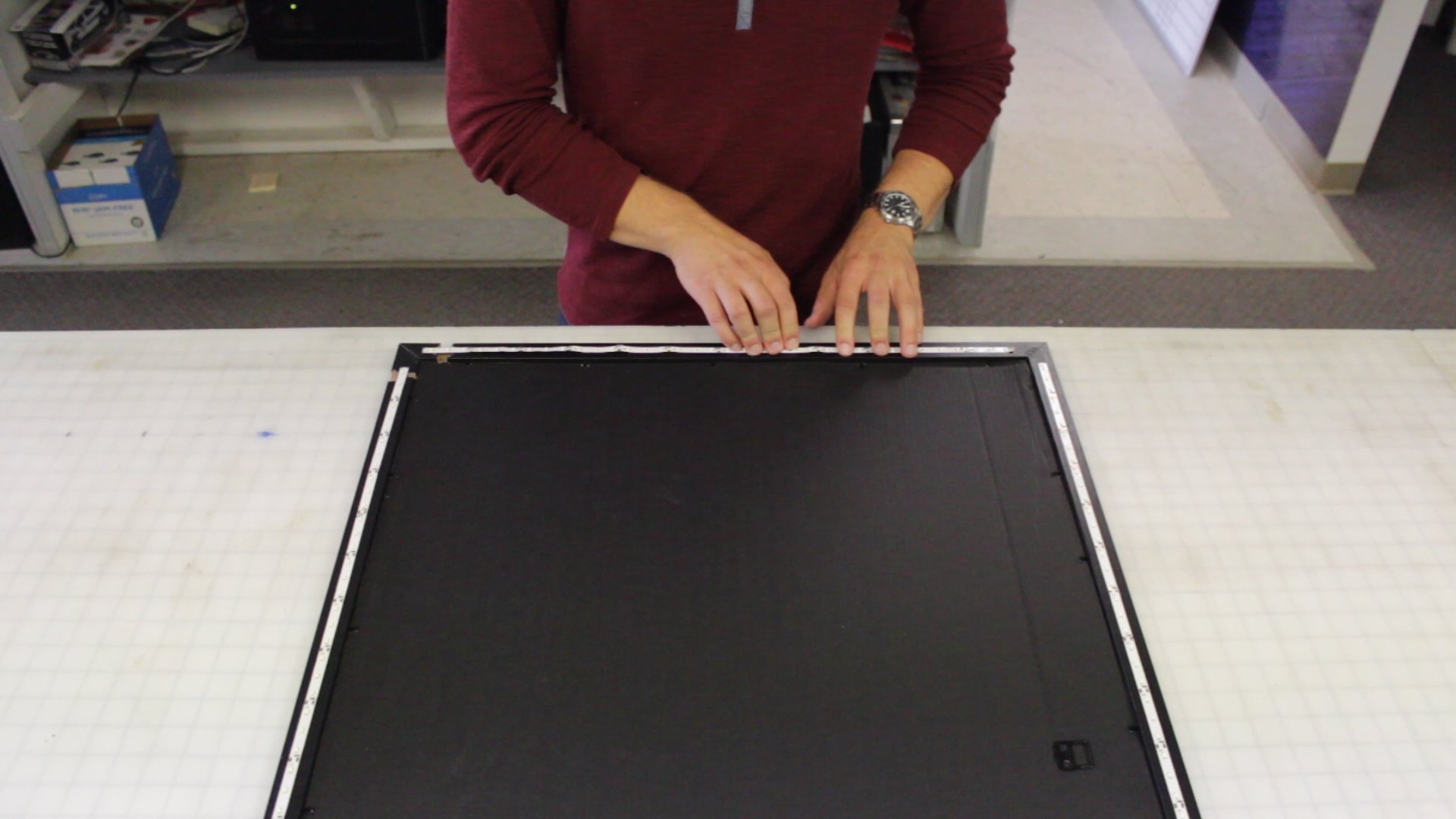

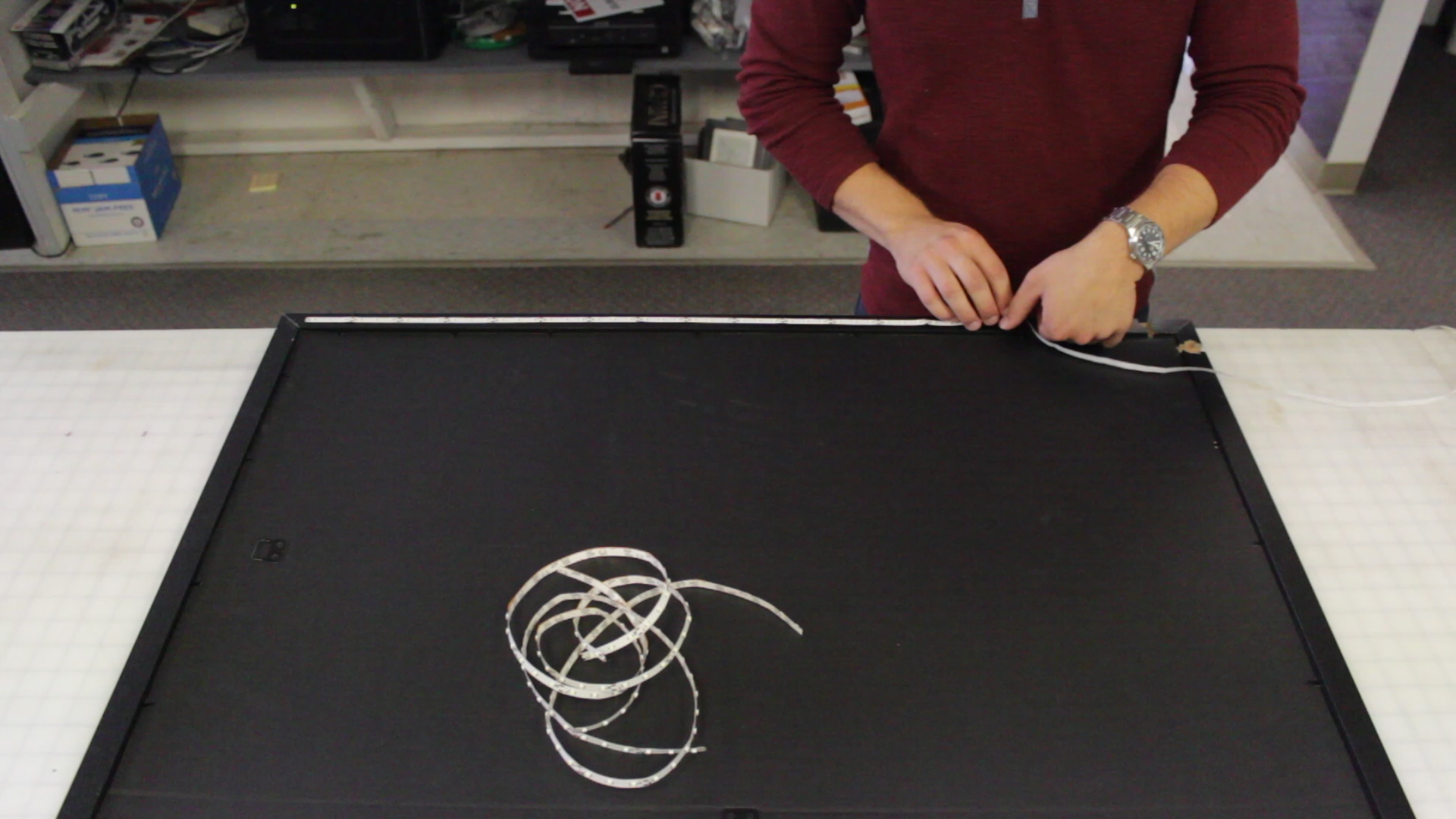

Cut 4 strips of LEDs down to the length of each side. Use the tape on the back to apply it to the frame.
Power Circuit
![electronicsdiagram-01.jpg](/proxy/?url=https://content.instructables.com/FPW/HGM3/IEY366RZ/FPWHGM3IEY366RZ.jpg&filename=electronicsdiagram-01.jpg)
![2015-09-24 18.35.32.jpg](/proxy/?url=https://content.instructables.com/FG9/UGDC/IEY36YNM/FG9UGDCIEY36YNM.jpg&filename=2015-09-24 18.35.32.jpg)
![MVI_5338.MOV.Still001.png](/proxy/?url=https://content.instructables.com/F1G/HT03/IEY35QQ2/F1GHT03IEY35QQ2.png&filename=MVI_5338.MOV.Still001.png)
![MVI_5338.MOV.Still002.png](/proxy/?url=https://content.instructables.com/F9V/H9TI/IEY35QQ3/F9VH9TIIEY35QQ3.png&filename=MVI_5338.MOV.Still002.png)
![MVI_5344.MOV.Still001.png](/proxy/?url=https://content.instructables.com/FND/YXCZ/IEY35QQH/FNDYXCZIEY35QQH.png&filename=MVI_5344.MOV.Still001.png)
![MVI_5344.MOV.Still002.png](/proxy/?url=https://content.instructables.com/FAT/7Y67/IEY35QQI/FAT7Y67IEY35QQI.png&filename=MVI_5344.MOV.Still002.png)
![MVI_5344.MOV.Still004.png](/proxy/?url=https://content.instructables.com/FBL/SDKS/IEY35QQP/FBLSDKSIEY35QQP.png&filename=MVI_5344.MOV.Still004.png)
![MVI_5341.MOV.Still001.png](/proxy/?url=https://content.instructables.com/FET/IOZP/IEY35QQ8/FETIOZPIEY35QQ8.png&filename=MVI_5341.MOV.Still001.png)
![2015-09-24 18.34.44.jpg](/proxy/?url=https://content.instructables.com/FLK/CNEI/IEY36YNN/FLKCNEIIEY36YNN.jpg&filename=2015-09-24 18.34.44.jpg)
![MVI_5341.MOV.Still002.png](/proxy/?url=https://content.instructables.com/FWU/82Z5/IEY35QQA/FWU82Z5IEY35QQA.png&filename=MVI_5341.MOV.Still002.png)
![MVI_5341.MOV.Still003.png](/proxy/?url=https://content.instructables.com/F0M/XN94/IEY35QQB/F0MXN94IEY35QQB.png&filename=MVI_5341.MOV.Still003.png)
![MVI_5342.MOV.Still001.png](/proxy/?url=https://content.instructables.com/F39/8V2K/IEY35QQC/F398V2KIEY35QQC.png&filename=MVI_5342.MOV.Still001.png)
![MVI_5343.MOV.Still001.png](/proxy/?url=https://content.instructables.com/F2J/EHGO/IEY35QQE/F2JEHGOIEY35QQE.png&filename=MVI_5343.MOV.Still001.png)
![MVI_5343.MOV.Still002.png](/proxy/?url=https://content.instructables.com/FD2/VM63/IEY35QQF/FD2VM63IEY35QQF.png&filename=MVI_5343.MOV.Still002.png)

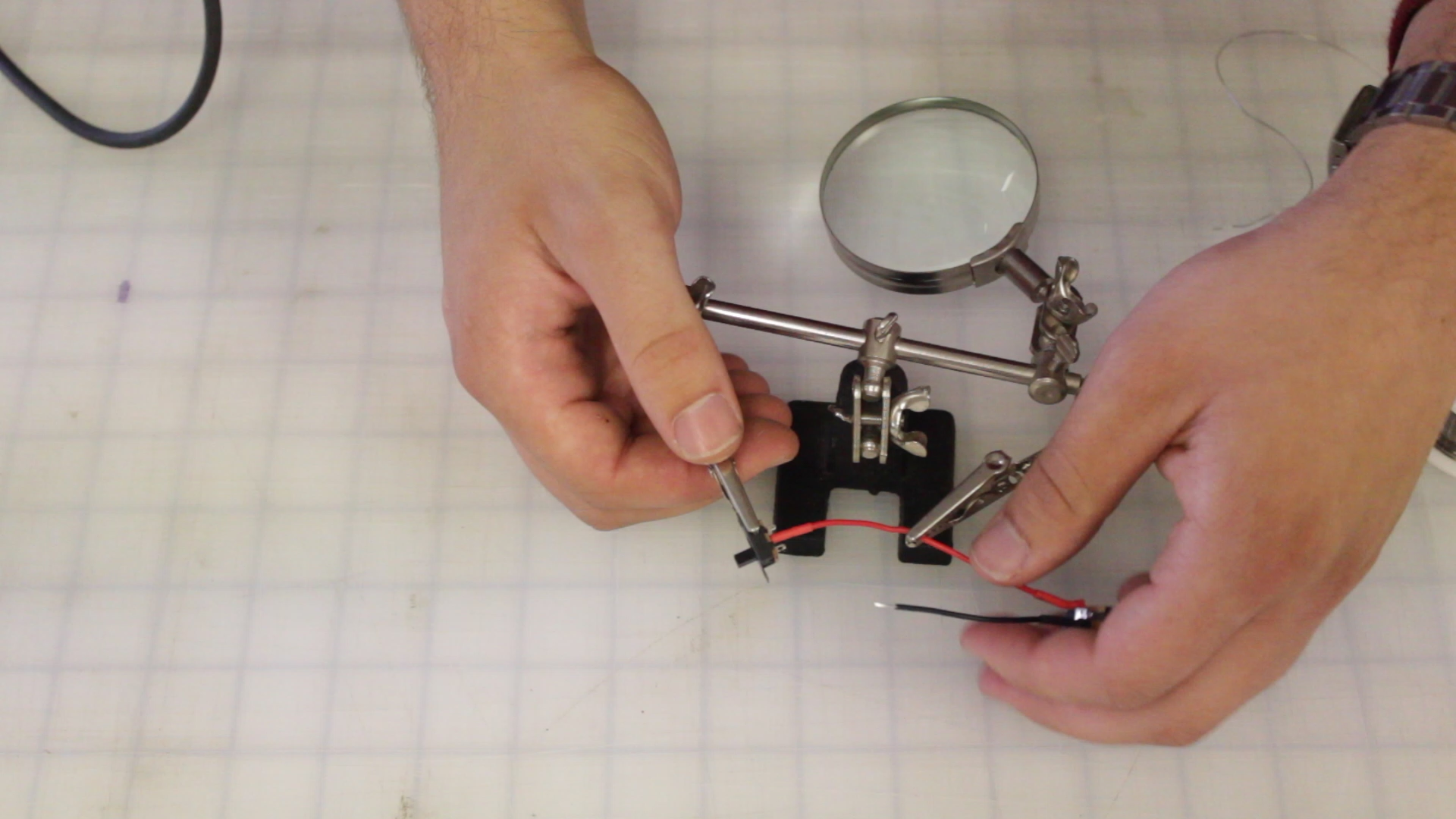

To power the LEDs, we're going to use the simple switch circuit in the diagram. Starting with the power adapter, solder a wire to the positive lead and another to the negative lead and cover the connections with heat shrink tubing. Then, cut another piece of the heat shrink tubing and place it over the positive wire. Solder the positive wire from the power adapter to the center lead of the switch and cover the connection. Lastly, solder another wire to either of the 2 remaining switch leads and again, cover the connection.
Connecting Everything
![Sequence 01.Still010.png](/proxy/?url=https://content.instructables.com/FP0/F3JK/IEY35R0H/FP0F3JKIEY35R0H.png&filename=Sequence 01.Still010.png)
![Sequence 01.Still011.png](/proxy/?url=https://content.instructables.com/FG3/JTOM/IEY35R9G/FG3JTOMIEY35R9G.png&filename=Sequence 01.Still011.png)
![Sequence 01.Still012.png](/proxy/?url=https://content.instructables.com/FFG/AK84/IEY35RDY/FFGAK84IEY35RDY.png&filename=Sequence 01.Still012.png)
![Sequence 01.Still015.png](/proxy/?url=https://content.instructables.com/FE3/8NAZ/IEY39SJ1/FE38NAZIEY39SJ1.png&filename=Sequence 01.Still015.png)
![IMG_5349.JPG](/proxy/?url=https://content.instructables.com/F11/ZQZL/IEY366RX/F11ZQZLIEY366RX.jpg&filename=IMG_5349.JPG)
![MVI_5351.MOV.Still001.png](/proxy/?url=https://content.instructables.com/FL8/C4CA/IEY35QQS/FL8C4CAIEY35QQS.png&filename=MVI_5351.MOV.Still001.png)
![Sequence 01.Still013.png](/proxy/?url=https://content.instructables.com/FAW/LPUV/IEY35RDZ/FAWLPUVIEY35RDZ.png&filename=Sequence 01.Still013.png)

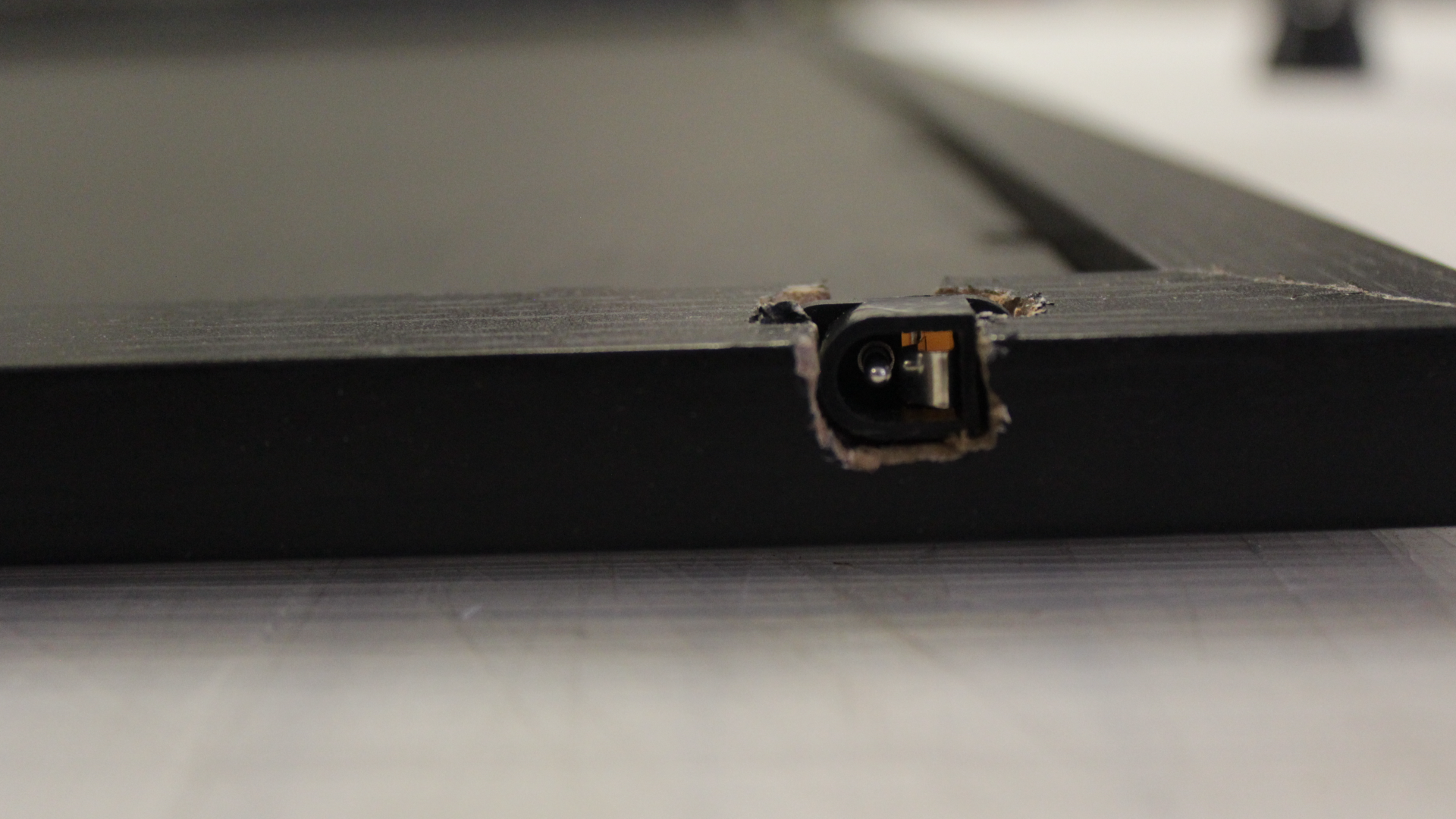

With the circuit finished, it can be placed into the frame. I used super glue to hold the switch in place, but the power adapter was able to fit with tension.

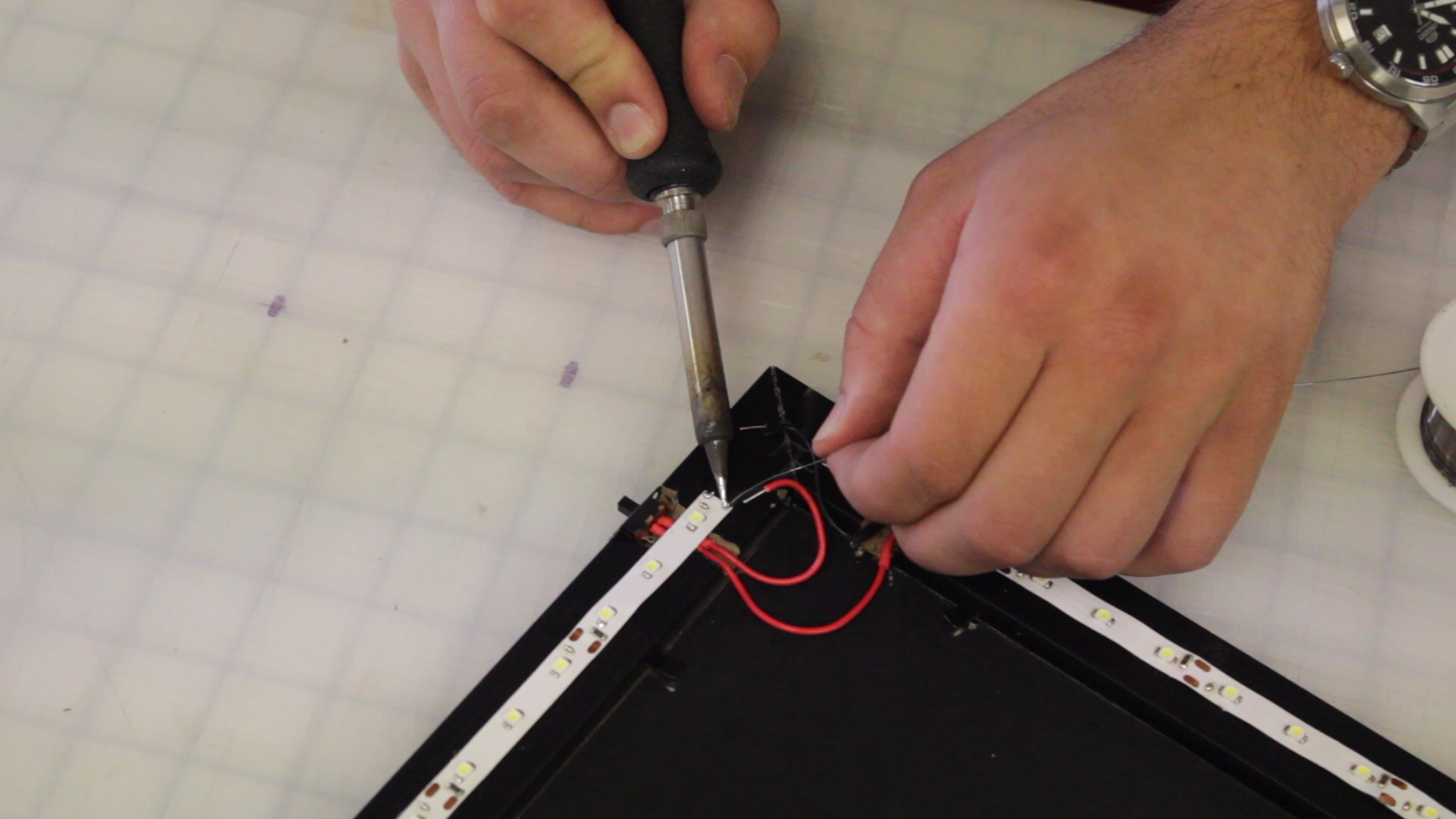

Tin the leads on the LED strip and then solder the loose wires on to them. With LEDs I used, the positive lead was on the side with the resistors.
Solder the other LED strips together with wire in the other 3 corners. Be sure to pay attention to the polarity of the LEDs. I accidentally applied the LEDs backwards on one side and had to cross the wires.
Add Spacers
![Sequence 01.Still016.png](/proxy/?url=https://content.instructables.com/FYM/UY5K/IEY3AC68/FYMUY5KIEY3AC68.png&filename=Sequence 01.Still016.png)
![Sequence 01.Still017.png](/proxy/?url=https://content.instructables.com/FT7/YV7P/IEY3AC7Y/FT7YV7PIEY3AC7Y.png&filename=Sequence 01.Still017.png)
The bag of spacers I used had multiple width spacers, so I picked out 4 that were the same size and super glued them to all 4 of the corners of the frame. The spacers I used were about 7mm thick.
Put It on Display!
![Sequence 01.Still014.png](/proxy/?url=https://content.instructables.com/F0F/NVSM/IEY35RE0/F0FNVSMIEY35RE0.png&filename=Sequence 01.Still014.png)
Hang your poster frame and plug it in!
