How to Make a Modern Wooden Clock

In this instructable I am going to show you how to make this modern looking wooden clock. The design is very simple and fun to make. So, let’s begin!

Materials that I used for this project:

• Wood panel 35 x 35 cm; 18 mm thick (your local hardware store)
• 18 pieces of plywood 0.7 x 4 cm; 3 mm thick (your local hardware store)
• Nails 13 mm long http://amzn.to/2rEqjPt
• Clock mechanism http://amzn.to/2qHmx9N
• Yellow spray paint http://amzn.to/2q8YDQy
• Black marker http://amzn.to/2q8Yflf

Tools that I used for this project:

• Hand saw http://amzn.to/2qEUqGn
• Cordless drill http://amzn.to/2qZI5Qa
• Forstner bits http://amzn.to/2ryQO8N
• Mallet http://amzn.to/2rEMVPC
• Pliers http://amzn.to/2pYN6Iv
• Ruler http://amzn.to/2q0RUZE
• Square ruler http://amzn.to/2rzv77V
• Chisel http://amzn.to/2rqkh7v
• Sand paper http://amzn.to/2rzkL7Y

For this project I’m using a solid 18 mm thick wood panel, but you can always use different type of wood that you already have at home.

To begin I am going to cut the wood panel at 35 x 35 cm using a handsaw. You can make larger or smaller clock depending on the space on the wall where you want to place it.

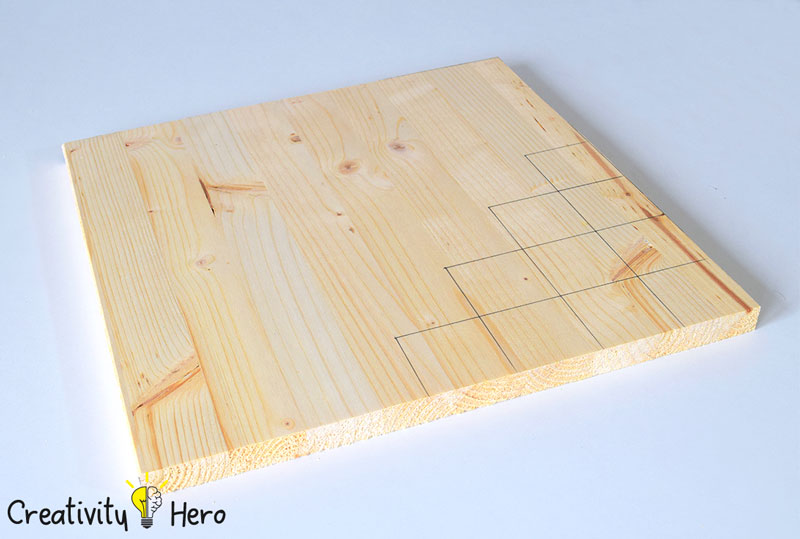

I wanted to make a wooden clock that looks like it’s falling apart, so I drew 10 5 x 5 cm squares on the bottom right corner and cut them.

Next, I found the center point of the clock on the back of the panel. I made a slot for the mechanism using a drill with two different sizes of forstner bit.

I used a chisel to make the perfect size of the slot. Then I drilled the hole for the shaft of the clock.

Once I’m done cutting and drilling I do a little sanding using a 120 grit sandpaper.

Now, it is time to connect all the pieces together. I thought the easiest way to connect them is using a plywood and nails. I chose 3 mm thick plywood and cut 18 0.7 x 4 cm pieces of it. Then I connected all the squares using 13 mm long nails and a mallet.

Make sure to place all the pieces of plywood on the connection points of the squares. That way they won’t be visible on the front side of the clock.

The next step is to spray both sides of the clock. I used yellow spray paint, but you can choose any color you want.

The secret to get a perfect paint job is to spray from at least 20 cm distance, always keep your hand moving and put a several lighter coats to avoid drips. Leave it until it’s completely dry before you draw the clock numbers.

I drew the numbers 3, 6, 9 and 12 with a pencil because it is much easier to make corrections with a rubber and then repeated them with a black permanent marker.

I used two screws and a wire for the hanger. Make it wide enough so that you can easily move it horizontally when hanging this wooden clock on the wall.

The final step is installing the mechanism and adding the hour hand followed by the minutes.

This is the final result.
