How to Make a Mobile Phone Charger | DIY Simple Power Bank

How to Make a Mobile Phone Charger | DIY Simple Power Bank

In this video, I made a simple power bank using household items and a 9V battery lying around.

Supplies

  1. 9V Battery
  2. Car Phone Charger
  3. Plastic Box Container
  4. USB Cable
  5. Hot Glue Gun
  6. Switch

Procedure

mq1 (2).jpg
mq2 (3).jpg
mq3 (3).jpg

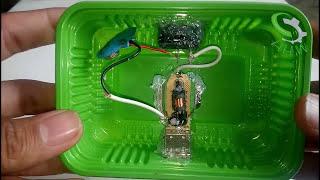

  1. First of all, make a hole in the container considering the measurement of the USB port.
  2. Now, open the plastic covering of the car phone charger with the help of the screwdriver to get the inner circuit board of the charger.
  3. Now, attach the wires to the terminals of the charger.
  4. From the two wires of the charger attach one wire to the switch and from the other terminal of the switch connect it to the battery.
  5. Now, from the other terminal of the battery attach the wire to the charger circuit.
  6. Secure everything with the help of a hot glue gun.

Check This Video for Further Instructions
