How to Make a Mini Tic Tac Power Bank / TUTORIAL

by romanursuhack in Circuits > Electronics

9536 Views, 73 Favorites, 0 Comments

How to Make a Mini Tic Tac Power Bank / TUTORIAL

05-02-2016 21-38-50.jpg

https://www.youtube.com/watch?v=yLVG9OcHP9c&feature=youtu.be

To Do a Mini Tic Tac Power Bank You Need!!!

05-02-2016 21-27-45.jpg
05-02-2016 21-28-42.jpg
05-02-2016 21-29-08.jpg
05-02-2016 21-30-21.jpg

In today's video I am going to share an awesome idea about how to make a portable charger or a power bank as lots of people call it yourself at home.

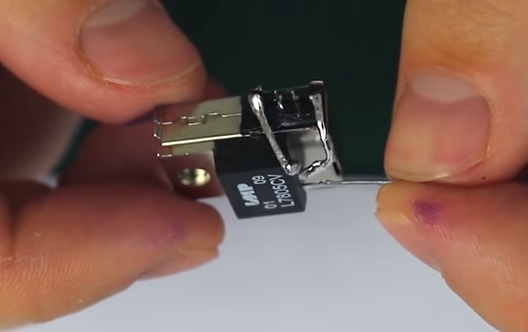

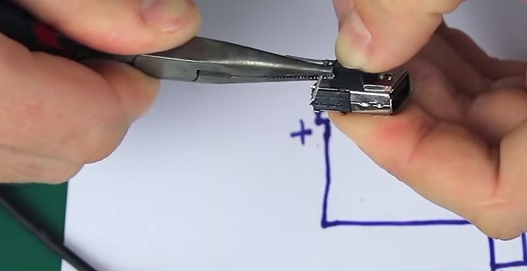

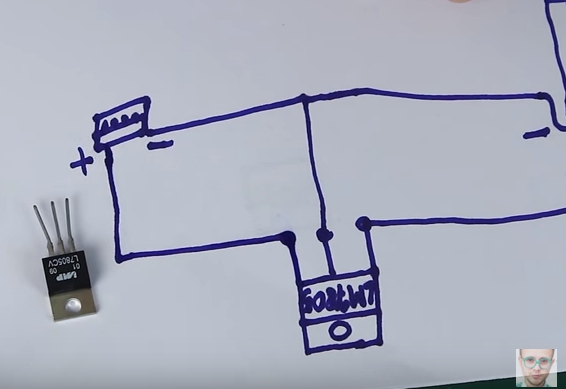

We will need only L 7805, a 9 volt krona battery, USB connector and connectors for krona batteries as well.

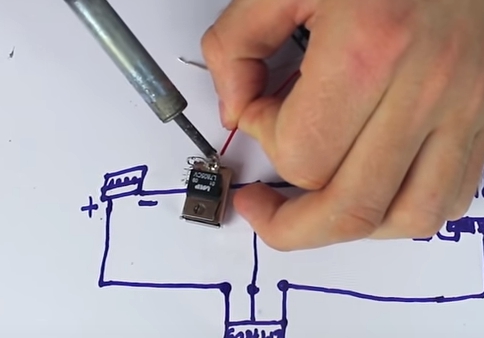

To Make One Yourself Is Pretty Easy and Simple.

05-02-2016 21-36-06.jpg
05-02-2016 21-30-50.jpg
05-02-2016 21-31-05.jpg
05-02-2016 21-31-43.jpg

Let's call the DIY craft a mini tic tac power bank because all inside component will be fitted into a tic tac container.

Since a Usual Krona Battery Isn't Enough I Advise You to To Use a Maximum Capacity Krona Battery You Will Only Be Able to Find. Keep Your Fingers Crossed!

05-02-2016 21-33-05.jpg
05-02-2016 21-33-21.jpg
05-02-2016 21-33-48.jpg
05-02-2016 21-49-42.jpg

I Wish You the Best of Luck!

05-02-2016 21-38-50.jpg
05-02-2016 21-39-23.jpg

You can buy voltage regulators on AliExpress. Here is the link to follow https://goo.gl/0aOl58
