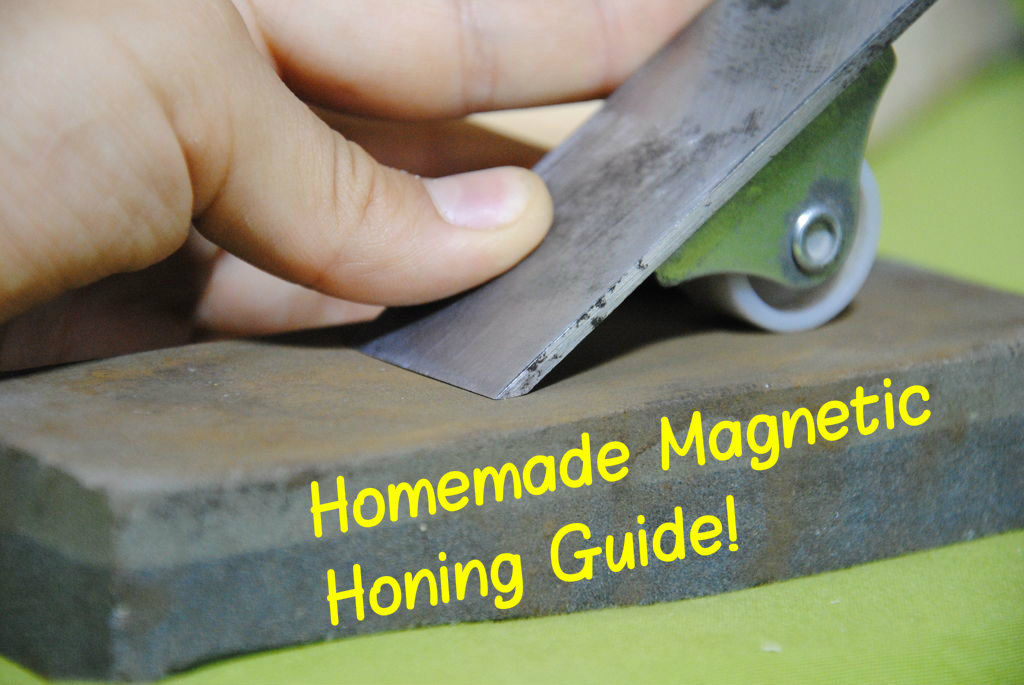

How to Make a Magnetic Honing Guide (For Sharpening Chisels & Hand Planes) | DIY Woodworking Tools #5

"When the [wood's] grain tears out, I wanna tear my hair out." - Gmoon

While this problem does not occur because of Trichotillomania, It definitely does happen because you aren't sharpening your Hand-Planes correctly.

An easy way to hold a Hand-Plane, Or a Chisel in place while sharpening, Is by using a special, But simple tool called a Honing Guide. Unfortunately, These can be pretty expensive, And I didn't want to wait a whole month for one to arrive from China (From eBay).

I decided to make my own, With parts that I had laying around.

Let's get started!

Hardware & Materials:

8 PCS of 10X1.5mm Neodymium Magnets

A Small Plastic Wheel w/ a Metal Base Plate

Chemicals & Adhesives:

CA Glue (Super Glue)

Alcohol Swab/Pad

Some Water

Tools (+Attachments):

Hand-Plane or Chisel that needs to be sharpened

Sharpening Stone: Water-Stone , Diamond Stone, Sandpaper, etc.

Bench Vise

Metal File

------------------------------------------------------------------------------------------

Why: I need a Honing Guide!

Safety Gear Needed: Safety Glasses, & A Ventilated Environment

Cost (for me): $0.85

Needed Skills: Basic

Approximate Time: 15 minutes

Because this Honing Guide holds blades with a magnet, I had to make sure all of my Hand-Plane Blades and Chisels get attracted to a magnet. I used an HDD magnet to show it for the picture.

If all of them get attracted by a magnet, Which I'm pretty sure they should all do, That's great, And you can move on to the next step!

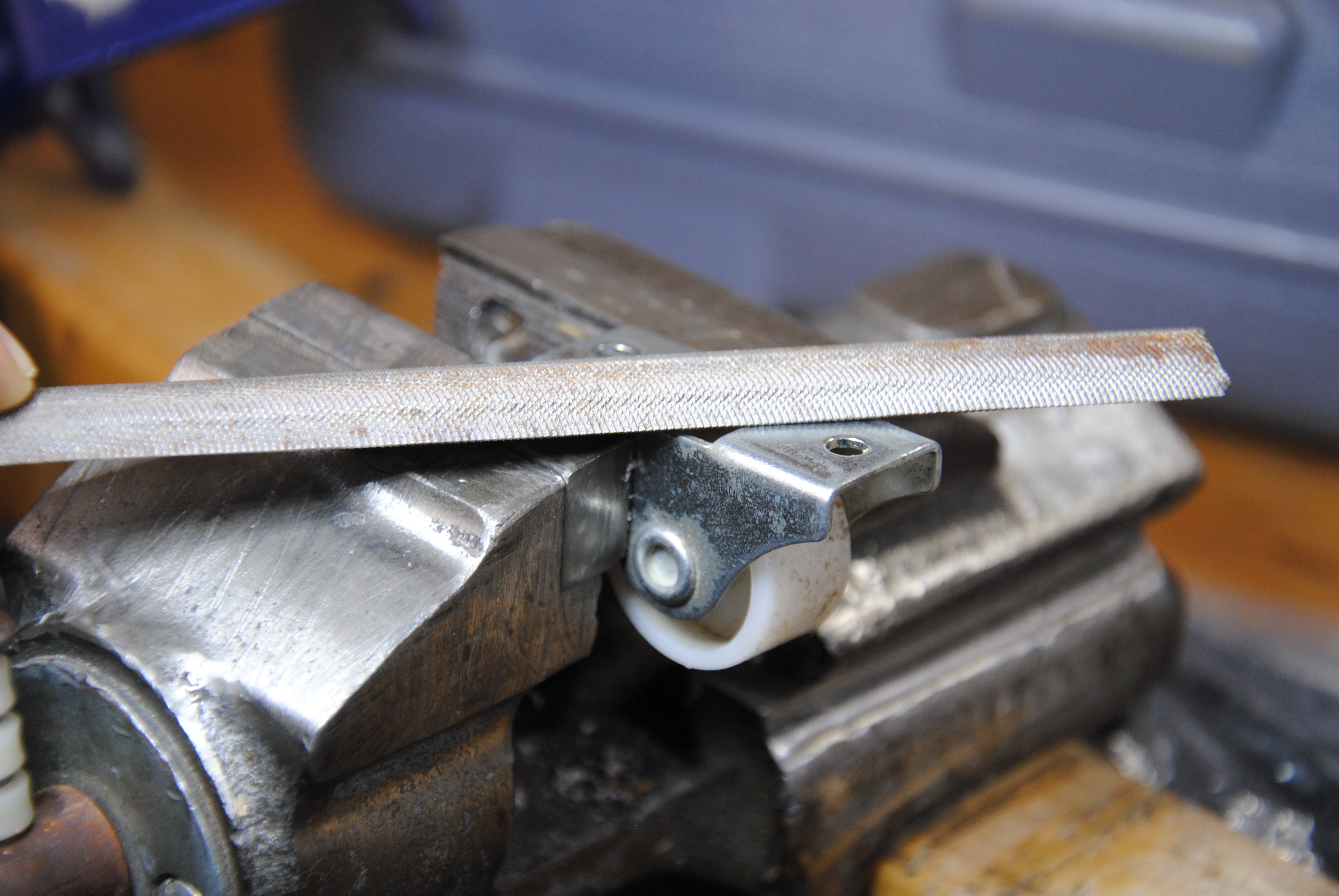

I used a file to roughen the Base Plate of the Wheel. This is to make adhesives adhere to it better (More on that in the next steps). Several strokes on the Base Plate should do.

To make the job easier, I clamped the wheel in my vise so it wouldn't move around

Before I started gluing the magnets, I decided to lay them out properly.

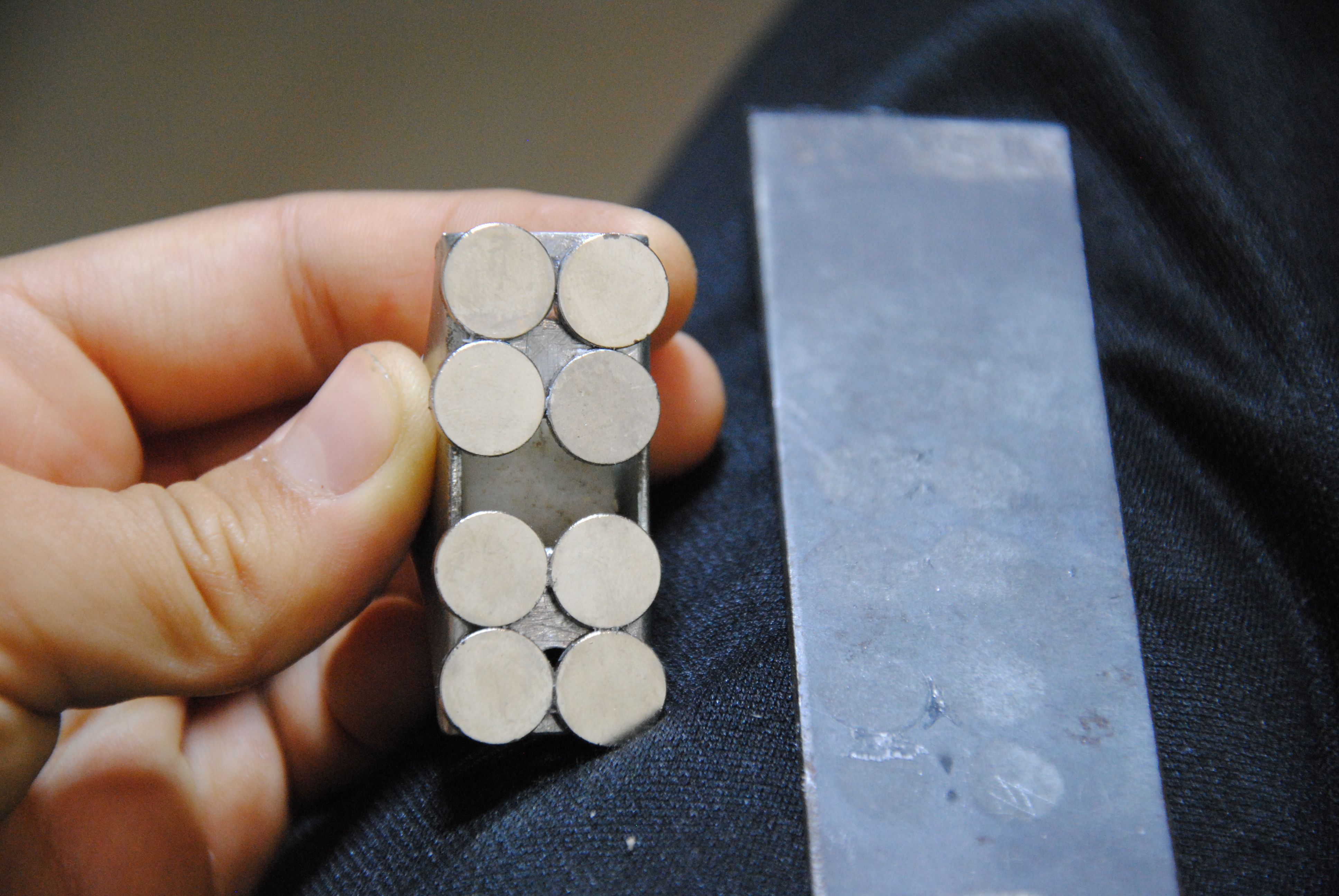

First, I arranged all eight magnets on the Wheel's Base Plate, And then I transferred to a piece of metal. Coincidentally, I used my Hand-Plane's Blade because it was just a piece of metal that was on my table.

The reason for why I was able to do this easily is because the magnets get attracted with more power to the Hand-Plane's Blade. Probably because it's made of a different type of metal...

After quite a bit of experimenting and touching the Base Plate and magnets, Their surfaces become oily and dirty from your skin (Your skin will still be oily after you wash it).

Unfortunately, This stops adhesives from adhering well to the materials.

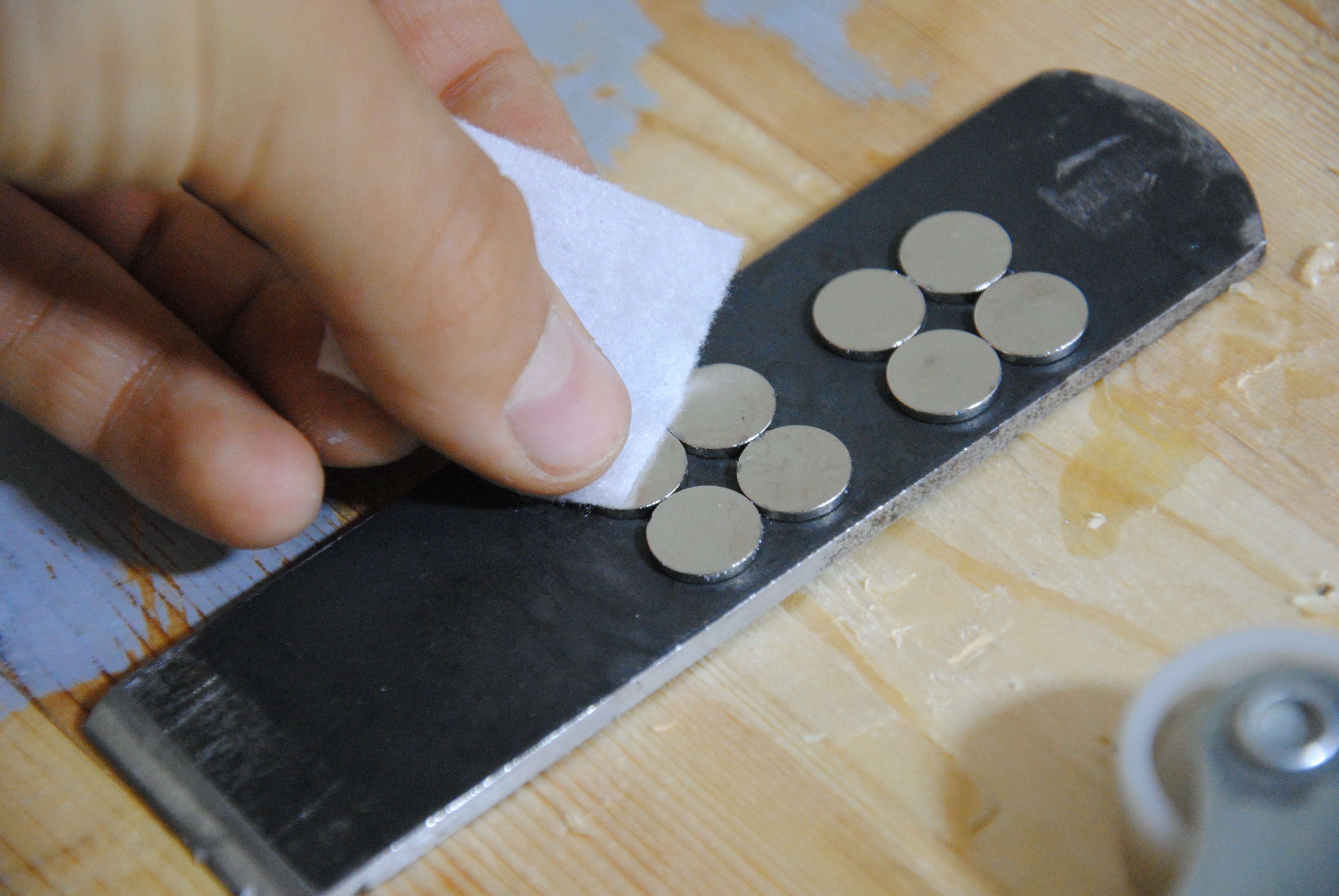

I quickly wiped the Wheel's Base Plate, And all eight magnets with an Alcohol Pad. The surfaces should become shiny.

Trust me, You do not want to skip this step when using most adhesives...

After experimenting quite a bit, I decided that: Cyanoacrylate Glue was right for the job!

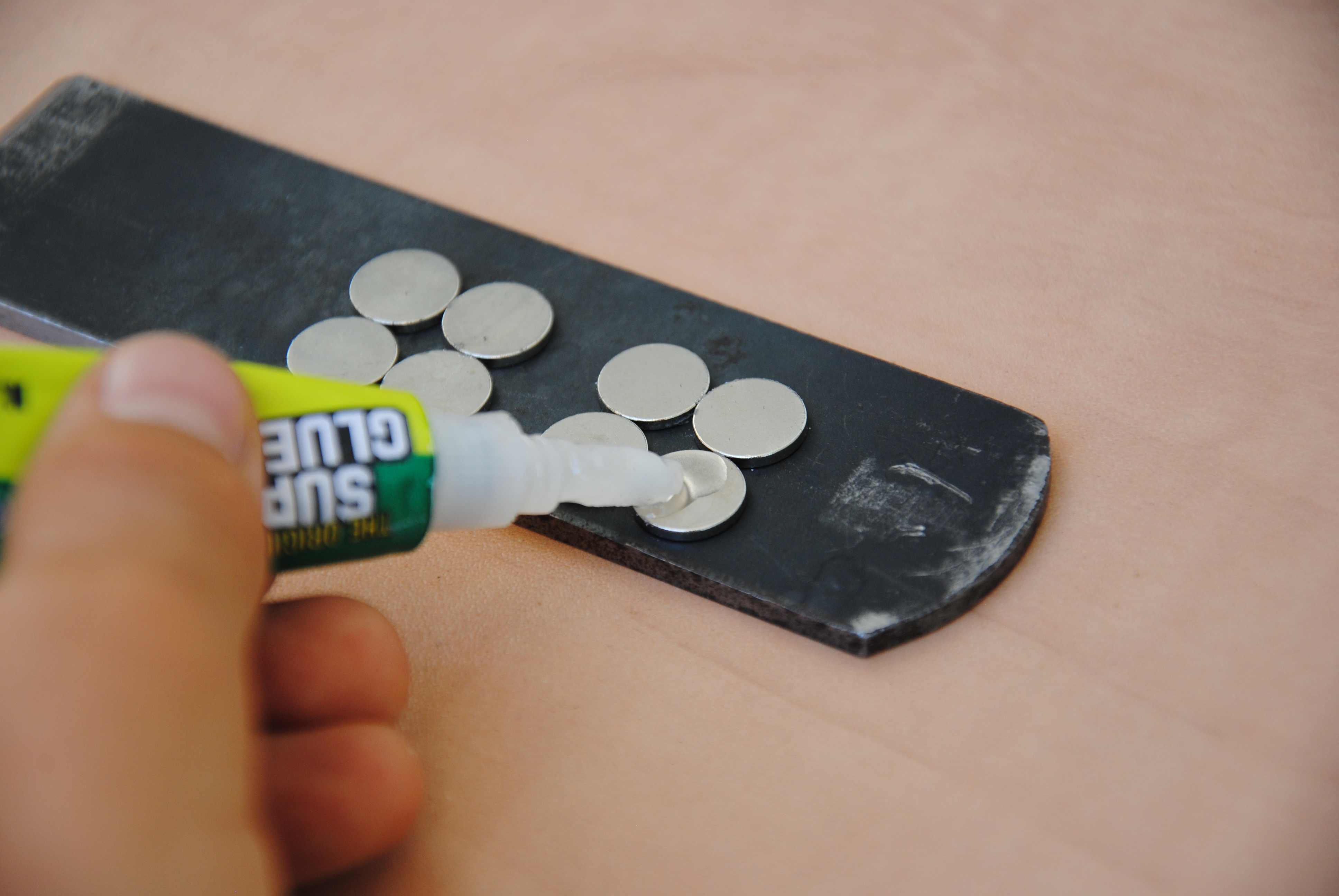

CA Glue works best when applied in a super thin coat. This means that I put a tiny drop on each magnet, And clamped it together with a lot of force, Using my hands, Of course!

While CA Glue is supposed to cure in a few seconds, I gave it several minutes because I was hungry...

Because I am relatively new in woodworking, I still haven't had the chance to buy some good stones*. Unfortunately, I have only one very low Grit Water-Stone**

Obviously, You can also use an Oil-Stone, Diamond Stone, Or Sandpaper too!

I soaked my stone for about ten minutes, Though this will probably depend on your type of stone...

* My questions to my experienced viewers: What type of stone should I buy? What Grits do you recommend? What is the cheapest and most effective? What is the best for beginners?

**If you are a company that wants to support me by changing that, Feel free to send me a Private Message! :)

If the bevel on your Hand-Plane or Chisel's Blade is set correctly, Here is a link to a great video on how set it up. Even though they used a store bought Honing Guide (They have also worded the title incorrectly), The process is still the same

If the bevel on your Hand-Plane or Chisel's Blade is not set correctly, You can measure it to make sure. This also applies if you are making your own Tool Blades...

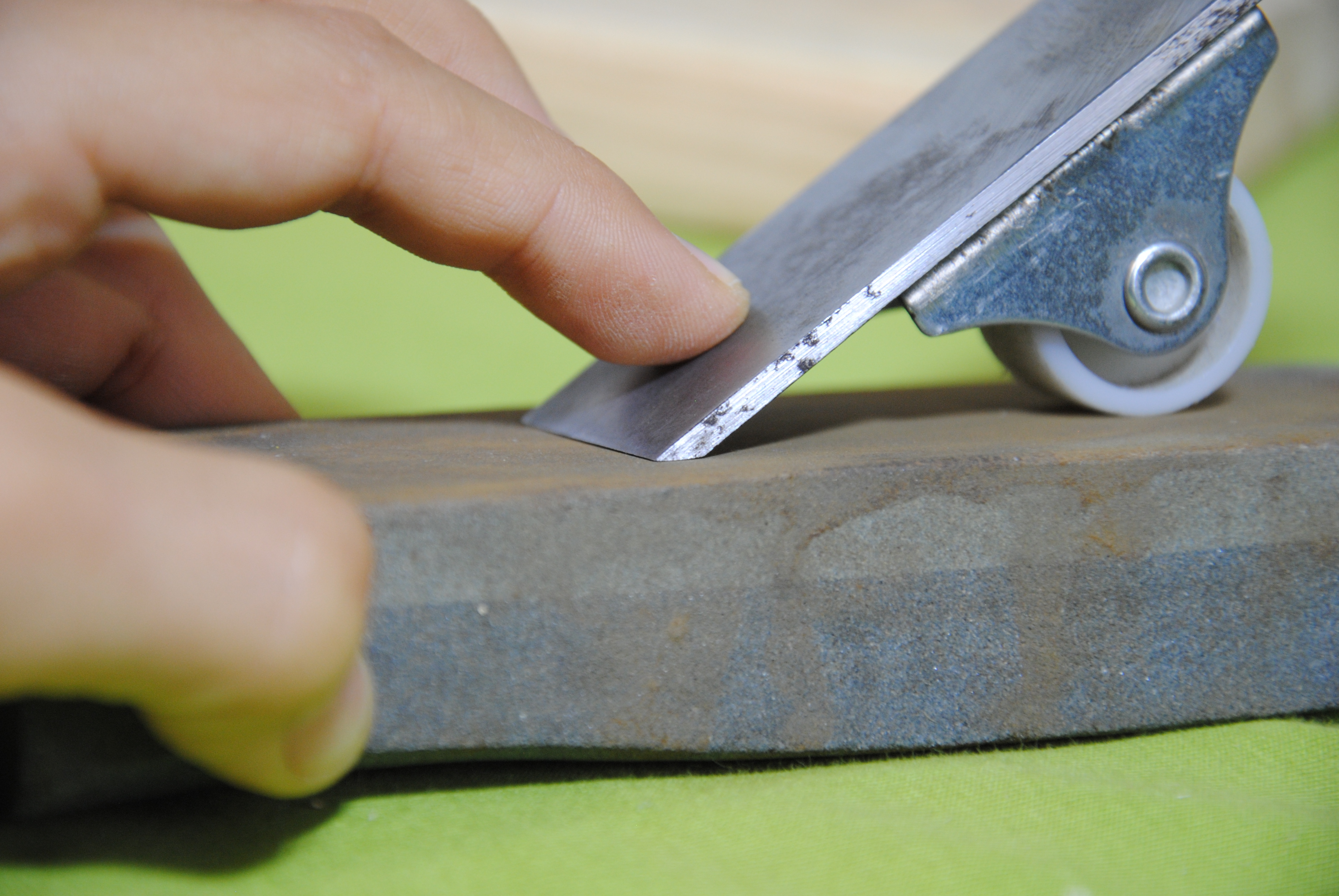

There are many different ways to use a Honing Guide for sharpening Hand-Plane Blades and Chisels-- Each person can choose their own method.

In my opinion, This is a great video on how to use one. If you need any help, You can always refer to the pictures, Or ask in the comment section of this Instructable

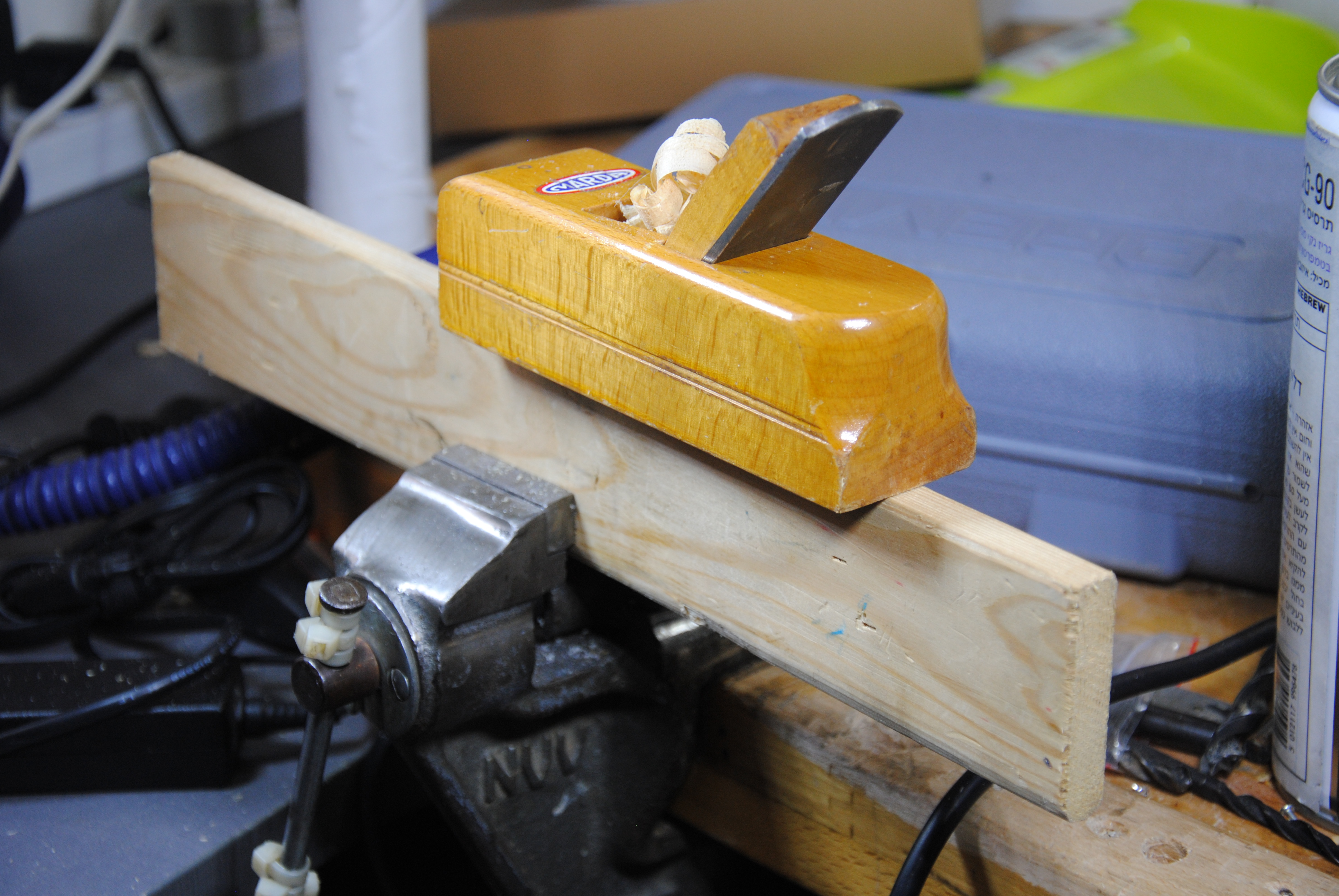

Well... Of course... I can't just finish the Instructable without showing any pictures!

I was able to remove and achieve surprisingly good strips of wood. Though, Unfortunately, I do not know what type of wood I used to make these.

I'm pretty sure all I need now is a finer grit sharpening stone to make them even thinner :)

------------------------------------------------------------------------------------

DONE!
