How to Make a Longboard
by Ninjanator in Outside > Skateboarding
86577 Views, 261 Favorites, 0 Comments
How to Make a Longboard
Ever wanted a longboard but didn't buy one because they are so expencive now you can make your own for really cheap.
Parts
Wood Glue
1/4" plywood
Fiber glass matting
Fiber glass resin
longboard trucks
1/4" plywood
Fiber glass matting
Fiber glass resin
longboard trucks
Gluing the Wood
Take your three layers of 1/4" plywood and glue the first two layers together. Once the glue is dry you can glue the third layer on. Dont forget to clamp your wood or if you don't have any clamps plie a bunch of heavy stuff on top.

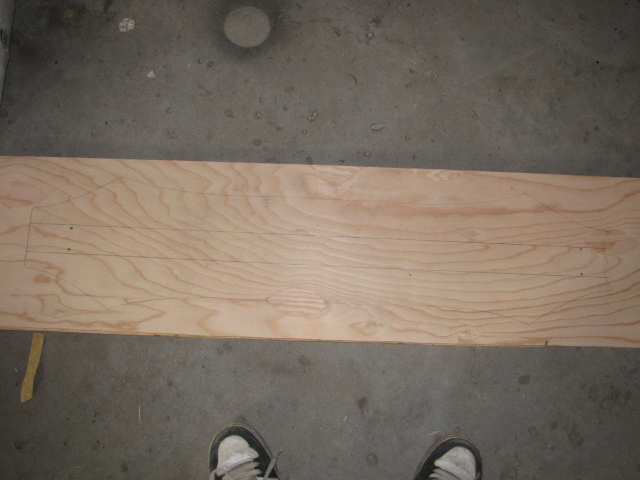

Design
Now you have to come up with a design for your longboard. You can copy other designs or make your own unique one. first draw your design on a large peice of paper and then trace that onto your wood. you can fold your paper in half and draw half the design and cut it out so you have a symmetrical shape.

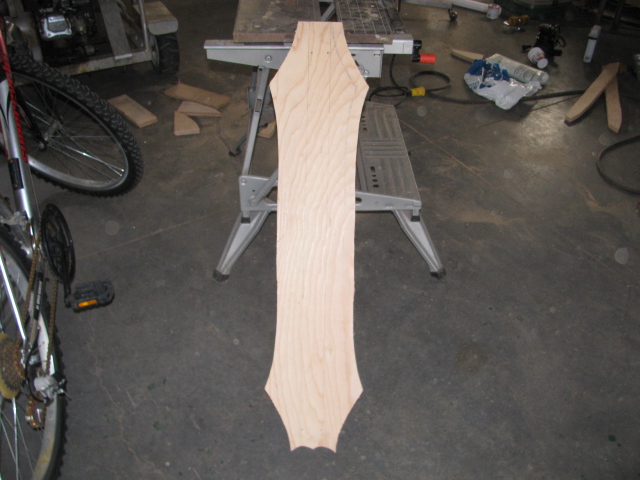

Cutting and Sanding
Now that you have your design on your wood you can cut it out. I used a jig saw to cut mine but you can use whatever works for you. sand it all nice and smooth so there is no rough edges. when this step is finished you have the start of your longboard deck.

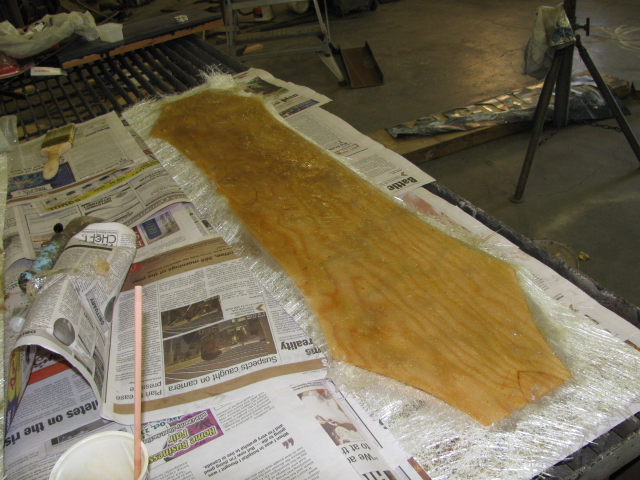

Fiberglassing
Now it's time to fiberglss the bottem. take your fiberglass matting and place it on the bottem of your long board deck. mix the resin according to the instructions that came with it. Apply the resin on top of the fiberglass matting and let is dry according to the instructions.
Sanding Again
Sand the excess fiberglass matting off once the resin is dry and any rough spots you dont want.

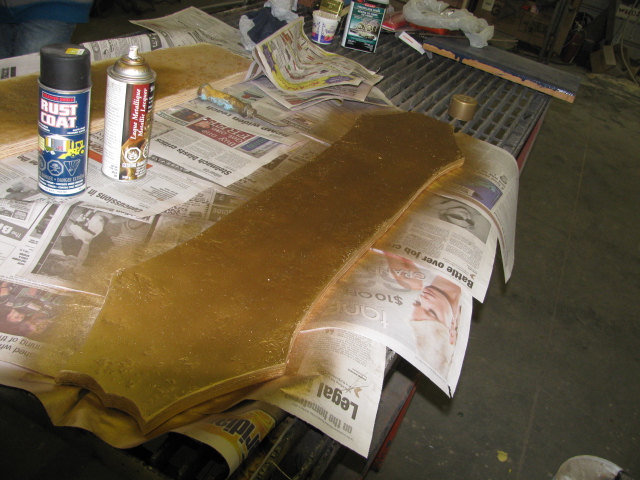

Paint and Grip Tape
If you want you can paint your longboard or draw a cool design on it. then you can put the grip tape on you can even make a design in the grip tape.
Drilling Holes
Measure and mark the holes for the trucksand then drill them. Use the trucks as a template.

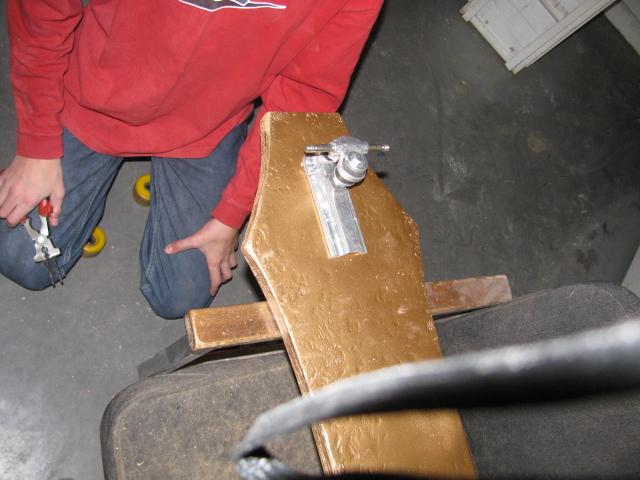

Mounting the Trucks
Mount the trucks it's probably the easiest step and pretty self explanitory just put the bolts through the holes you drilled and tighten the nuts on the other side. You can buy your tucks but i modified some old 80s roller skate truck to work because thats what I had.

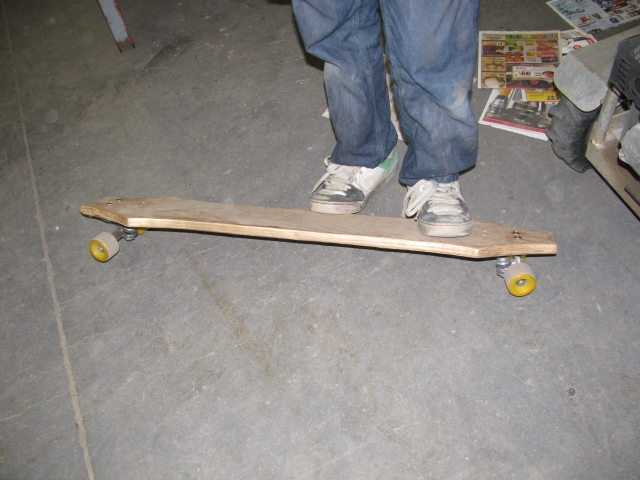

Go Riding
There you go you have a brand new longboard and it didn't cost that much. Go out ride it, show it off, do whatever you want with it its's yours.
