How to Make a Hand-in-Hand Acrylic Decor With Laser Machine

Celebrate connection and creativity with this charming hand-in-hand acrylic decoration. Using a laser cutter, you can bring this delicate design to life with precision and clarity. Perfect as a decorative piece or a thoughtful gift, this project is simple to follow and rewarding to complete. Let’s create something beautiful together!

Machine Used

Thunder Bolt 30W

Material Needed

3mm Acrylic

Settings

Laser Cutting

1. Speed:10mm/s
2. Max Power:50%
3. Min Power:10%
4. Frequency:20kHz
5. Passes:1

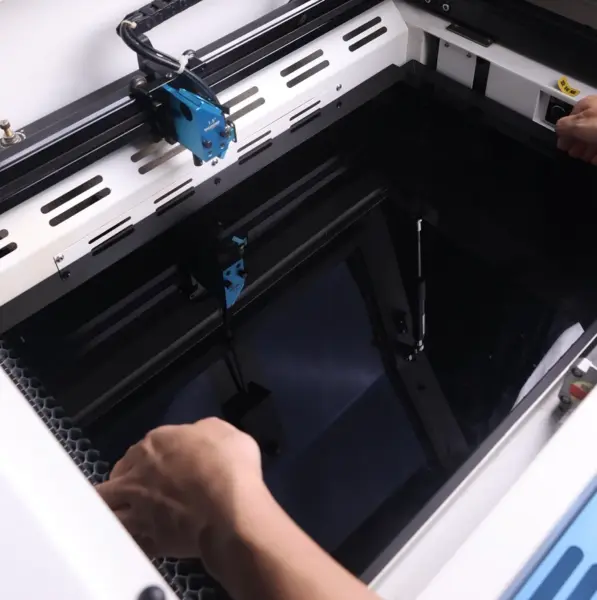

Start by peeling off the protective film from the top surface of the acrylic sheet—the side that faces the laser. This prevents burn marks or smoke stains from forming on the visible surface during cutting. You can leave the bottom film on to protect the underside while it rests on the workbed. Once ready, place the acrylic flat on the laser cutter’s bed and secure it with pins or magnets.

Open your preferred laser software (I use LaserMaker) and import the design file. Adjust the size and layout as needed, making sure the designs are evenly spaced to make the most of your acrylic sheet.

For the laser cutting layers, pay extra attention to the minimum power setting. If the min power is too low, it will cause the cutting corners will not cut through; if the min power is too high, the laser cutting will be bad at the corners.

Accurate focusing is critical for achieving smooth, clean cuts on acrylic. The Thunder Bolt offers two focusing methods:

Auto Focus: With one click, the laser head automatically adjusts to the optimal focal distance. This is fast and convenient for flat materials like acrylic sheets.

Manual Focus: For more control or when working with uneven materials, use the focus stick. Lower or raise the laser head until the focus stick stands perfectly vertical against the acrylic surface—this indicates the correct distance.

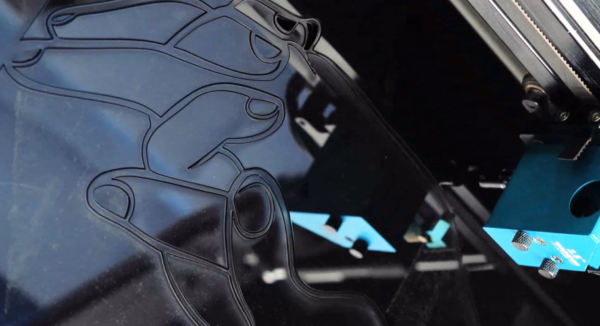

Before starting the job, run the frame function(also called border) in your software. The laser head will trace the outline of the design with a visible guide light. This helps confirm that the design fits within your acrylic sheet and avoids wasting material. Once everything is adjusted, simply press ‘Start’ to begin laser cutting the acrylic with the Thunder Bolt.

Monitor the job as it runs—watch for excessive smoke, movement of the acrylic sheet, or any warning alarms. Never leave the laser unattended while it’s operating.

While observing, remember that the laser beam is extremely powerful. Even with the protective lid closed, avoid staring directly at the marking spot for too long. A quick glance to check progress is fine, but prolonged gazing should be avoided for safety reasons.

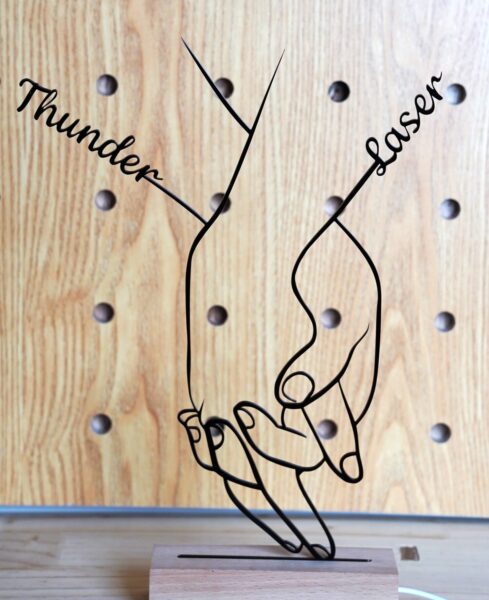

Once the cutting is complete, remove the acrylic carefully from the laser bed. Peel off any remaining protective film on the back side to reveal the clean, polished surface. Your hand-in-hand decoration is ready to display!

Bring a little warmth and elegance into your space! Try making your own hand-in-hand acrylic decoration and create a small token of connection for yourself, friends, or loved ones. This simple project is not only a fun way to practice your laser cutting skills but also a beautiful piece to display or gift.
