How to Make a Halloween Door Frame Decoration With a Laser Cutter

Halloween is just around the corner — are you still wondering how to decorate your home to impress trick-or-treaters and surprise your guests? Instead of buying the same store-bought items, why not make your own? With a laser cutter and some acrylic, you can create a one-of-a-kind Halloween door frame decoration that’s spooky, stylish, and totally unique.

Machine Used

Thunder Bolt 30W

Material Needed

3mm Acrylic

Settings

Laser Cutting

1. Speed:8mm/s
2. Max Power:90%
3. Min Power:10%
4. Frequency:20kHz
5. Passes:1

Start by peeling off the protective film from the top surface of the acrylic sheet—the side that faces the laser. This prevents burn marks or smoke stains from forming on the visible surface during cutting. You can leave the bottom film on to protect the underside while it rests on the workbed. Once ready, place the acrylic flat on the laser cutter’s bed and secure it with pins or magnets.

Open your preferred laser software (I use LaserMaker) and import the stirring rod design file. Adjust the size and layout as needed, making sure the rods are evenly spaced to make the most of your acrylic sheet.

For the laser cutting layers, pay extra attention to the minimum power setting. If the min power is too low, it will cause the cutting corners will not cut through; if the min power is too high, the laser cutting will be bad at the corners.

Accurate focusing is critical for achieving smooth, clean cuts on acrylic. The Thunder Bolt offers two focusing methods:

·Auto Focus: With one click, the laser head automatically adjusts to the optimal focal distance. This is fast and convenient for flat materials like acrylic sheets.

·Manual Focus: For more control or when working with uneven materials, use the focus stick. Lower or raise the laser head until the focus stick stands perfectly vertical against the acrylic surface—this indicates the correct distance.

Tip: If your material is slightly warped or not perfectly flat, manual focus is recommended for more precise results.

Before starting the job, run the frame function(also called border) in your software. The laser head will trace the outline of the design with a visible guide light. This helps confirm that the design fits within your acrylic sheet and avoids wasting material.

Once everything is adjusted, simply hit ‘Start’ to begin laser cutting the acrylic with the Thunder Bolt.

Once everything is set, hit Start to begin the laser cutting process. Monitor the job as it runs—watch for excessive smoke, movement of the acrylic sheet, or any warning alarms. Never leave the laser unattended while it’s operating.

While observing, remember that the laser beam is extremely powerful. Even with the protective lid closed, avoid staring directly at the marking spot for too long. A quick glance to check progress is fine, but prolonged gazing should be avoided for safety reasons.

When the job is done, wait a few seconds to let any fumes clear before opening the lid. Carefully remove the cut pieces from the bed. If the protective film is still on, peel it off to reveal the clean acrylic surface. For a flawless finish, gently wipe away any residue along the edges with a soft cloth or rinse the rods with mild soap and water. Use a solvent cement (e.g., acrylic cement / “weld” such as Weld-On) applied sparingly to the mating surfaces for an invisible, fused joint. Clamp gently until cured.

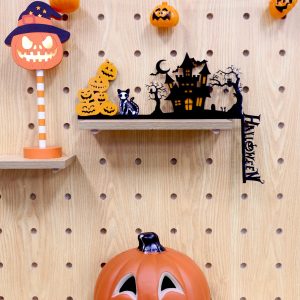

Step back and admire your finished Halloween acrylic decoration! The sharp lines of acrylic make your design pop, giving your door frame a unique, festive look.

My Halloween door frame is glowing with bats and pumpkins — what about yours? Try making one with your own twist: maybe add ghosts, witches, or even your family name in spooky letters. I’m sure you can come up with a design even scarier (and cooler) than mine!
