How to Make a Go Kart / Electric Car Using PVC Pipe at Home

by NavinK30 in Workshop > Electric Vehicles

95778 Views, 145 Favorites, 0 Comments

How to Make a Go Kart / Electric Car Using PVC Pipe at Home

How to Make a Go kart / Electric car using PVC pipe at Home

Build your own Go-Kart at home. Now just because you don't need a full welder, you will still need some power tools to cut wood. Go-Karts: They're the most fun a kid can have on four wheels. I have got the plans and list of parts you need to build one for your family and have the kids cruising around before sundown.

source: Navin Khambhala # crazyNK

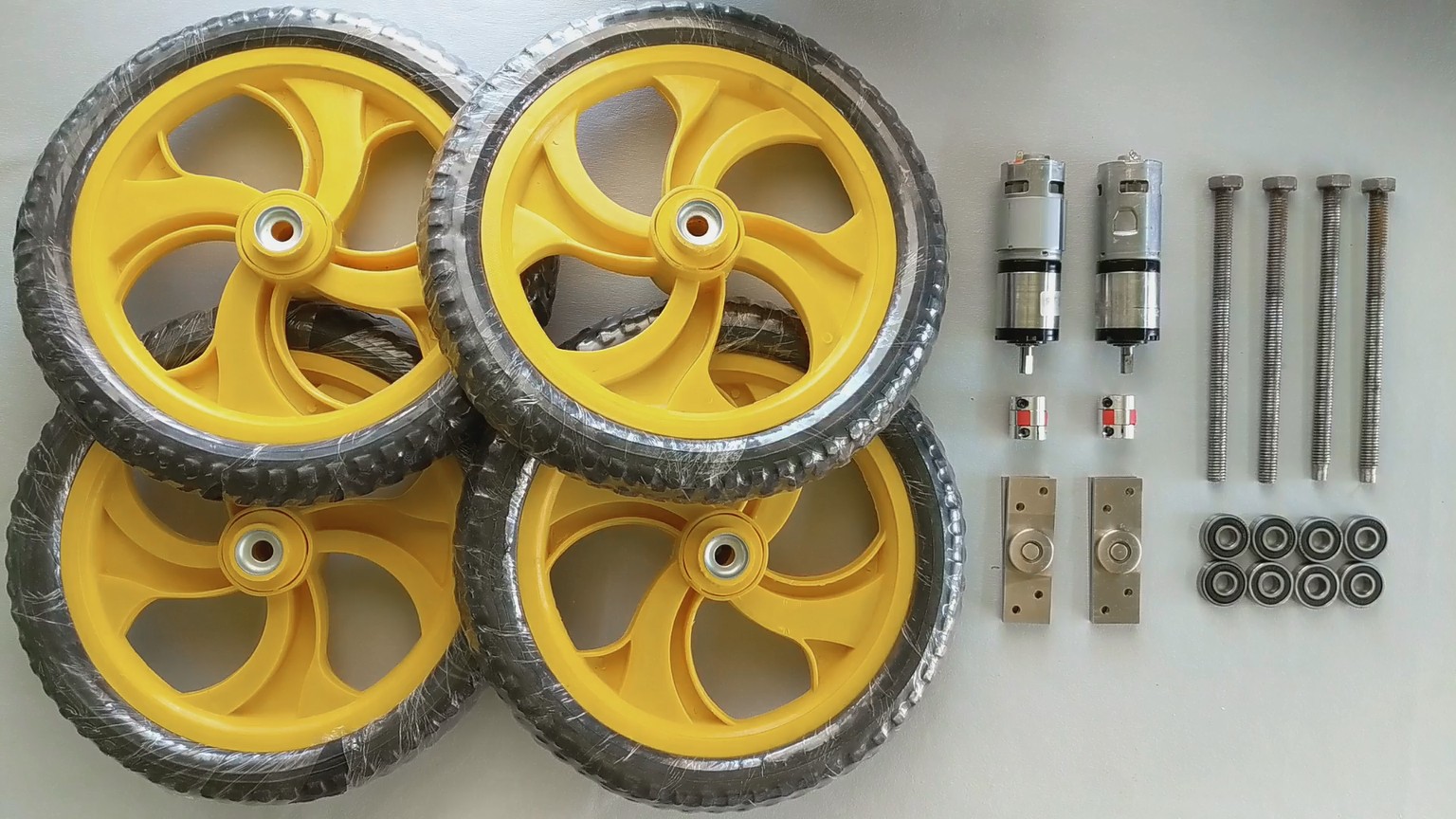

List of Materials

go kart 1.jpg
go kart 12.jpg

1. 1" (25mm) PVC pipe and coupling

PVC pipe: 30 feet, PVC Tees: 27 pieces, Elbow: 16 pieces, 4-Way: 6 pieces, 45 degree Elbow: 8 pieces, PVC cap: 5 pieces

2. Plywood

Size: 120 cm X 64 cm

3. 18V DC Mega Torque Geared Motor

Speed: 300 RPM, Watt: 250W, Torque: 92 kgcm

4. Bicycle wheel

Quantity: 4 pieces, size: 14" (inches)

5. Motor Shaft Coupling

Quantity: 2 pieces, size: 8 mm to 10 mm

6. Ball Bearing

Quantity: 10 pieces, Type: 6201-2RS

7. Door hinge (360 degree)

Size: 10 cm

8. PWM DC motor speed controller

Ampere: 40A

9. 12V DC Battery

Up to 40Ah

Make the Base Structure From Wood and PVC

go kart 5.jpg
go kart 6.jpg

Arrange the Wheel on Base Structure Also Attach Motor to It

go kart 8.jpg

Make a Turning Mechanism and Attach the Steering

go kart 9.jpg
gokart 10.jpg
go kart 11.jpg

Attach the Battery and Speed Controller

go kart 13.jpg

Attach Seat to Go Kart

go kart 15.jpg

Go Kart Is Ready for Ride !!!!

go kart 16.jpg
