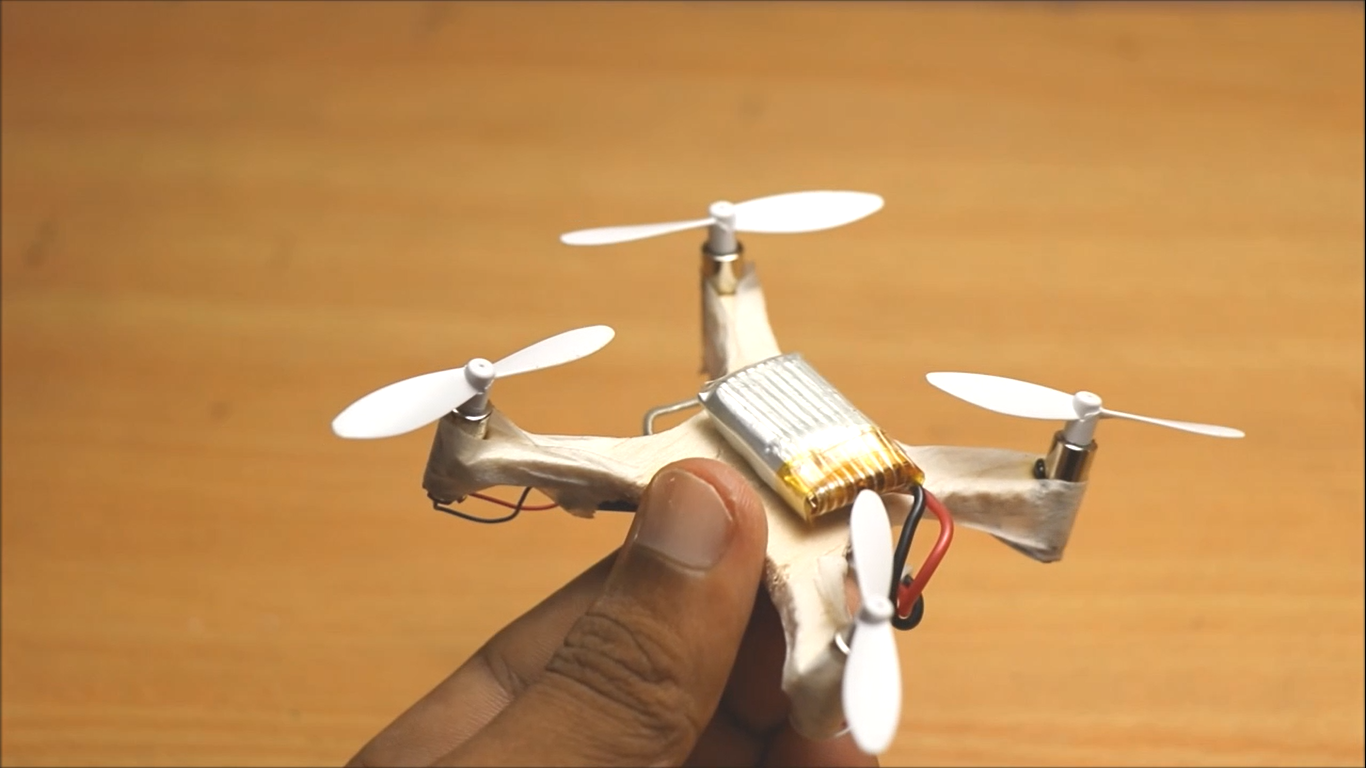

How to Make a Drone at Home - DIY Quadcopter

how to make a drone at home.JPG

Hello Readers in this instructable i made a drone that fly's really high and the best part here is all the materials needed to build this is available in online shopping sites(Check for links in my video description).This homemade drone is Very Easy to make so try to make one!

Bonus Tip: Check www.letsmakeprojects.com for much more interesting content

Amazing Video Tutorial(Shortcut for Those Who Doesn't Like Reading)

How To Make Drone At Home (Quadcopter) Very Easy

https://youtu.be/LQkP8pBwTJs

Materials

drone part (28).png
drone part (1).png

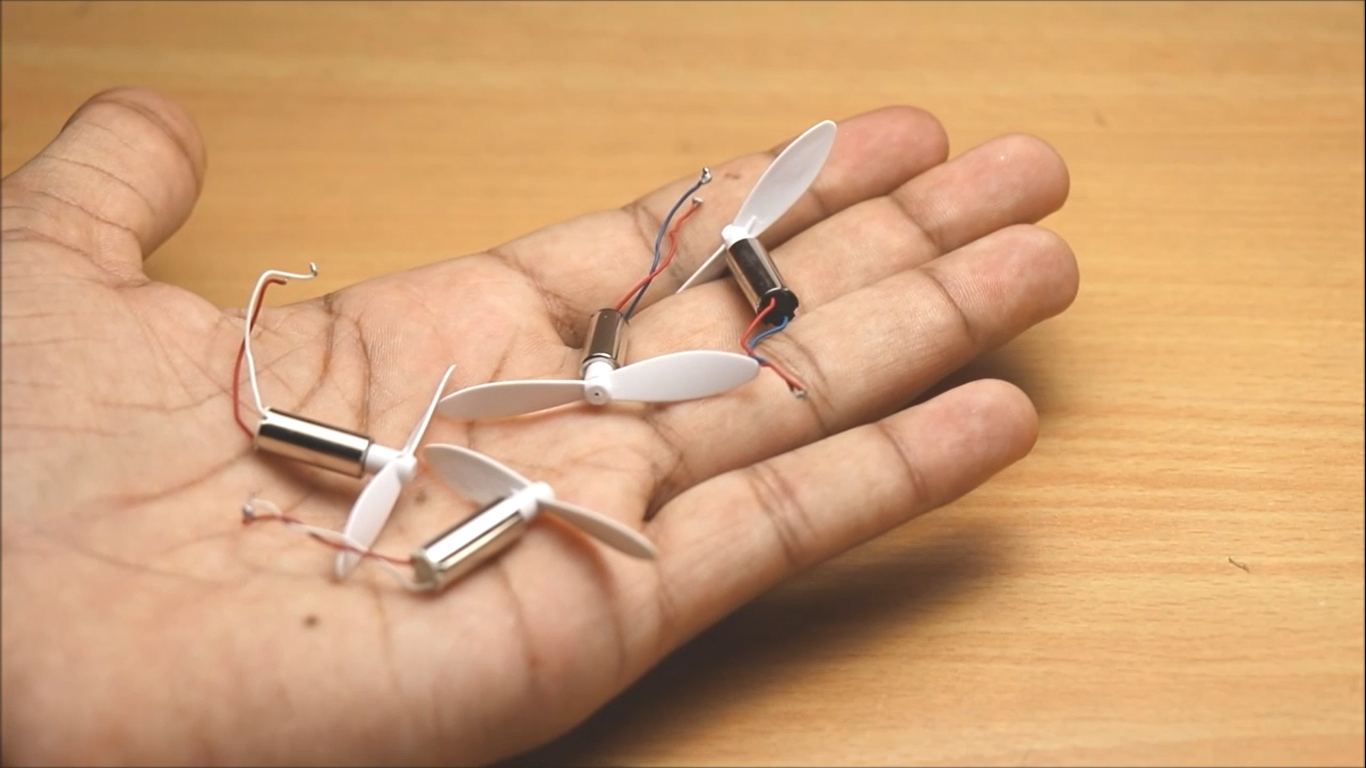

  • Coreless motor with propeller
  • Transmitter
  • Receiver
  • Battery
  • Wood or Plastic

Note:Buying link For all the components is given in the video description

Frame

drone part (3).png
drone part (4).png
drone part (5).png
drone part (6).png
drone part (7).png
drone part (8).png
drone part (9).png
drone part (10).png
drone part (11).png

The Frame for my drone is made from balsa wood which is very light in weight

  • Mark as per the dimensions
  • draw the circles
  • Cut
  • Design is made to reduce the weight of frame
  • Finish using the sand paper
  • Frame is ready

Attaching Coreless Motor to the Frame

drone part (12).png
drone part (15).png
drone part (16).png
drone part (18).png
drone part (19).png
drone part (20).png

  • Solder the Coreless Motor Terminals to the Receiver
  • Glue the Receiver to the Frame
  • Using Glue and Sticky Tape Couple the Motor to the Frame

Finishing and Testing

drone part (21).png
drone part (23).png
drone part (24).png
drone part (27).png
  • Using hot glue attach the battery to upper frame
  • Connect battery to the receiver
  • Switch on the transmitter
  • Wait untill it binds
  • Drone is Ready to Fly

Watch the flying video(Step 1).Thankyou for your time to read this instructable :) Have a good day
