Introduction

Visit My Youtube Channel

A Drone is a very expensive gadget(product) to buy. In this post I am going to discuss, how I make it at cheap?? And How can you make your own like this at cheap price…Well in India all the materials(motors, ESCs etc.) are very expensive(at least for me). So I decided to make it on, as cheapest as possible.

The frame and the Flight Controller is DIY. The frame is made up of scraped aluminium antenna(bar), aluminium celling fan blade and Woods. Arduino UNO along with MPU6050(gyro+Accle) is used as a flight Contrller.

At first Check The VIdeos From my Youtube Channel....

PArt-1 & Part-2.........

These are the materials Used for my Drone You can use any parts/materials as your requirement. If you want to make it as cheap as possible then you can go with the material list below.

1) 1000KV Brushless motor*4pcs

2) 30 Amp ESCs*4pcs

3) 1045 Propeller*4pcs

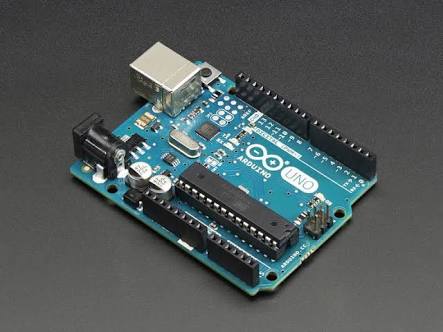

4) Arduino UNO + MPU6050

5) Perfboard (verroboard)

6) 1.5k,1k and 300E resistors and 1pcs LED.

7) Heat Shrink tube (I am using Electrical Insulation Tape)

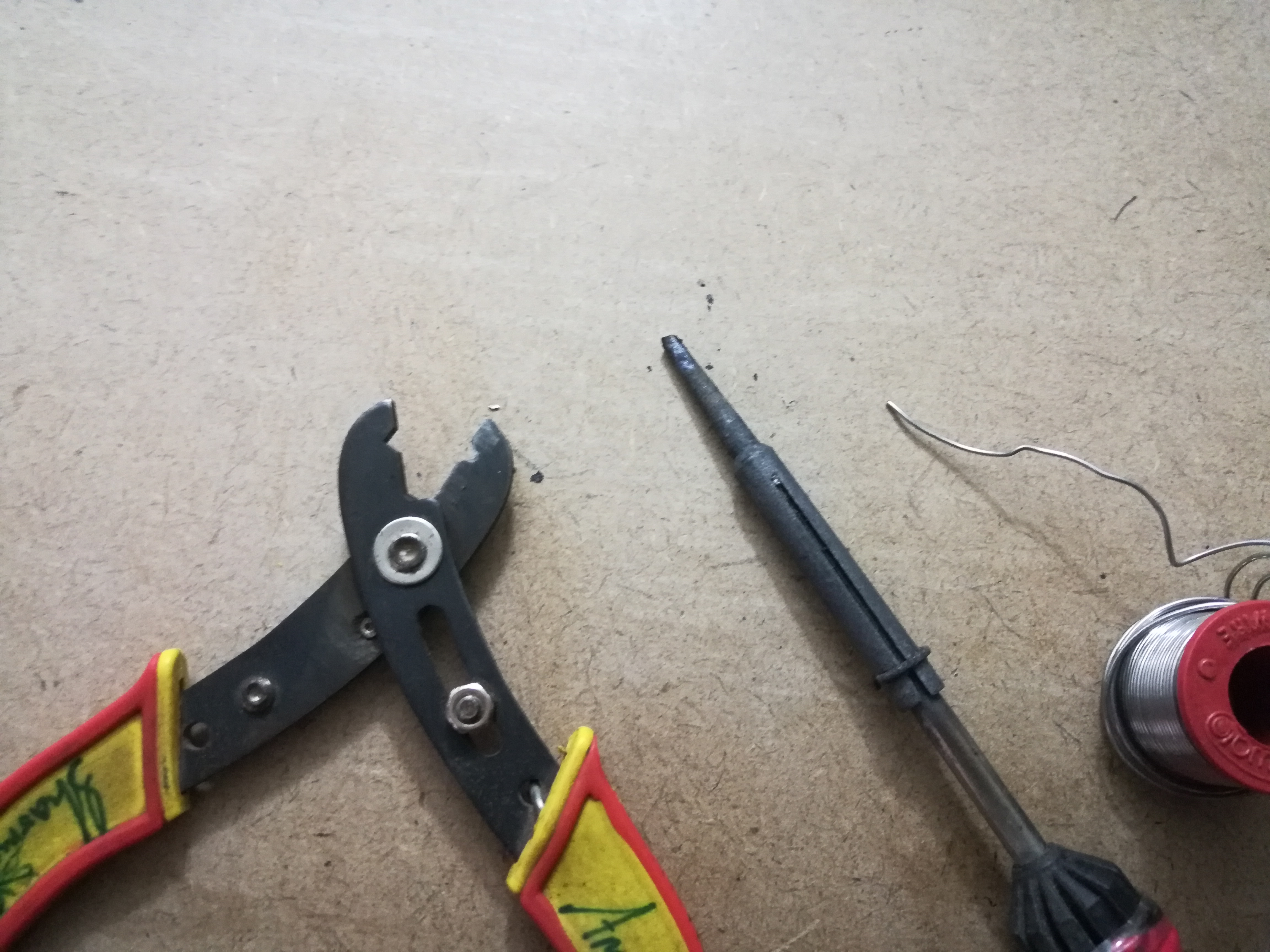

8) Double Sided Tape, Soldering Iron, Soldering Wire etc.

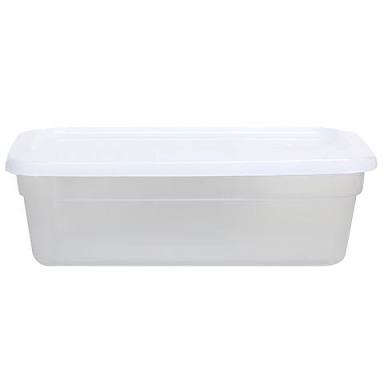

9) A plastic Box (for Electronics)

10) 2200 mah or Higher li-po battery.(minimum 30C recommended)

11) Aluminium bar(hollow), Aluminium plate and Woods(soft).

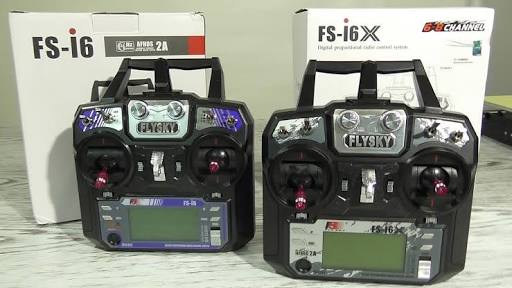

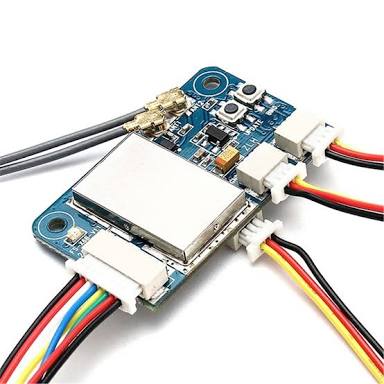

12) Transmitter and receiver (Mine is Flysky-i6x with X6B receiver)

>>>>Buy From link below----------Please use link below to buy stuff.... Don't worry you don't have to pay more.....if you bought the stuffs from link below...I will get small kick back...(commission).....

Link for India....

Motor+ESC+prop

Balance Charger. For lipo or Better to buy this one

Lipo battery

Arduino UNO

MPU6050

Berg Strip+perf board

Xt60 Connector

Transmitter and receiver

Li-Po Voltage checker

For Out of India.......(Banggood)

Transmitter and receiver

Brushless motor

30 Amp ESC

Li-Po Battery

Li-Po Battery Charger

Lipo voltage Checker

Arduino uno

MPU6050

XT60 Connector

1045 propeller

Gearbest...

Flysky fs-i6x with X6B receiver

Li-po battery 11.1v

Lipo voltage checker

Li-Po Battery Charger

Arduino UNO

Mpu6050 Gyro+Accelerometer

XT60 Connector

Brushless motor CW

Brushless Motor CCW

4*30Amp ESCs

1045 Propeller

Heat shrink tube

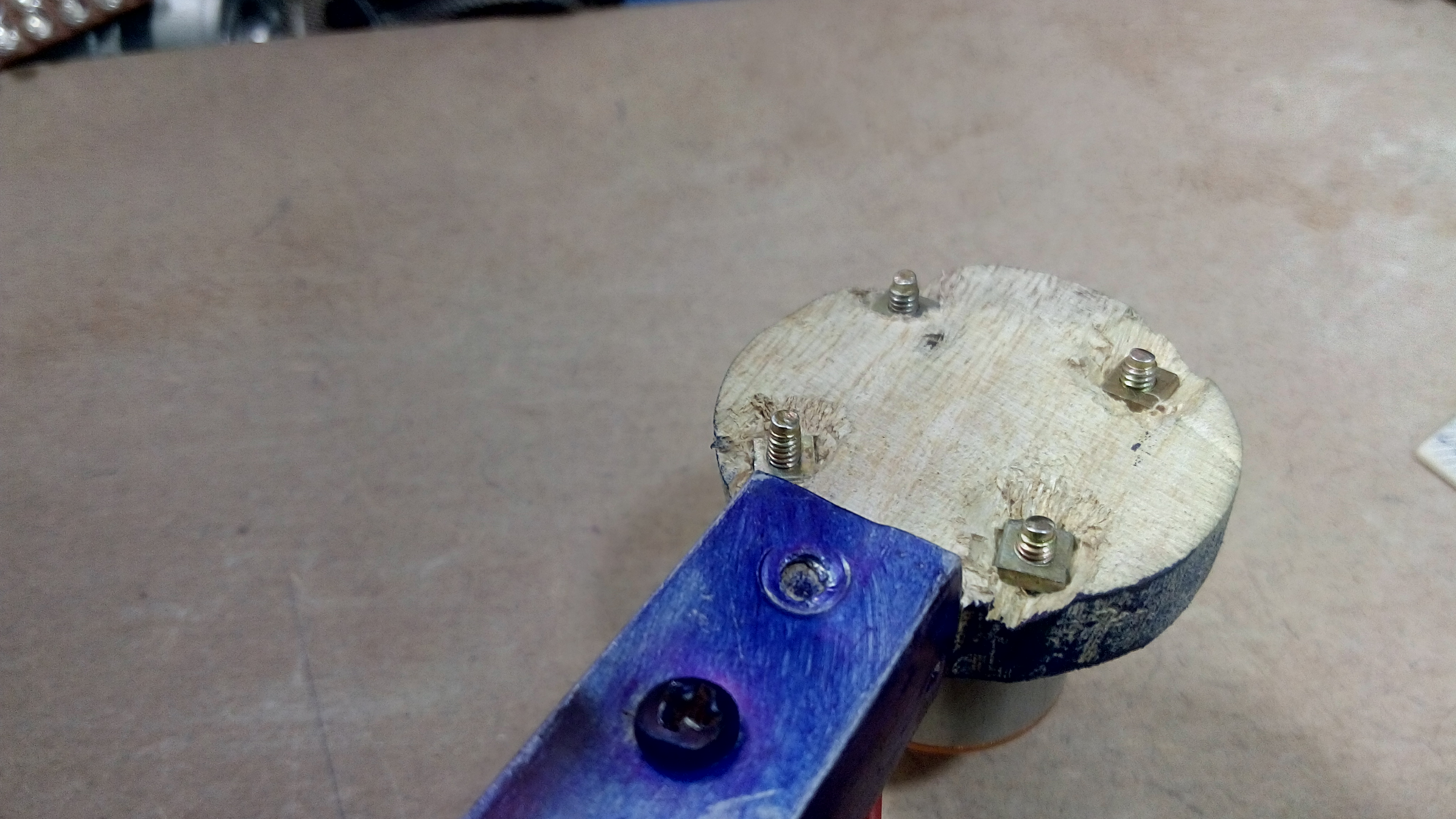

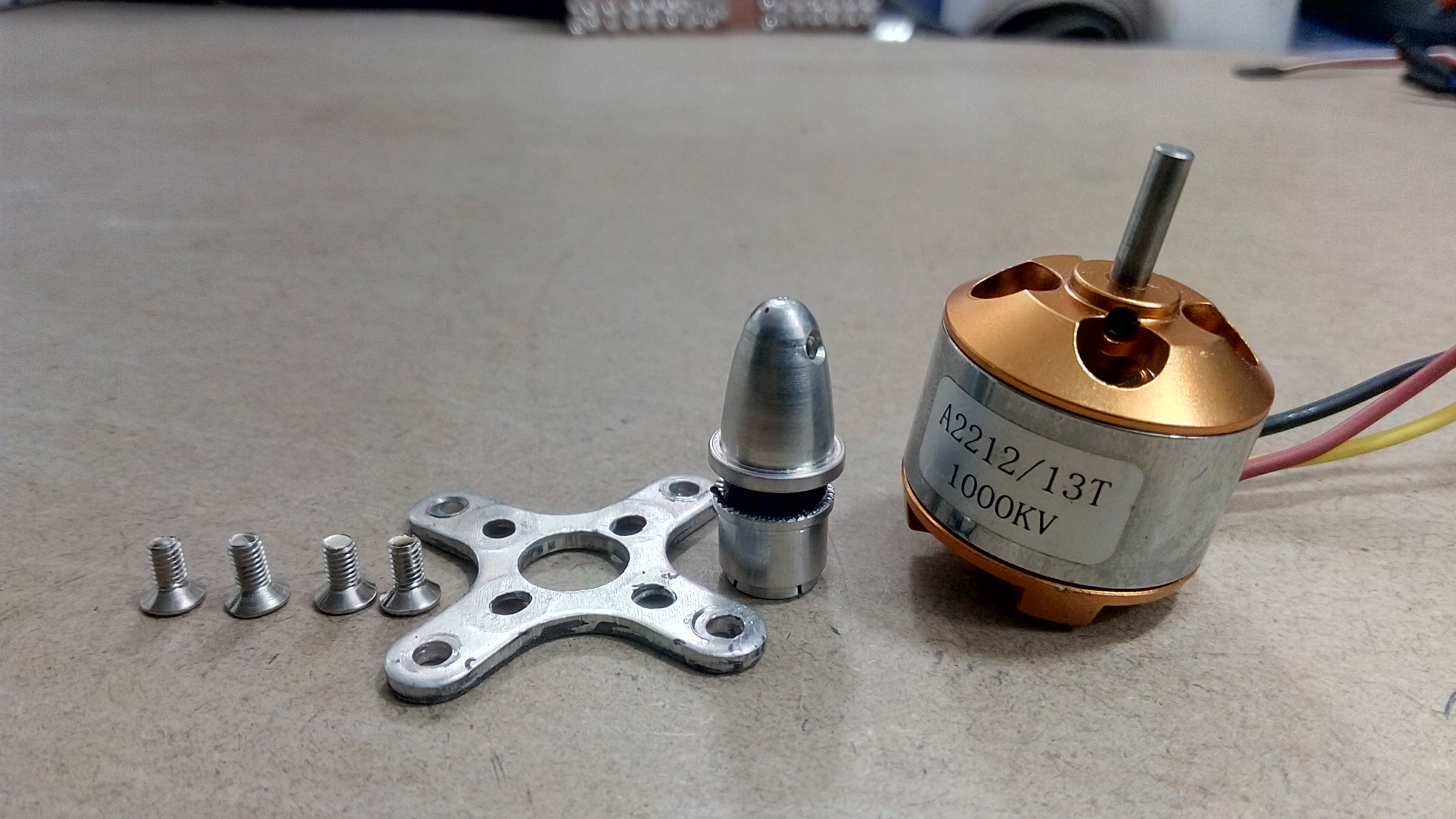

When you bought the Motors the Motor mount and some screws comes with it. mount the aluminium motor mount using the screws comes with it. (see picture). Mount that to motor Using Screws...

I am using old aluminium (yagi) antenna, Soft Wood, and aluminium plate(fan Blade) to make frame. Cut 4 pcs of aluminium bar each of 20cm. Centre plate Dimention is about 11*18cm….The wooden Motor mount is about 10cm long and Diameter of 4.5cm (where motor mounted).

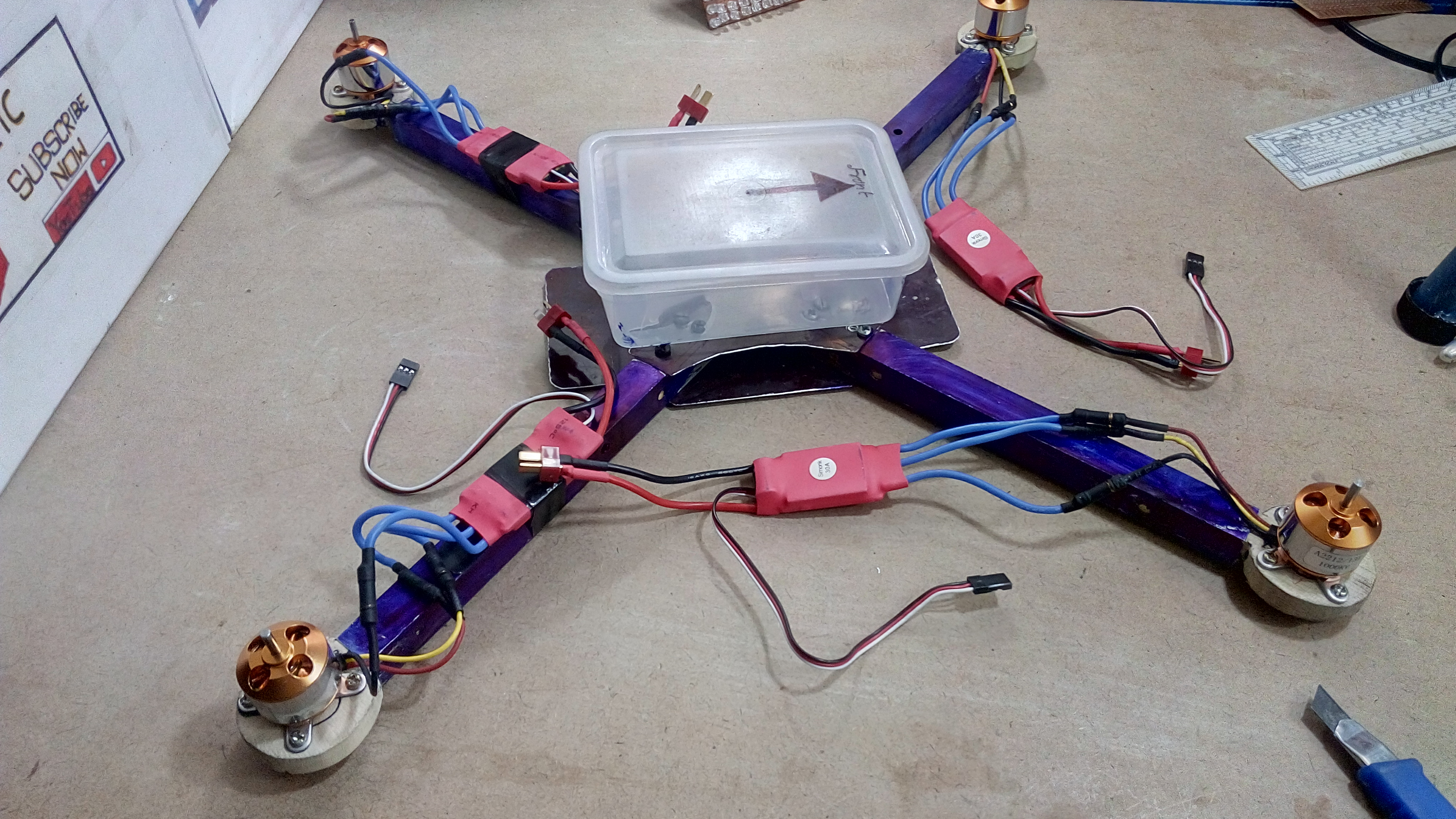

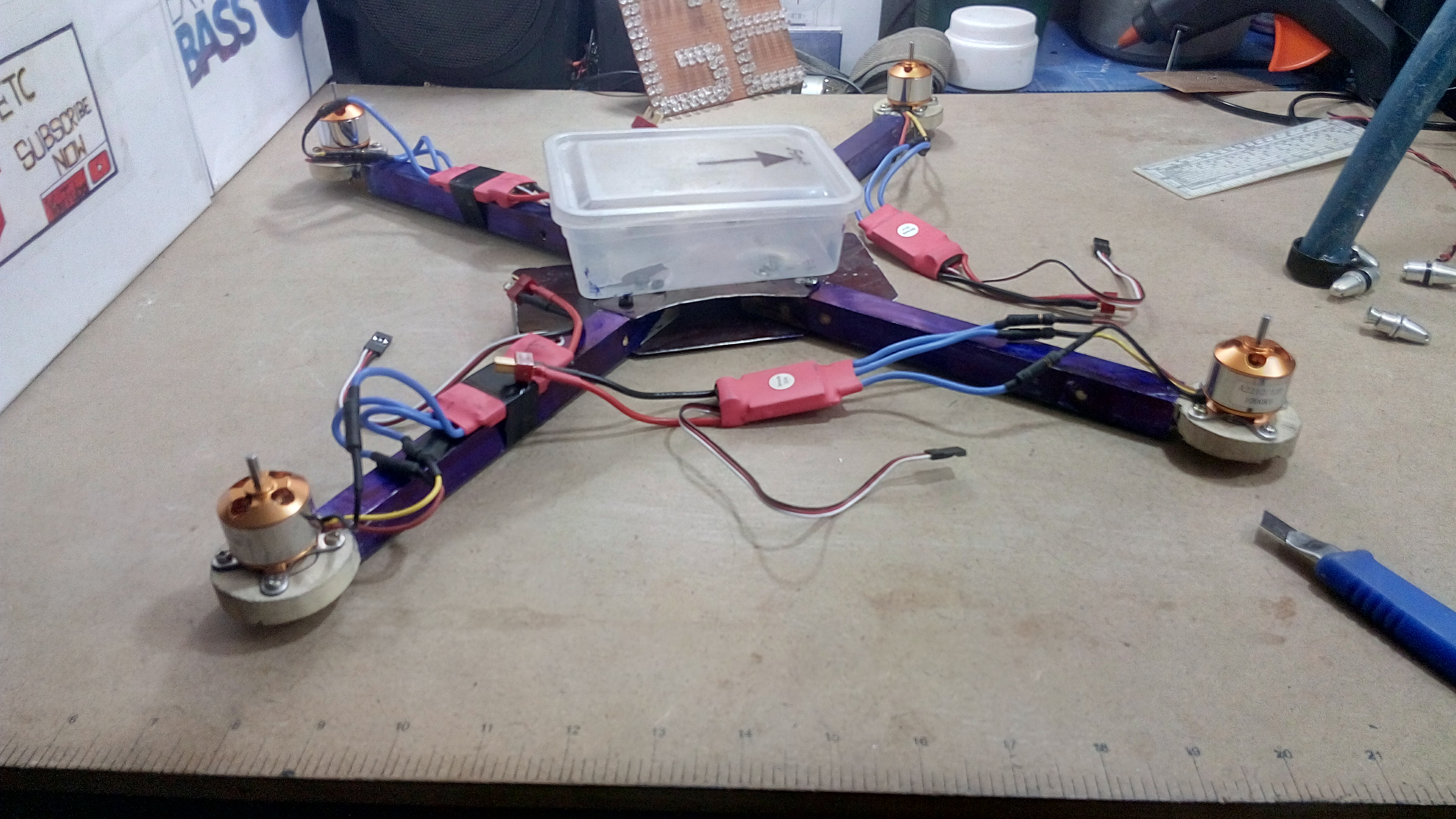

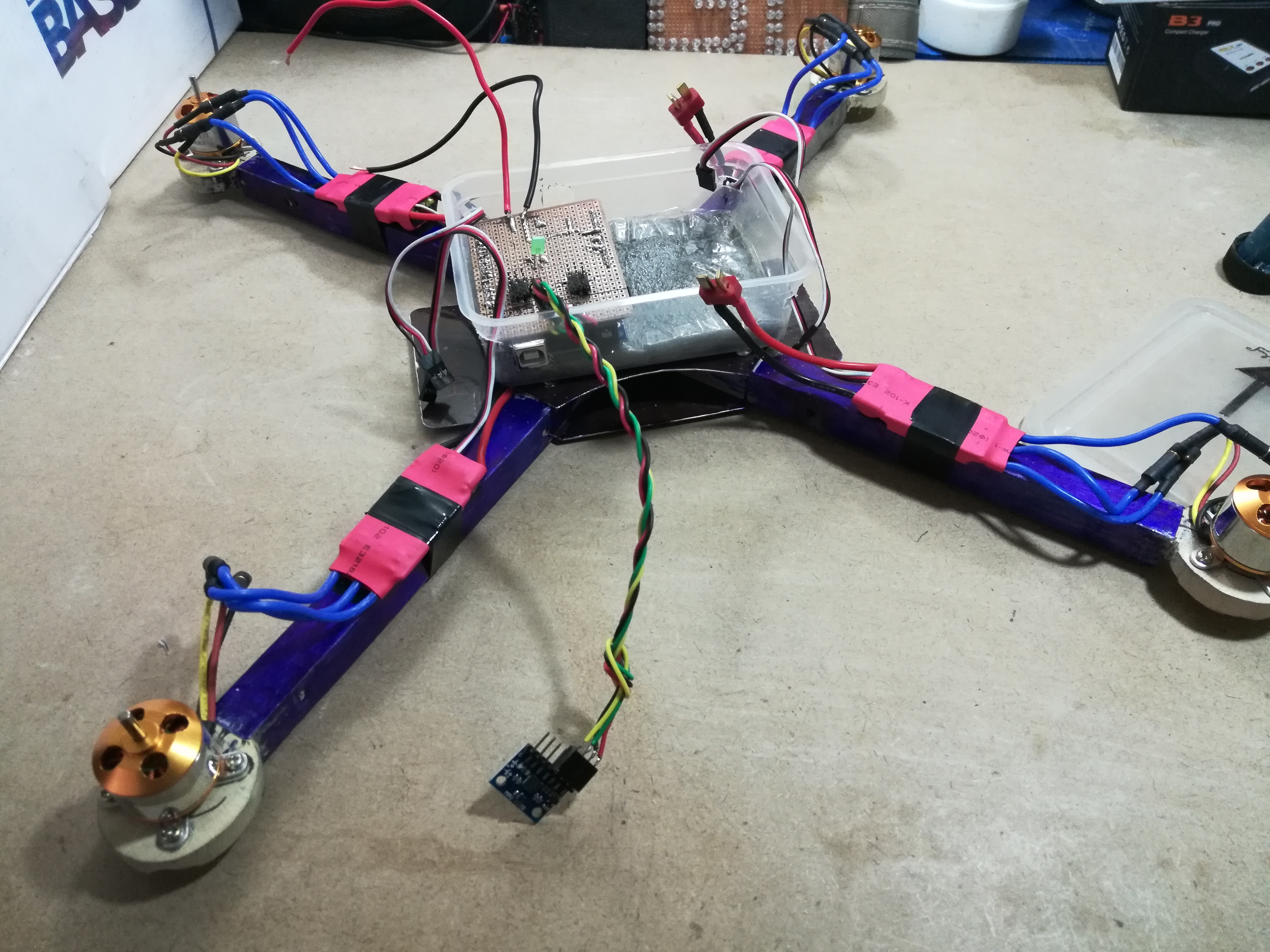

Fix the bars of aluminium with Center plate using screws( as your Requirement) and slide in the motor mount under the aluminium bars and……Here your frame is ready….(check Pictures) also a video of frame Work is on my Youtube Channel…..Check that out..

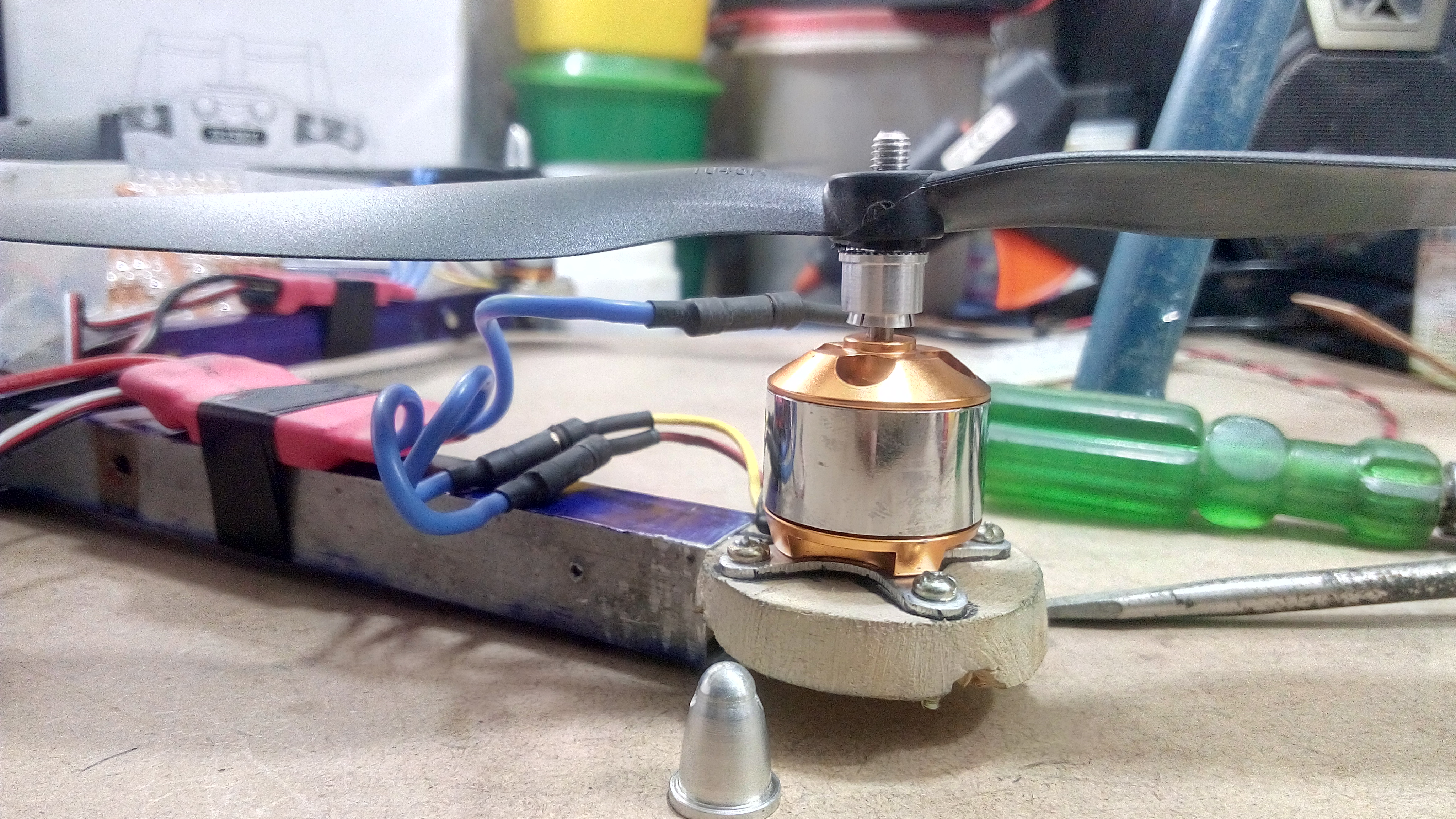

Now mount the motors to it’s wooden motor mount using screws and Nuts (any types) and connect the ESC wire with it (Randomly) and fix the ESCs using Electrical tape or zip ties in my case it’s Electrical tape (it’s cheaper than Zip ties). After connecting all Motors and ESCs cut the +ve and –ve Wire of ESCs and connect all ESCs using Wires or PDB as your setup..I am Using Wires Because there is no space in my frame for ESCs…..And you’re Done…..

******Caution:-Remove all Props while setup…and Don’t Try to Fly Inside the Home….

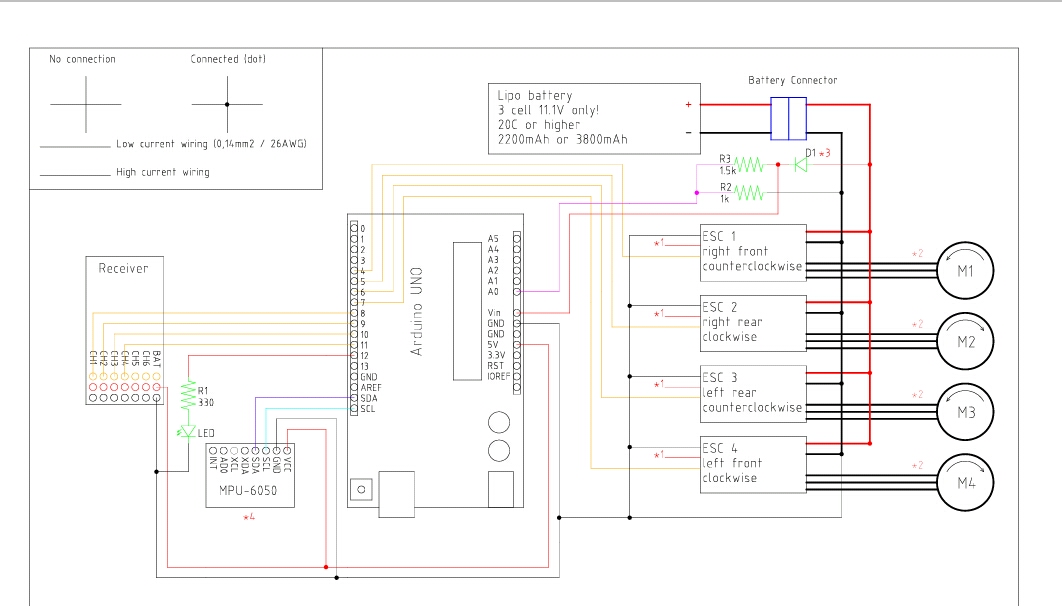

Make a Flight Controller using Arduino UNO and MPU6050…My flight controller is based on the Joop Brokking’s YMFC-AL and it’s a Auto leveling Quad…make the connections as Diagram below……

****Special Thanks to Joop Broking for the Arduino Sketch**** Check his video......

********Don’t Connect ESCs BEC wire(5 volt)…only connect signal wire******

********And power the receiver using Arduino’s 5 volt supply*******

Now connect the signal wires of ESCs as Describe Below….also shown in the Diagram…

ESC connection…….

Digital pin-4 to ESC1 (Right Front CCW)

Digital pin-5 to ESC2 (Right rear CW)

Digital pin-6 to ESC3 (Left rear CCW)

Digital pin-7 to ESC4 (Left front CW)

Receiver Connection….

Digital pin-8 to Receiver Channel 1

Digital pin-9 to Receiver Channel 2

Digital pin-10 to Receiver Channel 3

Digital pin-11 to Receiver Channel 4

******Don’t Connect the Flight Battery at This Time******

Now Download the Arduino IDE and Sketch below and extract the Zip file..you will find YMFC-Al schematics, Readme file, ESC calibration Code, Setup Code and Flight Controller Code…..

Arduino IDE

Flight Controller sketch

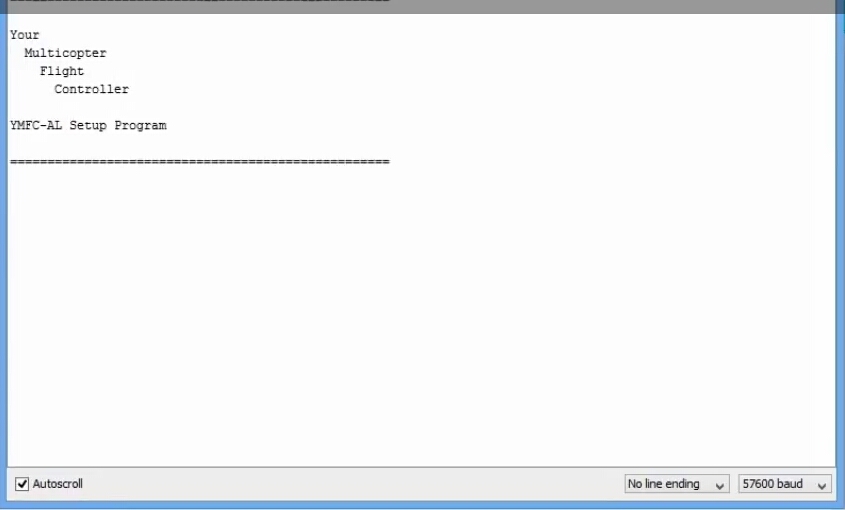

1)….At first Upload code and open Serial monitor at 56000b and follow the Steps in the Video below…

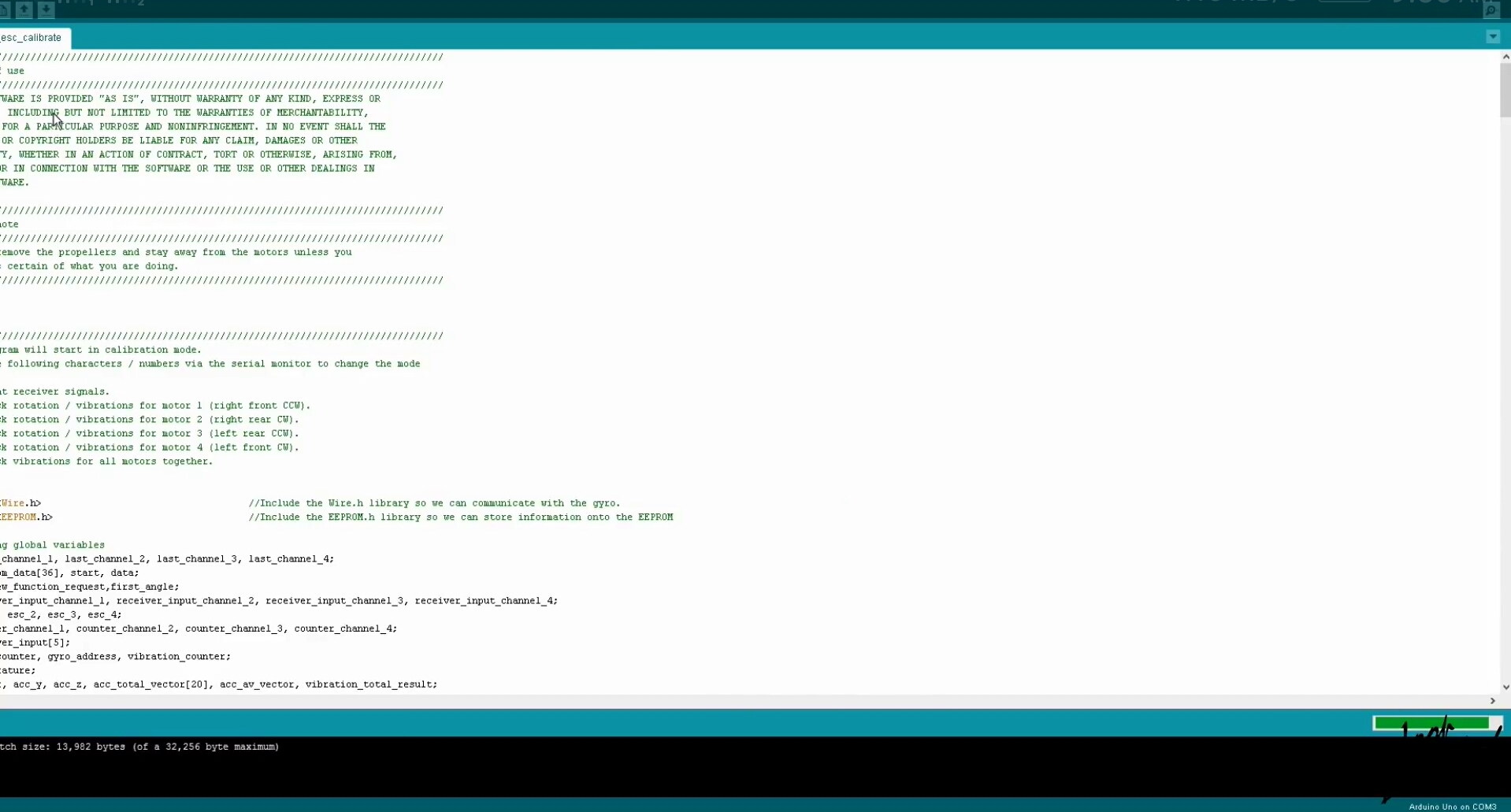

2) If no Error occurred then upload the ESC calibration Sketch after uploading the code…put Your transmitter at full throttle and connect the Flight Battery after some beeps put Down the throttle (I think this method not works on all types and brands of ESCs,,,,But for mine it’s works perfectly)……

3) After uploading the ESC calibration sketch…Upload the Flight Controller Sketch…..and Your FC is ready….

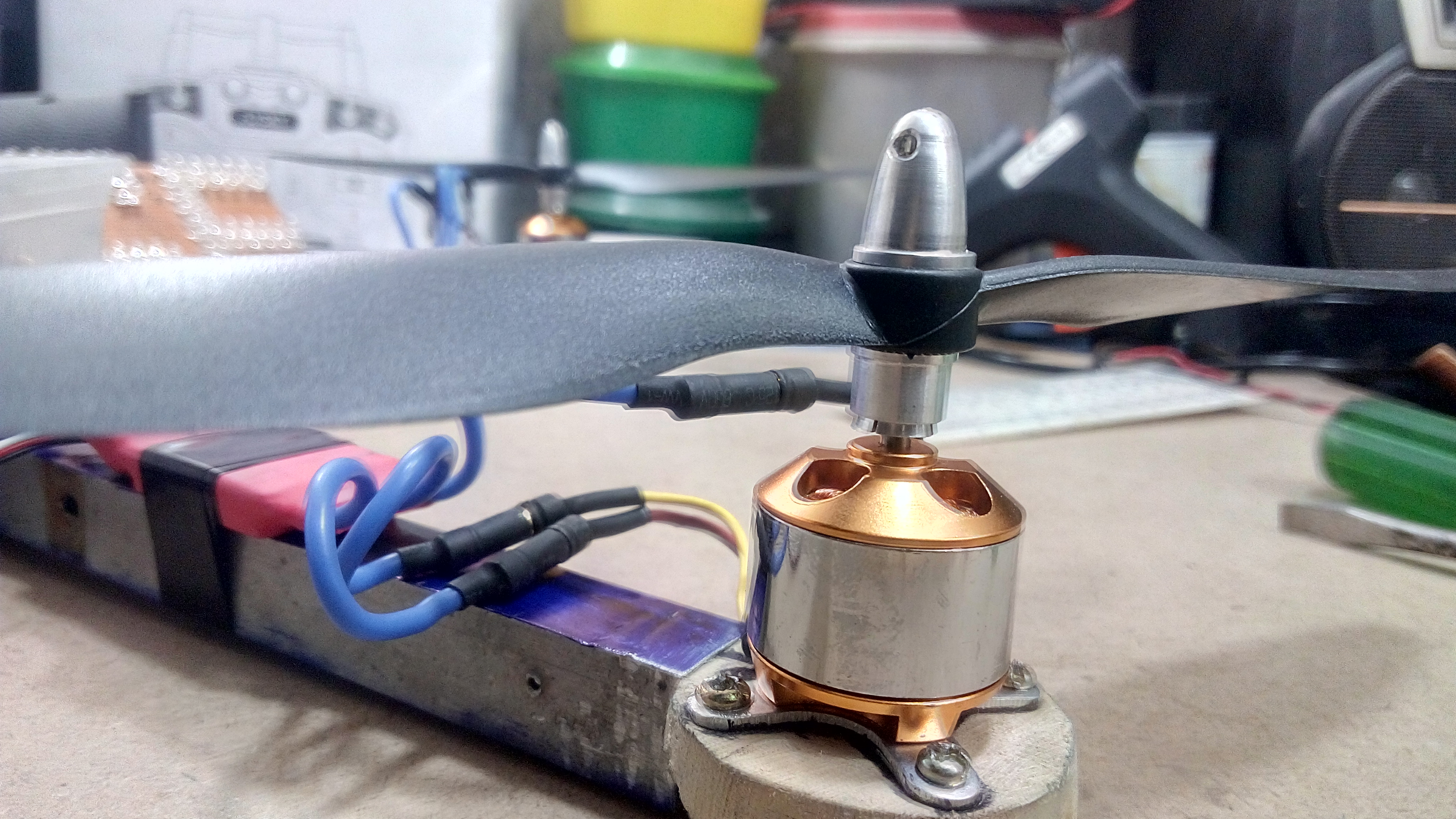

After completing all electronics works put the all electronics in the Electronics box and complete all wirings and stuffs…..Now mount the CCW propellers to CCW motors and CW prop to CW motors…..And You are Ready to Fly……….

The Hardest part of making this quad is to Tune PIDs…….as your Design…

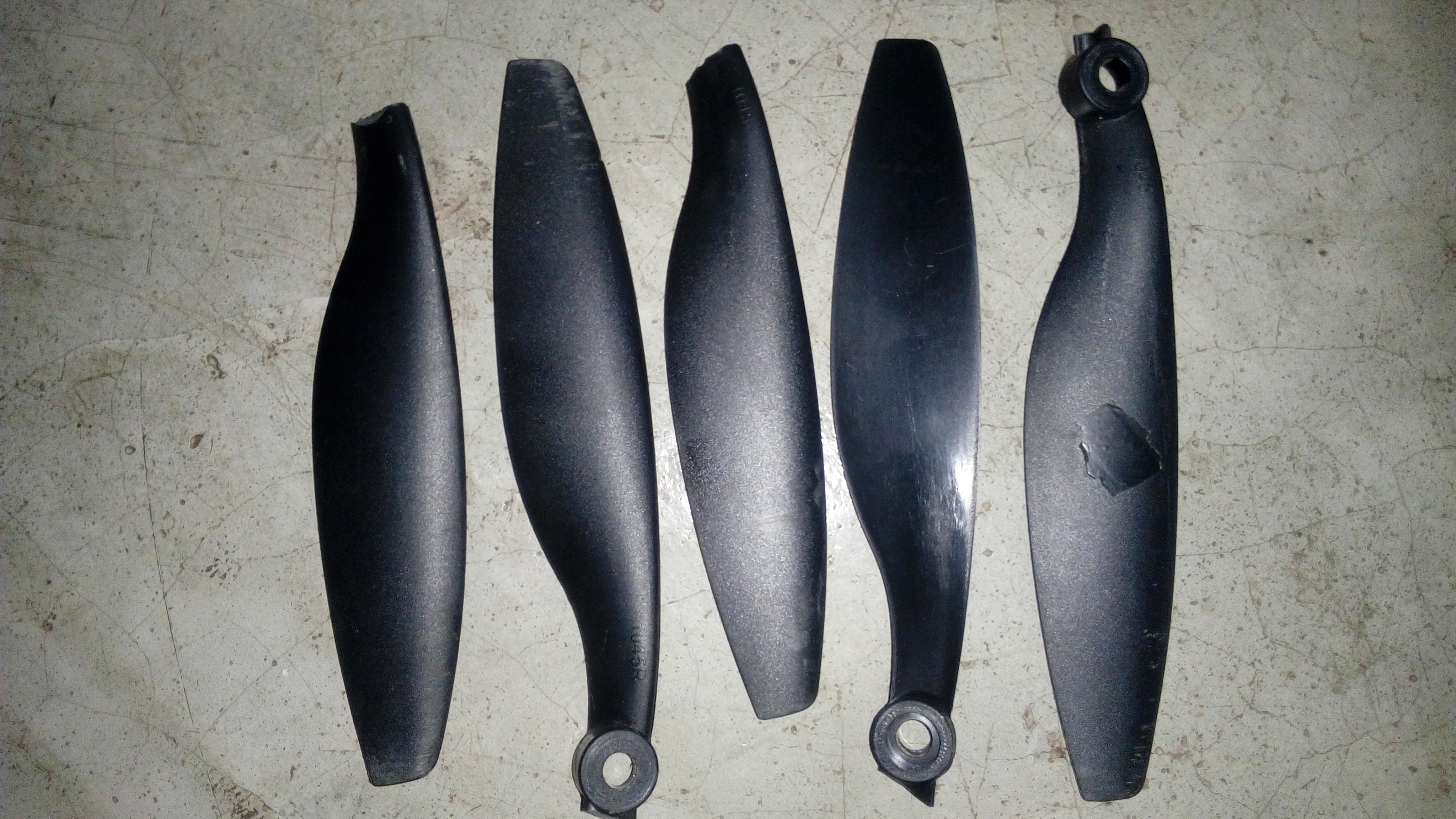

I’ve Broke 2 pairs of Prop and Electronics box while trying to fly it….

Soooooo,,,,,,Have a Good Fly…………

If you like this project then please ... Please Subscribe to my Channel…Also consider Support my future Projects Through my Patreon campaign or Donate Through Paypal….Even an small amount can help a lot.

And if you have any confusion or suggestion about this project or my other projects then please Comment Below…..
