How to Make a DIY Bulb Brightness Controller Switch
by Harman1796 in Workshop > Lighting
345 Views, 0 Favorites, 0 Comments
How to Make a DIY Bulb Brightness Controller Switch
![DIY Brightness Switch | AC Motor Controller/ AC Light Dimmer circuit/ AC Voltage Regulator](/proxy/?url=https://content.instructables.com/FL9/JKZS/KD6E82OW/FL9JKZSKD6E82OW.jpg&filename=DIY Brightness Switch | AC Motor Controller/ AC Light Dimmer circuit/ AC Voltage Regulator)

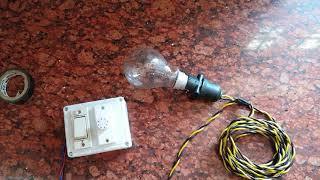

In this project, I made a light brightness controller switch very easily at home with household items lying around.
Supplies
- Switch
- Speed Controller
- Wires
- Switch box
- Light Bulb
Procedure
![mq1 (16).jpg](/proxy/?url=https://content.instructables.com/FJF/11OH/KD6E82NT/FJF11OHKD6E82NT.jpg&filename=mq1 (16).jpg)
![mq2 (20).jpg](/proxy/?url=https://content.instructables.com/FQE/VIAL/KD6E82NL/FQEVIALKD6E82NL.jpg&filename=mq2 (20).jpg)
- After adding a switch and controller to the box, connections are to make.
- From two wires from the controller, one wire to the switch terminal and other wire to plug wire.
- Now, other wires from plug connect to bulb terminal.
- Other bulb terminal wire to another wire plug.
All done !!!
