How to Make Your Own Night Vision Device!

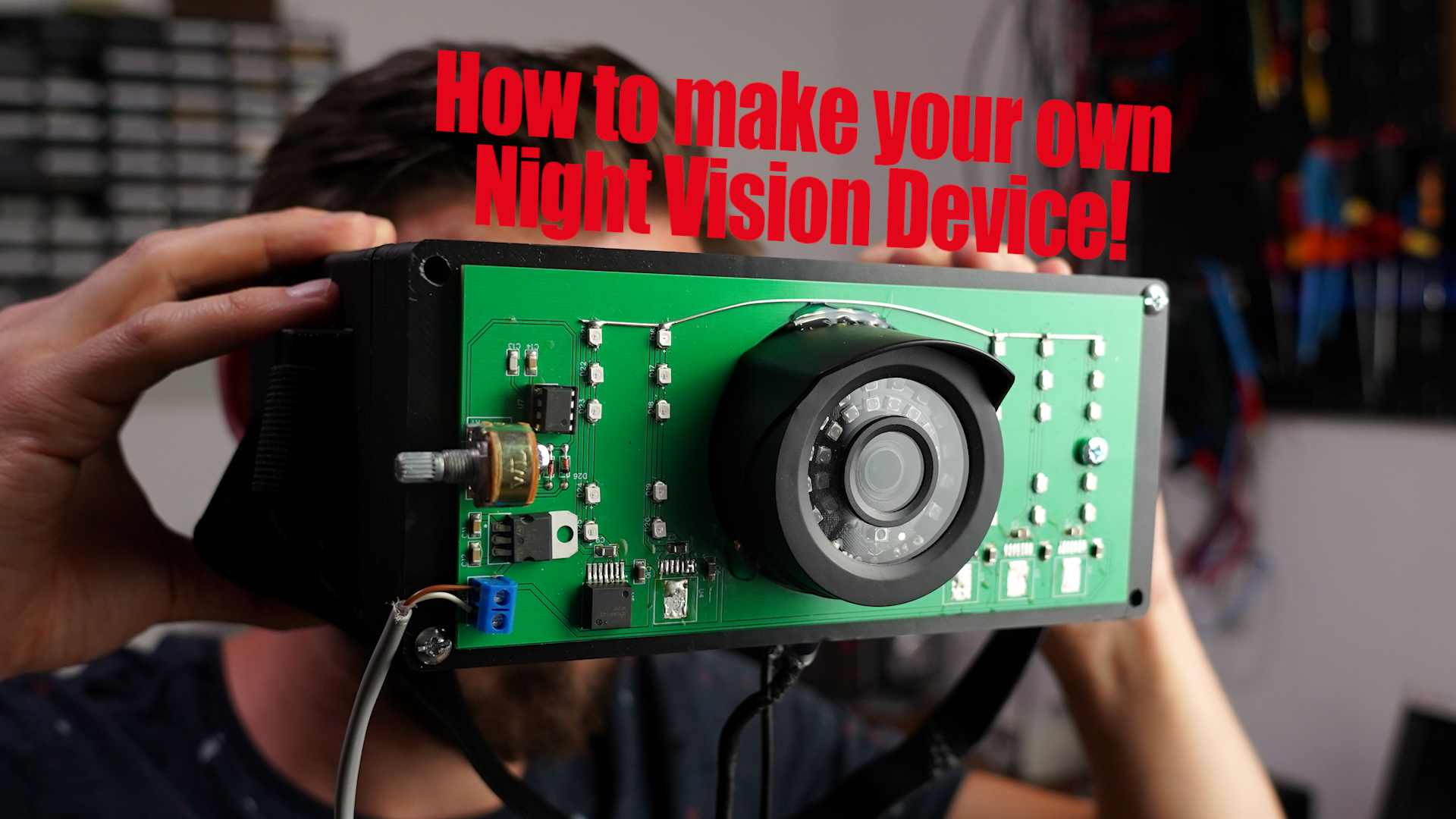

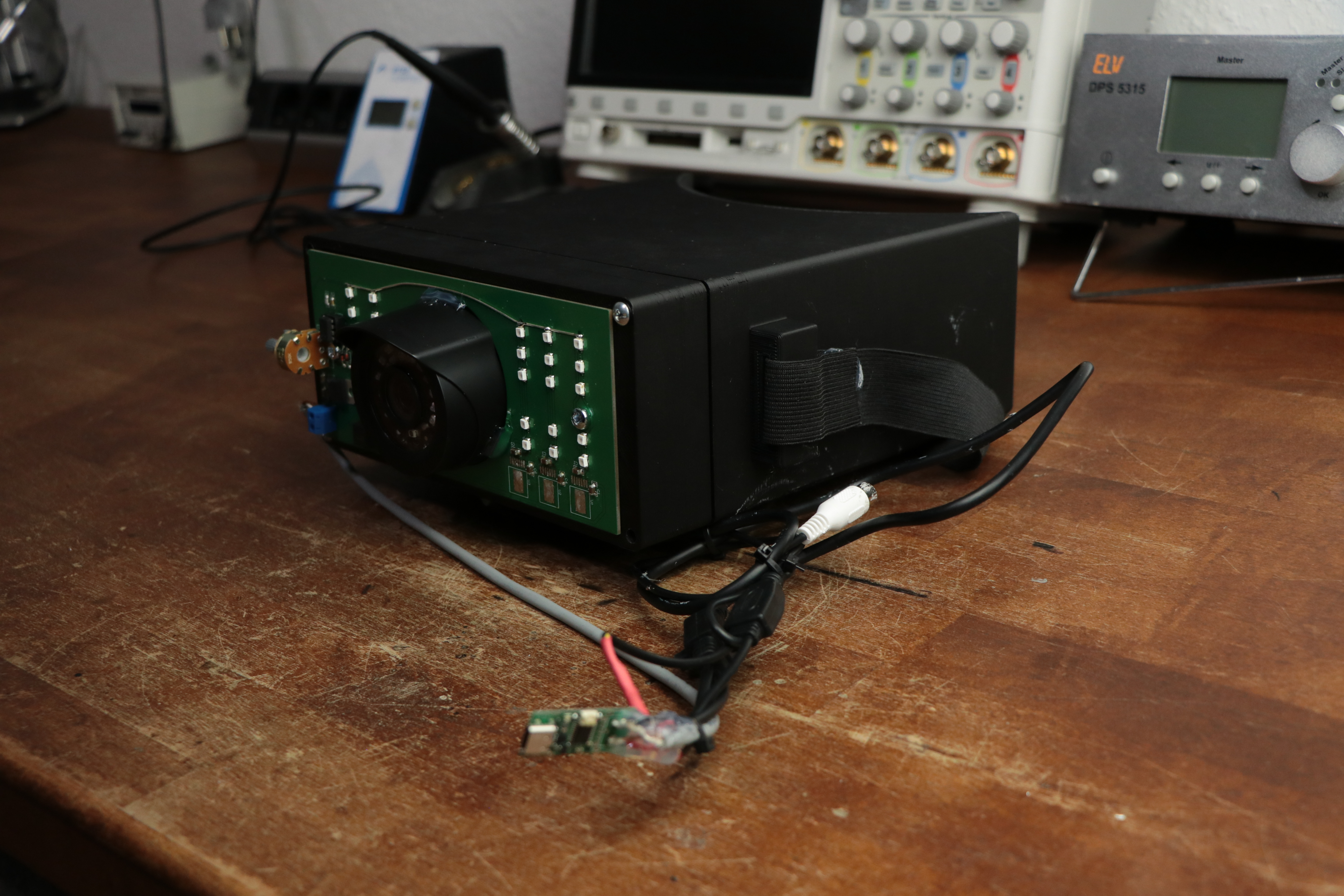

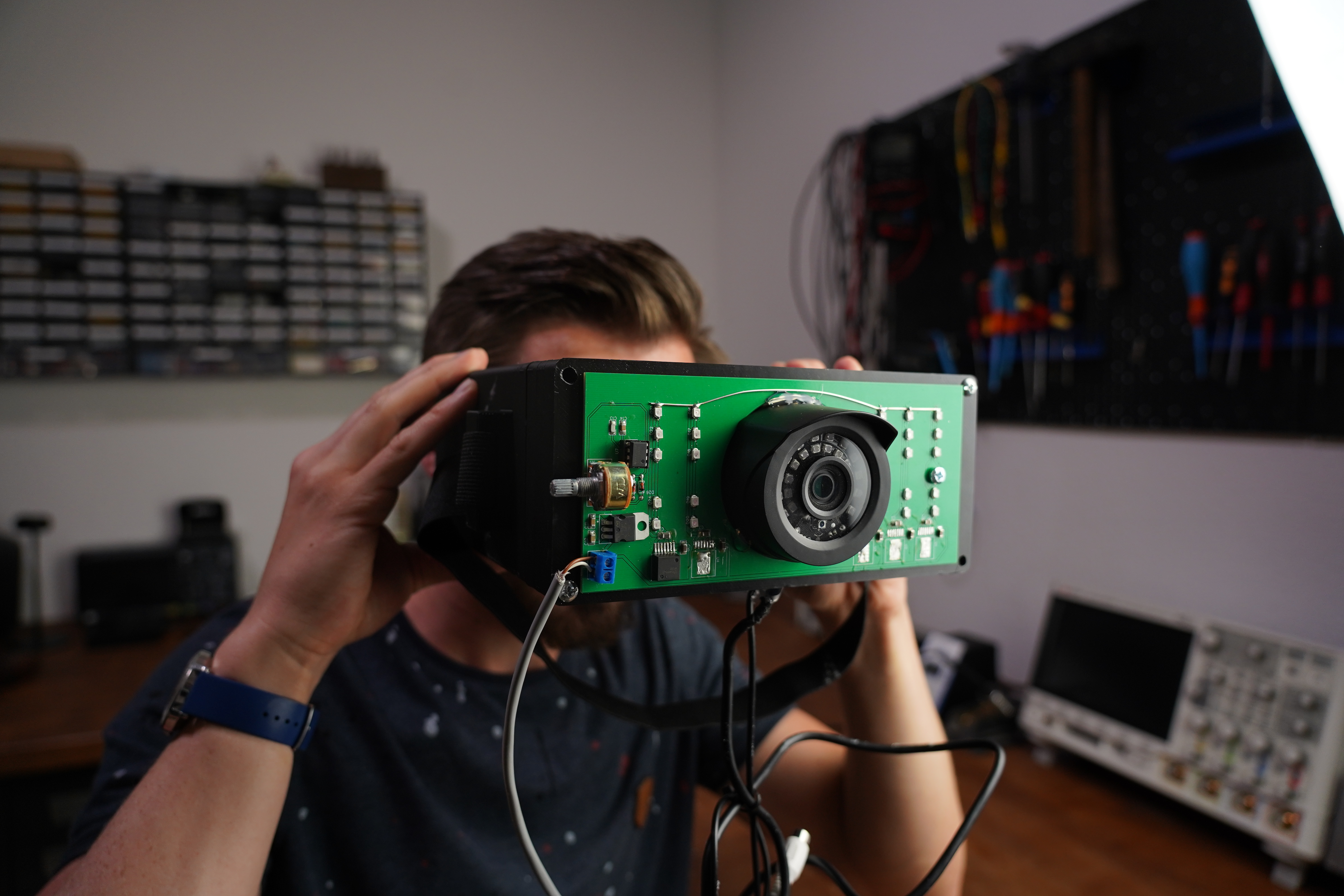

In this project I will show you how to create a night vision device. It mainly consists of a security camera, a small screen and a custom PCB which features IR LEDs and an LED driver. After powering the device with a USB Type-C PD powerbank, you can basically use it to see in the dark. Let's get started!

The video gives you all the information you need to create your own night vision device. During the next steps though, I will present you some additional information.

Here you can find a parts list with example seller (affiliate links):

IR LEDs: https://bit.ly/WL_SITW_SMT_en

IR LED Driver: https://bit.ly/MAGIC_LDHM_en

555 Timer: https://s.click.aliexpress.com/e/_dTrUY9D

1N4148 Diode: http://s.click.aliexpress.com/e/_d8CN2HP

Potentiometer: https://s.click.aliexpress.com/e/_dX83GAF

Capacitors: http://s.click.aliexpress.com/e/_BfAs3Vnr

5V Regulator: https://s.click.aliexpress.com/e/_dXSrfiP

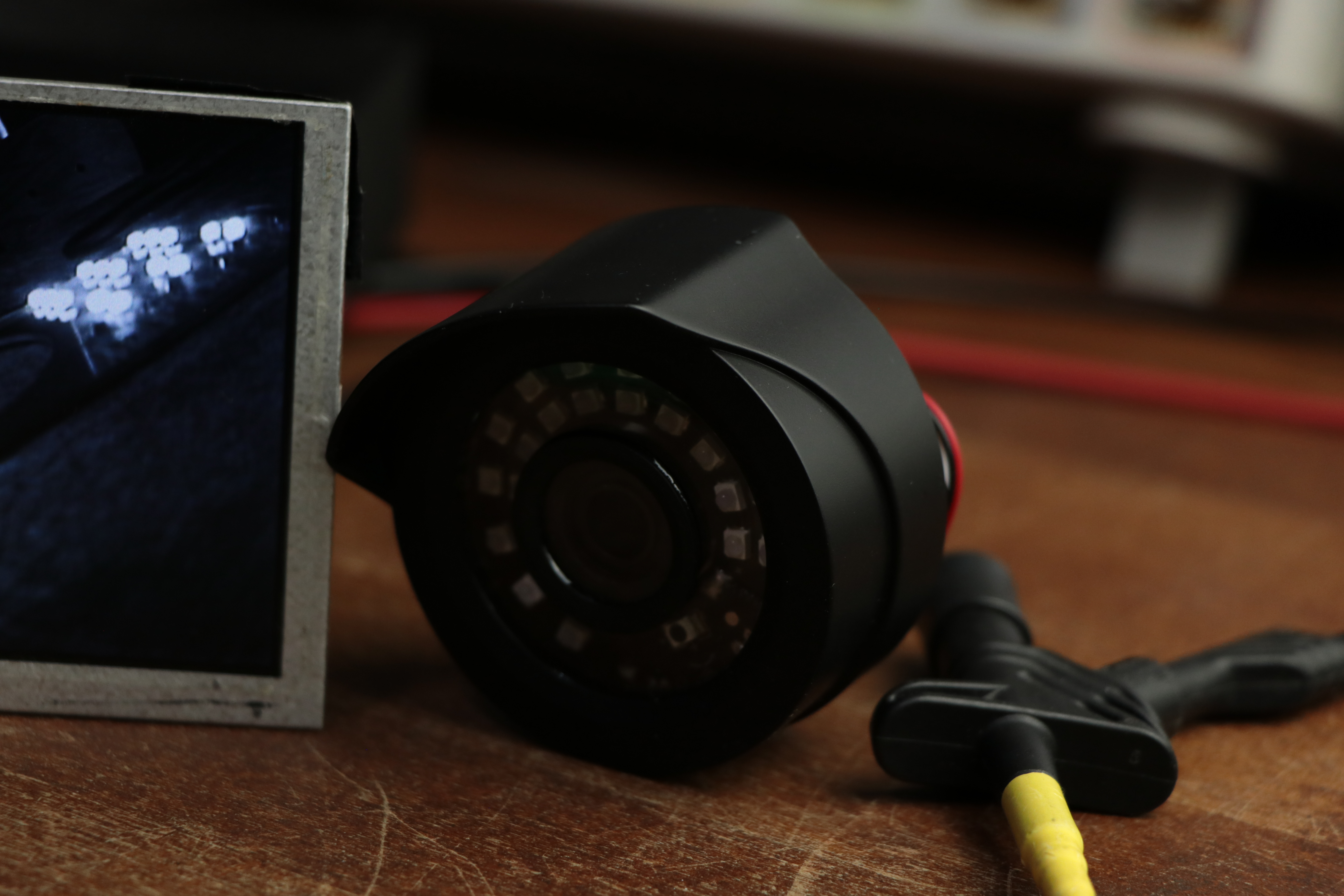

Security Camera: http://s.click.aliexpress.com/e/_d8MBhEN

Display: http://s.click.aliexpress.com/e/_dYWrRtb

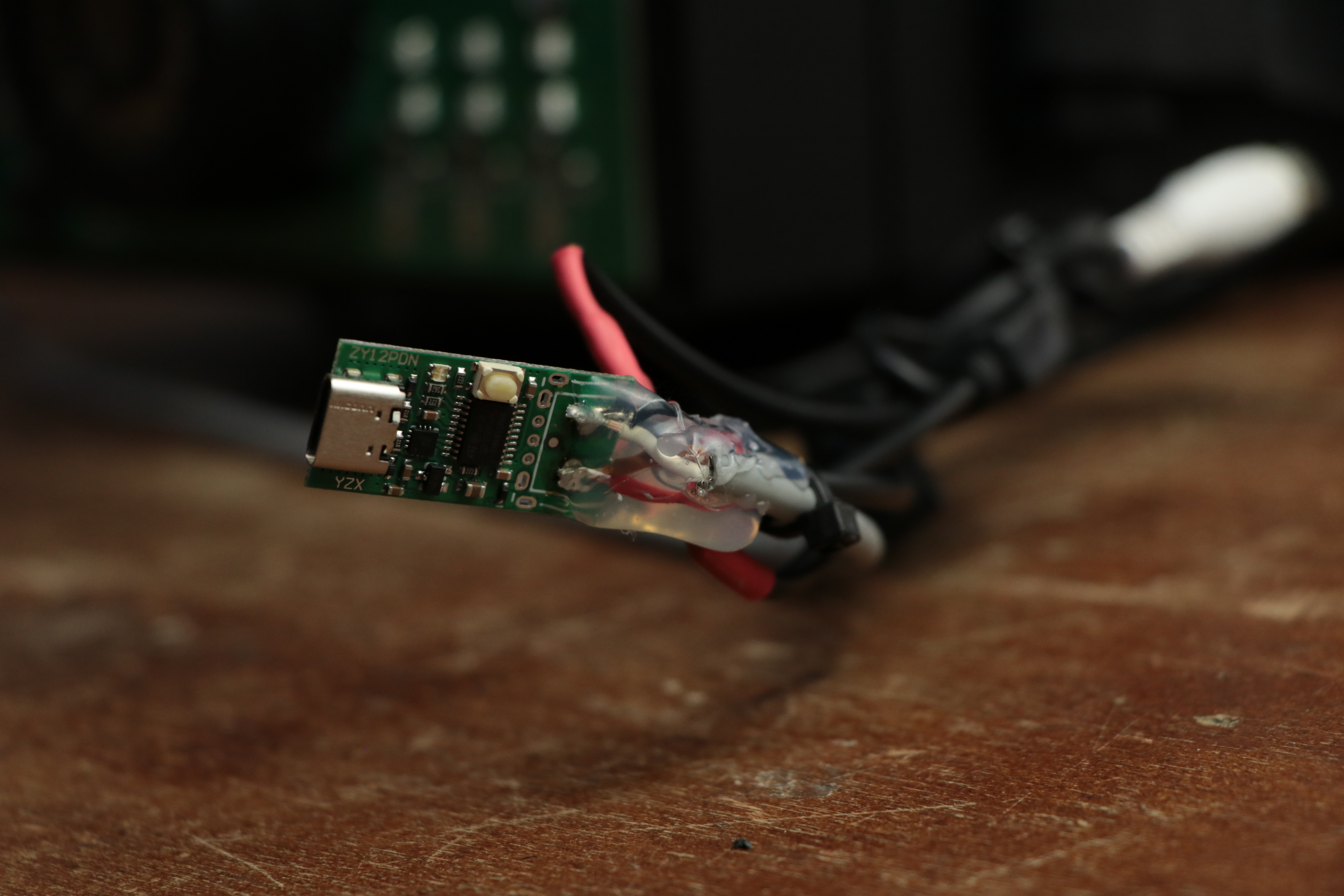

USB Type C PD PCB: http://s.click.aliexpress.com/e/_dTchLgp

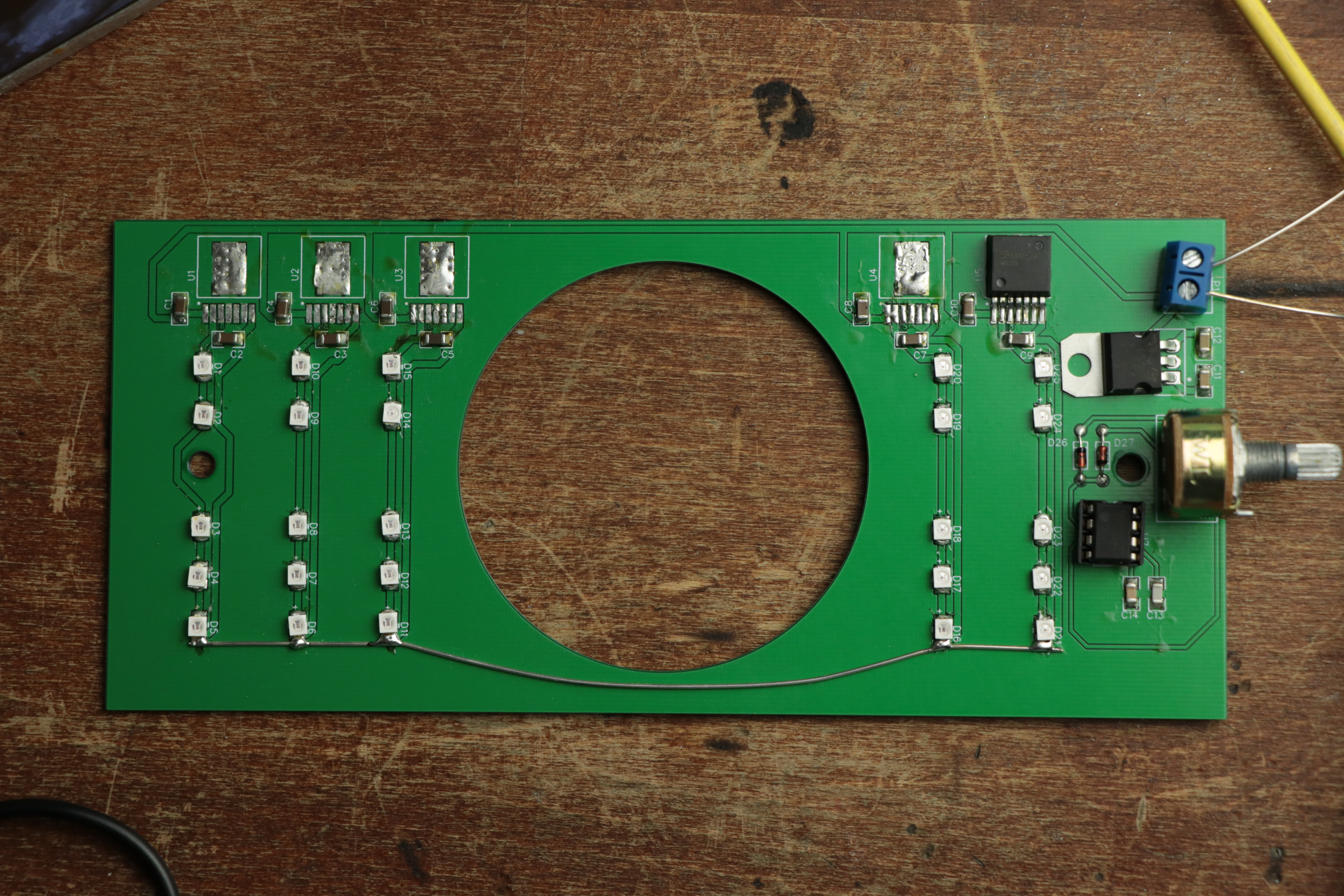

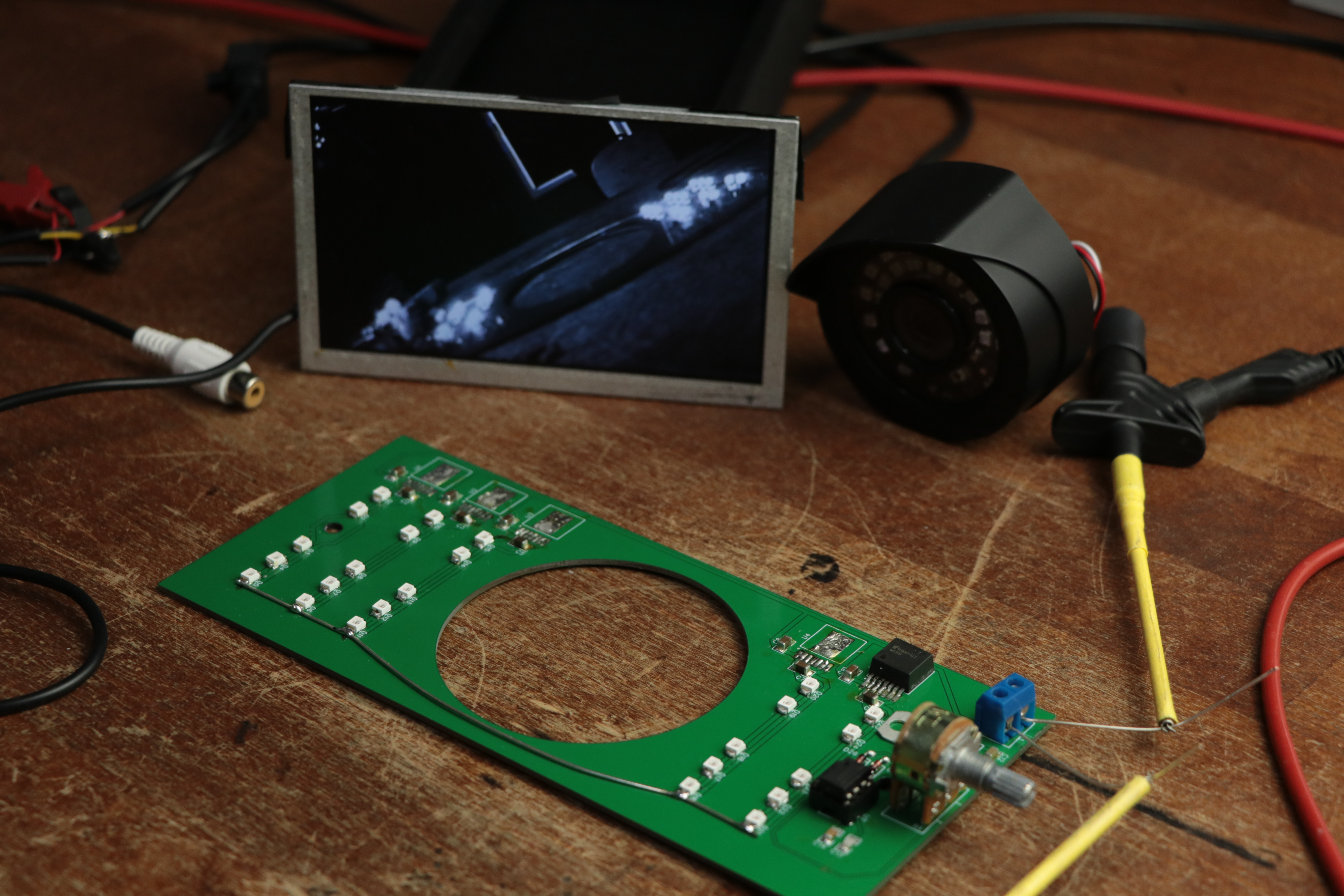

Here you can download the gerber files for my PCB. Use them to get your own PCBs and solder all components to one.

Here you can find the .stl files for the project. Use them to 3D print the housing and then do all the mounting and wiring.

You did it! You just created your own night vision device!
