How to Make Your Cigarette Lighter Wearable
by Jaychouu in Circuits > Electronics
1935 Views, 7 Favorites, 0 Comments
How to Make Your Cigarette Lighter Wearable
![1.png](/proxy/?url=https://content.instructables.com/FO8/ELW0/J3KFHIWR/FO8ELW0J3KFHIWR.png&filename=1.png)
![2.png](/proxy/?url=https://content.instructables.com/FTE/KIL8/J3KFHIWT/FTEKIL8J3KFHIWT.png&filename=2.png)
![3.png](/proxy/?url=https://content.instructables.com/FFG/I5EP/J3KFHIWV/FFGI5EPJ3KFHIWV.png&filename=3.png)
Let your cigarette lighter wearable
As a smoker, how cruel it is if I lost my cigarette lighter! I used to think how wonderful with a wearable cigarette lighter. So it comes into being.

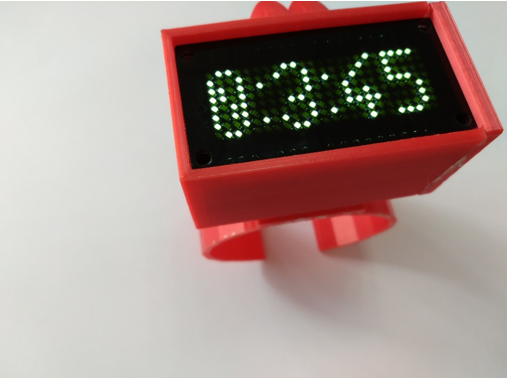

From the picture, we see it is a kind of big, but anyway I like it! The cool lighter is attractive. Different from traditional cigarette lighter, it kindled by arc, controlled flame by bottom-touch. The touch bottom uses the function touch from GPIO itself of FireBeetle Board-ESP32. What’s more, it is a watch too.
Hardware
Hardware in need:
High-voltage booster coil for Arc lighter ×1
NPN Triode×1
51Ω Resister×1
1KΩ Resister×1
1N4007 Diode×1
Powerful Triode×1
ESP32 WiFi & Bluetooth Dual-Core MCU Module×1
FireBeetle Covers-Proto Board×1
FireBeetle Covers-24×8 LED Matrix×1
3.7V Lithium Cell×1
Caution: You can go to DFRobot official web to buy electronic components.
Hardware Connection
![4.png](/proxy/?url=https://content.instructables.com/FC3/LPV0/J3KFHIX9/FC3LPV0J3KFHIX9.png&filename=4.png)
![5.png](/proxy/?url=https://content.instructables.com/FJW/2VYD/J3KFHIXN/FJW2VYDJ3KFHIXN.png&filename=5.png)
Schematic and drawing, shown as below
Soldering electronic components to FireBeetle Covers-Proto Board according to the image and connects a control pin of lighter to D3 of FireBeetle Covers-Proto Board by wire. You can also connect to D3 of FireBeetle Board-ESP32 directly, for the compatibility of FireBeetle series is great! Connecting Vcc to Vcc (Covers-Proto Board), GND to GND (FireBeetle Covers-Proto Board).
P.s I am so sorry if you do not understand the drawing. 1. Connecting touch wares. FireBeetle Board-ESP32 has touch function itself and I chose T3 (A4) and T5 (MCLK/IO12) to be connected. (If you are confused about the reference pins, FireBeetle Board-ESP32 user manual could help you.)
2. Connecting LED light board, FireBeetle Board-ESP32 and soldered expansion board, shown as below.
About connection, I put pin and female pin together and put the lithium cell between them.
Crust Assembly-1
![6.png](/proxy/?url=https://content.instructables.com/F3S/52NS/J3KFHIY1/F3S52NSJ3KFHIY1.png&filename=6.png)
The curst printed by Overlord 3D printer, you can click here to download the source document.
Firstly, let the touch-sensitive wires go through the bottom assembling holes reserved before respectively, shown as below.
Crust Assembly-2
![7.png](/proxy/?url=https://content.instructables.com/FG1/L2D4/J3KFHJE9/FG1L2D4J3KFHJE9.png&filename=7.png)
![8.png](/proxy/?url=https://content.instructables.com/FQ2/LP69/J3KFHJEA/FQ2LP69J3KFHJEA.png&filename=8.png)
![9.png](/proxy/?url=https://content.instructables.com/FL8/AQQV/J3KFHJED/FL8AQQVJ3KFHJED.png&filename=9.png)

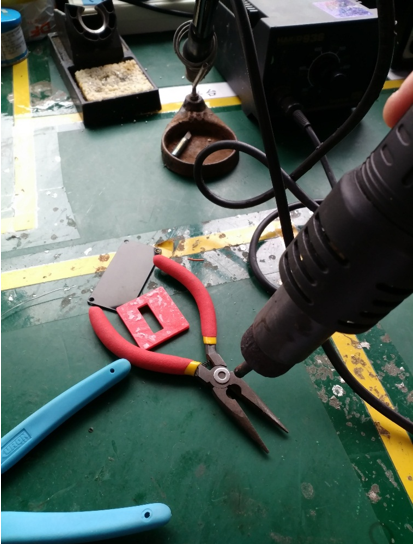

Heating screws and spring washer with a heat gun to fix them to crust easier and more convenient (this is the touch bottom).
Caution: Do not touch a spring washer by hand. Fix the spring washer to crust, ensuring the connection between plate and wires.
Caution: The two output wires of high voltage coil should go through the crust.
Crust Assembly-3
![10.png](/proxy/?url=https://content.instructables.com/F6O/3HO0/J3KFHJEE/F6O3HO0J3KFHJEE.png&filename=10.png)
![11.png](/proxy/?url=https://content.instructables.com/FZ8/HMSZ/J3KFHJEF/FZ8HMSZJ3KFHJEF.png&filename=11.png)
Fixing the whole crust with hot melt adhesive. Connecting wristband and cigarette lighter with magic tapes respectively, shown as below.
Download the Program
![24.png](/proxy/?url=https://content.instructables.com/FJM/DJHC/J3KFHJEG/FJMDJHCJ3KFHJEG.png&filename=24.png)
Download the Program to the cigarette lighter.
Click here to download the source code.
Finally, well down!
