How to Make Wireless Robotic Arm With Airsoft Bullets

by ROBO HUB in Circuits > Robots

748 Views, 3 Favorites, 0 Comments

How to Make Wireless Robotic Arm With Airsoft Bullets

how to make wireless airsoft gun.jpg

Hi friends in this instructable i will show you how to make wireless robot arm which can swing, Move in up and down direction and shoot airsoft bullets with the control of wireless remote

Https://youtu.be/K2-KtmEua2M

How To Make Wireless Airsoft Bullet Launcher in very Simple way

https://youtu.be/K2-KtmEua2M video for those who hate reading!

Soldering BO Motors

robotic arm (2).png

robotic arm (1).png

Solder the BO Motor also called as gear motors to the wires

Making the Base

robotic arm (4).png

robotic arm (5).png

robotic arm (6).png

robotic arm (7).png

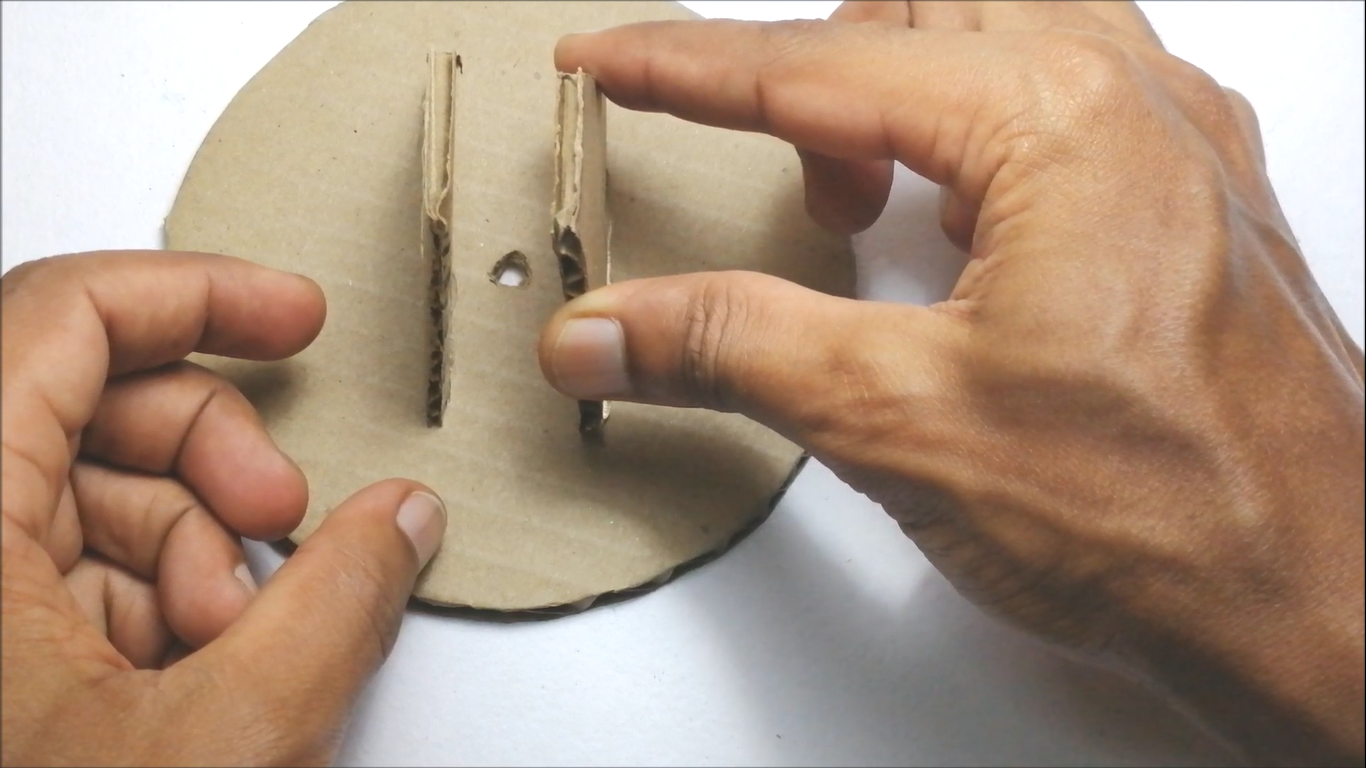

Cut the Cardboard in circular shape which forms the base for robot arm and attach a cap to it the cap is having a hole which is having bigger diameter compared to BO Motor shaft

Attaching BO Motors

robotic arm (8).png

robotic arm (9).png

robotic arm (11).png

Making Side Borders

robotic arm (12).png

robotic arm (13).png

robotic arm (14).png

robotic arm (15).png

robotic arm (16).png

Attach lengthy cardboard strip to sides of the base using hot glue

Attach the top side with BO Motor holders

Finishing Top Side Part of the Arm

robotic arm (17).png

robotic arm (18).png

robotic arm (19).png

robotic arm (20).png

robotic arm (21).png

robotic arm (25).png

follow the images to finish up the upper part of arm

Making Airsoft Part of Arm

robotic arm (26).png

robotic arm (27).png

robotic arm (28).png

robotic arm (29).png

robotic arm (30).png

Attach air motor to the syringe and follow up the steps shown in image

Wireless Part Attachment

robotic arm (32).png

robotic arm (36).png

robotic arm (37).png

Wireless Transmitter and Receiver is connected as per the circuit shown in image u can follow ur own method based upon wiring

Coupling Everything Together

robot arm (2).png

robot arm (1).png

robot arm (4).png

robot arm (5).png

Couple all the things together as shown in image and enjoy the ROBOT ARM
