How to Make Wire Tripper Circuit Using Z44N MOSFET
by Utsource123 in Circuits > Electronics
1002 Views, 3 Favorites, 0 Comments
How to Make Wire Tripper Circuit Using Z44N MOSFET
Hii friend,
Today I am going to make a simple circuit of Wire tripper. If anyone will cut the wire then buzzer will give sound.Today I will make this project using IRFZ44N MOSFET.
Let's get started,
Take All Components As Shown Below
Components required -
(1.) Power supply - 12V DC
(2.) MOSFET - IRFZ44N x1
(3.) Resistor - 10K x1
(4.) Buzzer x1
(5.) Connecting wires
Connect Buzzer to MOSFET
Firstly we have connect Buzzer to the circuit.
Solder -ve (Negative) Pin of Buzzer to Drain pin of the buzzer as solder in the picture.
Connect 10K Resistor
Next we have to connect 10K Resistor to the circuit.

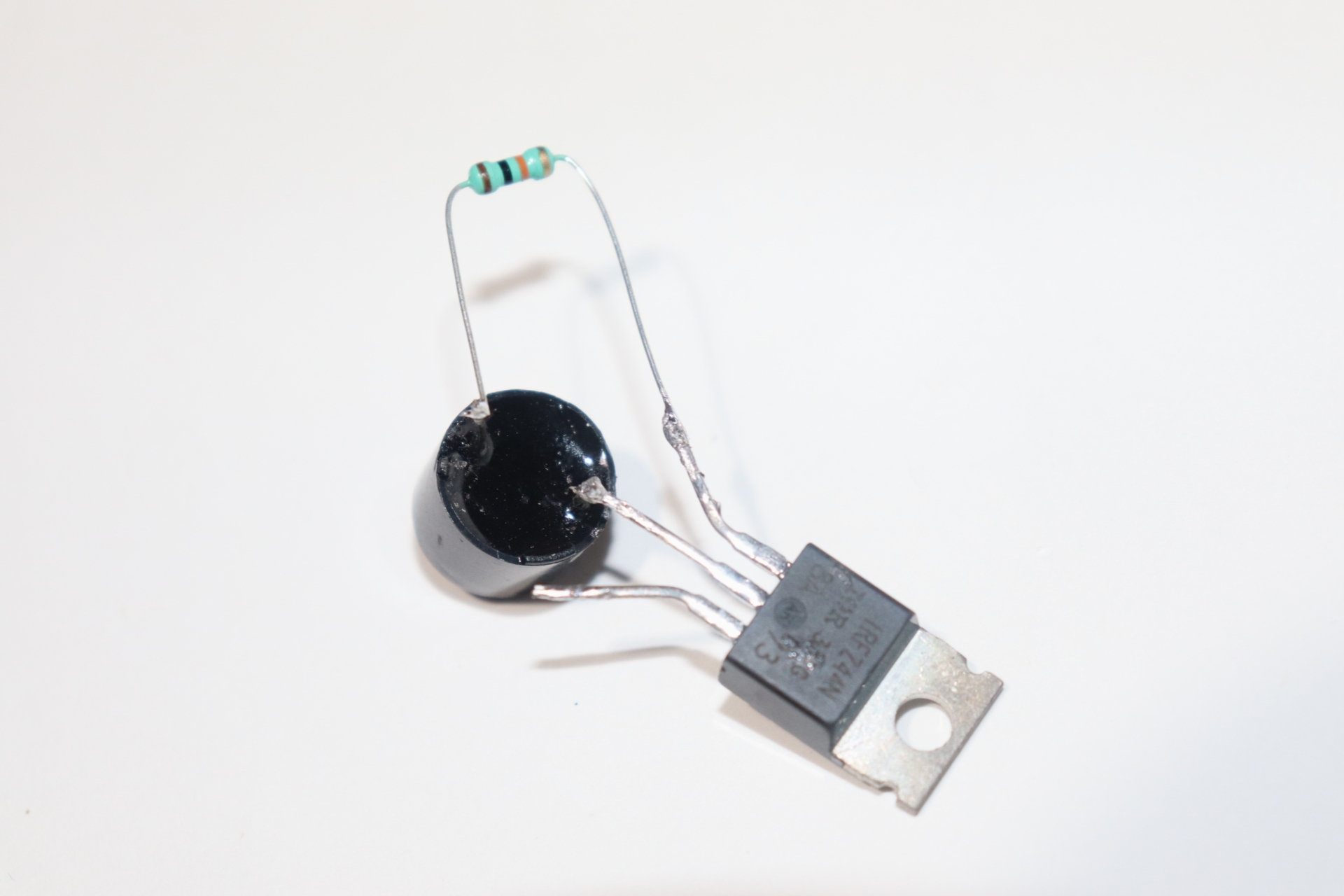

Connect 10K Resistor between +ve pin of Buzzer and Gate pin of the MOSFET as you can see in the picture.
Connect Wire in the Circuit
Next solder a long wire between Pin Drain and gate pin of the circuit as you can see in the picture.
Connect Power Supply Wire
Nect we have to connect power supply wire to the circuit.
Solder a wire between Gate and Drain pin of the MOSFET As solder in the pineure.
Circuit Is Completed
Now our circuit is cpompleted o give 12V DC Power supply to the circuit.
Result
When someone will cut the circui then bizzer will give gega
