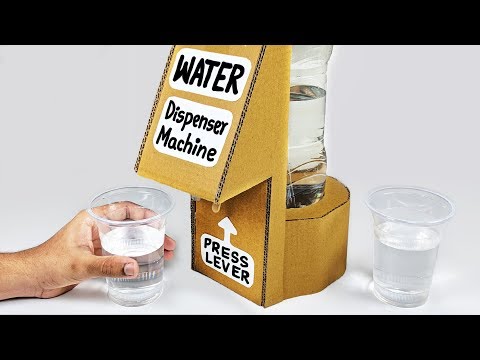

How to Make WATER Dispenser Machine From Cardboard DIY
by diy_ocean in Craft > Cardboard
31904 Views, 12 Favorites, 0 Comments
How to Make WATER Dispenser Machine From Cardboard DIY
Materials you will need:
- Cardboard
- Glue Gun
- 2.5L Plastic bottle
- Cutter
- Foldable cardboard
- Water pump motor
- Flow pipe
- Cable tie
- Thin wooden stick
- Candy sticks
- Click switch
- Battery
- Plier
Cut the Plastic Bottle As Shown, Remove the Bottle Cap and Make a Hole in It.
Make a Groove at the Bottom of the Bottle As Shown.
Attach the Flow Pipe to the Water Pump Motor and Use the Cable Tie to Bind Them.
Insert the Motor Inside the Bottle As Shown, Then Place and Glue the Bottle Cap As Shown. Place the Pipe in the Groove Made at the Bottom of the Bottle.

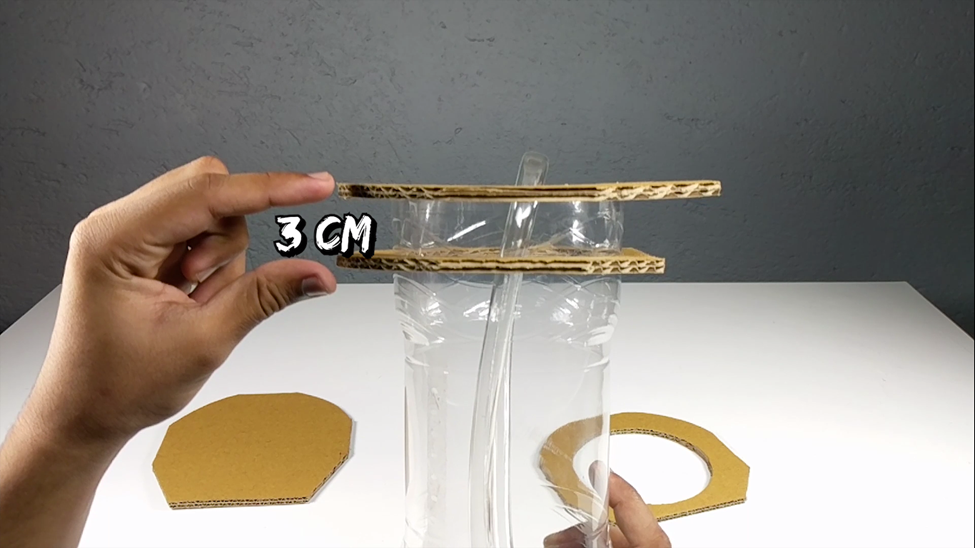

Make the Following Cardboard Cutouts and Place Them As Shown .

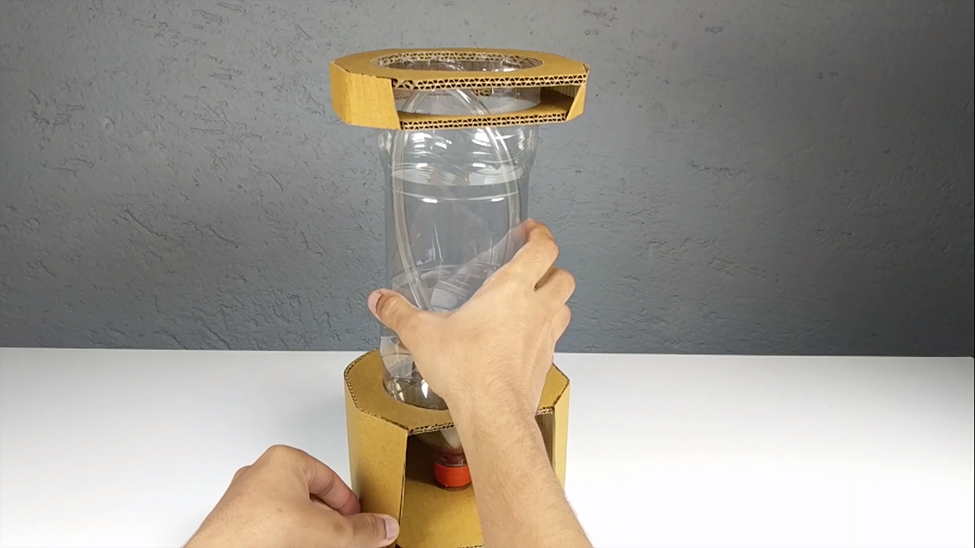

Use Foldable Cardboard to Cover the 3cm and 9cm Gaps (in Step 5), Leaving One Side Open, As Shown. Now, Take a Cardboard Piece of 21.5cm*10cm and Place It As Shown.
Use a Cardboard Piece Measuring 2 Cm More Than the Diameter of the Bottle, to Be Used As the Lid. Using 3 Small Cardboard Cutouts, a Thin Wooden Stick, and Candy Sticks, Make the Lid As Shown in the Following Images.

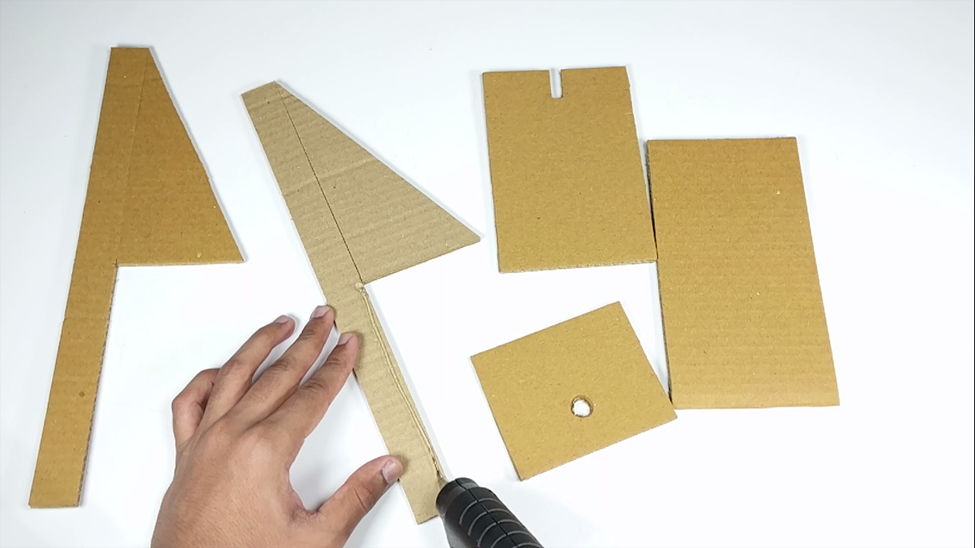

Make the Following Cardboard Cutouts. Now, Follow the Steps Shown in the Images to Stick the Pieces.
Using the Click Switch and Battery, Make the Connections As Shown
Glue the Click Switch and the Candy Stick on It As Shown.
Make a Small Cardboard Case for the Battery As Shown. It Eases the Task of Replacing the Battery
Label the Dispenser As Desired.
Make Holes at the Top Portion of the Pipe by Cutting or Piercing, to Release the Pressure. This Is an Important Step, Which If Missed, Will Not Allow the Water Discharge to Stop Unless the Water Drains Out Completely.
Your Water Dispenser Is Ready.
Watch the Video for a Detailed Tutorial!
