How to Make Vacuum Cleaner
by Umair Workshop in Circuits > Electronics
9271 Views, 50 Favorites, 0 Comments
How to Make Vacuum Cleaner
![IMG_20181106_084250 copy.jpg](/proxy/?url=https://content.instructables.com/F3H/4DMK/JO4NKKS3/F3H4DMKJO4NKKS3.jpg&filename=IMG_20181106_084250 copy.jpg)
![How to Make a Vacuum Cleaner - Homemade Vacuum cleaner](/proxy/?url=https://content.instructables.com/FA1/3SYS/JO4NKFWG/FA13SYSJO4NKFWG.jpg&filename=How to Make a Vacuum Cleaner - Homemade Vacuum cleaner)
![IMG_20181106_084250.jpg](/proxy/?url=https://content.instructables.com/FR4/24Z8/JO4NK1AC/FR424Z8JO4NK1AC.jpg&filename=IMG_20181106_084250.jpg)

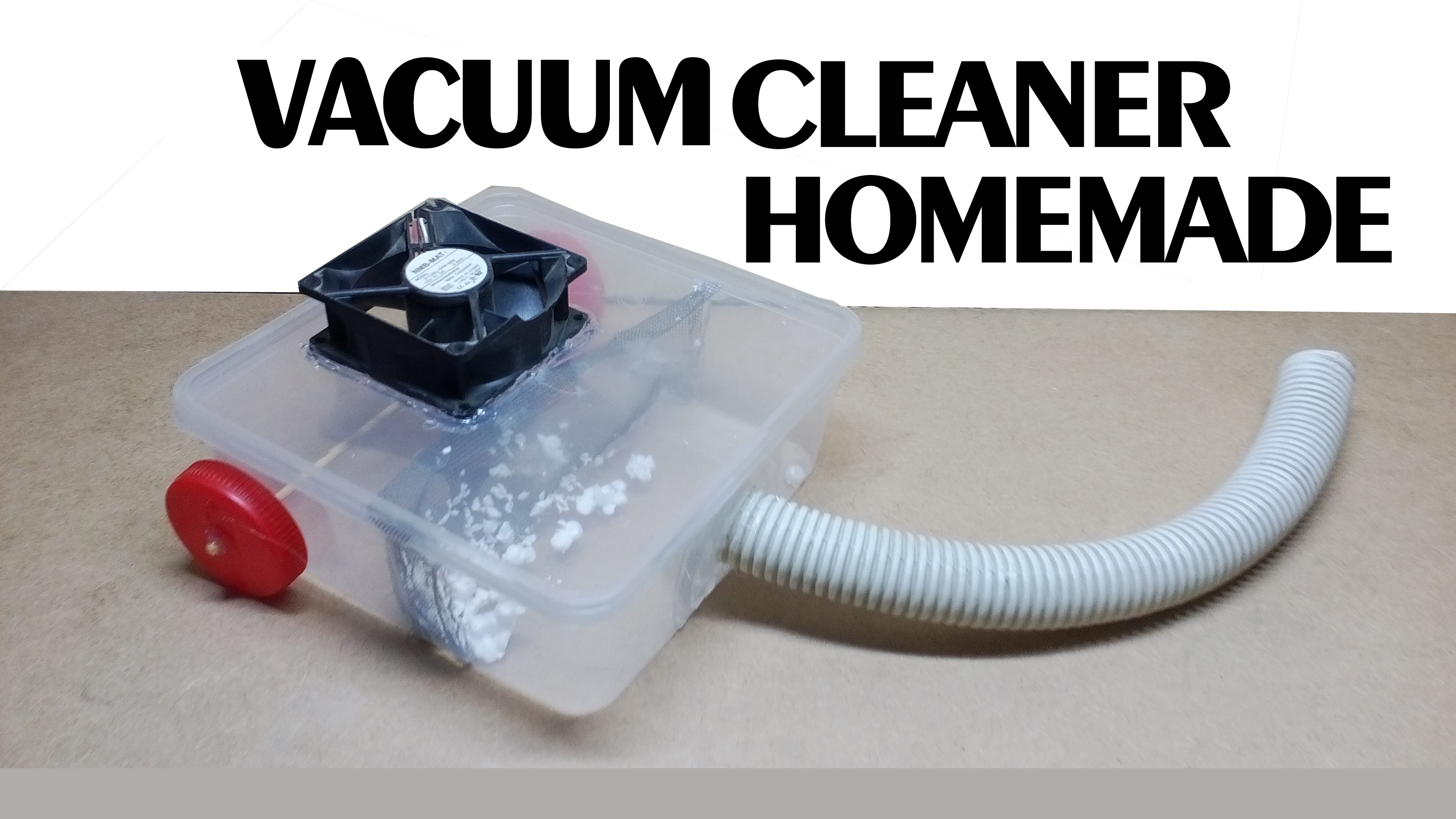

Hi , Today I am making a diy vacuum cleaner which can clean most of the small particles,as I was working with styrofoam project there tiny particles are so hard to collect so I got this idea to make a simple portable vacuum cleaner which works on 12v adaptor and easy to carry.
Things We Need
![IMG_20181106_070243.jpg](/proxy/?url=https://content.instructables.com/FR6/TQIN/JO4NK0YY/FR6TQINJO4NK0YY.jpg&filename=IMG_20181106_070243.jpg)
![IMG_20181106_070259.jpg](/proxy/?url=https://content.instructables.com/FXY/T51U/JO4NK0ZP/FXYT51UJO4NK0ZP.jpg&filename=IMG_20181106_070259.jpg)
![IMG_20181106_070326.jpg](/proxy/?url=https://content.instructables.com/F1M/HCLK/JO4NK0ZQ/F1MHCLKJO4NK0ZQ.jpg&filename=IMG_20181106_070326.jpg)
![IMG_20181106_072452.jpg](/proxy/?url=https://content.instructables.com/F27/NZM3/JO4NK11M/F27NZM3JO4NK11M.jpg&filename=IMG_20181106_072452.jpg)
![IMG_20181106_072436.jpg](/proxy/?url=https://content.instructables.com/FBP/RZDV/JO4NK101/FBPRZDVJO4NK101.jpg&filename=IMG_20181106_072436.jpg)
![IMG_20181106_081659.jpg](/proxy/?url=https://content.instructables.com/FPB/IRY7/JO4NK17V/FPBIRY7JO4NK17V.jpg&filename=IMG_20181106_081659.jpg)
![IMG_20181106_081450.jpg](/proxy/?url=https://content.instructables.com/FHJ/RYWR/JO4NK17U/FHJRYWRJO4NK17U.jpg&filename=IMG_20181106_081450.jpg)
![IMG_20181106_075624.jpg](/proxy/?url=https://content.instructables.com/FU6/CFKY/JO4NK16A/FU6CFKYJO4NK16A.jpg&filename=IMG_20181106_075624.jpg)
![IMG_20181106_074916.jpg](/proxy/?url=https://content.instructables.com/FNN/ST37/JO4NK14S/FNNST37JO4NK14S.jpg&filename=IMG_20181106_074916.jpg)
1x Plastic container
1x 12v CPU fan
1x 12v plug
2x bottle caps
1x wood stick
1x 1 feet basin pipe
1x metal wire net
Fitting the Fan
![IMG_20181106_070349.jpg](/proxy/?url=https://content.instructables.com/FBO/Y304/JO4NK0ZR/FBOY304JO4NK0ZR.jpg&filename=IMG_20181106_070349.jpg)
![IMG_20181106_070425.jpg](/proxy/?url=https://content.instructables.com/F4G/SAOS/JO4NK0ZS/F4GSAOSJO4NK0ZS.jpg&filename=IMG_20181106_070425.jpg)
![IMG_20181106_070556.jpg](/proxy/?url=https://content.instructables.com/FZ4/UHKG/JO4NK0ZT/FZ4UHKGJO4NK0ZT.jpg&filename=IMG_20181106_070556.jpg)
![IMG_20181106_071031.jpg](/proxy/?url=https://content.instructables.com/FFB/F6ON/JO4NK0ZU/FFBF6ONJO4NK0ZU.jpg&filename=IMG_20181106_071031.jpg)
![IMG_20181106_071203.jpg](/proxy/?url=https://content.instructables.com/F72/E7FY/JO4NK0ZV/F72E7FYJO4NK0ZV.jpg&filename=IMG_20181106_071203.jpg)
![IMG_20181106_071525.jpg](/proxy/?url=https://content.instructables.com/FLP/SL43/JO4NK0ZW/FLPSL43JO4NK0ZW.jpg&filename=IMG_20181106_071525.jpg)
![IMG_20181106_071531.jpg](/proxy/?url=https://content.instructables.com/F9G/7XID/JO4NK0ZX/F9G7XIDJO4NK0ZX.jpg&filename=IMG_20181106_071531.jpg)
![IMG_20181106_071628.jpg](/proxy/?url=https://content.instructables.com/FF4/QMJW/JO4NK100/FF4QMJWJO4NK100.jpg&filename=IMG_20181106_071628.jpg)

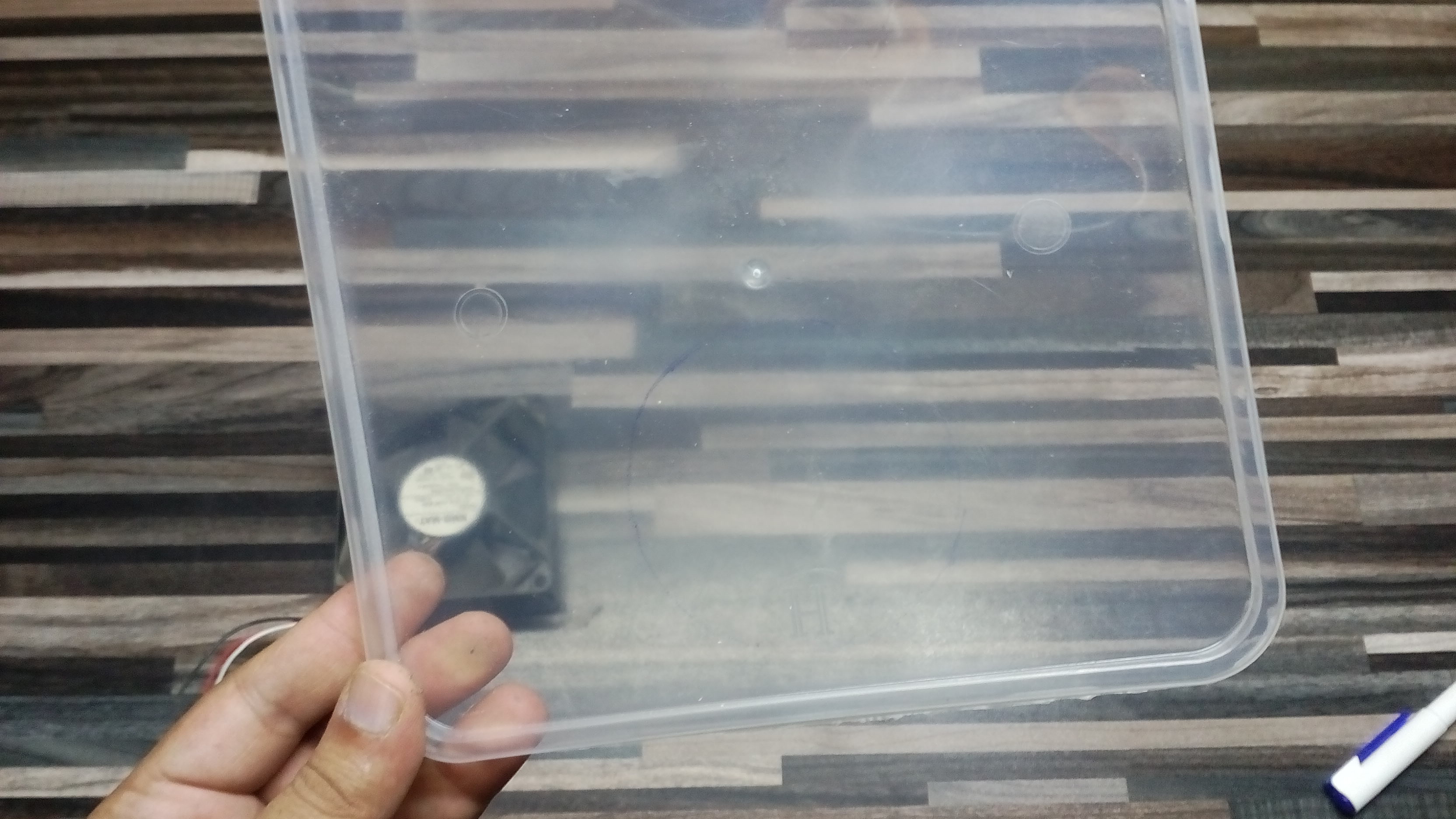

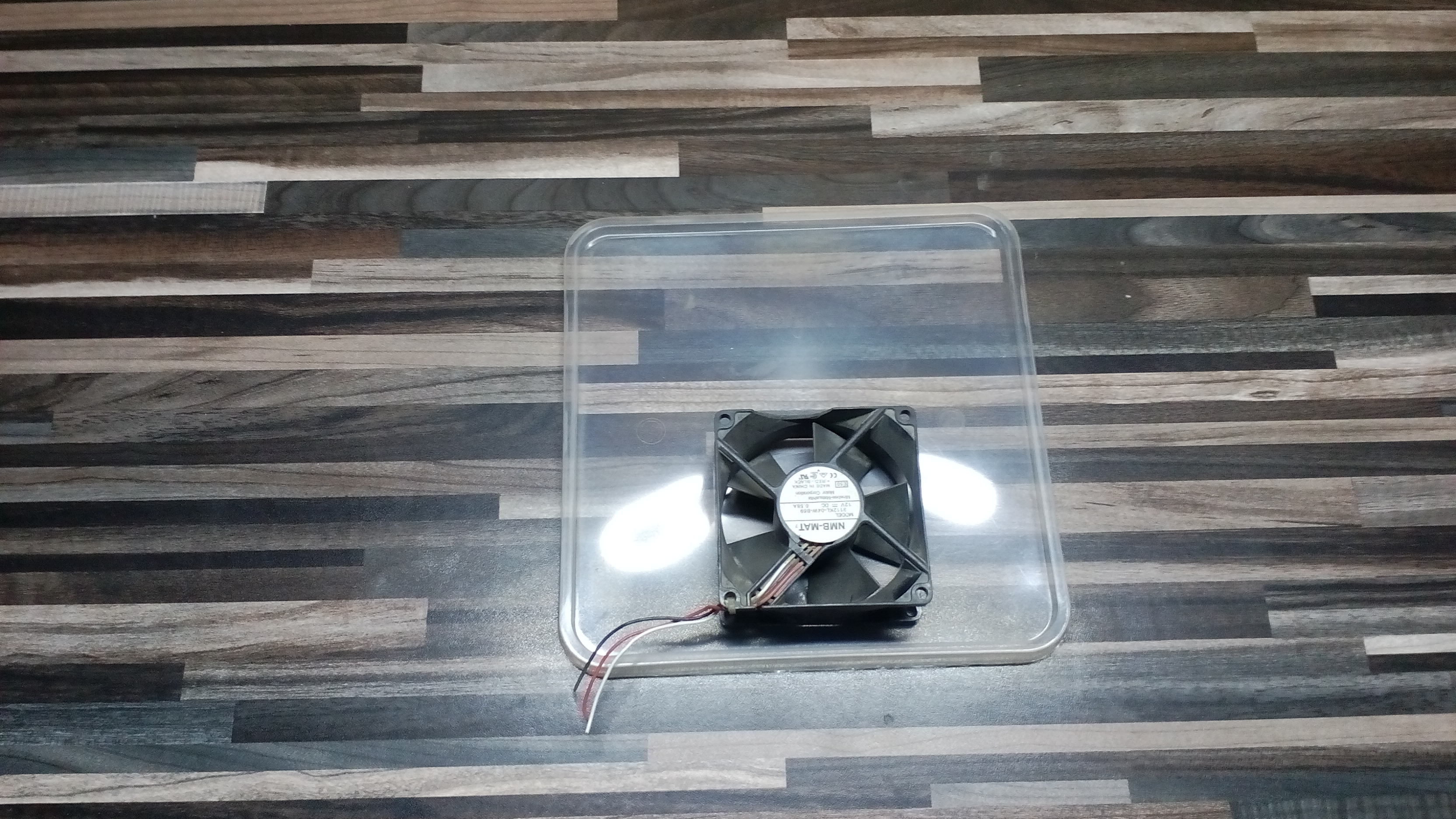

Place the fan over the lid and mark the inside circle of the fan and cut out the part, place the fan again and glue it from all four points
Power the Fan
![IMG_20181106_072437.jpg](/proxy/?url=https://content.instructables.com/FRT/FOYG/JO4NK104/FRTFOYGJO4NK104.jpg&filename=IMG_20181106_072437.jpg)
![IMG_20181106_072440.jpg](/proxy/?url=https://content.instructables.com/FAL/O5DM/JO4NK10V/FALO5DMJO4NK10V.jpg&filename=IMG_20181106_072440.jpg)
![IMG_20181106_072647.jpg](/proxy/?url=https://content.instructables.com/FO1/EHPJ/JO4NK12E/FO1EHPJJO4NK12E.jpg&filename=IMG_20181106_072647.jpg)
![IMG_20181106_073320.jpg](/proxy/?url=https://content.instructables.com/F2O/RROK/JO4NK12F/F2ORROKJO4NK12F.jpg&filename=IMG_20181106_073320.jpg)
![IMG_20181106_073324.jpg](/proxy/?url=https://content.instructables.com/F4X/5EJ2/JO4NK12G/F4X5EJ2JO4NK12G.jpg&filename=IMG_20181106_073324.jpg)
![IMG_20181106_073757.jpg](/proxy/?url=https://content.instructables.com/FFK/CJP8/JO4NK137/FFKCJP8JO4NK137.jpg&filename=IMG_20181106_073757.jpg)
![IMG_20181106_074105.jpg](/proxy/?url=https://content.instructables.com/FBM/LP4Q/JO4NK138/FBMLP4QJO4NK138.jpg&filename=IMG_20181106_074105.jpg)
![IMG_20181106_074352.jpg](/proxy/?url=https://content.instructables.com/FHO/SCC6/JO4NK14Q/FHOSCC6JO4NK14Q.jpg&filename=IMG_20181106_074352.jpg)
![IMG_20181106_074342.jpg](/proxy/?url=https://content.instructables.com/FRZ/2AH4/JO4NK13Z/FRZ2AH4JO4NK13Z.jpg&filename=IMG_20181106_074342.jpg)
solder the 12v and ground in the 12v plug and glue it just right next to the fan
Putting the Filter
![IMG_20181106_074911.jpg](/proxy/?url=https://content.instructables.com/FRG/4AUW/JO4NK14R/FRG4AUWJO4NK14R.jpg&filename=IMG_20181106_074911.jpg)
![IMG_20181106_075319.jpg](/proxy/?url=https://content.instructables.com/FSQ/MPHC/JO4NK15J/FSQMPHCJO4NK15J.jpg&filename=IMG_20181106_075319.jpg)
![IMG_20181106_081217.jpg](/proxy/?url=https://content.instructables.com/F75/ZLNV/JO4NK17S/F75ZLNVJO4NK17S.jpg&filename=IMG_20181106_081217.jpg)

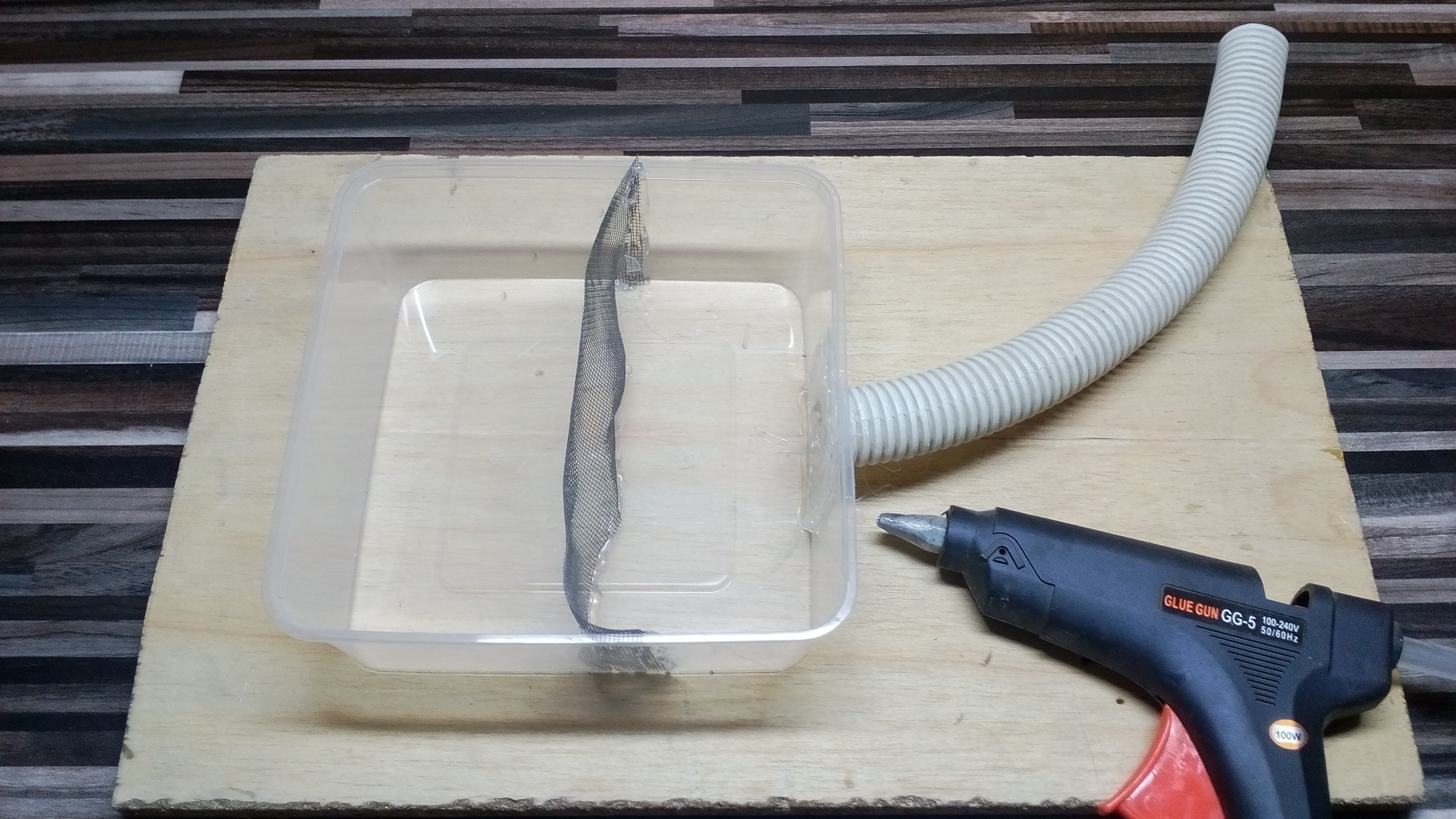

Cut out the wire as dimension of the inside box and glue it over from all three sides
Pipe Inlet
![IMG_20181106_080815.jpg](/proxy/?url=https://content.instructables.com/F5T/D0EX/JO4NK171/F5TD0EXJO4NK171.jpg&filename=IMG_20181106_080815.jpg)
![IMG_20181106_081230.jpg](/proxy/?url=https://content.instructables.com/FRQ/LYWW/JO4NK17T/FRQLYWWJO4NK17T.jpg&filename=IMG_20181106_081230.jpg)
Place the pipe over the front of plastic box mark the circle and cut it out , place pipe over the inlet hole and glue the pipe
Giving It Wheels
![IMG_20181106_081756.jpg](/proxy/?url=https://content.instructables.com/FG6/6AQ8/JO4NK17W/FG66AQ8JO4NK17W.jpg&filename=IMG_20181106_081756.jpg)
![IMG_20181106_082338.jpg](/proxy/?url=https://content.instructables.com/F12/B07R/JO4NK17X/F12B07RJO4NK17X.jpg&filename=IMG_20181106_082338.jpg)
![IMG_20181106_082621.jpg](/proxy/?url=https://content.instructables.com/FGA/N5I8/JO4NK17Y/FGAN5I8JO4NK17Y.jpg&filename=IMG_20181106_082621.jpg)
![IMG_20181106_082646.jpg](/proxy/?url=https://content.instructables.com/FZN/KZD2/JO4NK18R/FZNKZD2JO4NK18R.jpg&filename=IMG_20181106_082646.jpg)
![IMG_20181106_084217.jpg](/proxy/?url=https://content.instructables.com/FO0/0G8B/JO4NK1AB/FO00G8BJO4NK1AB.jpg&filename=IMG_20181106_084217.jpg)
Drill holes in the bottom backside of the box and make 2 holes and same in the bottle caps as well , put the wood stick and cross it from the box to the tyres and secure it with glue
Our DIY vacuum cleaner is ready to work ,please watch it in video for more details.
If you like this instructables please like share and subscribe.
