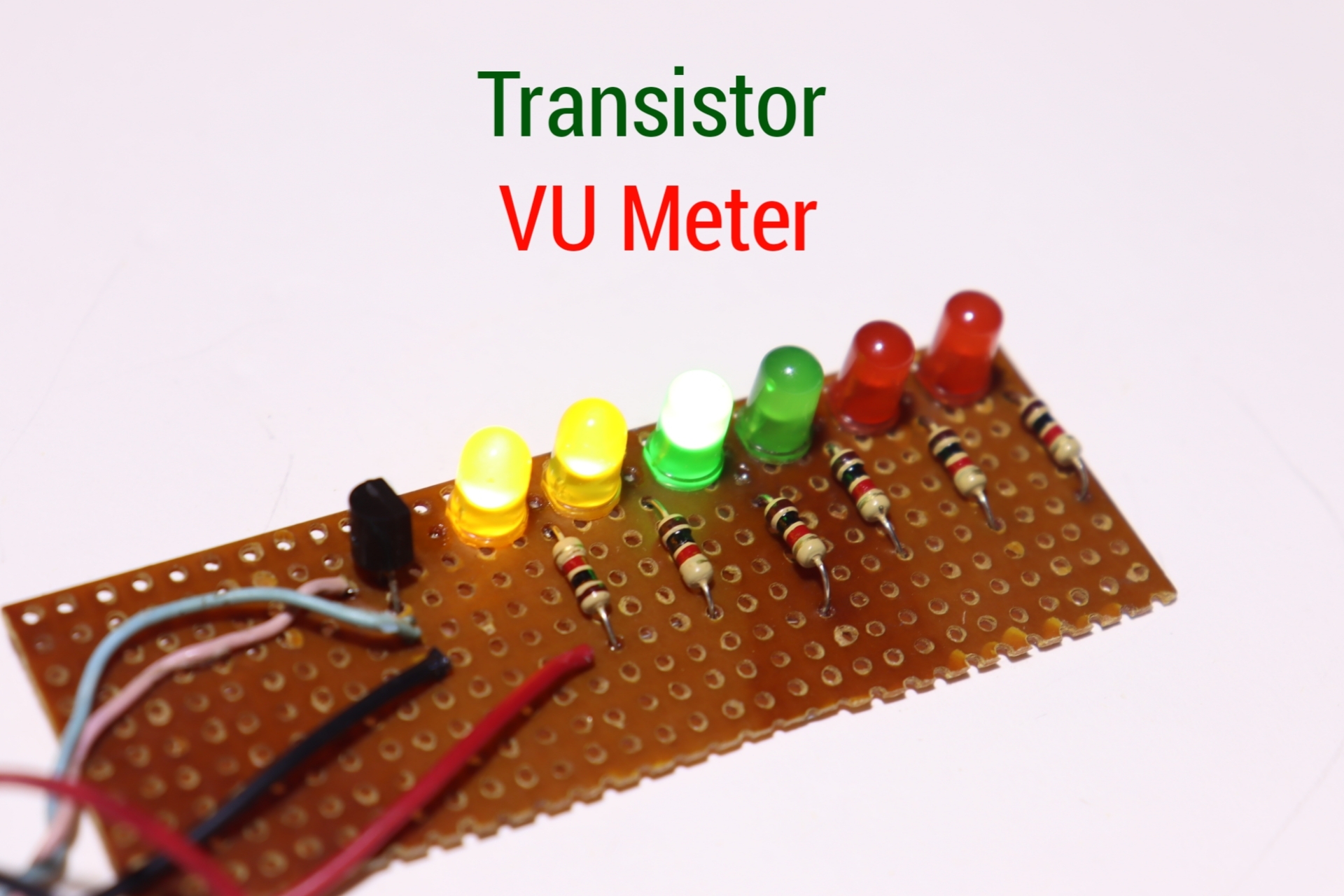

How to Make VU Meter Using Transistor
![20191018_231200.jpg](/proxy/?url=https://content.instructables.com/F67/87FD/K1S5PDGO/F6787FDK1S5PDGO.jpg&filename=20191018_231200.jpg)
Hii friend,
Today I am going to make a VU Meter circuit using only one transistor.In this VU Meter I will use 2N2222A Transistor.This VU Meter is not good as compare to 3915 IC VU Meter.
Let's get stated,
Take All Components As Shown Below
![20191018_231314.jpg](/proxy/?url=https://content.instructables.com/FJF/U5G6/K1S5PDHC/FJFU5G6K1S5PDHC.jpg&filename=20191018_231314.jpg)
![20191018_231500.jpg](/proxy/?url=https://content.instructables.com/F0N/XODX/K1S5PDLN/F0NXODXK1S5PDLN.jpg&filename=20191018_231500.jpg)
![20191018_231444.jpg](/proxy/?url=https://content.instructables.com/FBT/GTZG/K1S5PDL0/FBTGTZGK1S5PDL0.jpg&filename=20191018_231444.jpg)
![20191018_231342.jpg](/proxy/?url=https://content.instructables.com/F67/E19H/K1S5PDIH/F67E19HK1S5PDIH.jpg&filename=20191018_231342.jpg)
![20191018_231426.jpg](/proxy/?url=https://content.instructables.com/F5F/1XCK/K1S5PDKD/F5F1XCKK1S5PDKD.jpg&filename=20191018_231426.jpg)
![20191018_231414.jpg](/proxy/?url=https://content.instructables.com/FP9/09BB/K1S5PDJT/FP909BBK1S5PDJT.jpg&filename=20191018_231414.jpg)
![20191018_231359.jpg](/proxy/?url=https://content.instructables.com/FBC/WVDS/K1S5PDII/FBCWVDSK1S5PDII.jpg&filename=20191018_231359.jpg)
Components required -
(1.) Transistor - 2N2222A x1
(2.) LED - 3V x6 (Any color)
(3.) Resistor - 1K x6
(4.) aux cable x1
(5.) Zero PCB
(6.) Battery - 9V

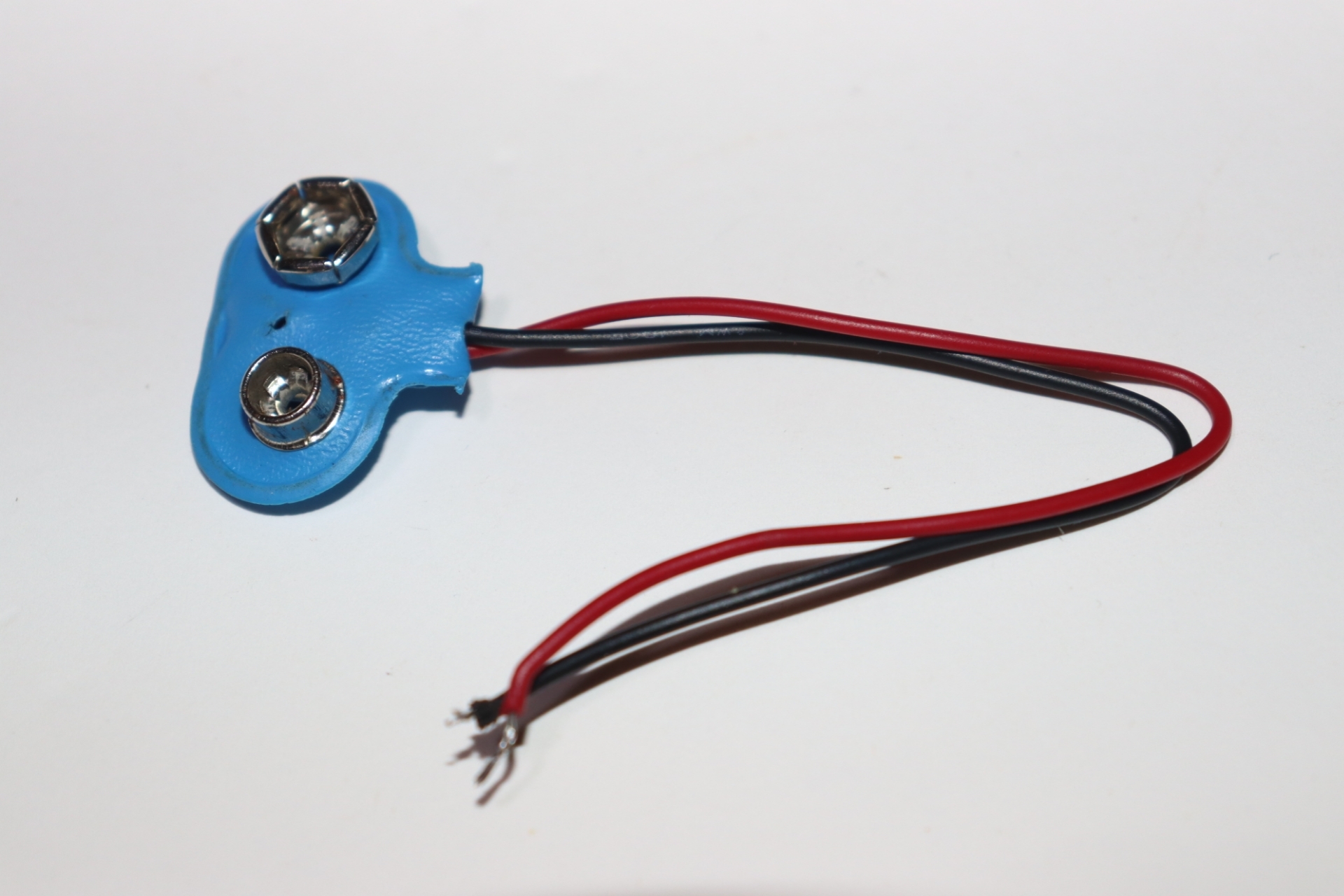

(7.) Battery clipper
Transistor - 2N2222A
![20191018_231314.jpg](/proxy/?url=https://content.instructables.com/FJF/U5G6/K1S5PDHC/FJFU5G6K1S5PDHC.jpg&filename=20191018_231314.jpg)
This is the pinout of this transistor.
Pin-1 is Emmiter,
Pin-2 is Base and
Pin-3 of this transistor is Collector.
Connect All LEDs
![20191018_231521.jpg](/proxy/?url=https://content.instructables.com/FQI/1HE8/K1S5PDLO/FQI1HE8K1S5PDLO.jpg&filename=20191018_231521.jpg)
Put all LEDs on the Zero PCB and Solder it's legs in series.

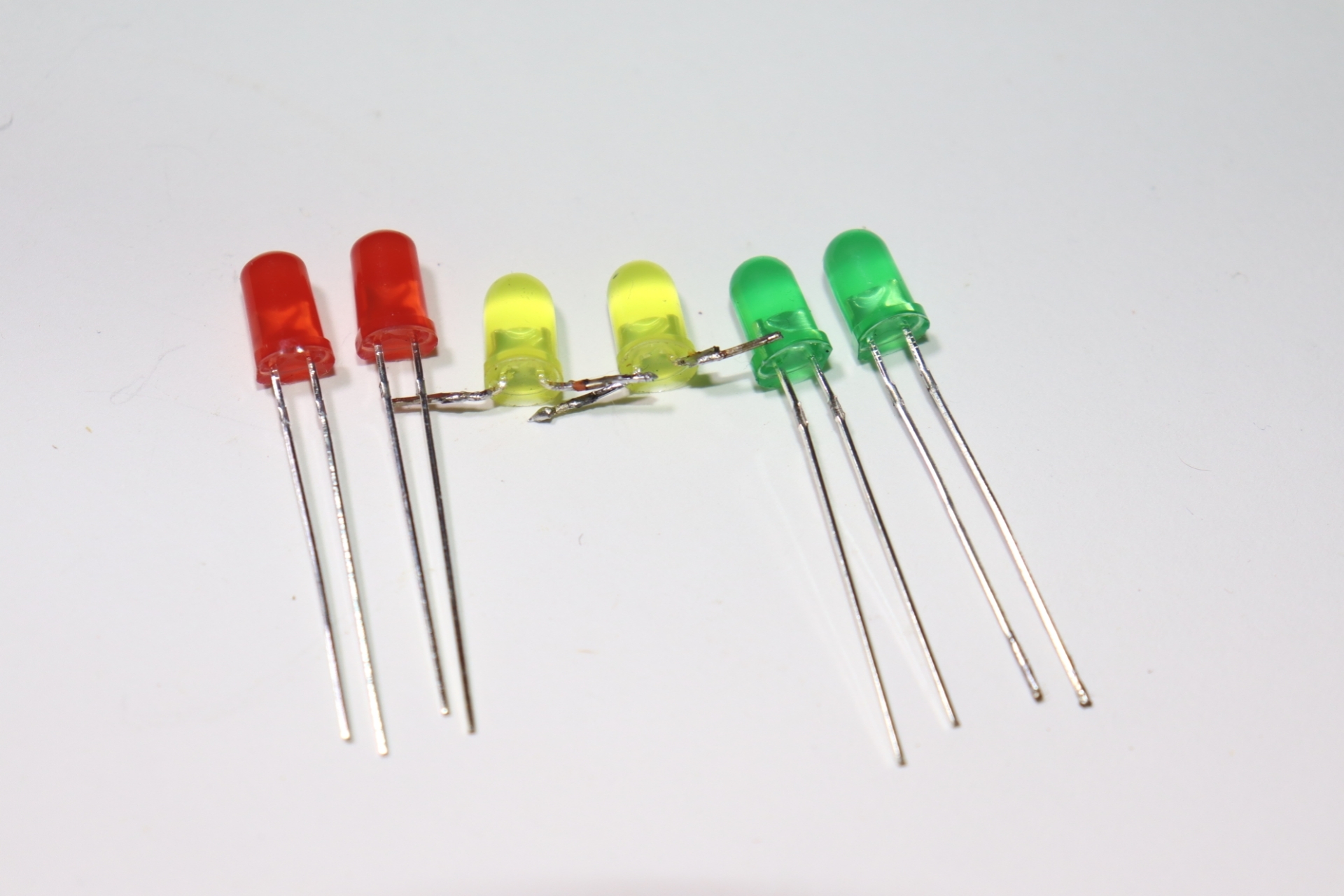

Connect LEDs in Series
![20191018_231538.jpg](/proxy/?url=https://content.instructables.com/FY9/PROF/K1S5PDLU/FY9PROFK1S5PDLU.jpg&filename=20191018_231538.jpg)
Solder +ve leg of one LED to -ve leg of another LED as solder in the picture.
Connect 1K Resistors
![20191018_231553.jpg](/proxy/?url=https://content.instructables.com/F3T/TWZC/K1S5PDLV/F3TTWZCK1S5PDLV.jpg&filename=20191018_231553.jpg)
Next we have to connect 1K resistors to +ve legs of all LEDs as you can see in the picture.

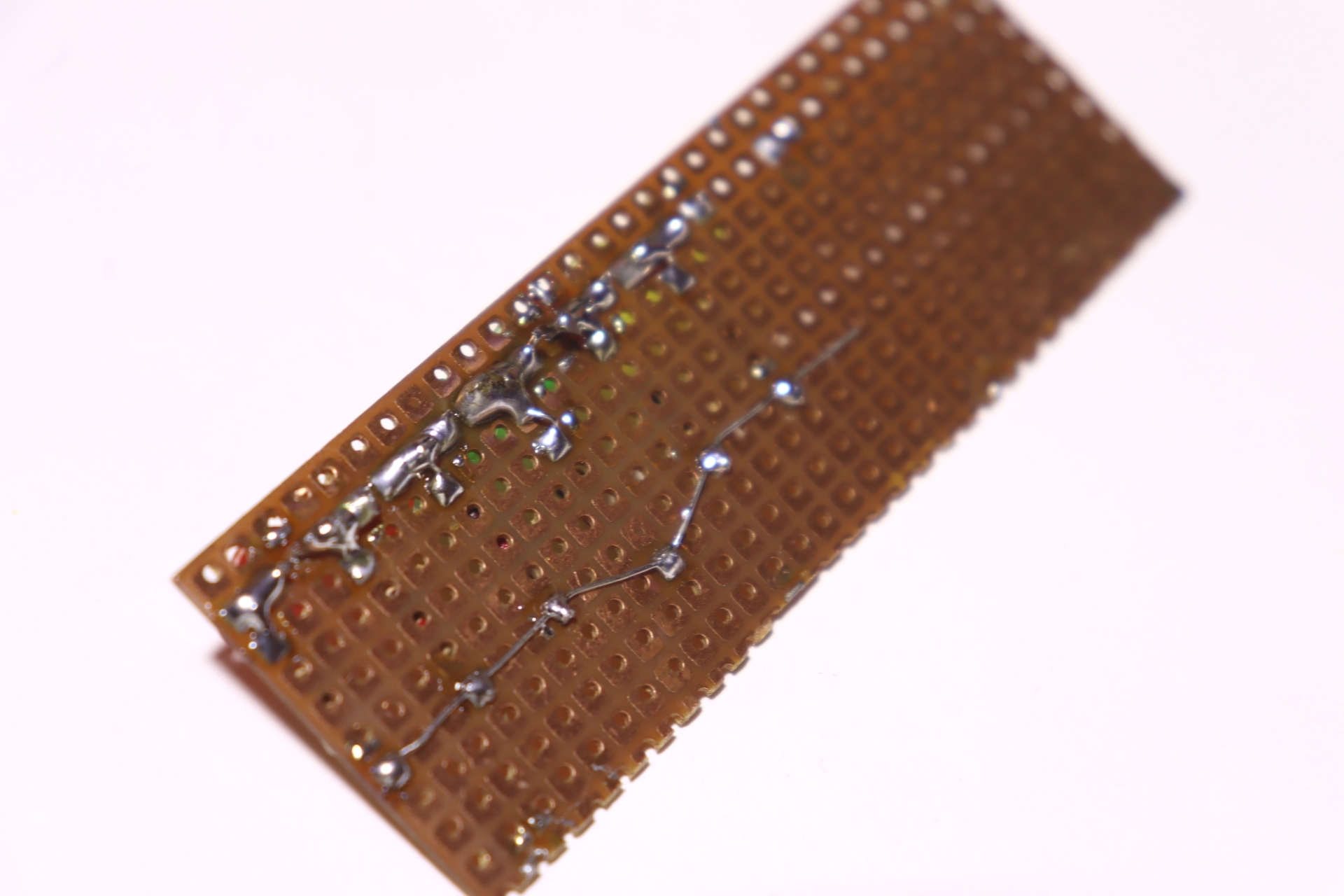

Connect Other Side of Resistors
![20191018_231605.jpg](/proxy/?url=https://content.instructables.com/FNX/E2AH/K1S5PDLW/FNXE2AHK1S5PDLW.jpg&filename=20191018_231605.jpg)
Solder all out wires of 1K Resistors to each other. {Connect all pins of other side of 1K Resistors} as you can see in the picture.

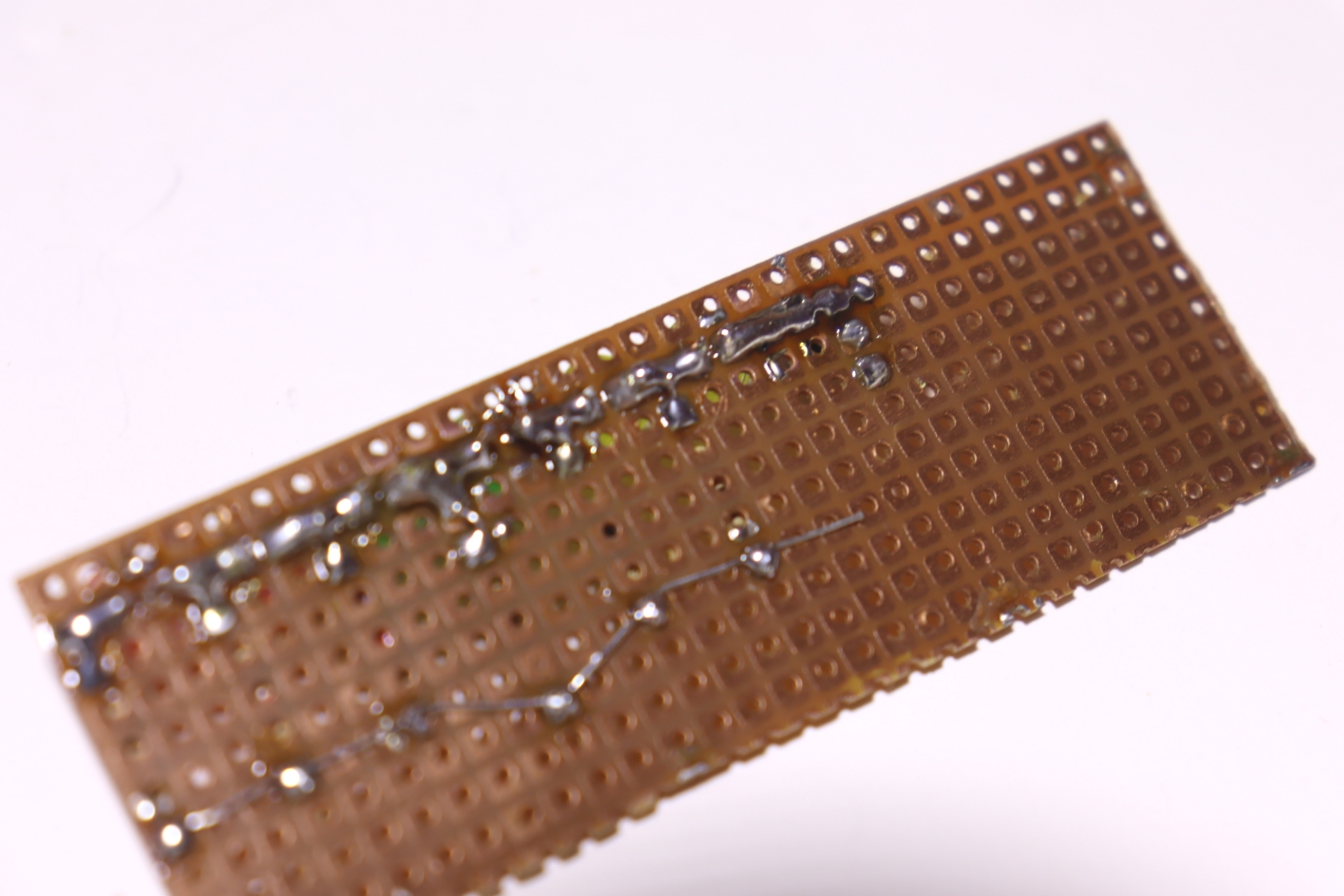

Put Transistor
![20191018_231622.jpg](/proxy/?url=https://content.instructables.com/FOH/7OCL/K1S5PDMJ/FOH7OCLK1S5PDMJ.jpg&filename=20191018_231622.jpg)
![20191018_231640.jpg](/proxy/?url=https://content.instructables.com/FW7/N15X/K1S5PDN4/FW7N15XK1S5PDN4.jpg&filename=20191018_231640.jpg)
Next we have to connect the transistor to the PCB.
Connect Collector pin of transistor to the -ve legs of all LEDs as solder in the picture.

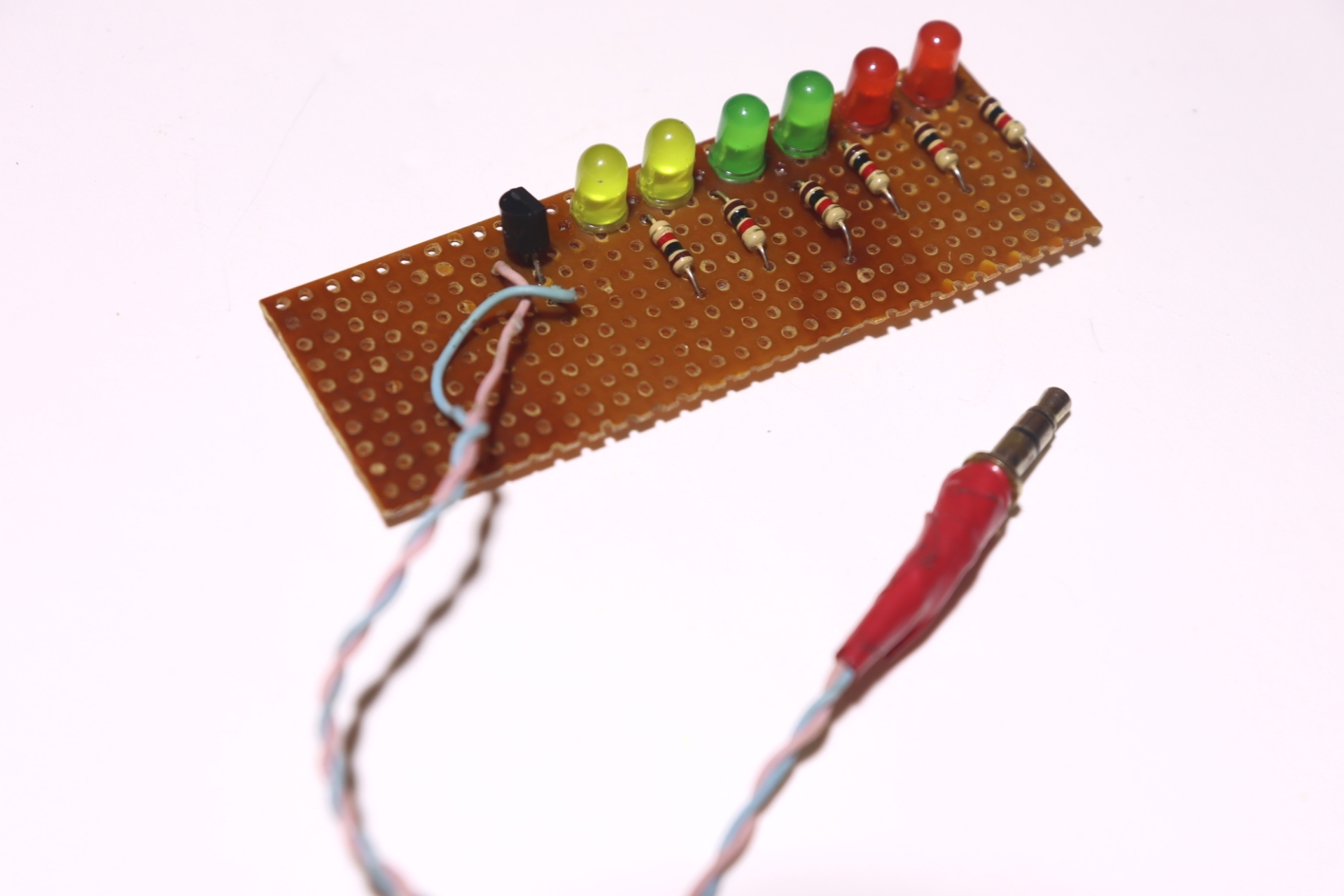

Connect Aux Cable Wire
![20191018_231656.jpg](/proxy/?url=https://content.instructables.com/FQL/2X6I/K1S5PDNN/FQL2X6IK1S5PDNN.jpg&filename=20191018_231656.jpg)
Next we have to connect aux cable wire to the circuit.
Solder +ve wire {Left/Right} of aux cable to the Base pin of Transistor and
Connect -ve wire {GND} of aux cable to emmiter pin of the transistor.

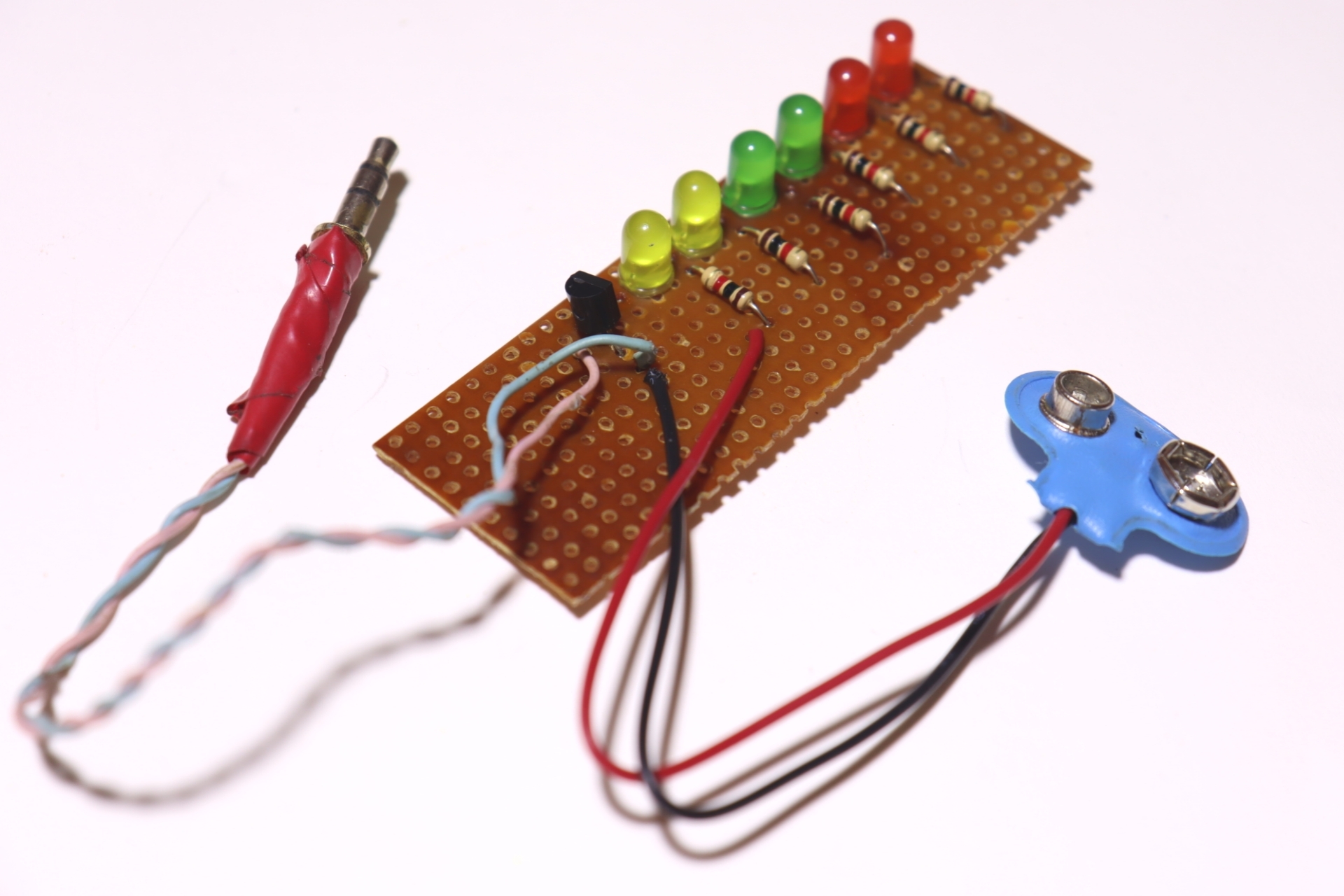

Connect Battery Clipper Wire
![20191018_231709.jpg](/proxy/?url=https://content.instructables.com/FPO/MPZW/K1S5PDNO/FPOMPZWK1S5PDNO.jpg&filename=20191018_231709.jpg)
Now we have to connect battery clipper to the circuit.
Connect +ve wire of battery clipper to Out {Other side of 1K Resistor} Side of the 1K Resistor and
-ve wire of battery clipper to Emmiter pin of the transistor as you can see in the picture.

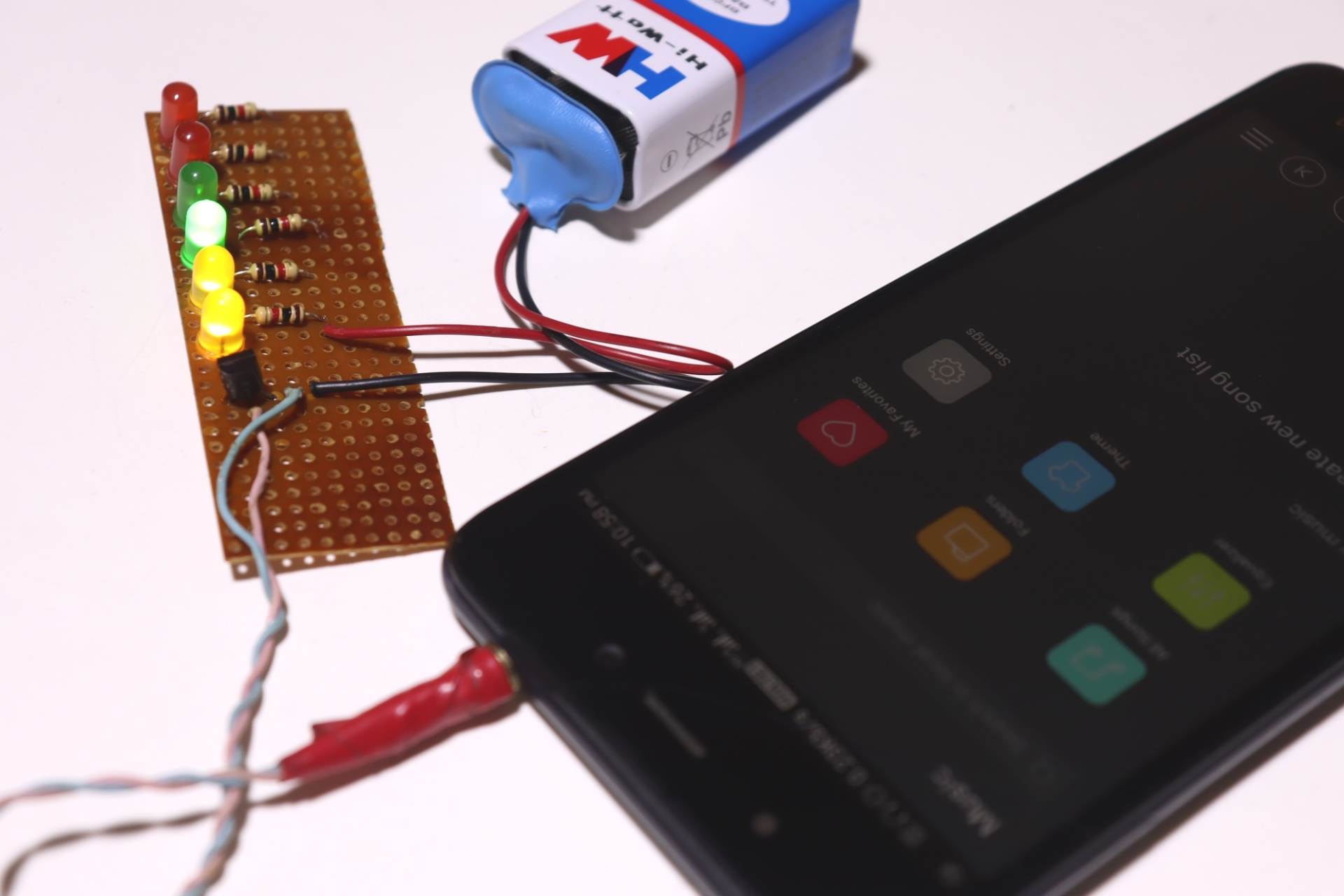

How to Use VU Meter
![20191018_231726.jpg](/proxy/?url=https://content.instructables.com/FA4/1TOP/K1S5PDOZ/FA41TOPK1S5PDOZ.jpg&filename=20191018_231726.jpg)
![20191018_231749.jpg](/proxy/?url=https://content.instructables.com/F23/04YJ/K1S5PDPI/F2304YJK1S5PDPI.jpg&filename=20191018_231749.jpg)
VU Meter Shows the audio level of the music.
Connect 9V Battery to the Battery clipper and Plug-in aux cable to the phone/laptop/tab..... and play songs.
Now As music will play like that LEDs will glow.
This type we can make Only One Transistor to VU Meter circuit.
