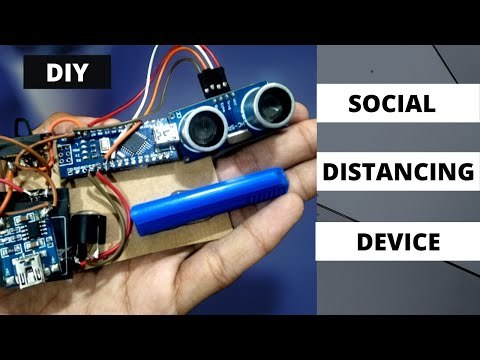

How to Make Social Distancing Device

HELLO THERE,

In this tutorial I am going to shiw that how can you make a social distancing device which can help you maintaing social distance and can protect you from corona

If you like this tutorial then consider subscribing my youtube channel THE ARDUINO MAKER

THINGS YOU WILL NEED :

1) ARDUINO NANO

2) ULTRASONIC SENSOR

3) BUZZER

4) 3.5V BATTERY

5) CHARGING MODULE

After getting all supplies now you can start connecting all the components in the right way accorging to the circuit diagram given above

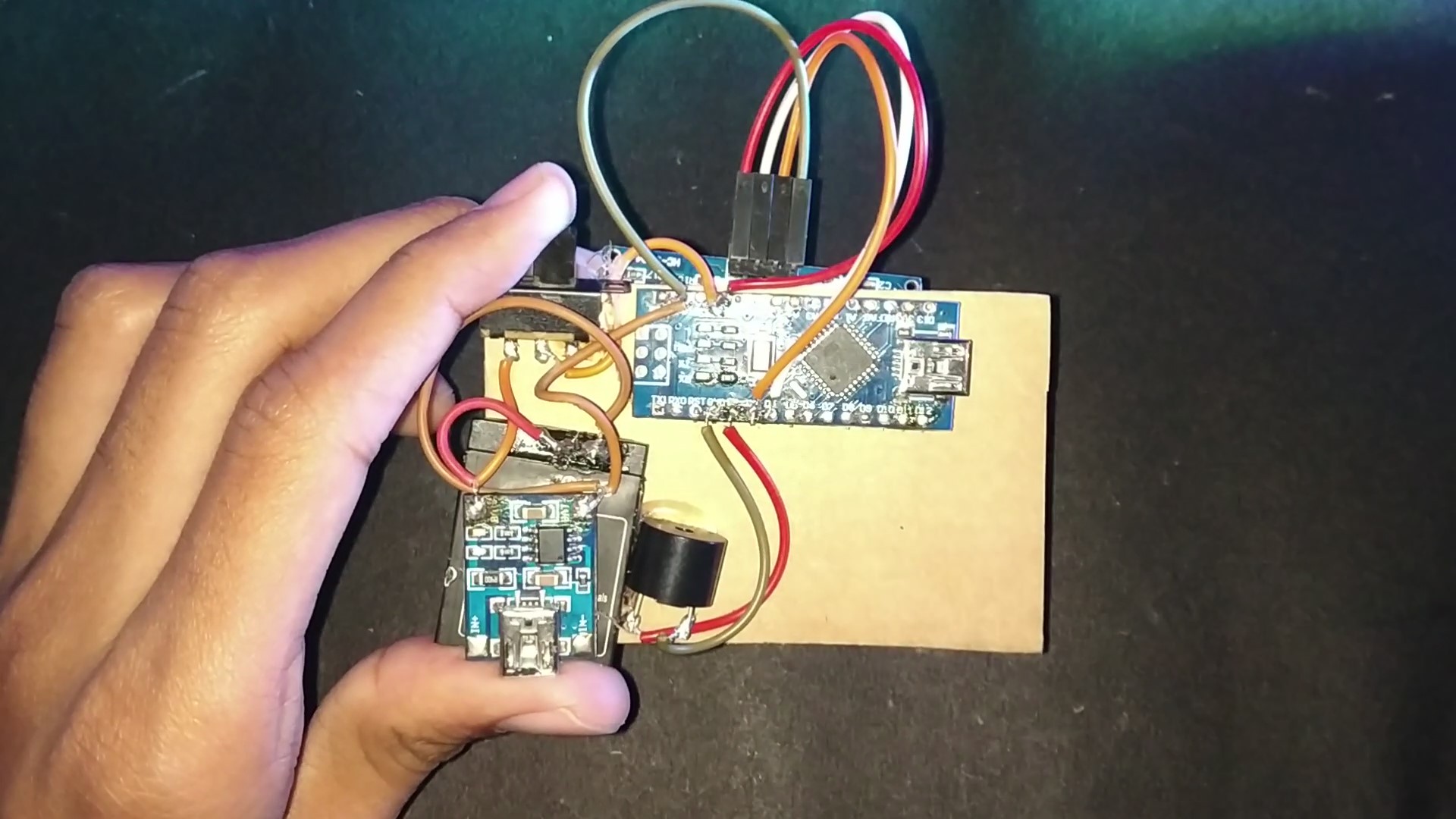

Now after completing the above steps you can start glueing components in the right place as shown in the above pictures

you can also do it in your way i liked it in this way

Now its time to program the board with the code given below

int const trigPin = 4;
int const echoPin = 3;
int const buzzPin = 2;
void setup()
{
pinMode(trigPin, OUTPUT); // trig pin will have pulses output
pinMode(echoPin, INPUT); // echo pin should be input to get pulse width
pinMode(buzzPin, OUTPUT); // buzz pin is output to control buzzer
}
void loop()
{
// Duration will be the input pulse width and distance will be the distance to the obstacle in centimeters
int duration, distance;
// Output pulse with 1ms width on trigPin
digitalWrite(trigPin, HIGH);
delay(1);
digitalWrite(trigPin, LOW);
// Measure the pulse input in echo pin
duration = pulseIn(echoPin, HIGH);
// Distance is half the duration devided by 29.1 (from datasheet)
distance = (duration/2) / 29.1;
// if distance less than 0.5 meter and more than 0 (0 or less means over range)
if (distance <= 100 && distance >= 0) {
// Buzz
digitalWrite(buzzPin, HIGH);
} else {
// Don't buzz
digitalWrite(buzzPin, LOW);
}
// Waiting 60 ms won't hurt any one
delay(60);
}

YEH!!!!!

YOU HAVE MADE IT SO NOW PROMOTE SOCIAL ISTANCING USING THIS DEVICE AND DON'T FORGET TO LIKE THIS PAGE AND DO SUBSCRIBE MY CHANNEL
