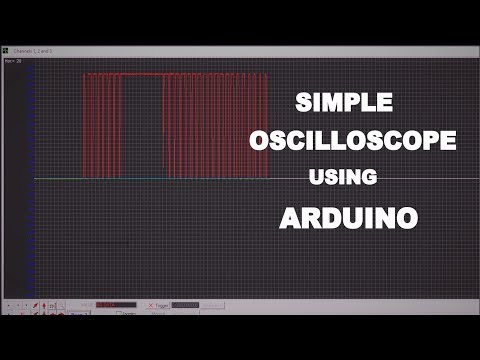

How to Make Simple Oscilloscope Using Arduino

In this Instructable you will see how to make simple oscilloscope using Arduino uno .

Oscilloscope is a device which is used to see and analyse the signals . But the device is very much expensive . As a electronic guy some times it need to analyse the signals where we cannot buy a oscilloscope for simple purposes . This article give you an information to make oscilloscope which is capable of 0-5 v input .

For more interesting projects visit my website Electronics Projects Hub

Lets gets started ...

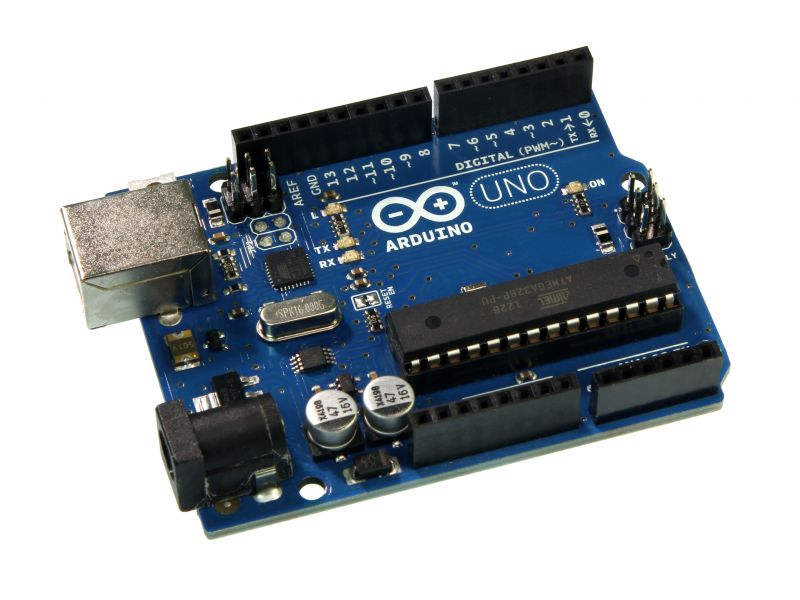

Arduino Uno [ Banggood ]

Arduino IDE

Download Code Here

1 : Open Arduino IDE and Open the code ,then upload to arduino board .

2 : Open serial oscilloscope file from the downloaded folder .

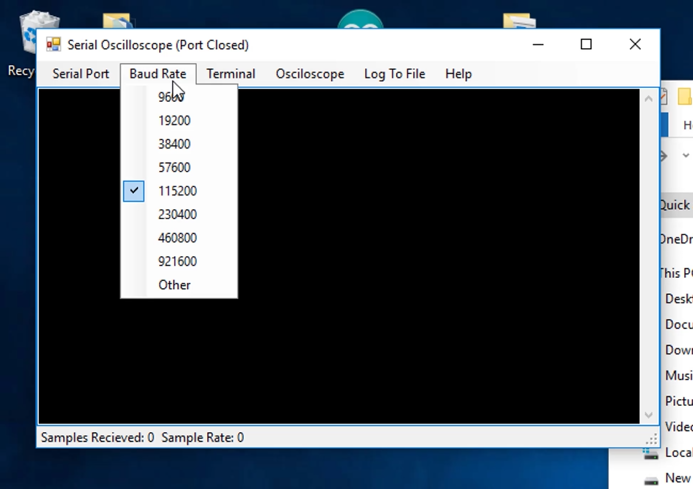

3 : Set baud rate to 115200 . Set serial port to your arduino board connected port .

4 : Click on Oscilloscope button and select channel . At a time you can see 3 channels in one window .

5 : Now here the probes connections are , every analog pin of arduino board can use as a channel . To activate multiple channels in window you must enter channel number in terminal .

Everything is done .
