How to Make Remote Control Car at Home in Easy Way - DIY Wireless RC CAR

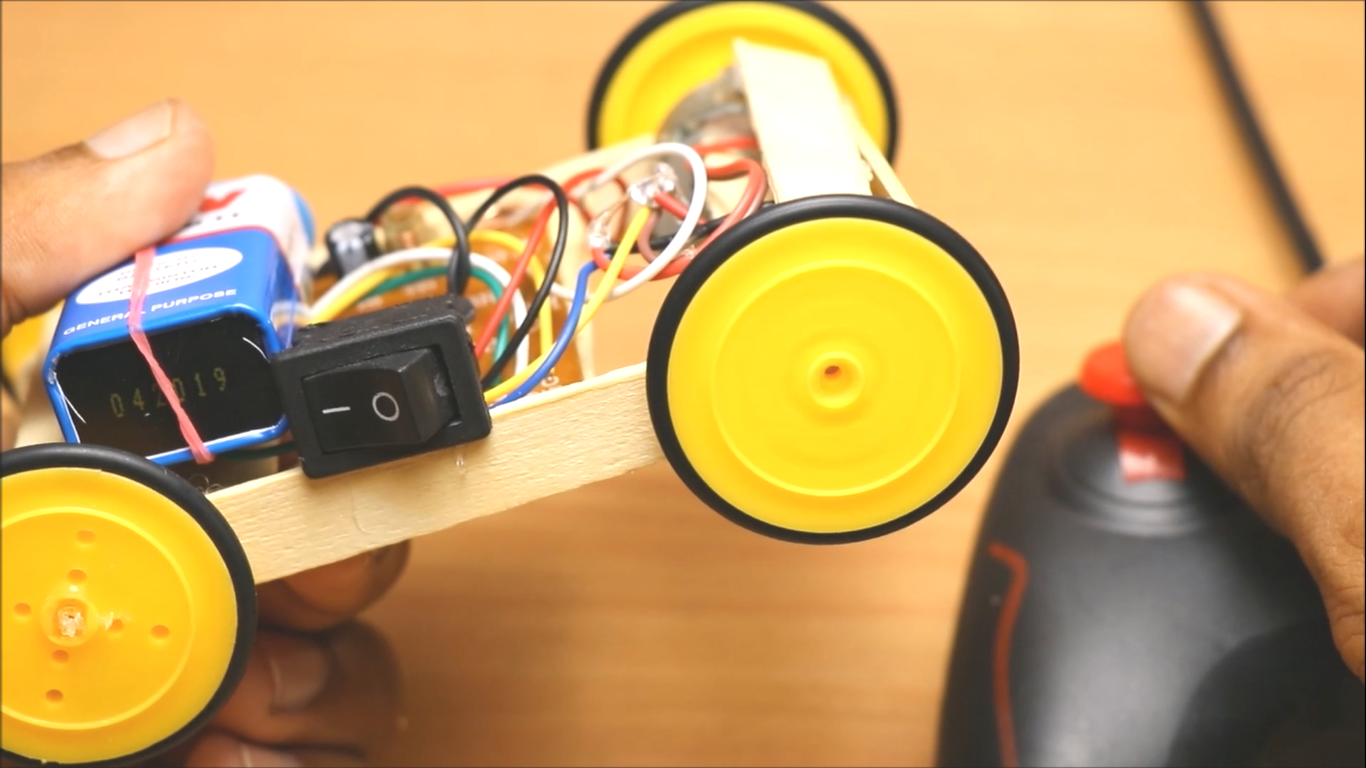

remote control car thumbnail.JPG

Hello friends in this instructable i will show you how to make a remote controlled rc car in easy way please continue reading...... This is a really cool project so please try to build one!

Bonus Tip: Check www.letsmakeprojects.com for much more interesting content

Hate Reading? Watch This Video Https://youtu.be/3-V813hJGdg

How to Make Remote Control Car at Home in Easiest Way - DIY Wireless RC CAR

https://youtu.be/3-V813hJGdg complete video tutorial

Materials Required

rc car (39).png
rc car (40).png
rc car (43).png
rc car (41).png
rc car (1).png
rc car (2).png
rc car (3).png
rc car (4).png
rc car (5).png

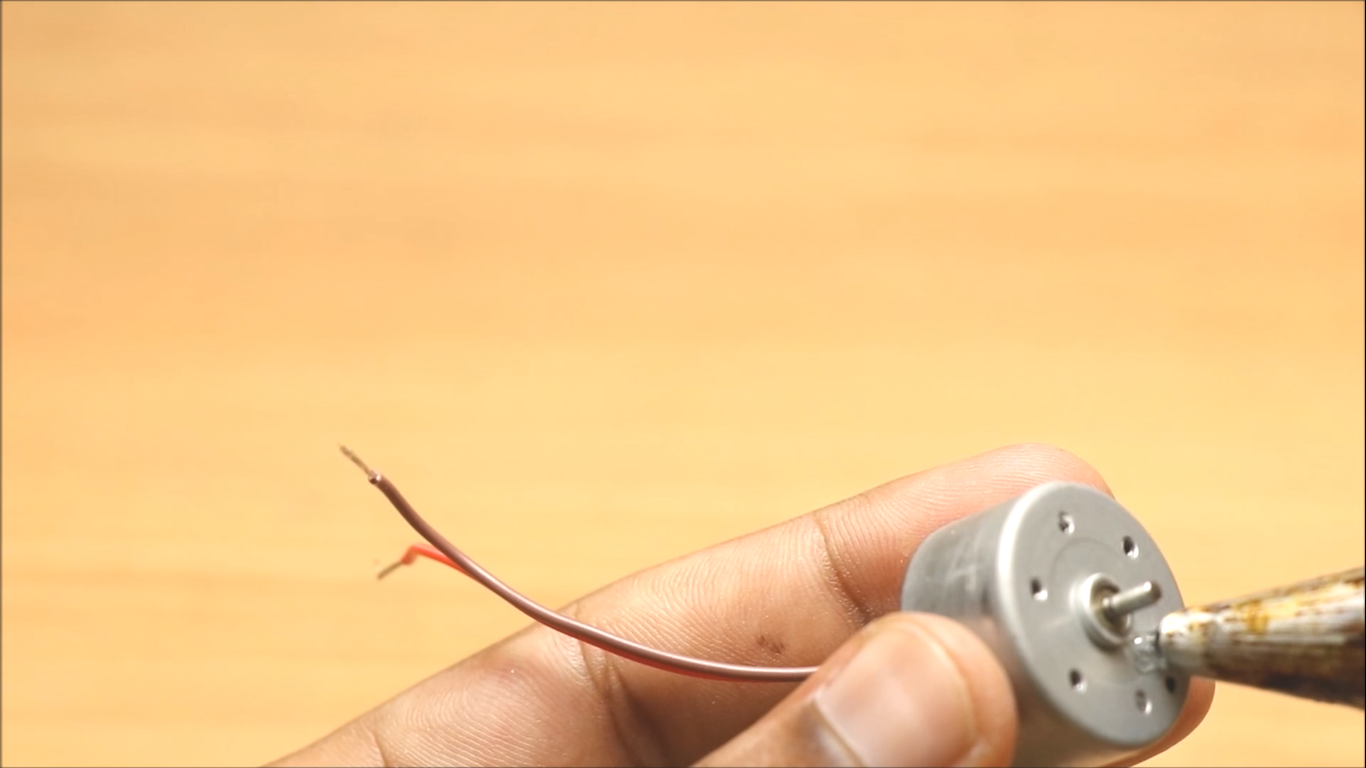

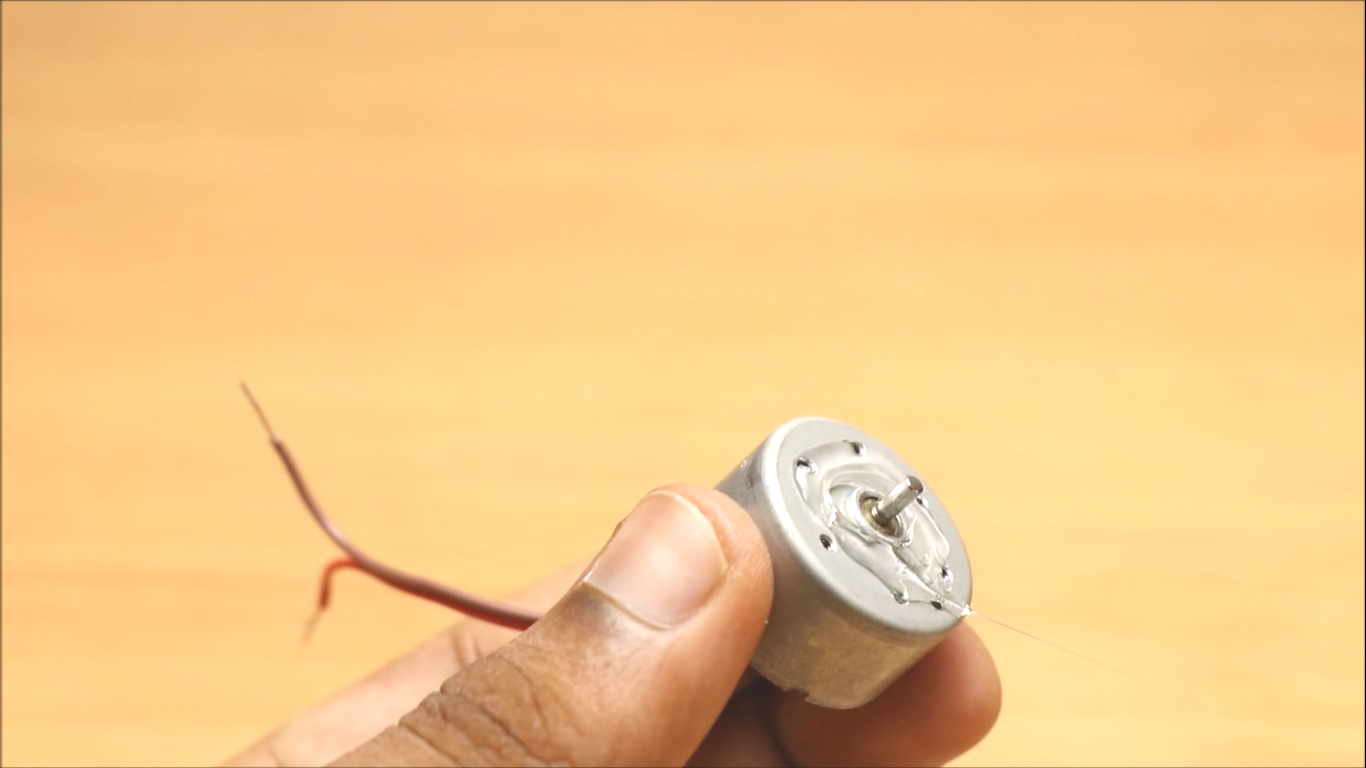

  • DC Motors

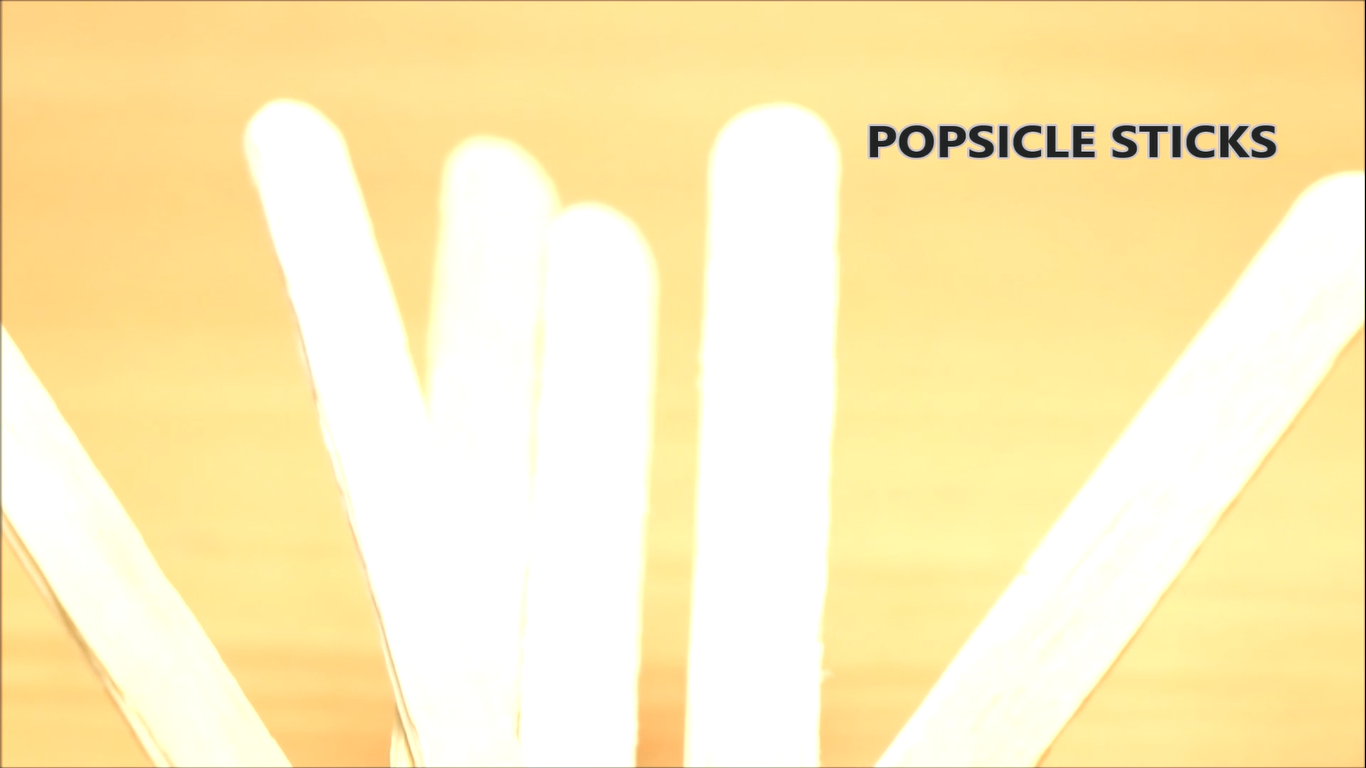

  • Popsicle Sticks
  • Wheels

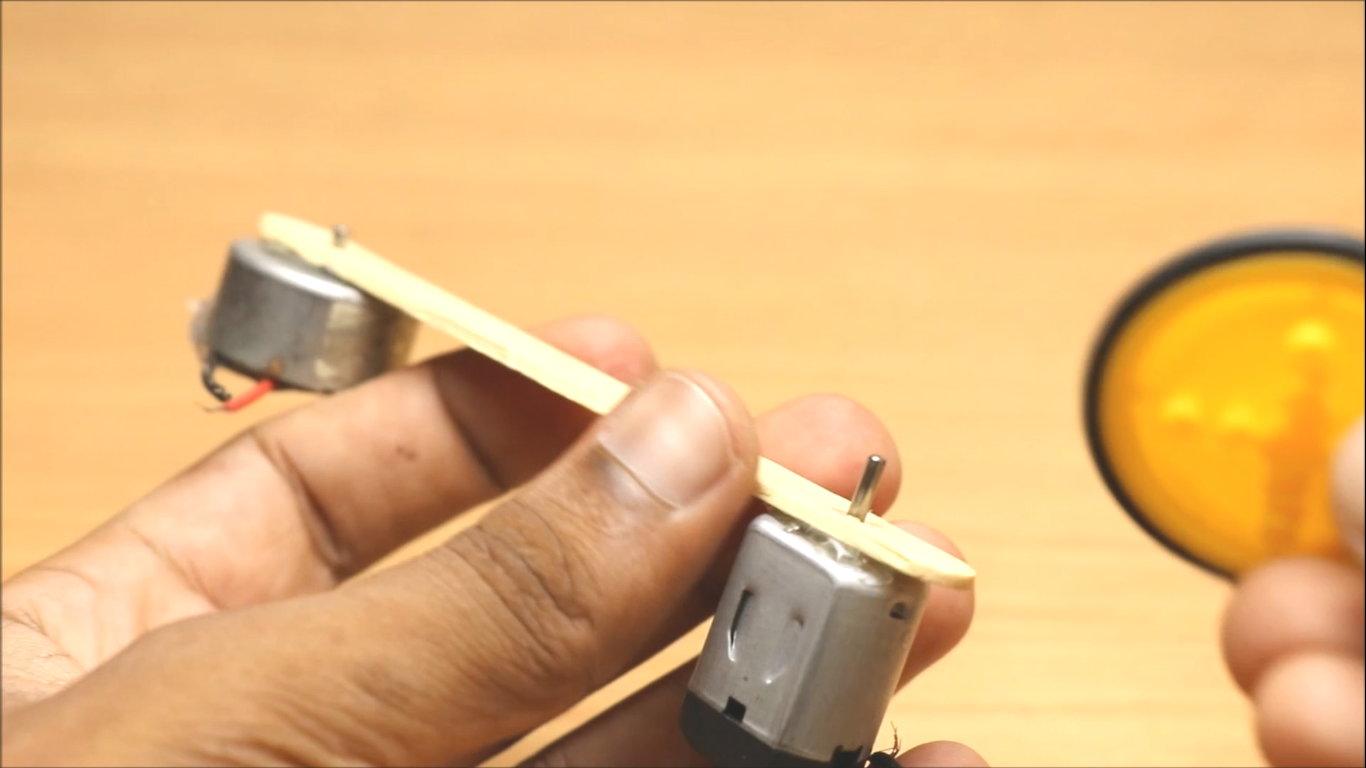

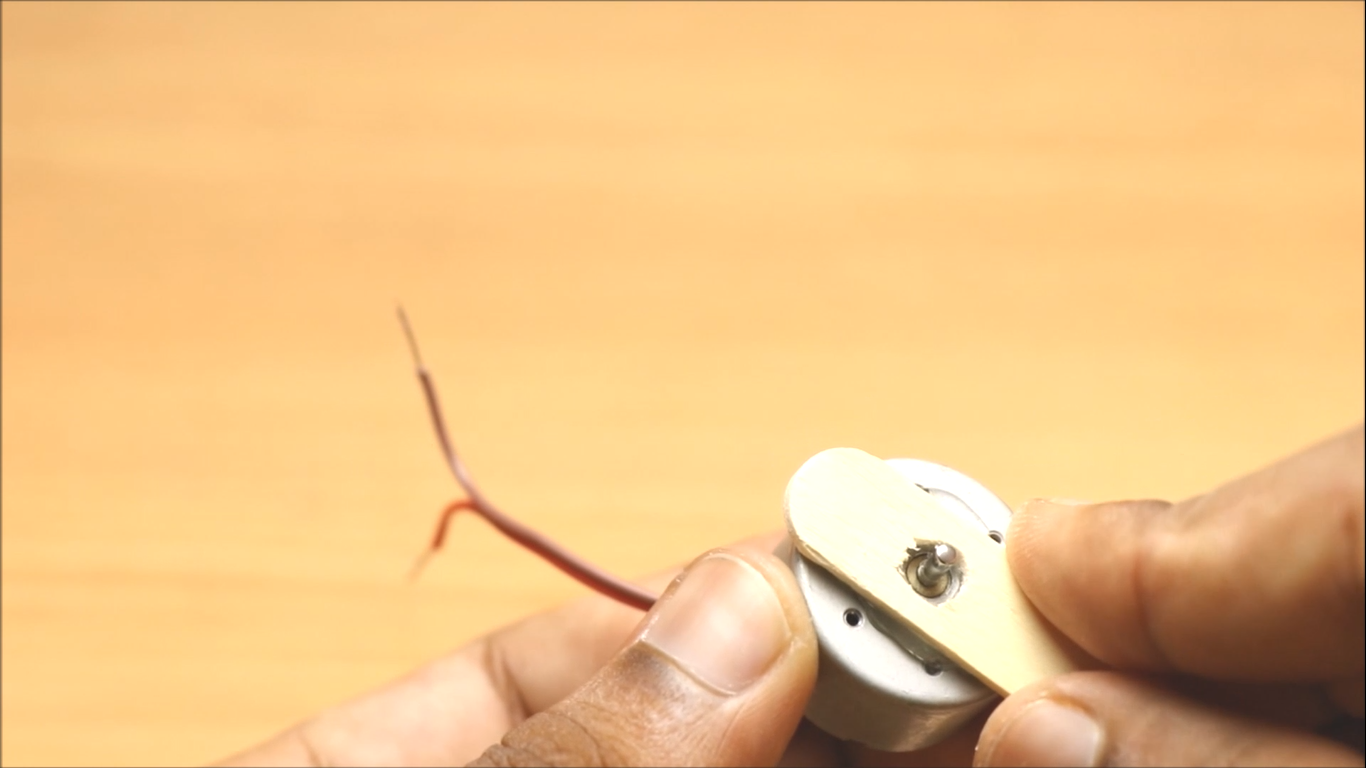

i have used 2 kinds of dc motors(since i didn't have 4 same types),motors are attached to the popsicle sticks,here popsicle stick will be the frame of our car

Wheels

rc car (6).png
rc car (7).png
rc car (9).png
rc car (10).png

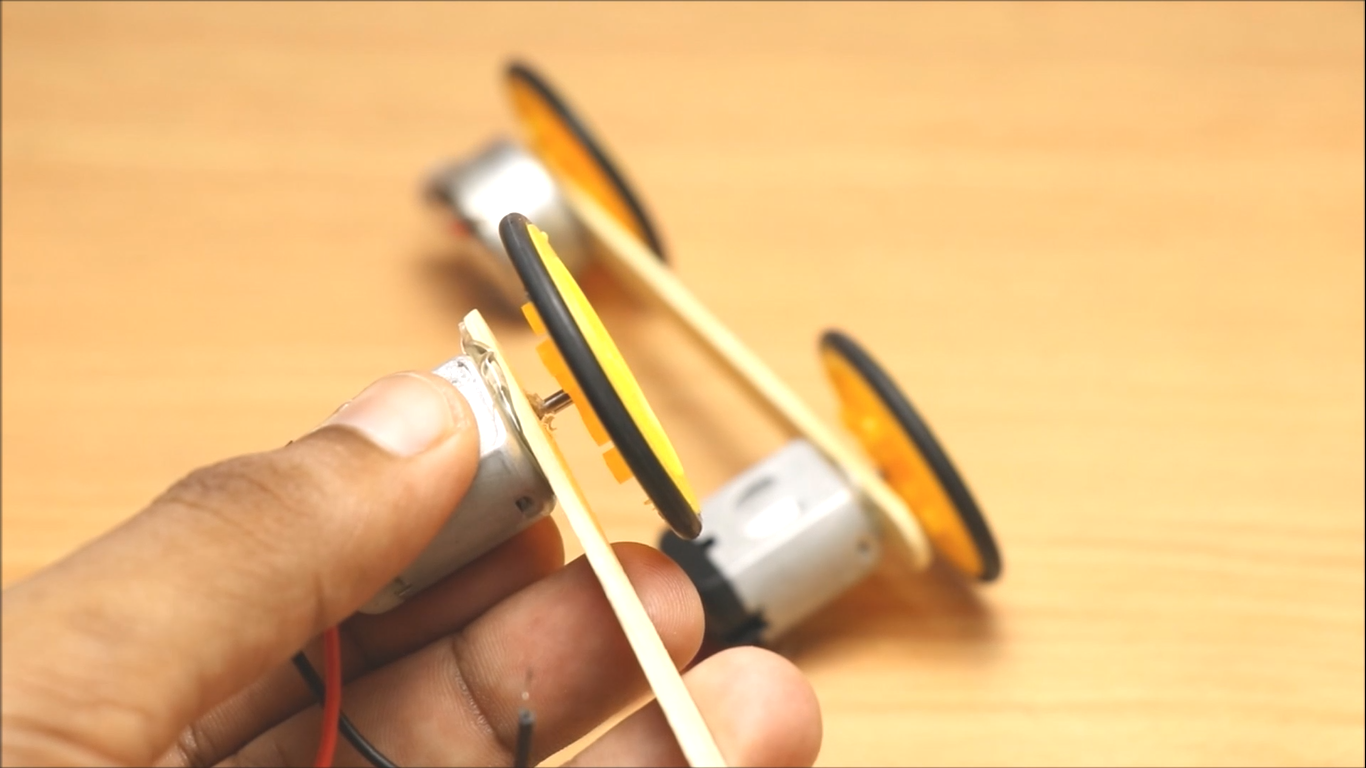

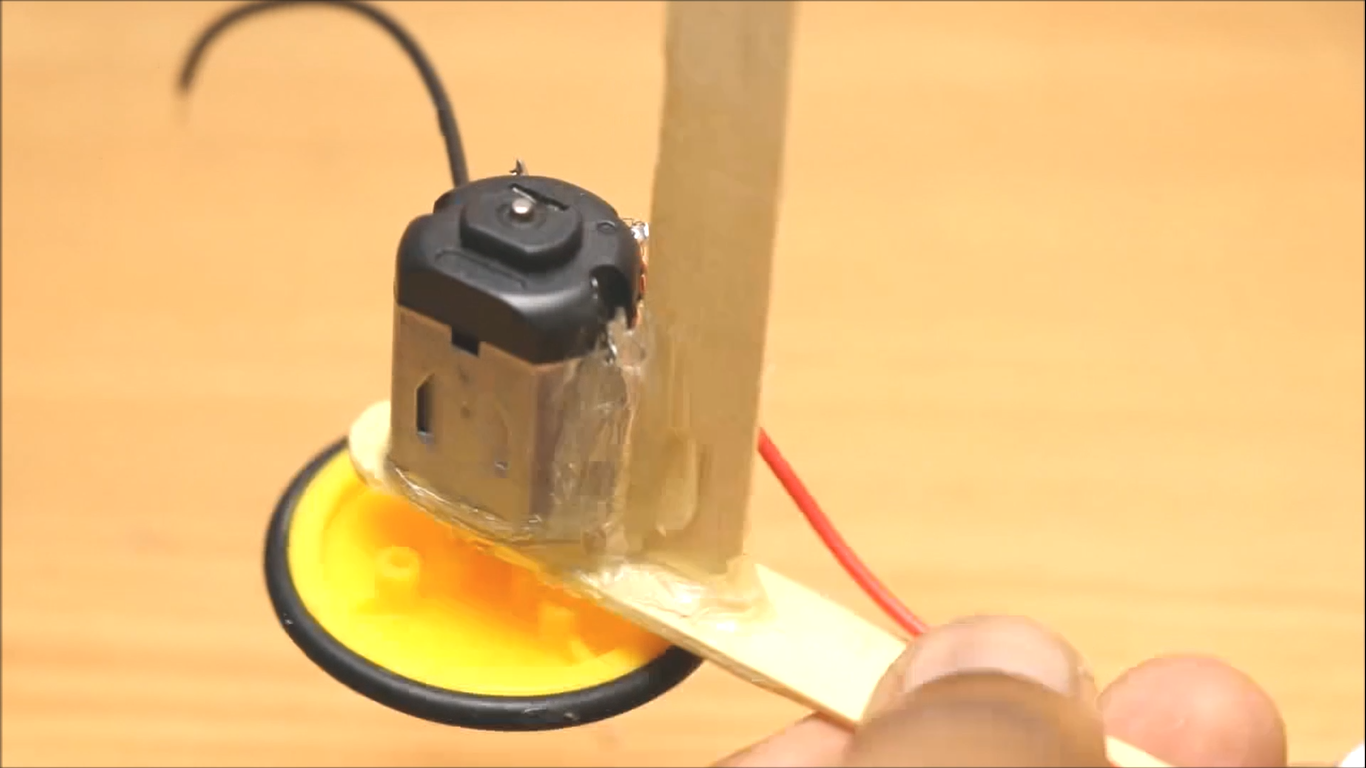

Since i've used 2 kinds of dc motors all 4 of them attached to the popsicle stick using hot glue and then wheels are attached

Securing the Motors

rc car (11).png
rc car (12).png
rc car (13).png

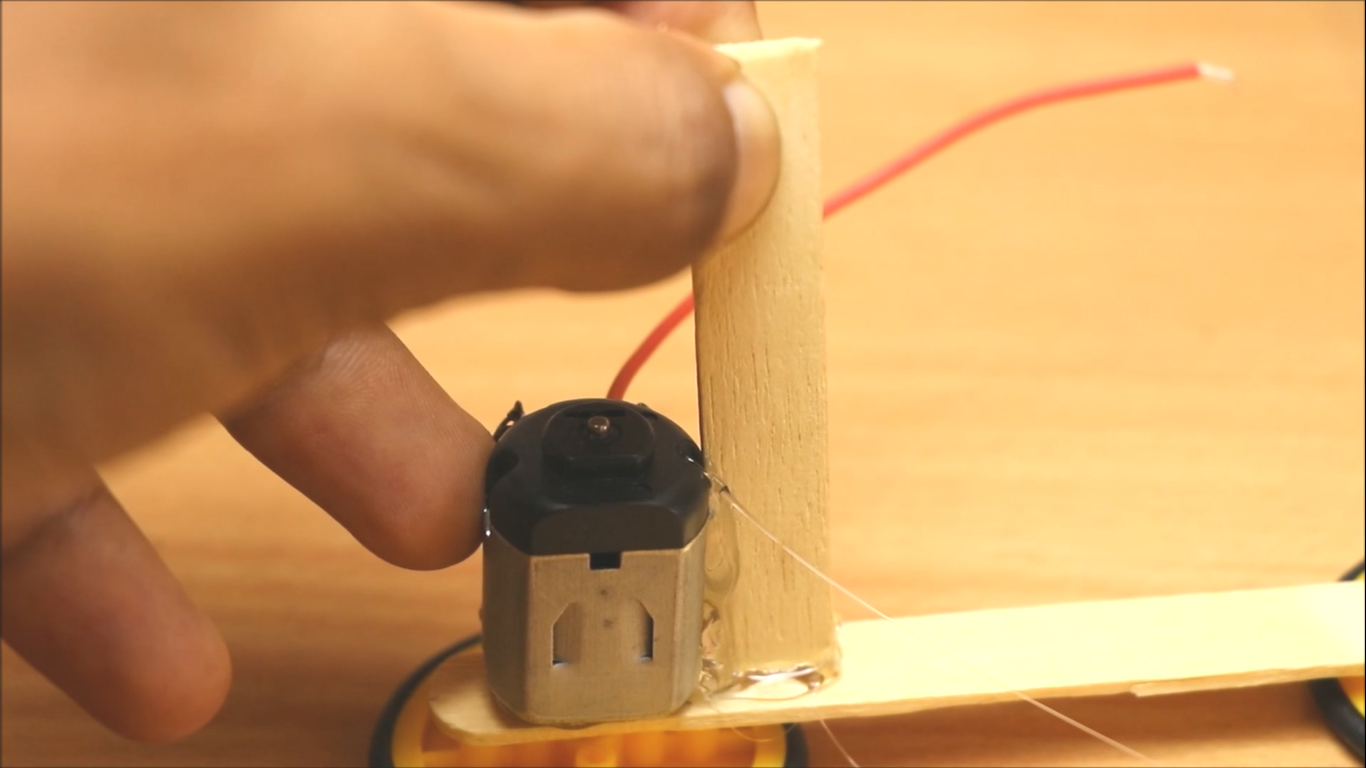

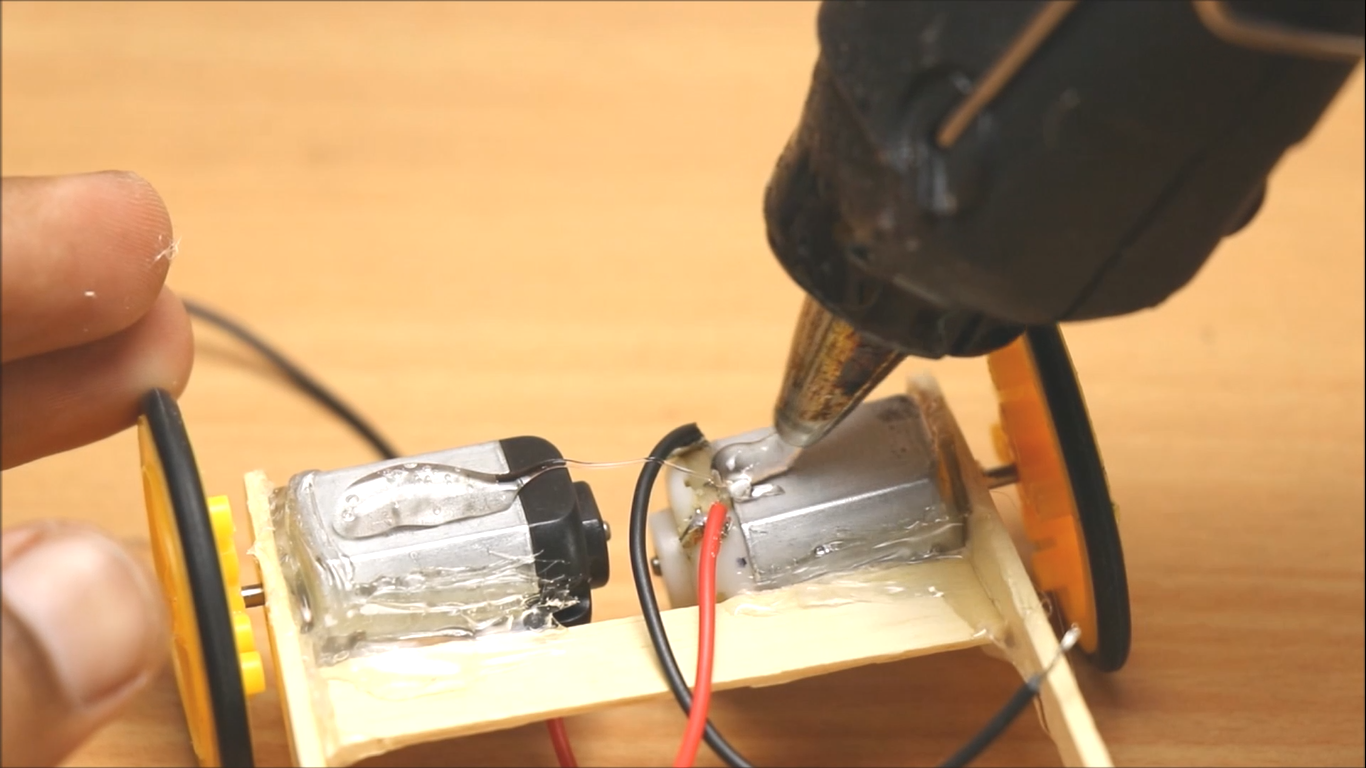

The motors are secured to the frame using lots of hot glue

Finishing Up Frame Work

rc car (16).png
rc car (18).png
rc car (17).png
rc car (19).png
rc car (20).png
rc car (21).png

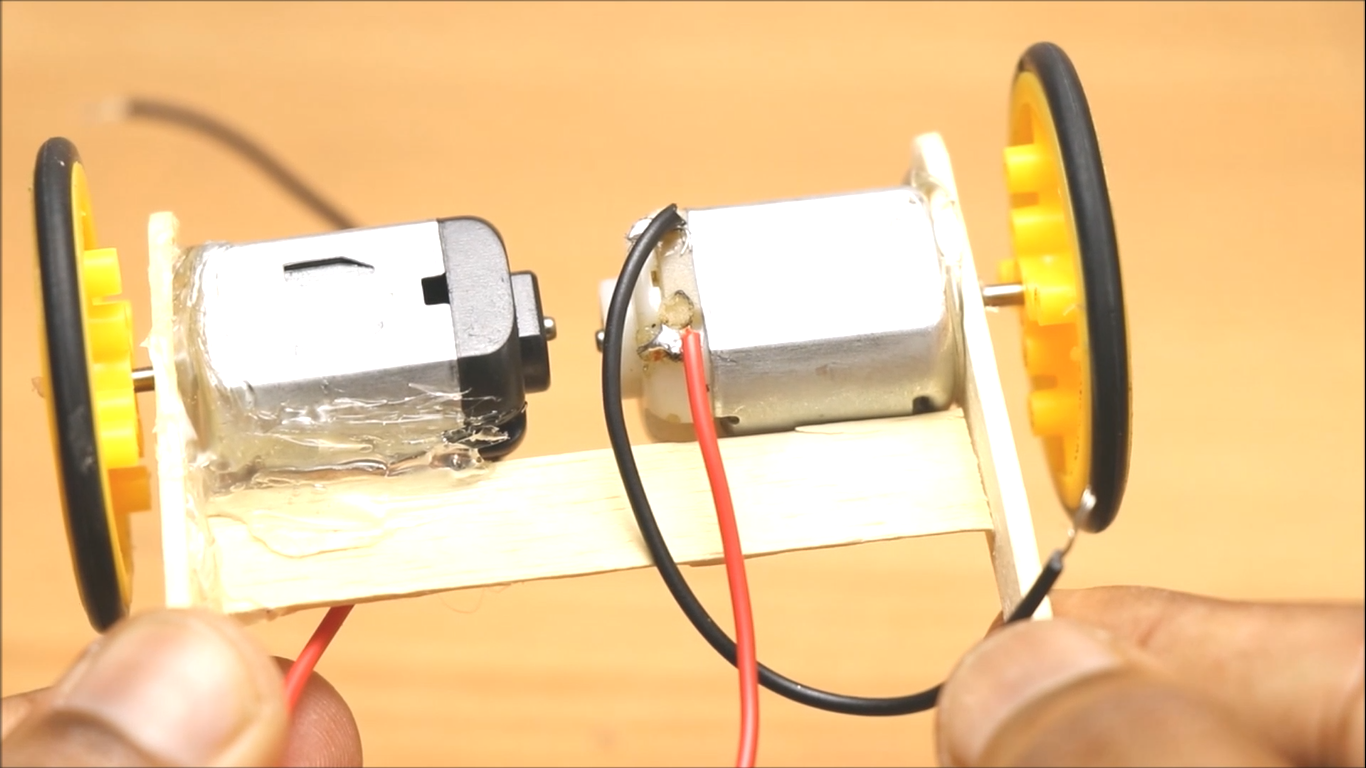

The frame work is finished by attaching extra supports

Wireless Receiver

rc car (22).png
rc car (23).png
rc car (25).png
rc car (27).png
rc car (31).png
rc car (33).png

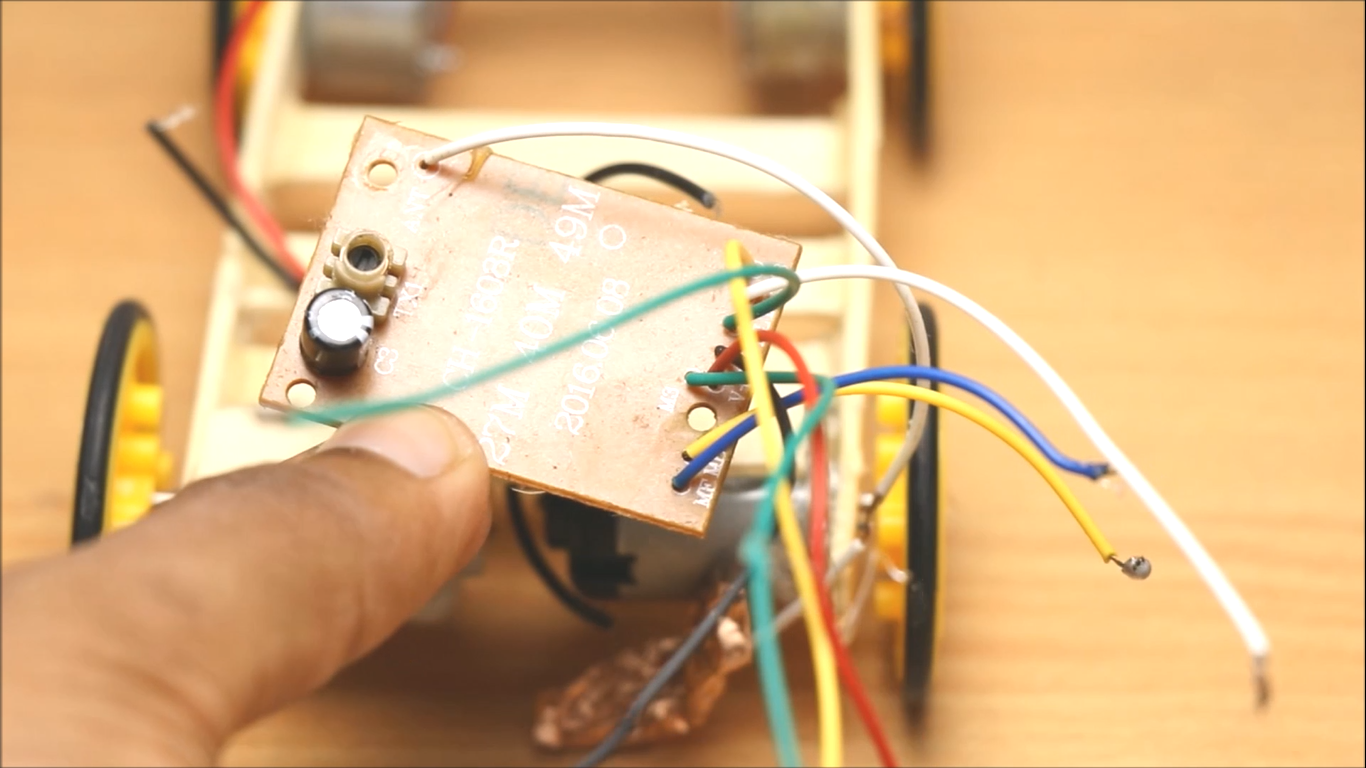

  • i used my spares of old rc car

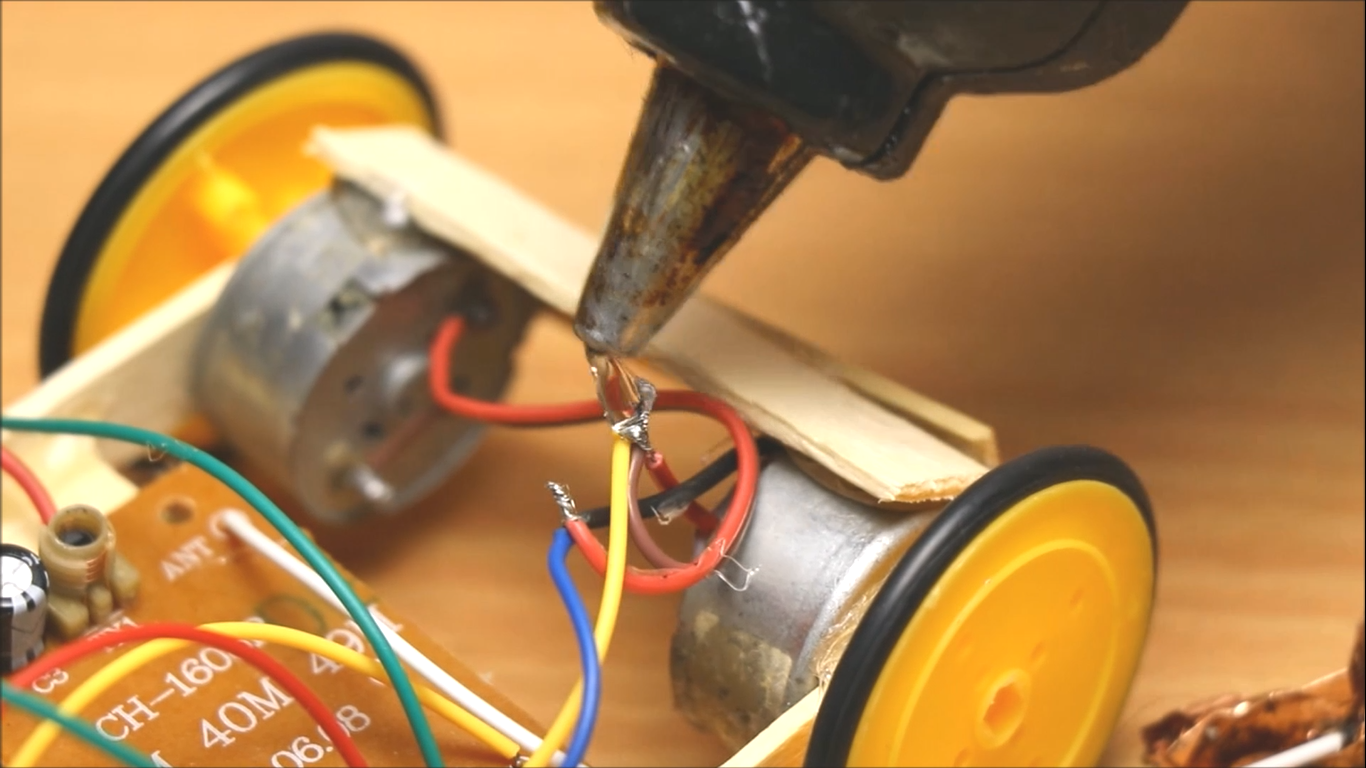

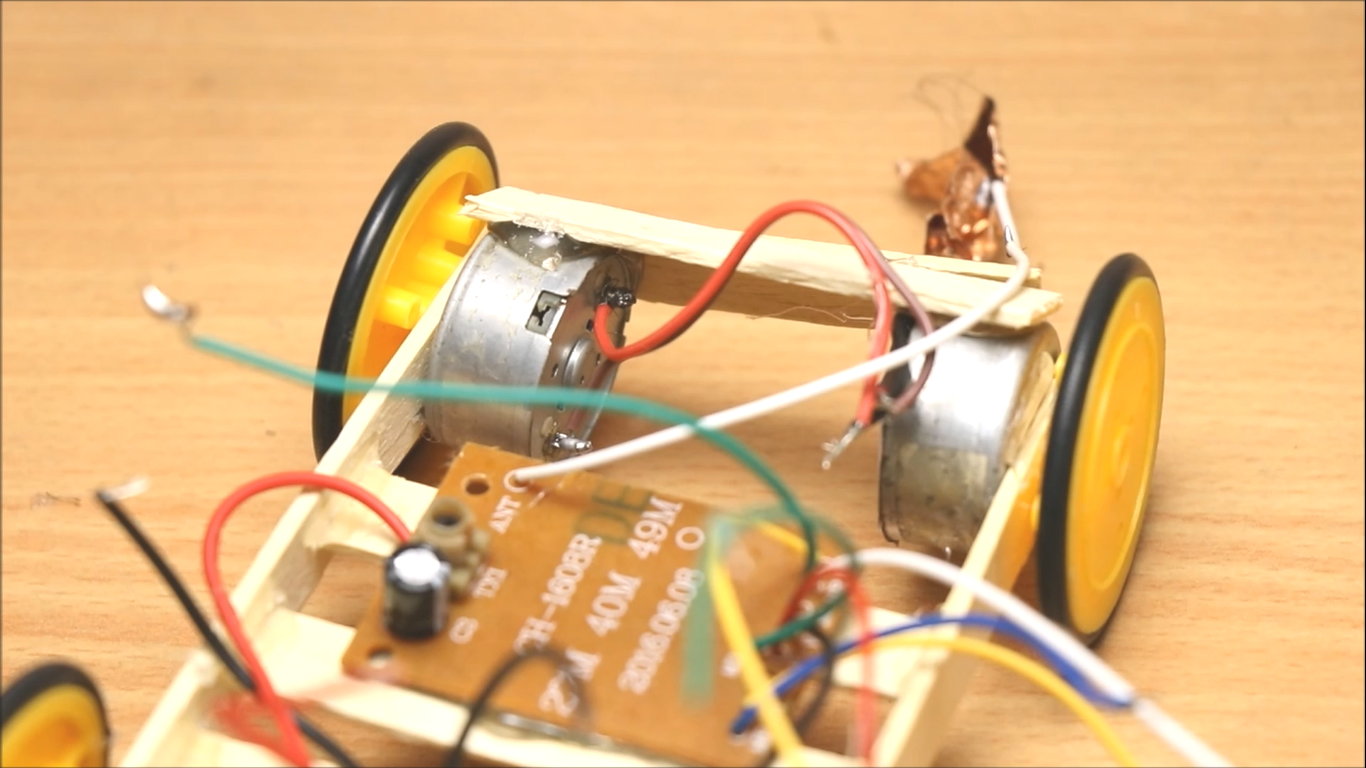

  • Connections between dc motors and receiver is made

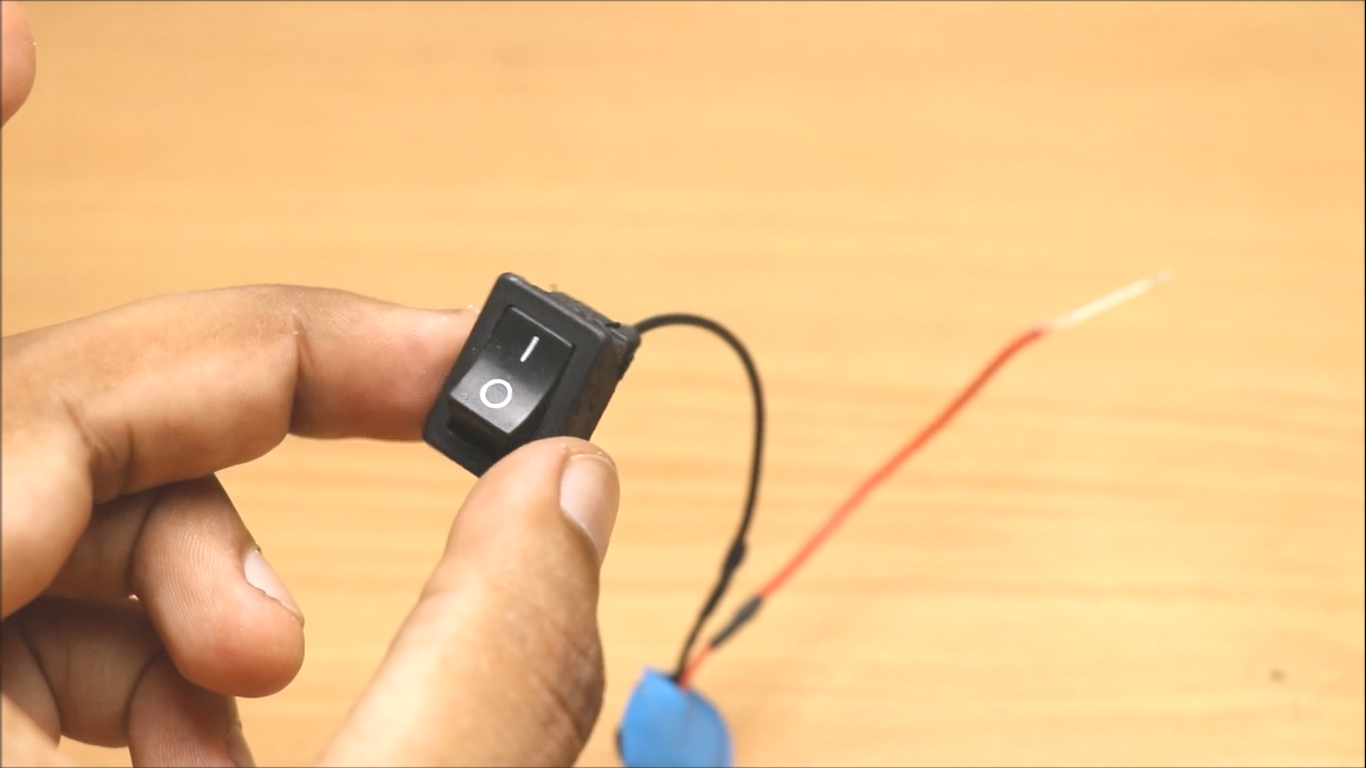

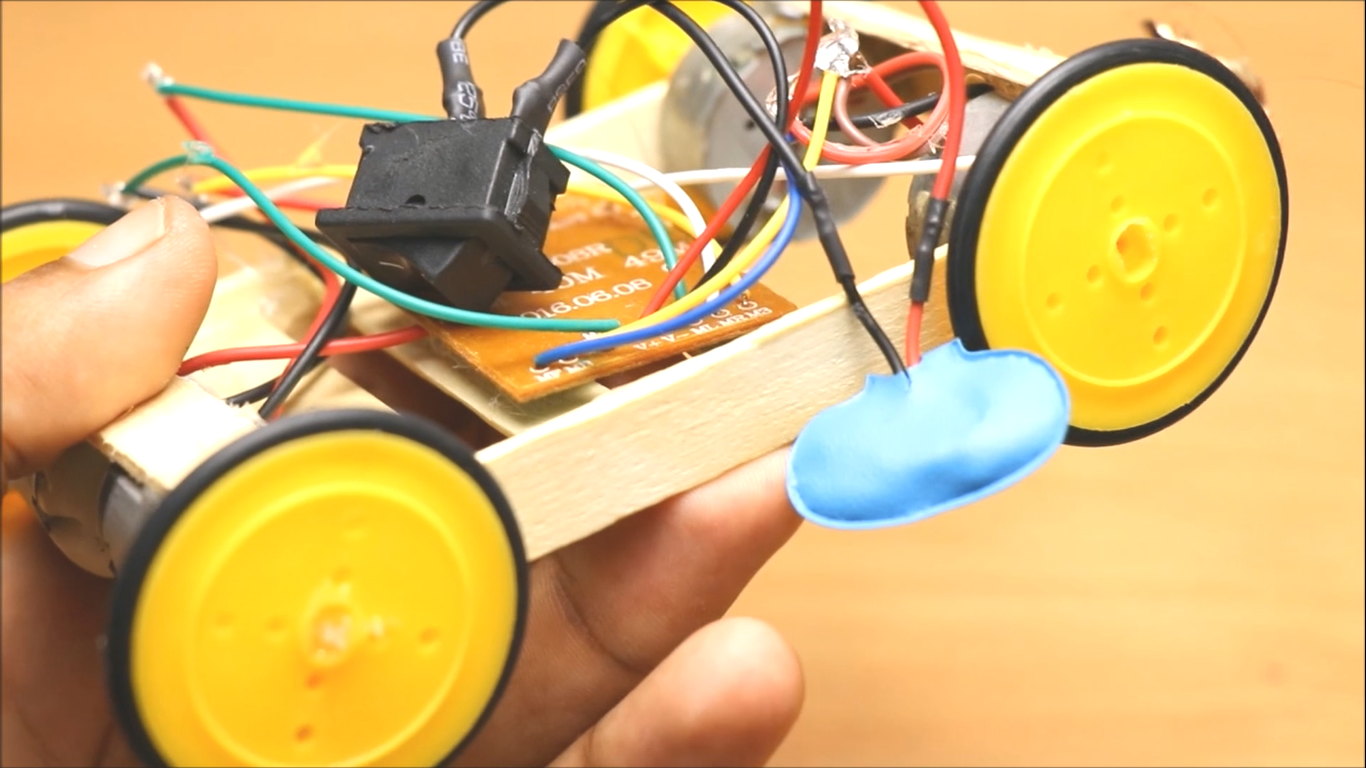

  • Battery along with switch is also added

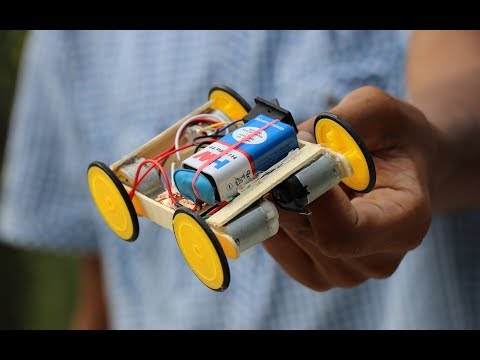

Rc Car Is Ready

rc car (36).png
rc car (38).png

  • RC CAR is tested
  • Transmitter/remote is used for controlling
  • joystick up and down leads for forward and backward motion
  • Left button is pushed turns powers only the single front wheel and the car takes a turn
