How to Make PS2 Keyboard Read Display System Based on Arduino

by ICStation in Circuits > Arduino

7603 Views, 25 Favorites, 0 Comments

How to Make PS2 Keyboard Read Display System Based on Arduino

ICStation Team introduce you this PS2 Keyboard read display system in details.The operating voltage of PS2 Keyboard read display system is DC 5V. When you press the keys of letters or numbers, the LCD1602 will display correspondingly and also can control the size of the letters.The advantages of using PS2 keyboard design are the automatic scanning, automatic identification, and automatic coding of the keyboard. Only when you press the keys, the data will be sent out, which reduces the burden of CPU. It is very convenient to use LCD1602 to display. It is a very simple and low-cost analog keyboard display system.

Functions:
1.when you press the keys of letter or number only, the LCD1602 will display the letter or number correspondingly.
2.when you press the keys of shift plus letter together,the LCD1602 will display the capital letter.

Components List


Hardware Schematic Diagram


Hardware Making Graphic Tutorials

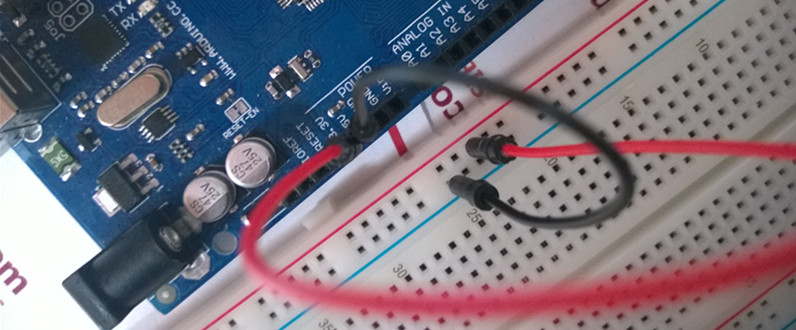

Draw forth the power line and ground wire from ICStation Mega 2560 development board. And the red breadboard plug wire is the power line and black one is the ground wire.

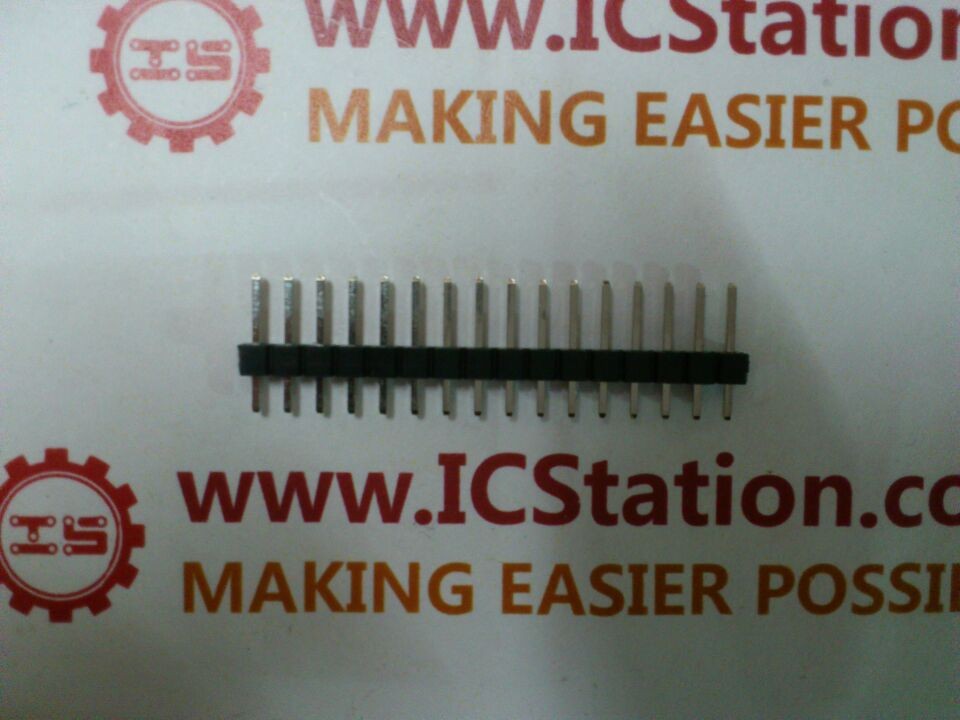

Decompose 16 Pins


Weld LCD1602


Weld the pins which have been decomposed to LCD1602

Connect the LCD1602 to the Bread Board

Put the welded LCD1602 into the bread board.

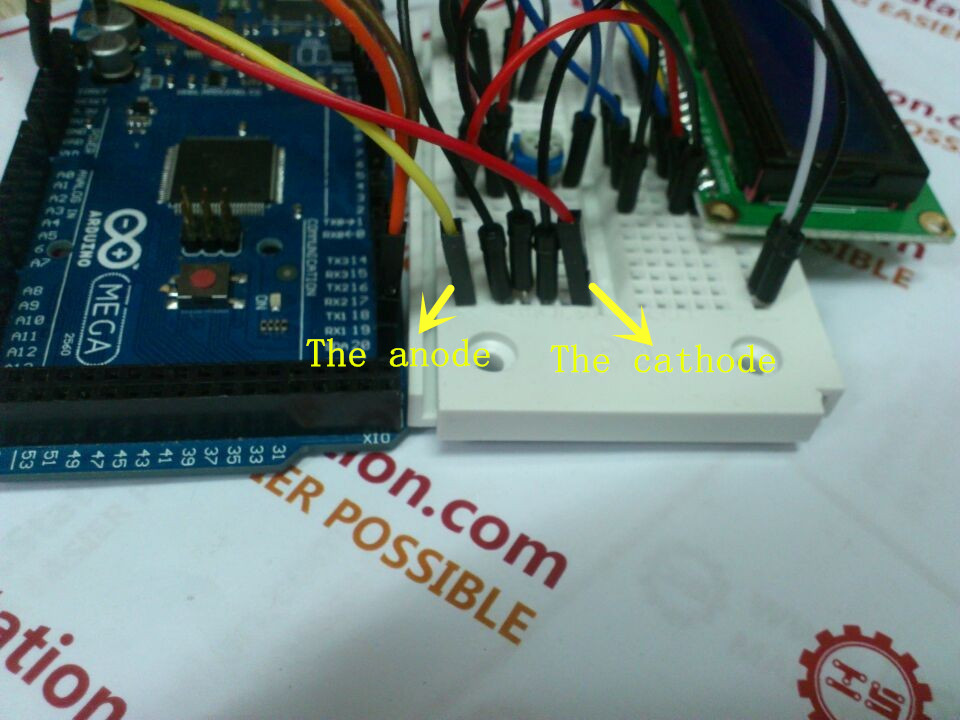

Connect the The Cathode and Anode to the Public Cathode and Anode.

According to the  schematic diagram,connect the pin 1 and pin 16 to the cathode and connect the pin 2 and pin 15 to the anode.The black represents cathode and the red represents anode.

Place the Slide Rheostat

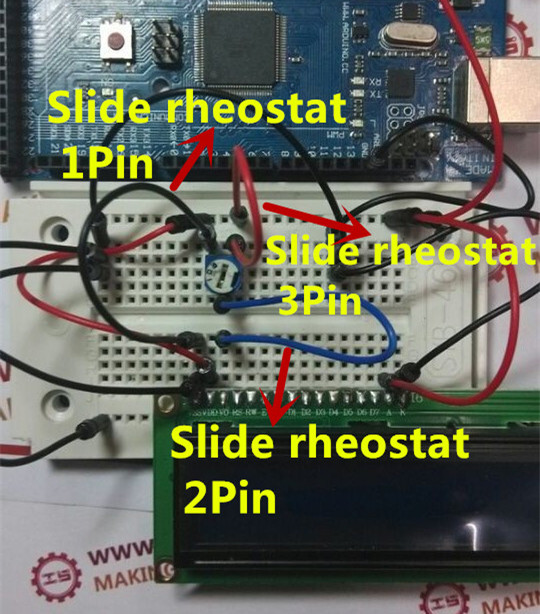

Connect the pin 1 of slide rheostat to the cathode and pin 3 to the anode, pin 2 to connect the pin 3 of LCD 1602

Connection Diagram of Slide Rheostat

Note: By adjusting the slide rheostat to control the brightness of LCD

Connect the Pin5 of 1602LCD to the Ground

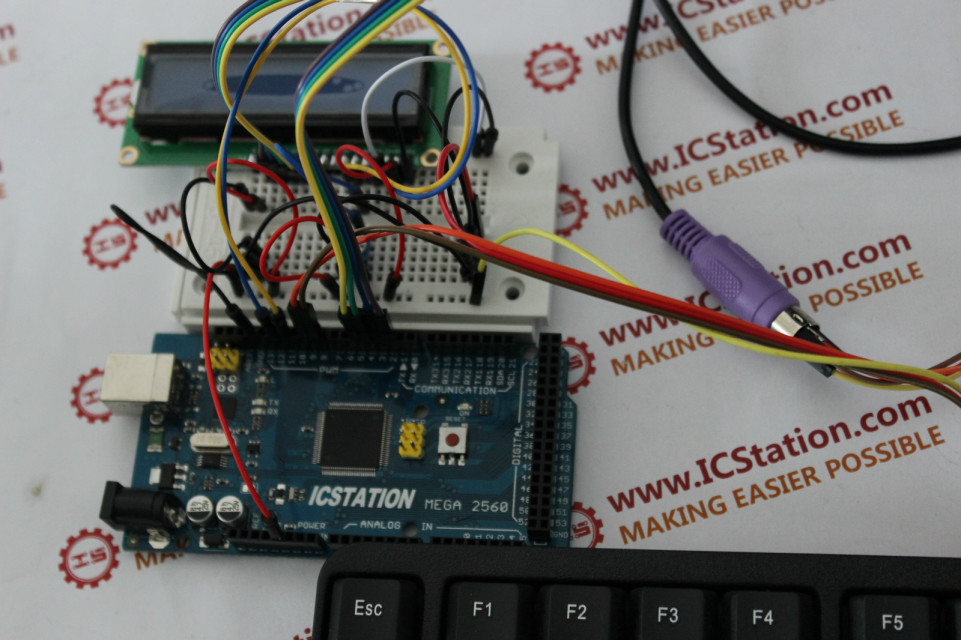

Connect the 1602LCD to the Mega 2560

Connect the pin 4 and pin 6 of 1602LCD respectively to the pin12 and pin 11 of ICStaion Mega 2560
Connect the pin 14、13、12、11 of 1602LCD respectively to the pin 5、4、3、2 of the ICStation Mega 2560

Schematic Diagram of PS2 Keyboard Port

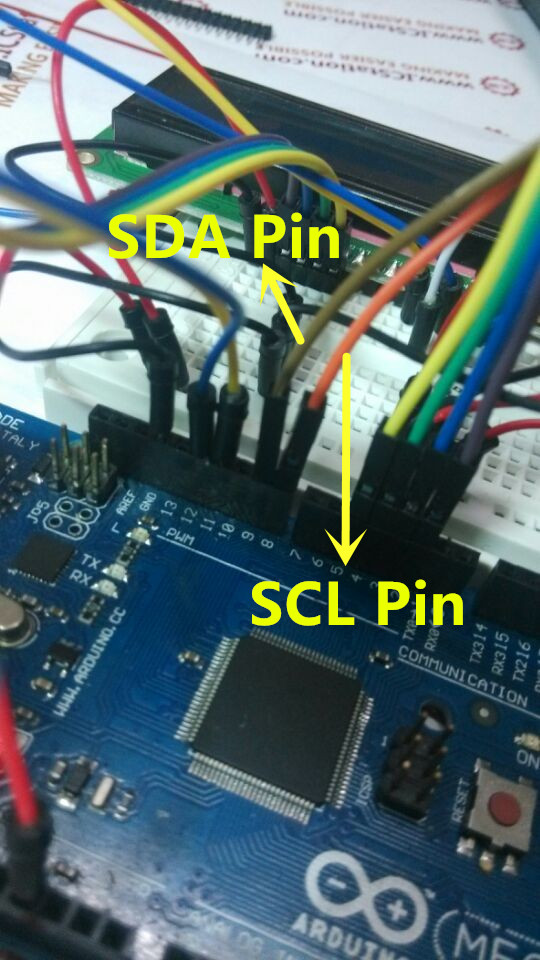

Connect the SDA port and SCL port of PS2 ports respectively to the pin 8、9 of the ICStation Mega 2560

NC represent no connection

PS2 Keyboard Interface Connection

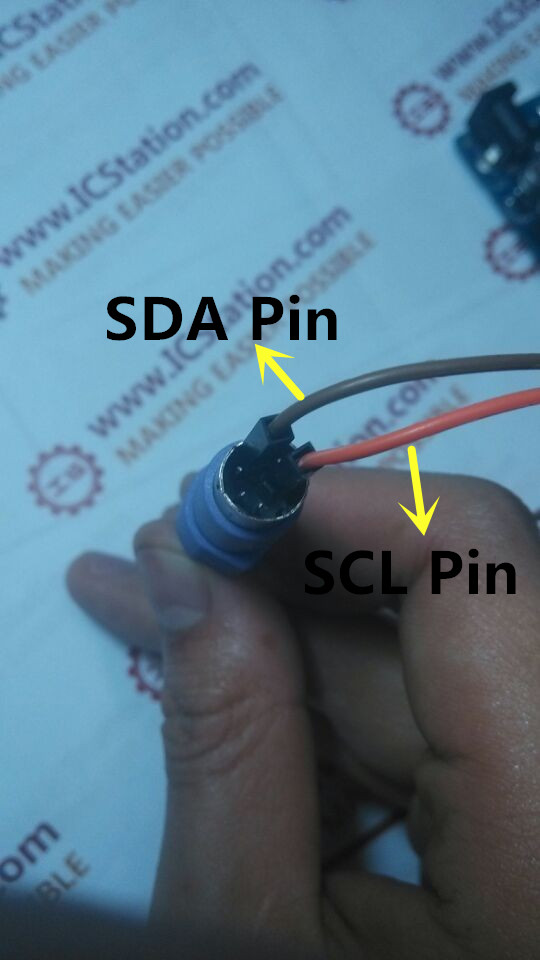

Connect the Port SDA and SCL of the PS2 Keyboard to the ICStation Mega


Connect the PS2 Keyboard to the Bread Board

According to the schematic diagram and PS2 keyboard port diagram, connect the cathode and anode of the PS2 keyboard to the cathode and anode of breadboard.

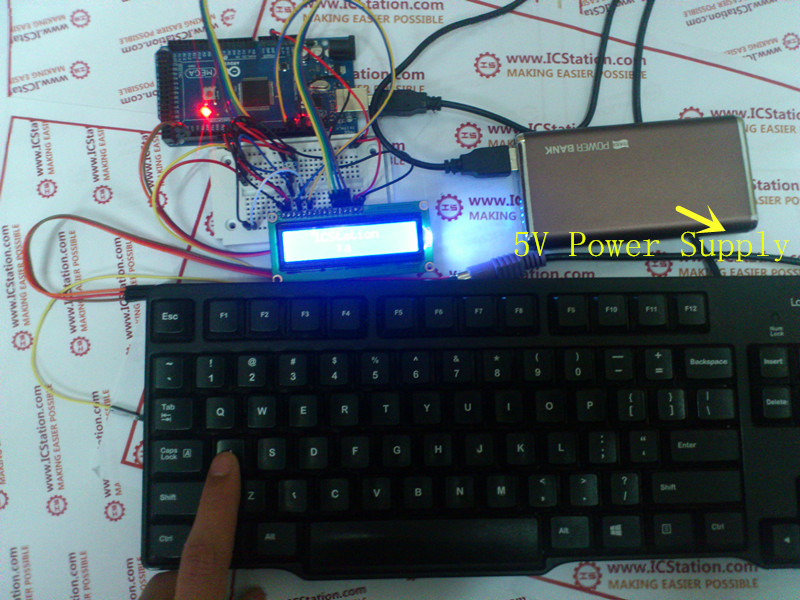

Experimental Effect (Provided Code)


Video to Show the Effect
