How to Make PENCIL Sharpener MACHINE From Cardboard DIY at Home/SCHOOL

by diy_ocean in Design > Art

3522 Views, 2 Favorites, 0 Comments

How to Make PENCIL Sharpener MACHINE From Cardboard DIY at Home/SCHOOL

How to make PENCIL Sharpener MACHINE from cardboard DIY at Home/SCHOOL

Materials you will need-

-Cardboard

-100 RPM DC Motor

-Glue Gun

-Wire

-Sharpener

-Bottle cap

-9V battery

-On/Off switch

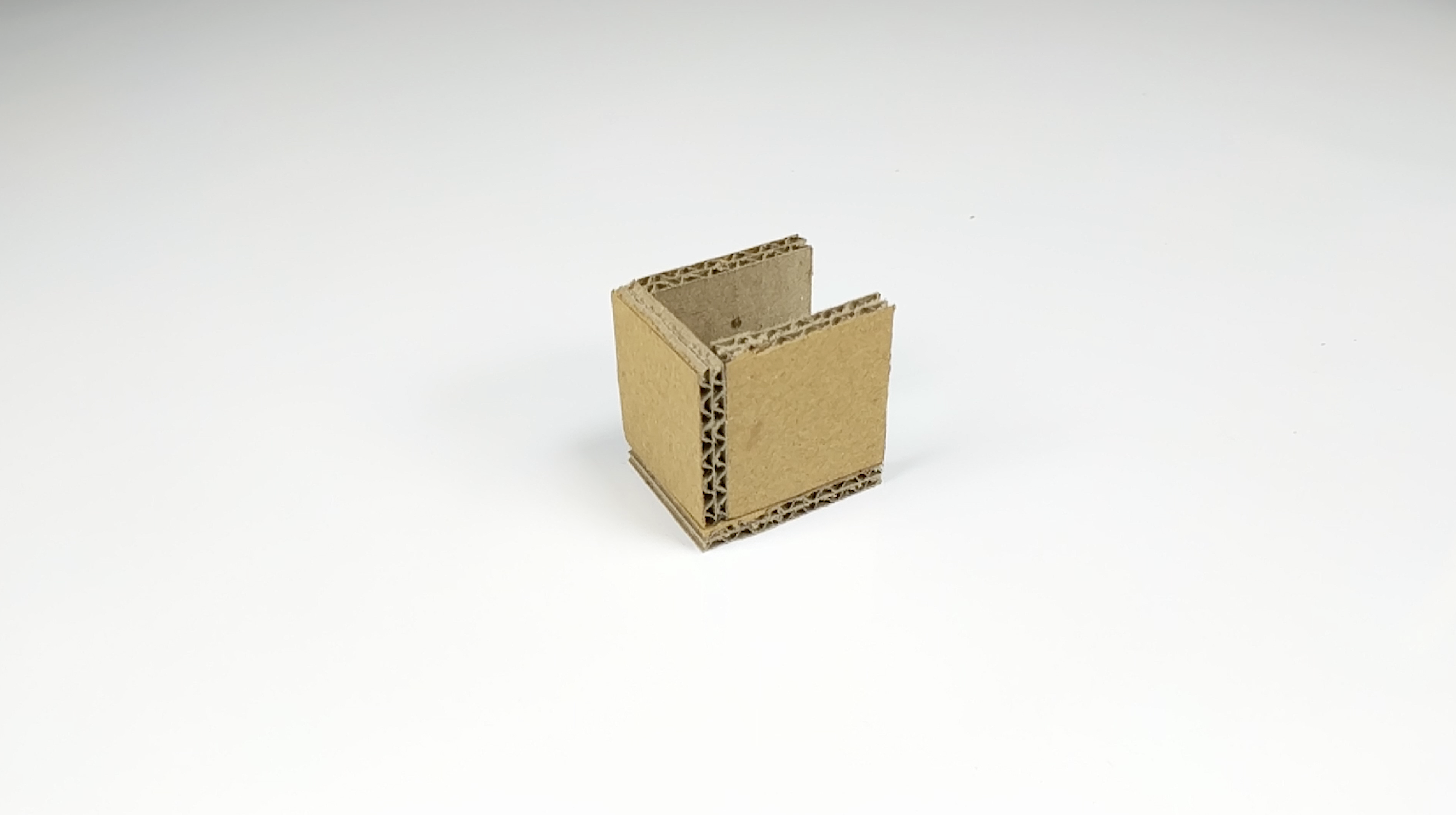

Take 2 Square Pieces of Cardboard, 5cm Each, and Stick Them on Either Side of the DC Motor As Shown.

Screen Shot 2018-10-17 at 12.19.03 PM.png
Screen Shot 2018-10-17 at 12.19.16 PM.png
Screen Shot 2018-10-17 at 12.19.32 PM.png
Screen Shot 2018-10-17 at 12.19.49 PM.png

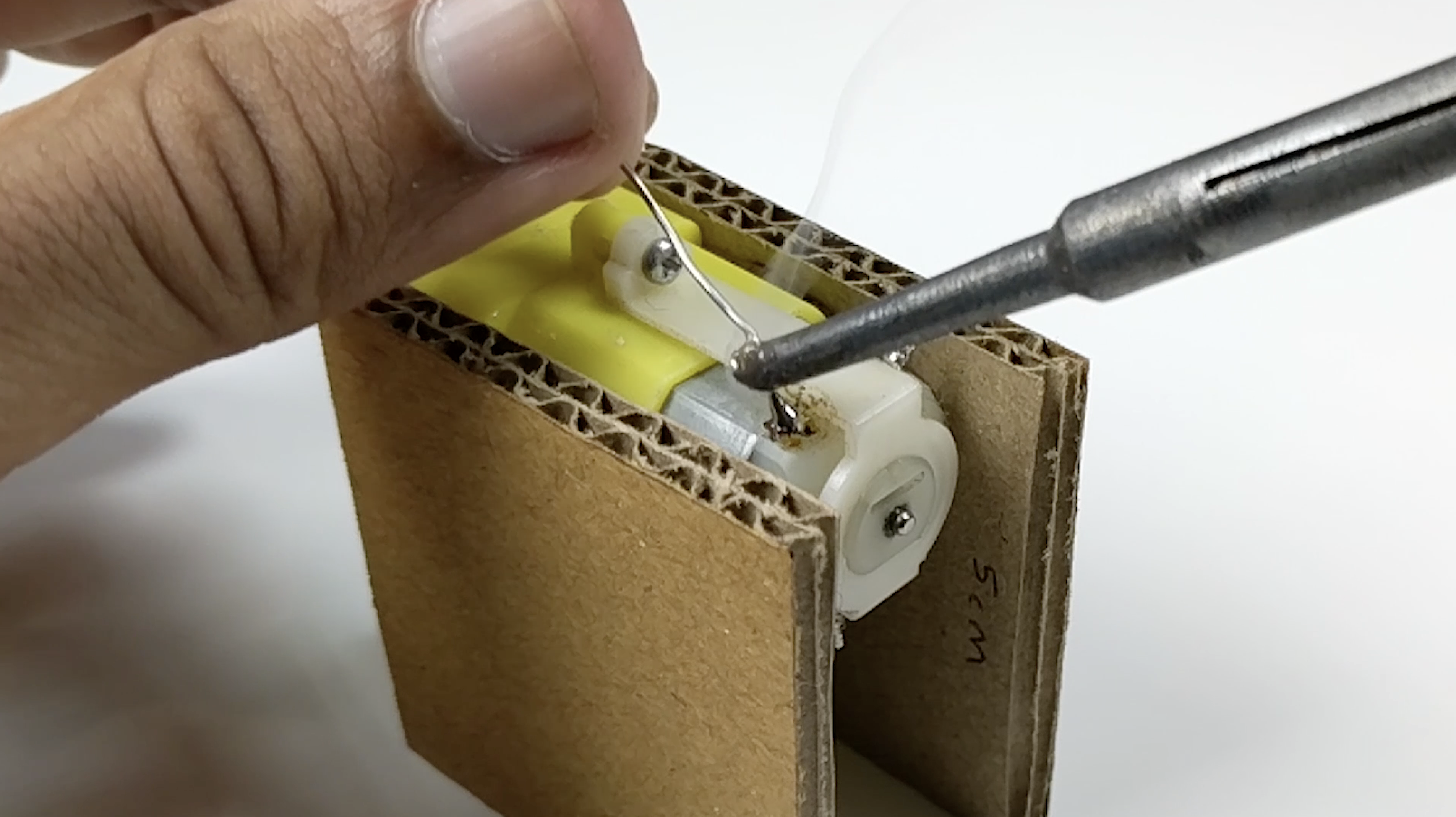

Do the Soldering Process As Shown.

Screen Shot 2018-10-17 at 12.20.22 PM.png

Cover the Top With a 5cm * 3.5cm Cardboard Piece, Which Has a Square Hole As, Shown.

Screen Shot 2018-10-17 at 12.21.03 PM.png
Screen Shot 2018-10-17 at 12.21.31 PM.png
Screen Shot 2018-10-17 at 12.21.46 PM.png

On the Sharpener, Make a Dot Where the Tip of the Pencil Will Be.

Screen Shot 2018-10-17 at 12.22.39 PM.png

Glue the Bottle Cap to the Motor As Shown. Fix the Sharpener Over the Bottle Cap Vertically As Shown. Match the Dot With the Centre of the Shaft.

Screen Shot 2018-10-17 at 12.22.59 PM.png
Screen Shot 2018-10-17 at 12.23.12 PM.png
Screen Shot 2018-10-17 at 12.23.29 PM.png

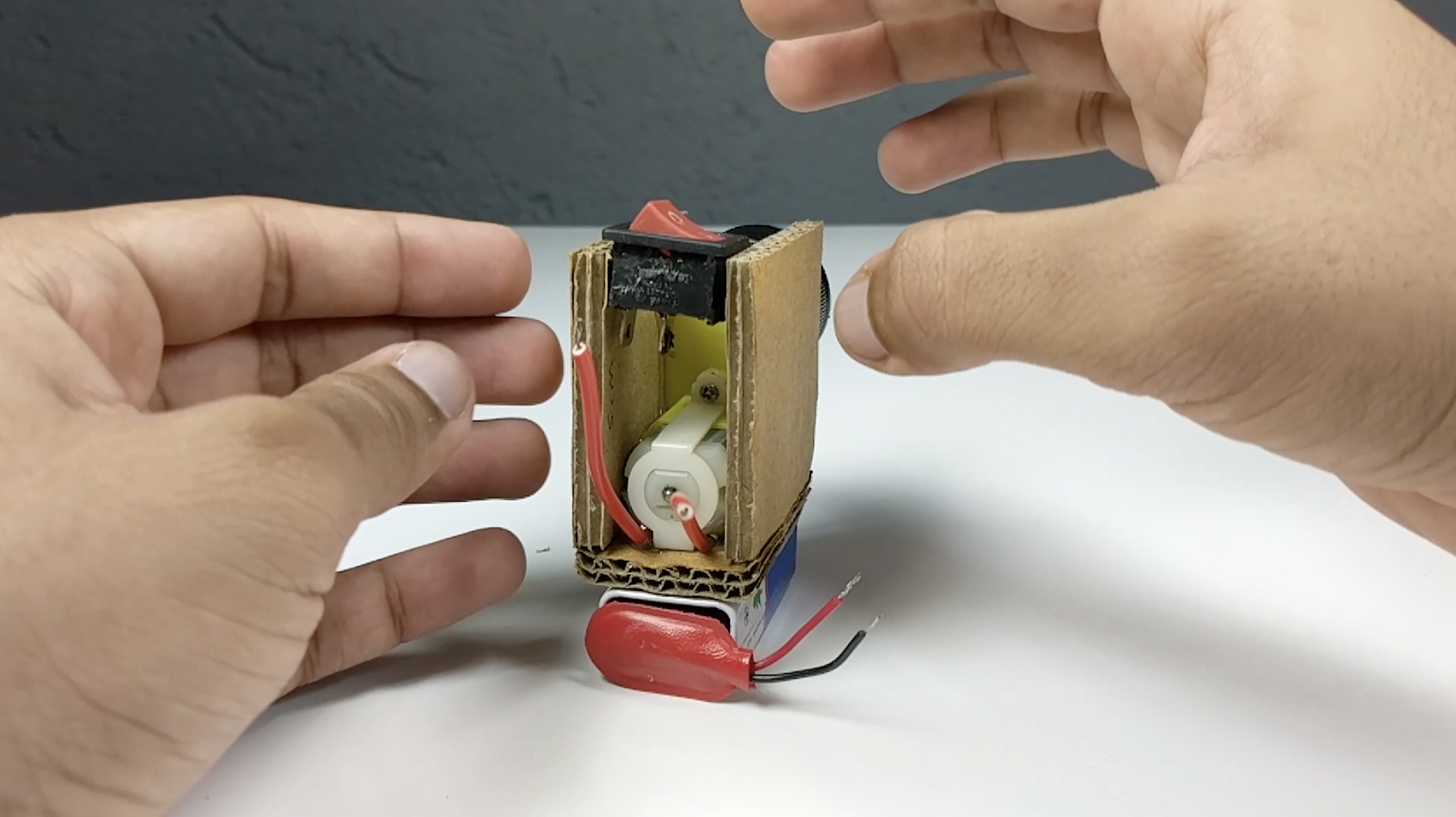

Glue the Battery to the Cardboard. Place the On/off Switch As Shown, and Connect It to the Wire of the Motor. Connect Them to the Battery.

Screen Shot 2018-10-17 at 12.23.48 PM.png
Screen Shot 2018-10-17 at 12.24.23 PM.png
Screen Shot 2018-10-17 at 12.25.06 PM.png
Screen Shot 2018-10-17 at 12.25.25 PM.png
Screen Shot 2018-10-17 at 12.31.48 PM.png

Take a 10cm * 8cm Piece of Cardboard. Glue It to a 10cm * 3.5cm Piece of Cardboard As Shown.

Screen Shot 2018-10-17 at 12.32.32 PM.png
Screen Shot 2018-10-17 at 12.32.52 PM.png
Screen Shot 2018-10-17 at 12.33.15 PM.png

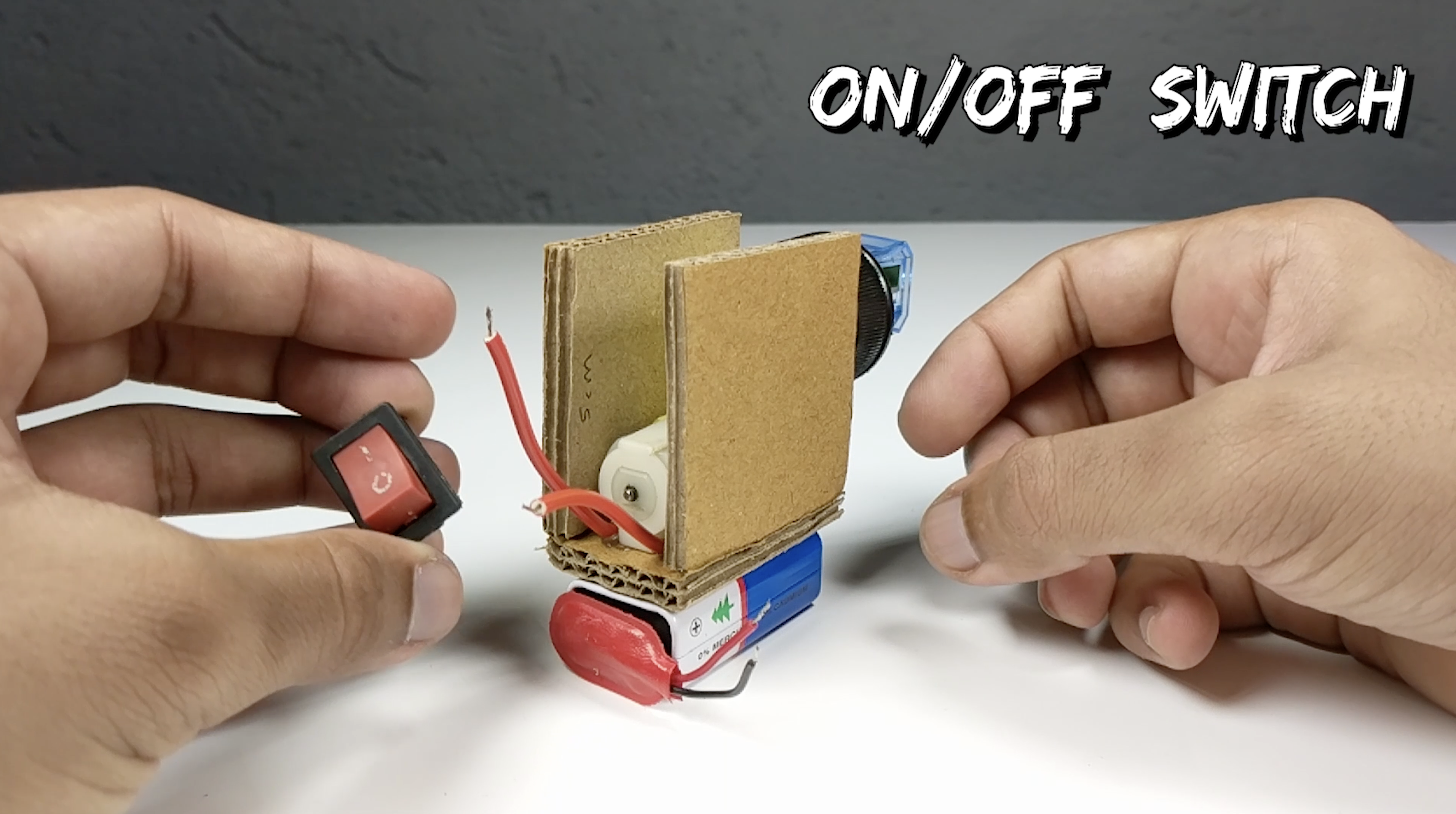

Take a 10cm * 4.5cm Piece of Cardboard With a Slot for the On/off Switch and Glue It to the Top As Shown. Place the Switch.

Screen Shot 2018-10-17 at 12.33.57 PM.png
Screen Shot 2018-10-17 at 12.34.17 PM.png

Cover the Back Side With a 7.5cm * 3.5cm Piece of Cardboard.

Screen Shot 2018-10-17 at 12.34.29 PM.png

Make the Following Cardboard Cutouts of the Given Measurements. Glue Them Together As Shown. Place This Box Inside the Sharpener Machine.

Screen Shot 2018-10-17 at 12.34.41 PM.png
Screen Shot 2018-10-17 at 12.35.05 PM.png
Screen Shot 2018-10-17 at 12.35.48 PM.png

Cover the Front With 2 Cardboard Pieces of the Given Measurements. Make a Hole in the Top Piece to Insert the Pencil.

Screen Shot 2018-10-17 at 12.35.21 PM.png
Screen Shot 2018-10-17 at 12.36.10 PM.png
Screen Shot 2018-10-17 at 12.37.06 PM.png

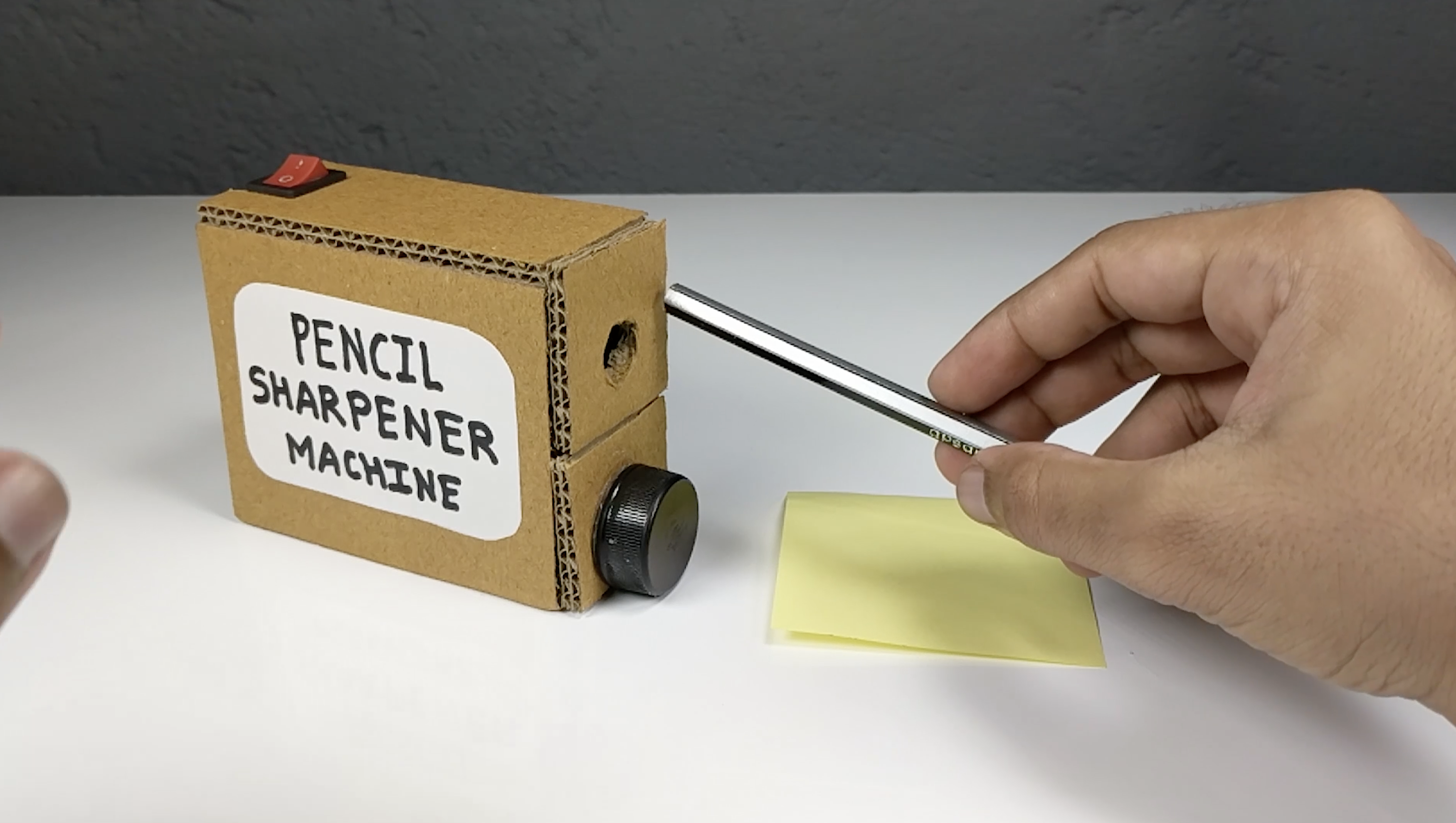

Stick a Bottle Cap to the Bottom Piece to Act As a Knob. Label As Desired. Your Pencil Sharpener Machine Is Ready!

Screen Shot 2018-10-17 at 12.37.30 PM.png

Watch the Video for a Detailed Tutorial!
