How to Make Mini Home Made CNC Machine Arduino+28BJY-48 Stepper Motor

This is mini CNC have approx 100mm X 100mm plotting are,

I have used 28BJY-48 Stepper motor to build this machine this stepper motors drive by L293D Motor shield and arduino.

This machine is very easy to build at your own all necessary instructions are provided in post, you can try your own ideas to get something new.

I have used regularly available hardware to build this machine no need to buy any high end components just be creative.

Watch the complete video it covers all the necessary instruction to build this mini CNC machine

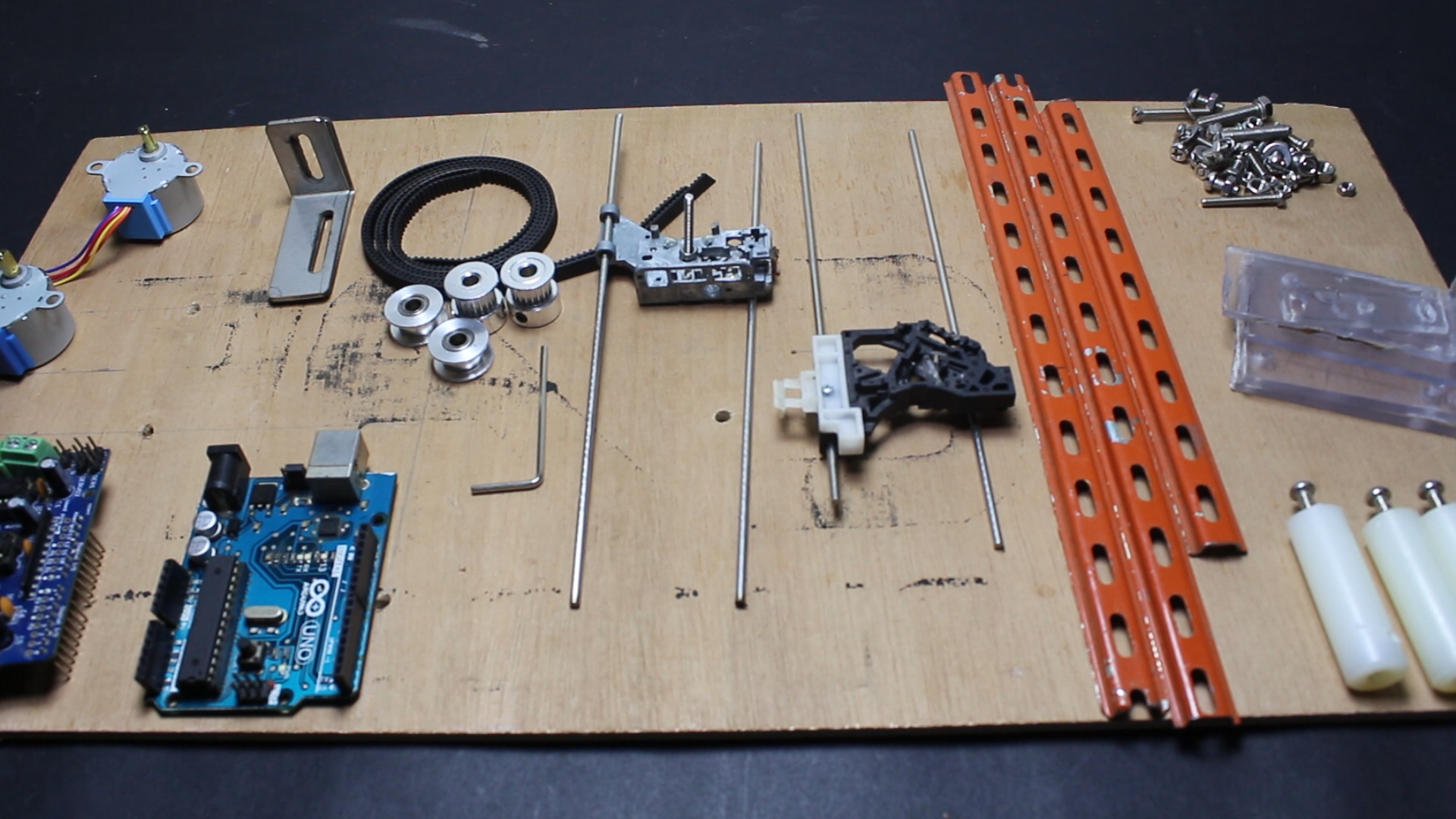

Hardware

28BJY-48 Stepper motor :- http://amzn.to/2wCPqI0

Arduino UNO :- http://amzn.to/2wsvIhB

L2938 Motor shield :- http://amzn.to/2wsvIhB

GT2 Timing belt 2meter :- http://amzn.to/2wsvIhB

GT2 Pulley 2nos. :- http://amzn.to/2vbmLJE
Idler Pulley 2nos :- http://amzn.to/2wCuykd

Bike spoke for Guide Rails approx. 3mm dia.

DVD drive slider for platform of X-axis & Y-axis

Some Acrylic Hollow tubes

Some Acrylic Sheet pieces

Slotted channel approx. 1mtr

Nut bolts as required

Software

Arduino IDE (Version 1.6.3) (https://www.arduino.cc/en/Main/Software)

Processing IDE (Version 3.0.2) (https://processing.org/download/?processing)

Inkscape (version 0.48.5) (https://inkscape.org/en/download/)

Go to link to download the particular software select software pack according to you system

**NOTE:- Inkscape version must be 0.48.5 only other wise gcode extension will not work.

Role of Hardware & Software in this Machine

It is good to know role of each component and software in CNC machine

1) ARDUINO Arduino is basically work as a brain of CNC Machine a CNC code uploded to arduino so that when Gcode stream to arduino Arduino commands motor shield to run stepper motors.

2) L293D Motor shield This is dedicated shield to control verities of motor with arduino here this shield control two stepper motor(x-axis & y-axis) and one servo motor,https://cdn-learn.adafruit.com/downloads/pdf/adafruit-motor-shield.pdf read this for detail technical knowledge.

3) Servo motor Basically this motor is used here just to UP/DOWN pen servo is connected with motor shield

4) Arduino IDET his is used to upload code to arduino

5) Processing IDE This is used to stram G-CODE to arduino

6) Inkscape This is used to make G-CODE file of any image

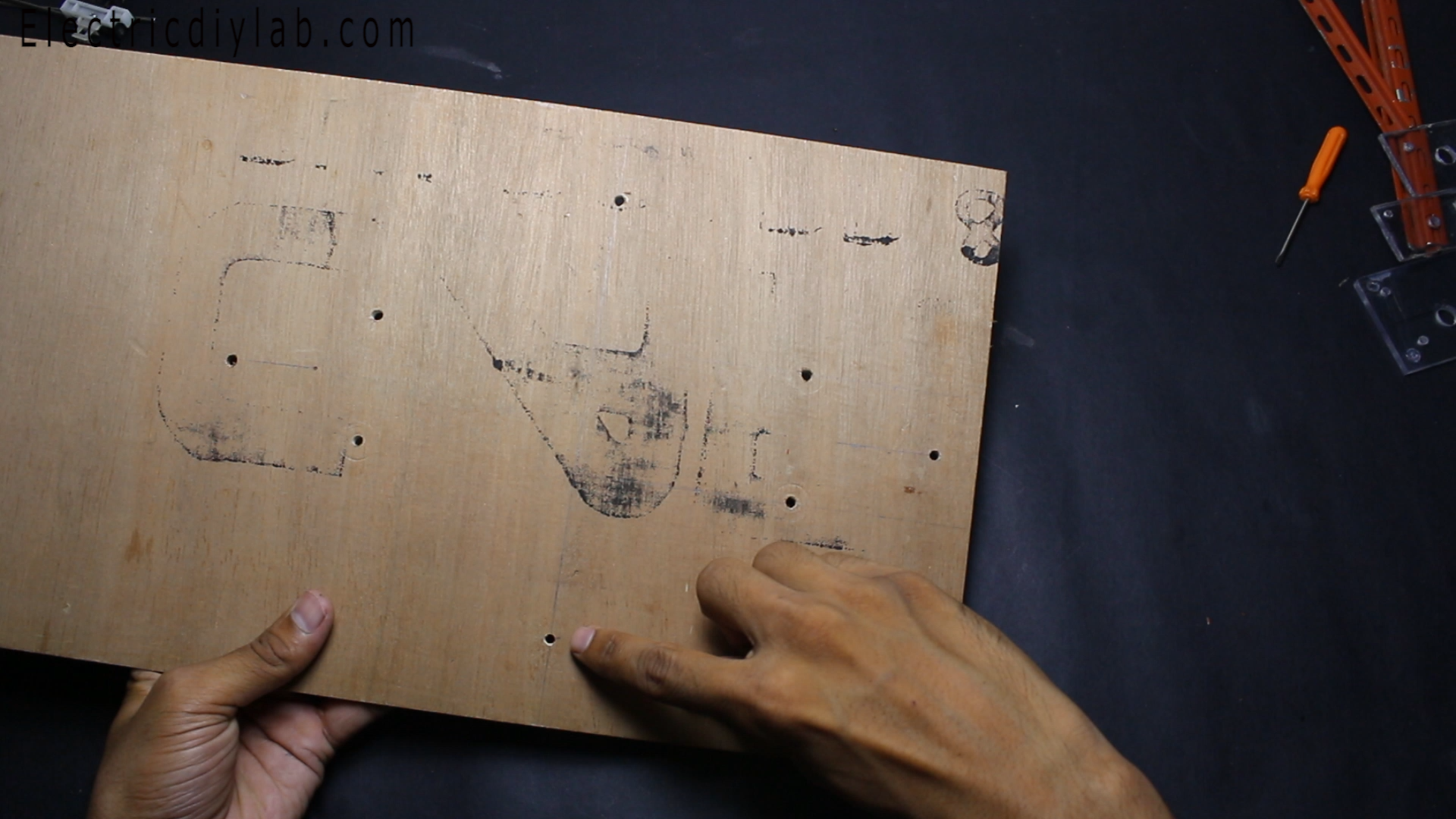

Make hole in Wooden sheet to mount all necessary components.
I have used here 5mm thick wooden sheet & drill some holes to mount X-axis & Y-axis

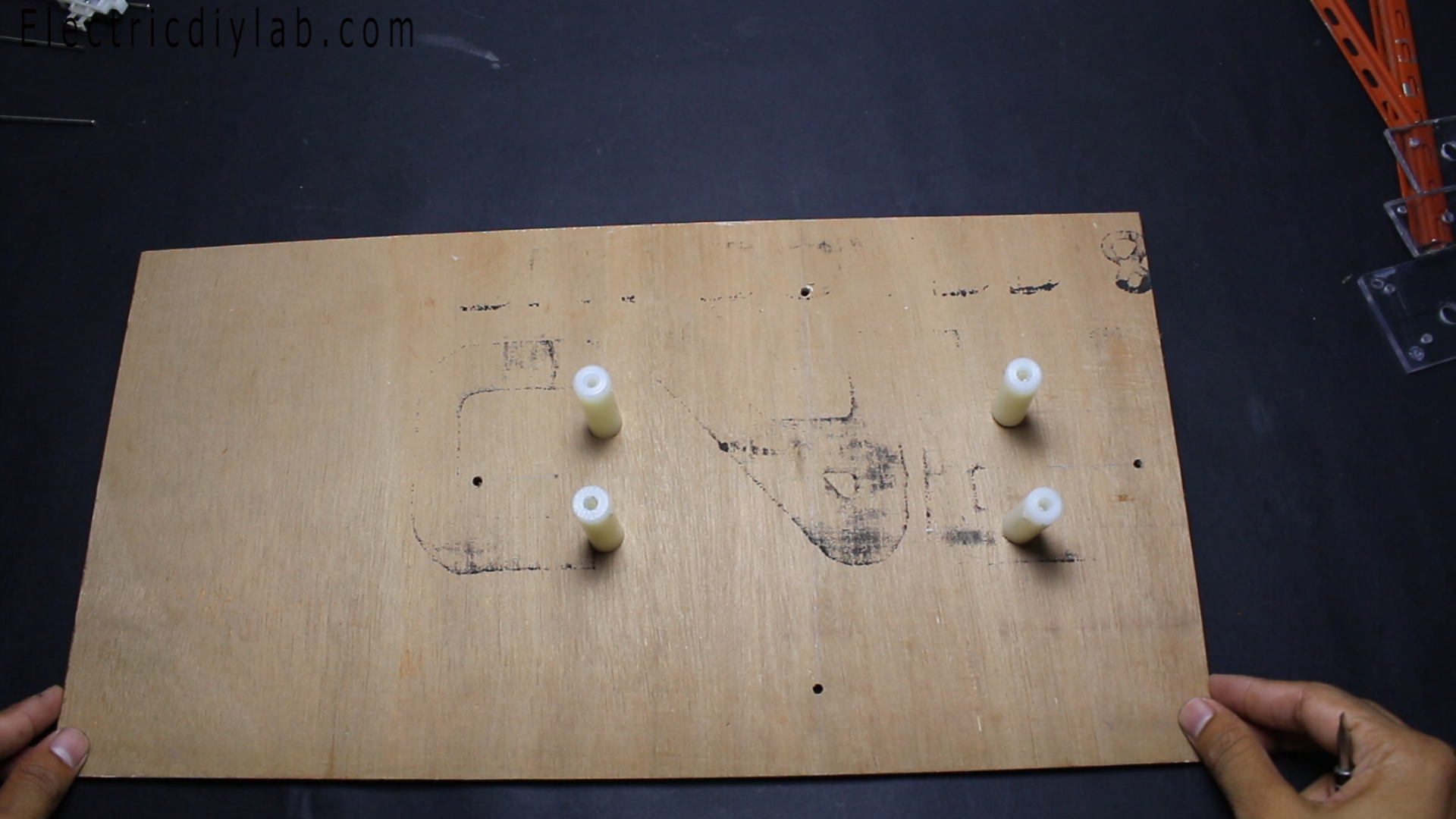

I have mount Four Acrylic tube to fit X-axis Guide rail on it.

Bike spoke wires approx 3mm Thick metal wires are used as guide rail for axis.

To make platform i have used sliding platform of DVD drive. adjust and secure sliding arrangement in such way that they can slide very smoothly if required apply some lubrication on guide rails

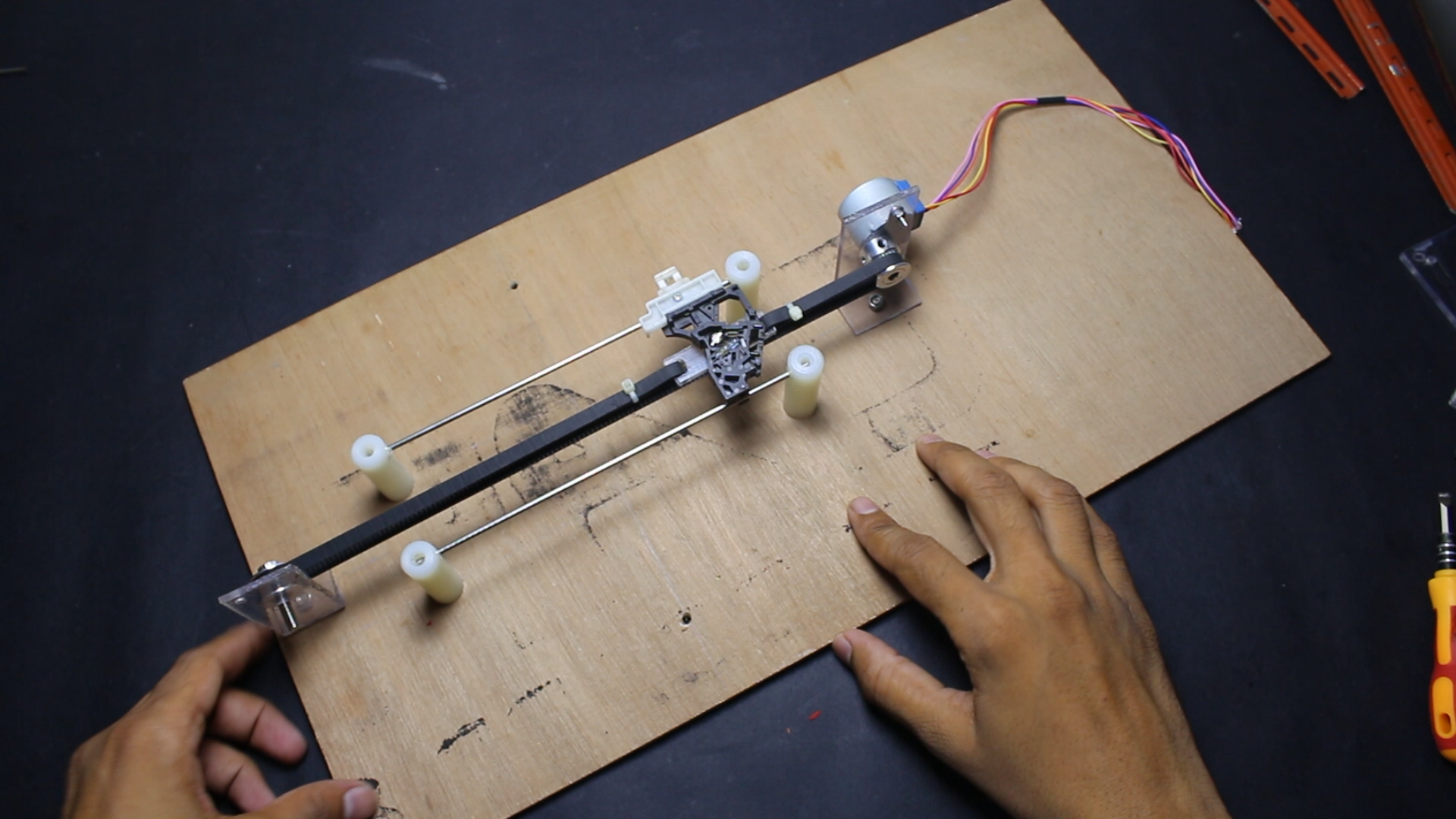

Stepper motor and idler pulley are mounted on board. Stepper motor , sliding platform & idller pulley are connected with GT2 timming belt in this way installation of X-acxis is completed.

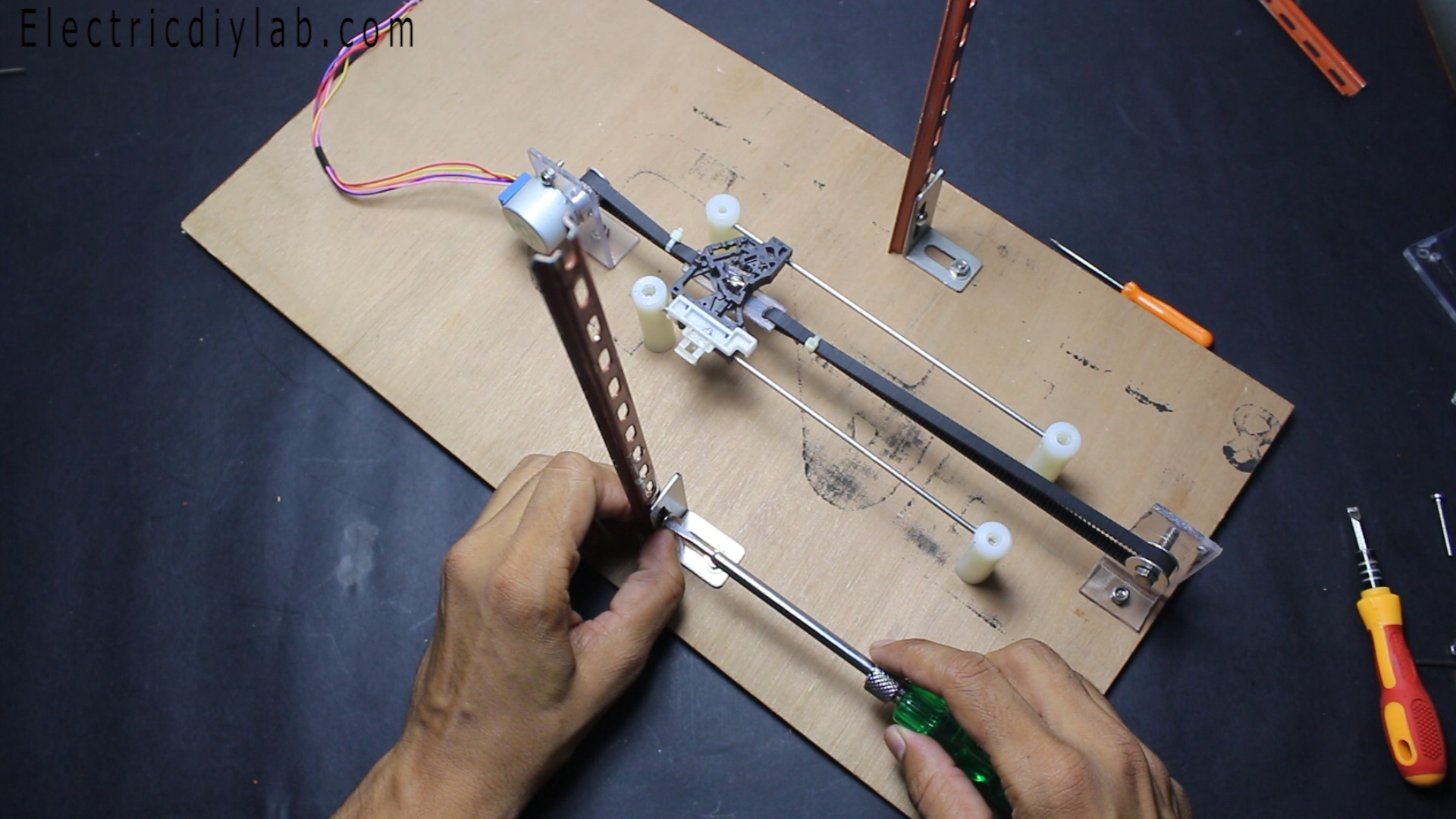

I have installed slotted channel vertically to mount Y-axis arrangment. Slottedd channels are very good for this purpose you can adjust Y-axis height wrt to X-axis as required.

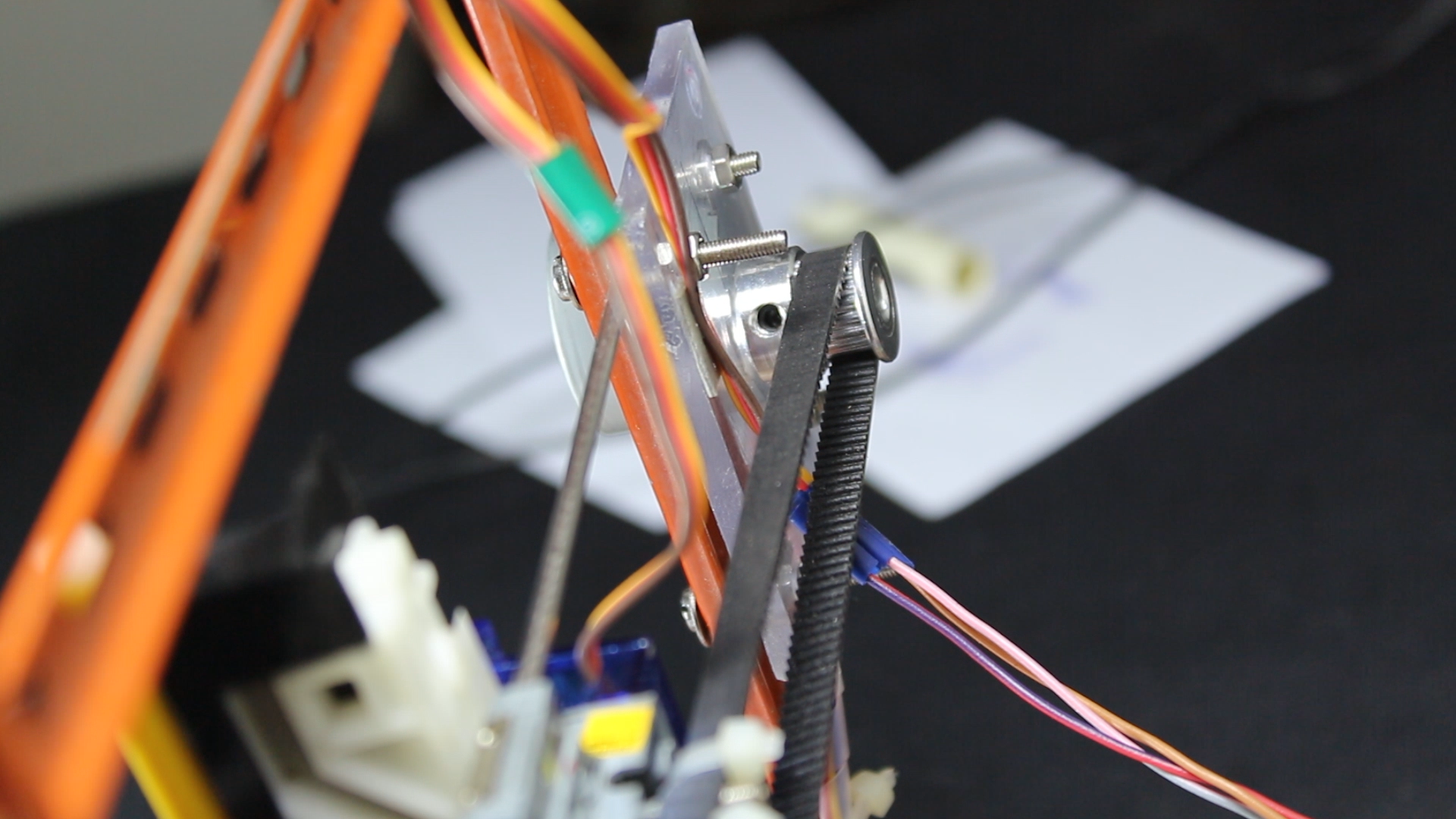

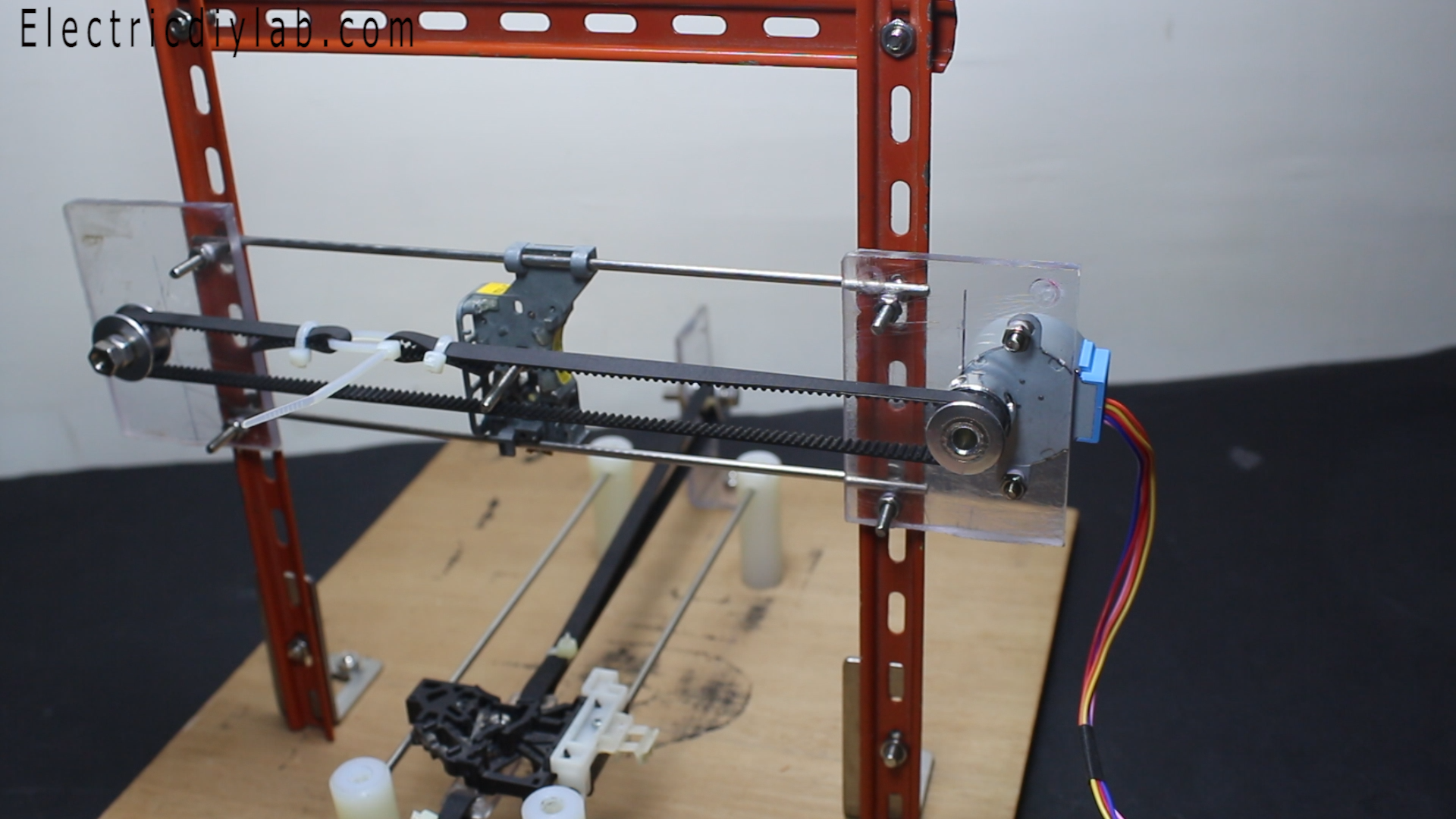

Y-axis driving mechanism is installed in a same way as we installed X-axis

Slide must be friction-less and must be smooth in motion

Prepare a X-axis drawing board from cardboard pieces and glue it on X-axis platform.

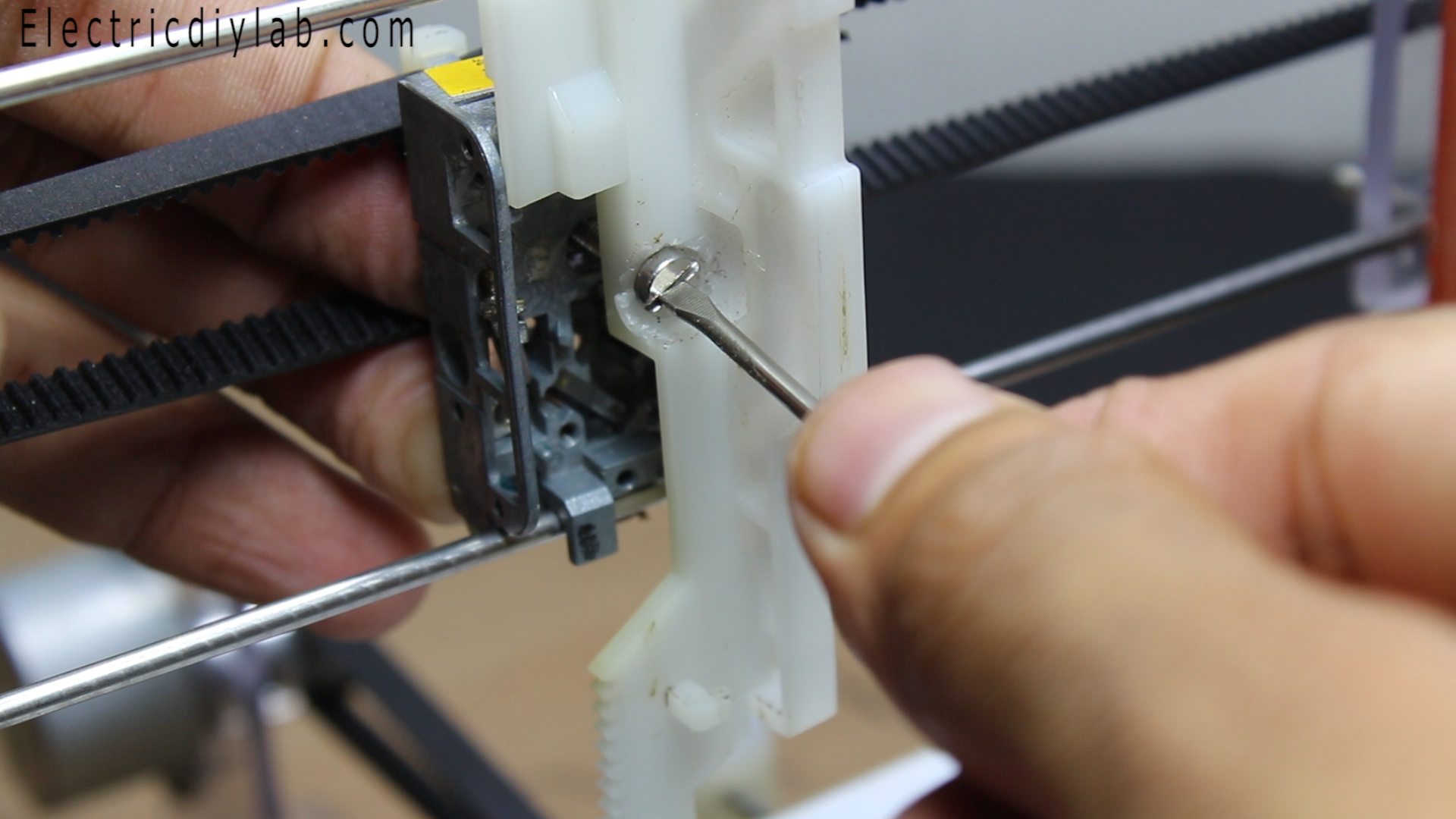

Installing pen up down mechanism as a Z-axis made from some parts of DVD mechanism

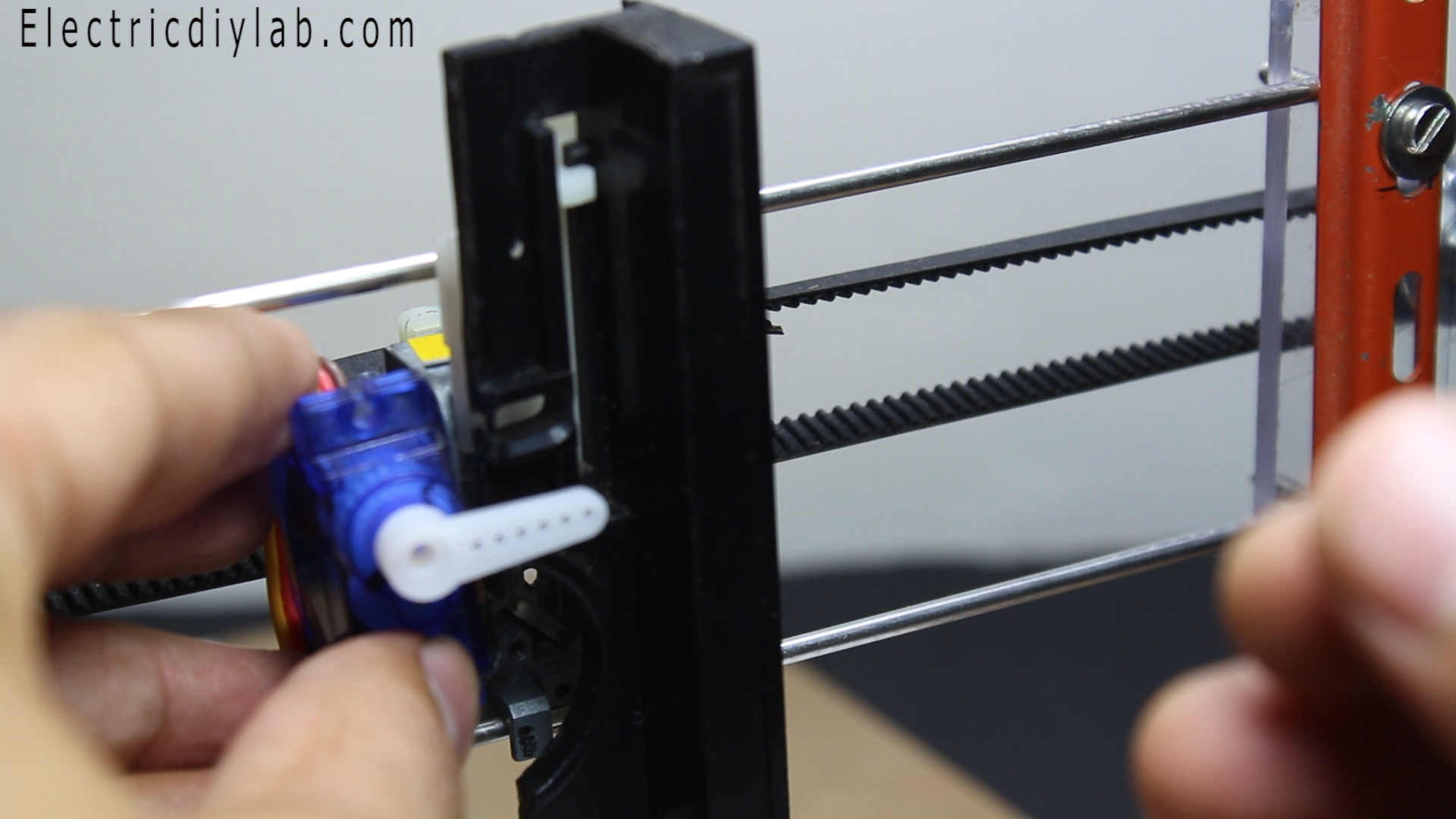

Attache a mini Servo on Z-axis to make pen up and Down

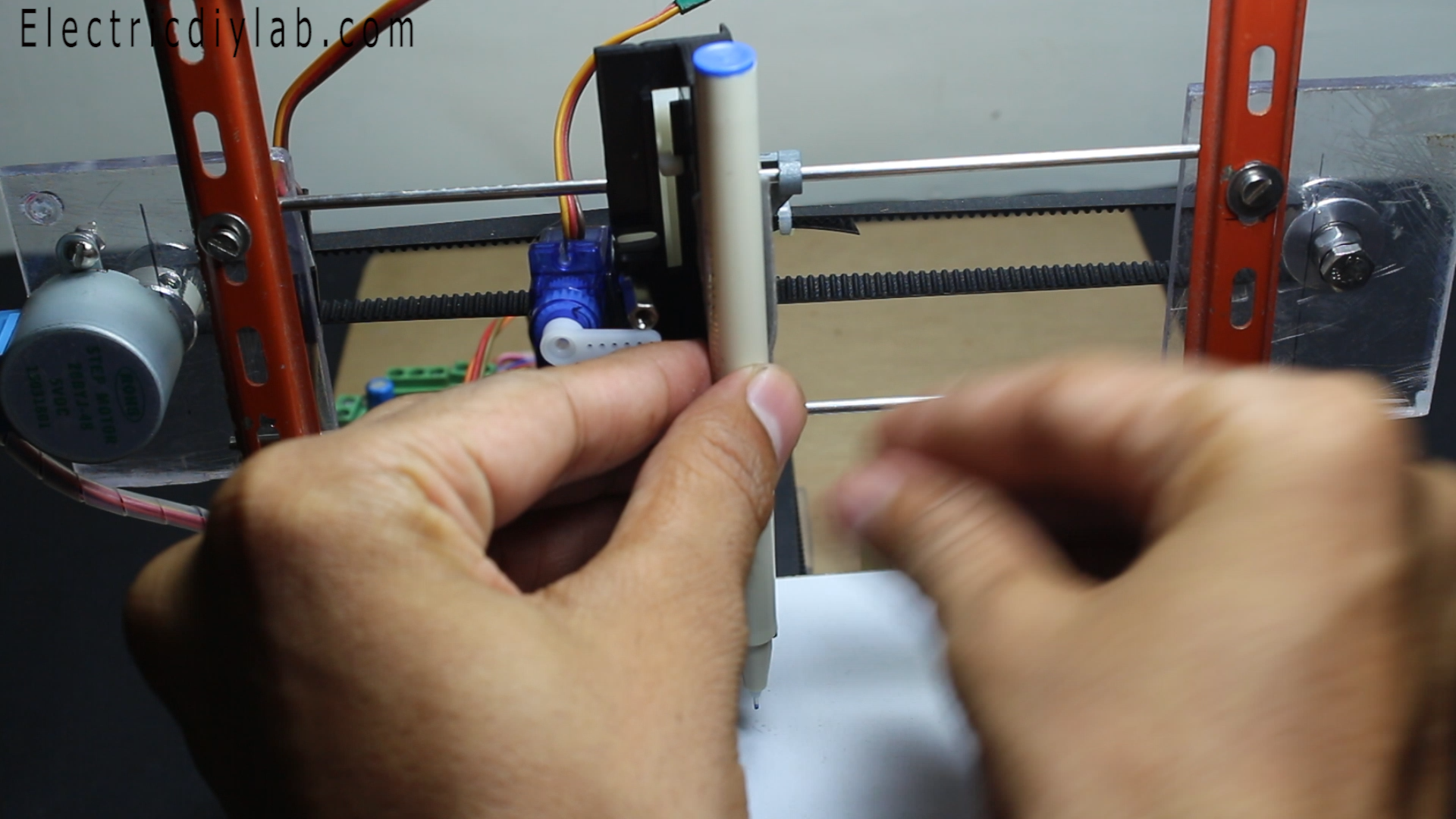

Attaching pen on Z-axis,

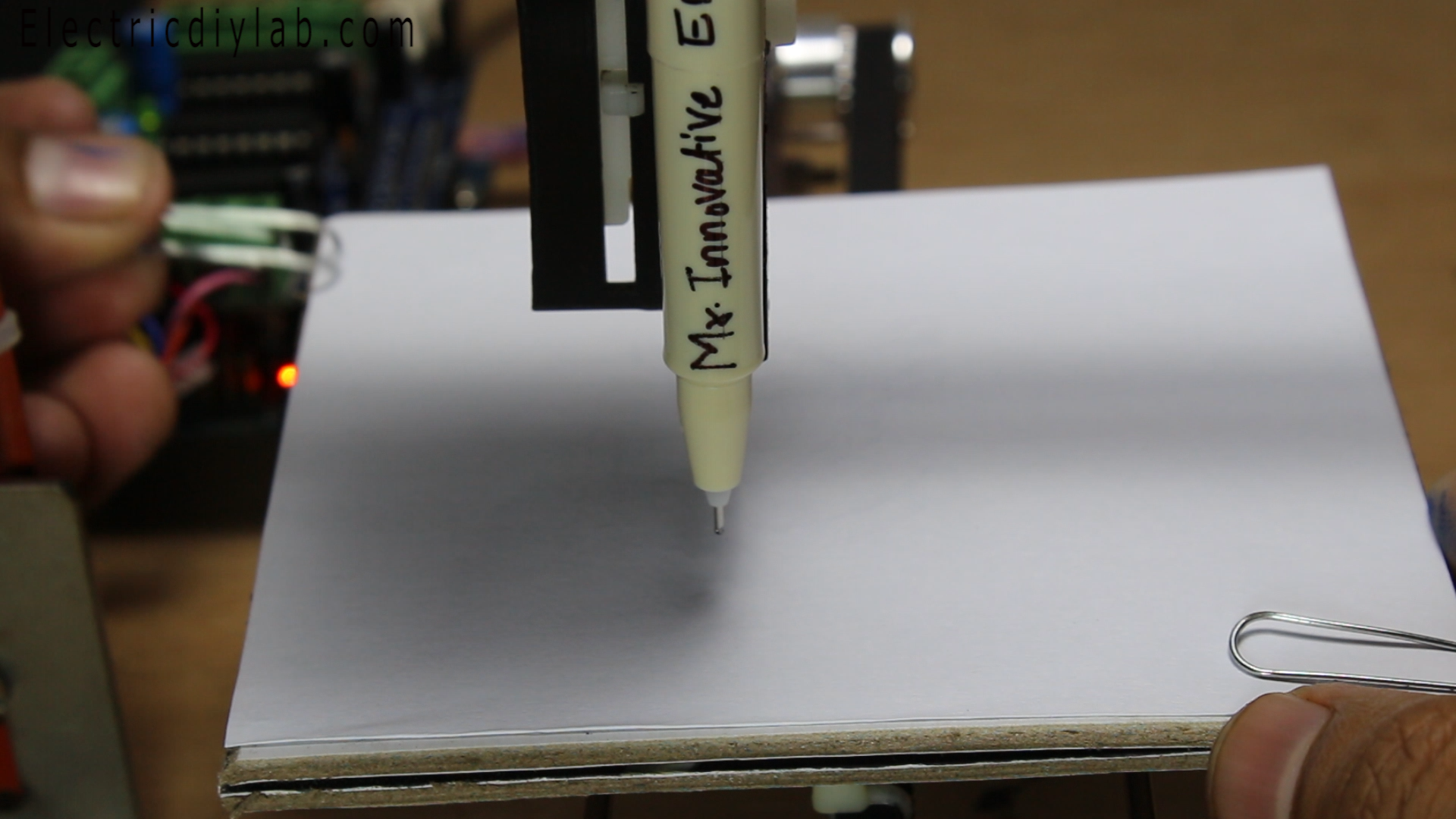

Place a plan paper on drawing board befor plote anything you need to do wiring of motors & upload code to the machne let see how to upload those code in next step.

Connect X-axis at M1 & M2 Port of L293D Motor shield

Connect Y-axis at M3 & M4 Port of L293D Motor shield

Very important remove that power jumper from the L293D motor shield board Apply 9V DC 1 amps power supply to the L293D Motor shield board Place motor shield on Aruino UNO board.

Connect arduino with PC via USB cable Read next Step to know how to load code to arduino

Now your machine is ready its time to give life to you machine

So we need to program arduino Here we are using L293D Motor shield.

so it need to add some library (AFMOTOR LIBRARY) to arduino IDE Software so first download & upload this library to Arduino IDE to know how to add library watch video

https://youtu.be/15XbiwVUGI0

Download Adafruit motor shield Library

http://www.mediafire.com/file/333bs32xff29b68/adaf...

Then upload this CNC Code to arduino

Click to download arduino code

http://www.mediafire.com/file/ftk4f115f15zxrl/CNC_...

After successfully compiling and uploading your arduino programming part is over now move towards G-CODE

G-code is the format of file which your machine can understand and work acordingly

Suppose you have to draw some text with machine so you need its Gcode so what you do

Inkscape software provides you a facility to convert image or text into G-code

how to convert file in G-code watch video

Sample G-code

sample 1

sample 2

sample 3

sample 4

Watch this video to know how to make G-code file

Watch this to know how to add G-code extension in inkscape

Click to download Makerbot unicorn G-code extension http://www.mediafire.com/file/5x2tqwcha2a7w1w/ink... How to add this extension to Inkscape

1) Unzip the file

2) Open the folder by double click

3) Copy all the sub folders & files

4) Right click to the inkscape icon from desktop

5) Go to Properties

6) Go to open file location

7) Open “SHARE” folder

5) Open “EXTENSION” folder

6) Past here all that file

7) its done

Our arduino is ready our machine is ready and our g-code is also ready to print

So we need something which can transmit g-code to Arduino, so here we have Processing GCTRL program Download GTRL Code from below link Click to download GTRL http://www.mediafire.com/file/z4wtj3rzlxhuj3i/GCT...

After downloading the GCTRL Code unzip the folder load the gctrl code to processing and press play button

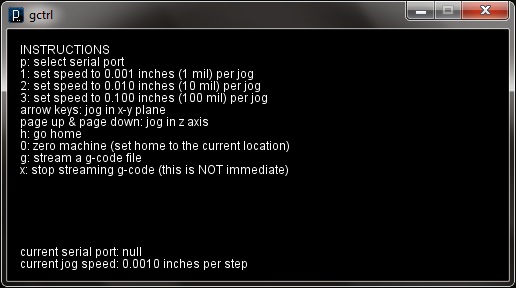

a new window open from this window you can select your communication port,

By pressing “G” a browser is open select your g-code file and upload it

as soon as you upload the file Machine start drawing

Here is some ready made g-code file is attached Thanks for your attention friends

I hope i cover every point of how to make CNC machine hope you have appreciate this if you are trying to make this machine have a good luck friend

If you stuck anywhere in between feel free to contact i will surely help out my level best

If you have some new idea to improve any thing in this please most welcome you can share with us.
