How to Make Mini Audio Amplifier Using One Transistor || JLCPCB

Do you think, about making a mini audio amplifier circuit using transistor ? Then this project is for you. Following this article you can easily make mini, simple & cheap amplifier circuit at home easily.

To contact with us :

🔗Like our page – www.facebook.com/creativeworldpro

🔗Subscribe Our Channel – www.youtube.com/creativeworldpro

Thanks To JLCPCB.

$2 for 1-4 Layer PCBs.

Get SMT Coupons - https://jlcpcb.com/RTA

To make this circuit, you might need some electronics components. Those electronics component lists have to been given below.

Component List -

1. Transistor – D 313

2. Resistor – 1 KΩ

3. Capacitor – 2.2µf/ 50v

4. Battery – 9v

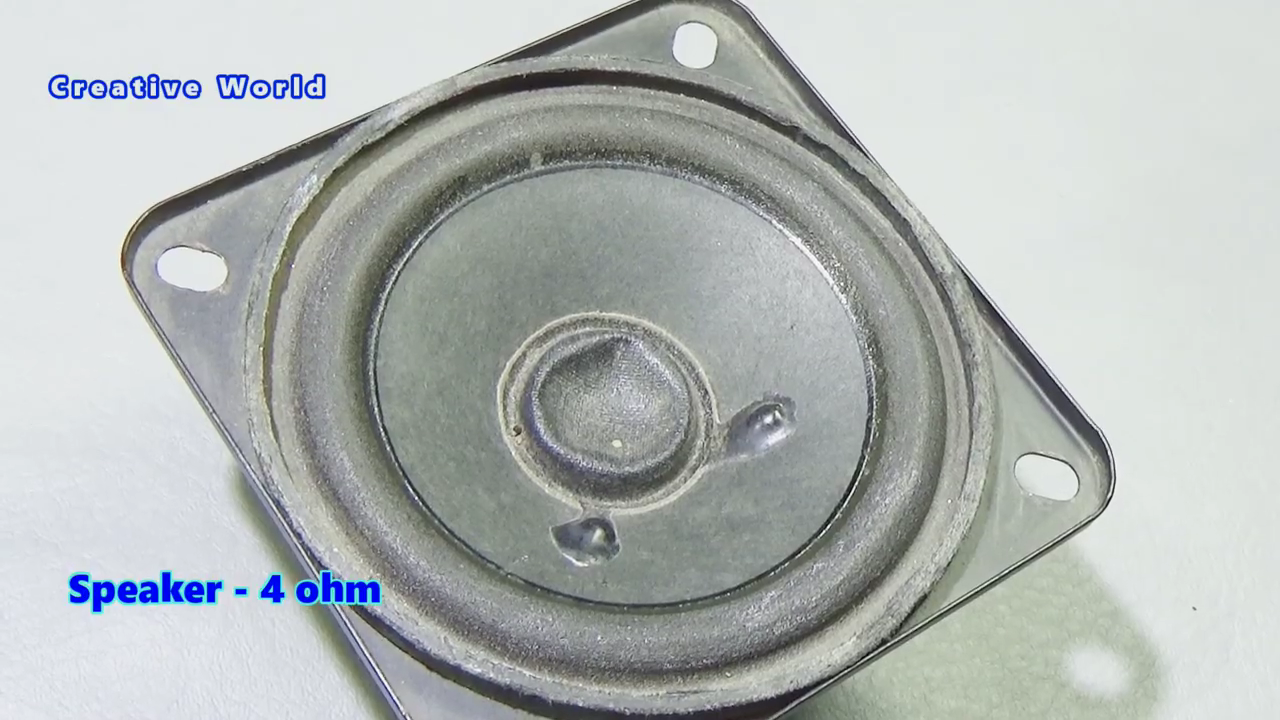

5. Speaker – 4 Ohm

6. Heat Sink

7. Cable

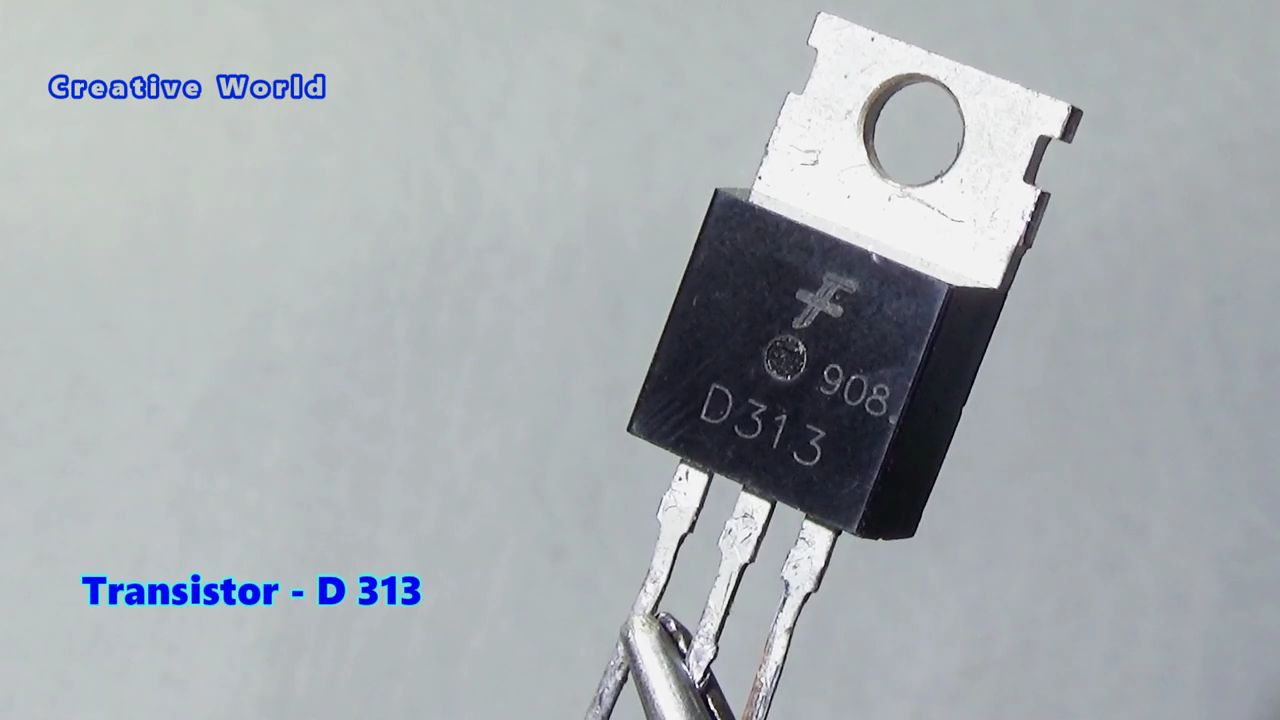

As usual, the transistor D313 also contains 3 leg & this 3 leg’s also have 3 different names. If we count it’s leg from the left side, then 1no “Base”. 2no “Collector” & 3no “Emitter”

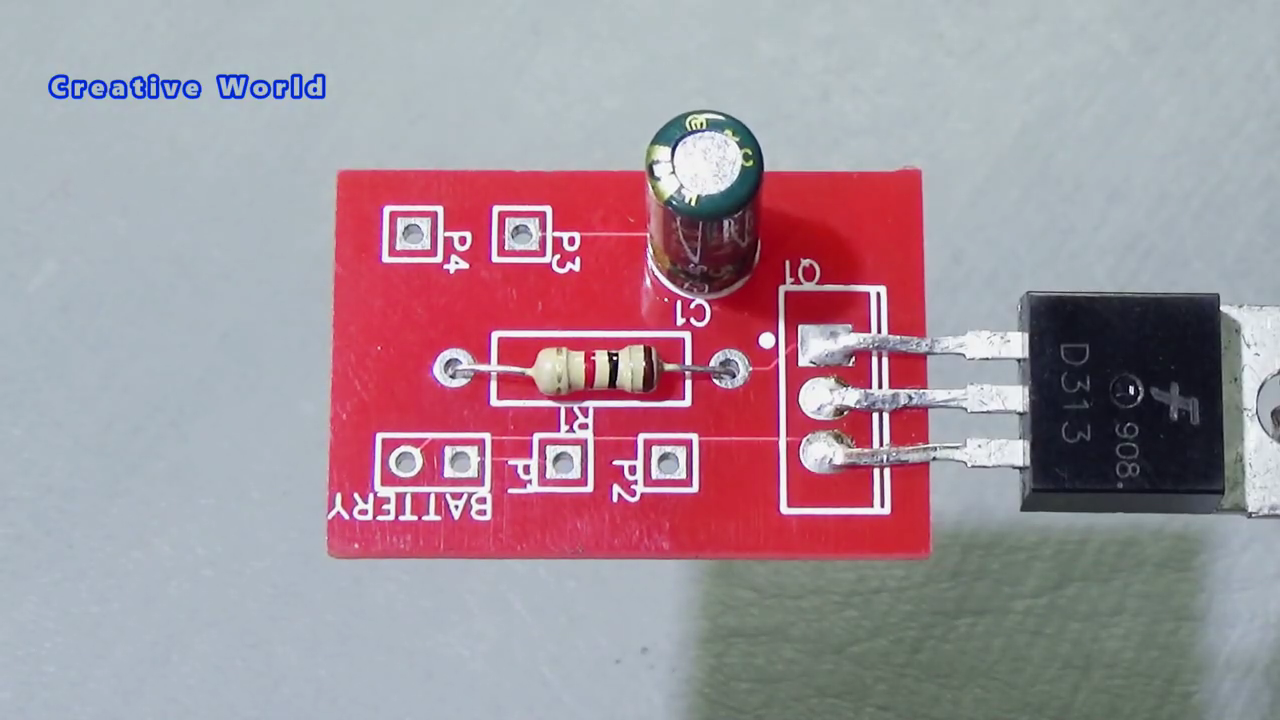

1st we connect capacitor positive leg with “Base” of transistor. Then connect resistor with “Base” and “Collector” of transistor. Now we connect audio input cable with the circuit.

Connect audio input “L/R” cable with capacitor negative leg and connect audio input “G” cable with 9v battery negative leg.

Then Connect speaker cable with 9v battery positive leg & connect another speaker cable with “Collector” of transistor.

Our circuit is ready for use now. Now we fixed transistor with the heat sink & connect audio input cable with mobile. Then play music & enjoy.
