How to Make Led Strip Flashing Easy

by NoskillsrequiredN in Circuits > Electronics

7173 Views, 3 Favorites, 0 Comments

How to Make Led Strip Flashing Easy

usb led light strip.jpg

How to make led strip blink easy

Usb Led Strip From RGB Strip

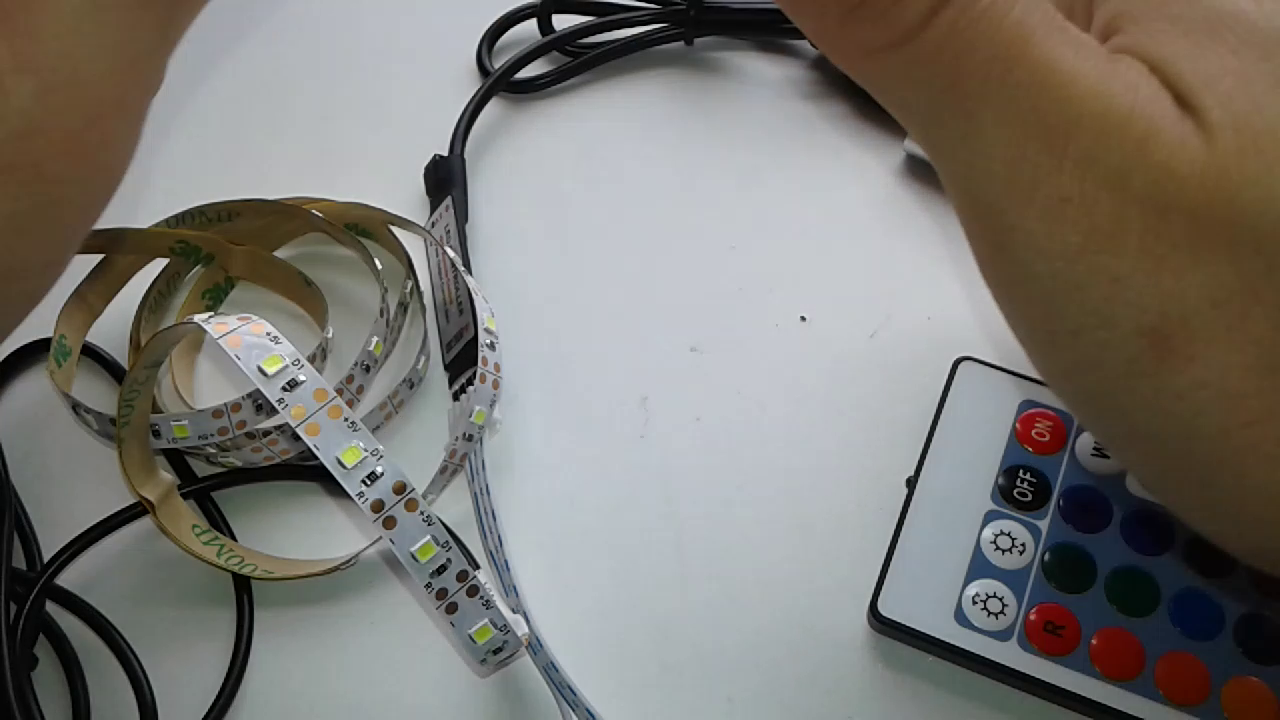

The easiest thing to make an led strip blink, in this case an usb led strip is to have or buy a controller from that RGB led controller,a power supply,power bank,or any USB power outlet and the led strip itself

RGB Controller Close Look


As we can see in this picture here the controller has R-G-B and 5+ so we have 3 channel of negative and one positive so we can connect 3 usb strips or 3 usb flashlights, led bulbs anything that is powered by USB(5v)

and we will need a connector i have this from an old dvd,orif you whant the propper connector you can google them.

Rgb Controller Test


We will plug in the controller in any usb power source and we will test the pins you should see on the multimeter 4-0-4 volts or close to this range and we can connect our led strip to any of this R-G-B in the video at the end of this tutorial i have connected to the R

How to Make Led Strip Blink Easy


How to make any led strip blink easy parts:

Led strip(5v-12)

Rgb controller

http://s.click.aliexpress.com/e/bJpLyC0o

Usb power bank

Wires

Led Strip Blinking

How to make led strip flashing at home
  • As you can see we have connected to the controller and our channel is working perfectly you can connect to any of the R G B as long you will take in to consideration that R G B are the minus terminals
