How to Make LED ICE SKATE
by HappyThingsMaker in Circuits > LEDs
2732 Views, 13 Favorites, 0 Comments
How to Make LED ICE SKATE
)
I put neopixel LEDs on my ice skate. Every time the microphone, which is connected with the Arduino board, hears any noisy sound. It sends a various signals to LEDs. It is easy to make, even for beginners. I shared codes and instructions. Let’s try it together!
Supplies
Preparing Parts
[ Parts and Tools ]
[Instructions]
- Source Code https://github.com/happythingsmaker/LED_ICE_SKATE
- Instruction https://sites.google.com/view/100happythings/11-l...
[About the Maker]
- Youtube Channel http://www.youtube.com/EunchanPark

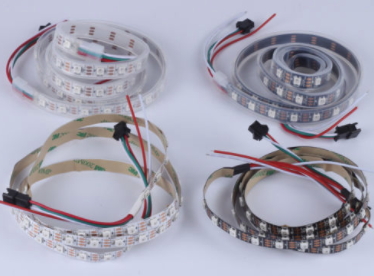

Select a waterproof product. There are many options to select it. Waterproof is better than a regular LED, but it could be more expensive. This project will be outside, particularly the icy environment. I highly recommend a waterproof version.

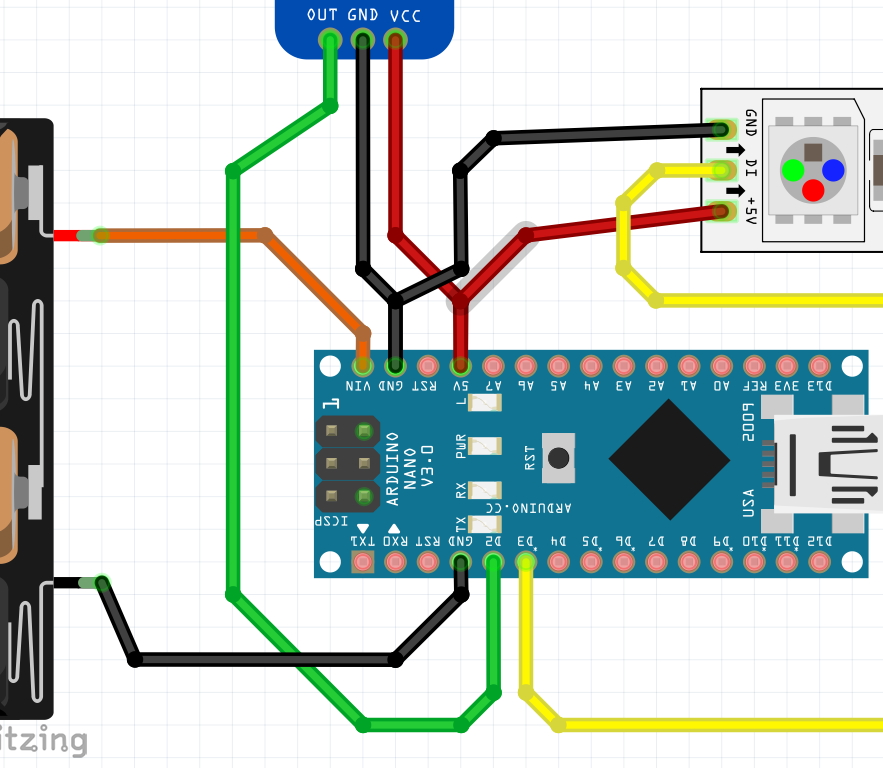

Solder the Circuit Like This
Mic Sensor - D2
Neopixel - D3
Glue It for Water Resistance
Hot melt glue is always good at insulating. It prevents the parts from wetting(even though it looks not beautiful)

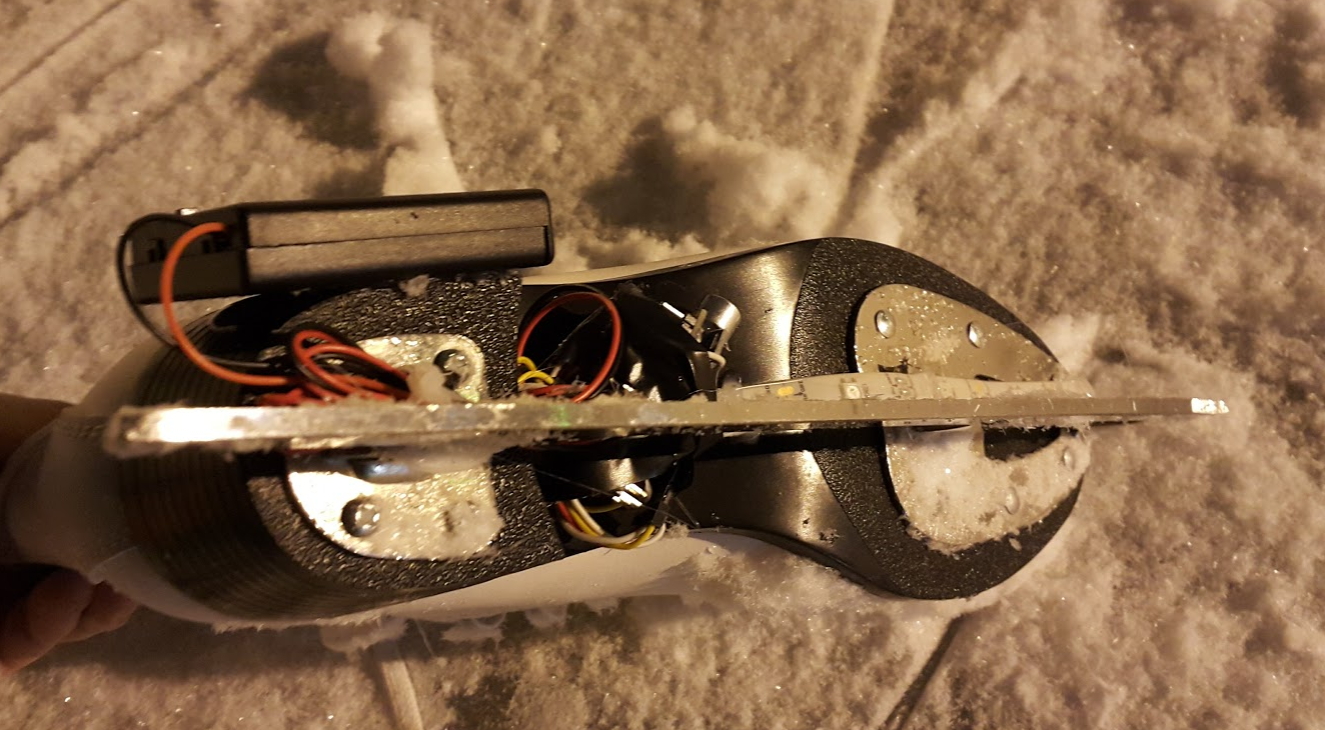

Attach It Onto Your Ice Skate
You can attach it by using hot melt but it turned out that it is not strong sticky especially under cold weather. I think I need to find more effective way.

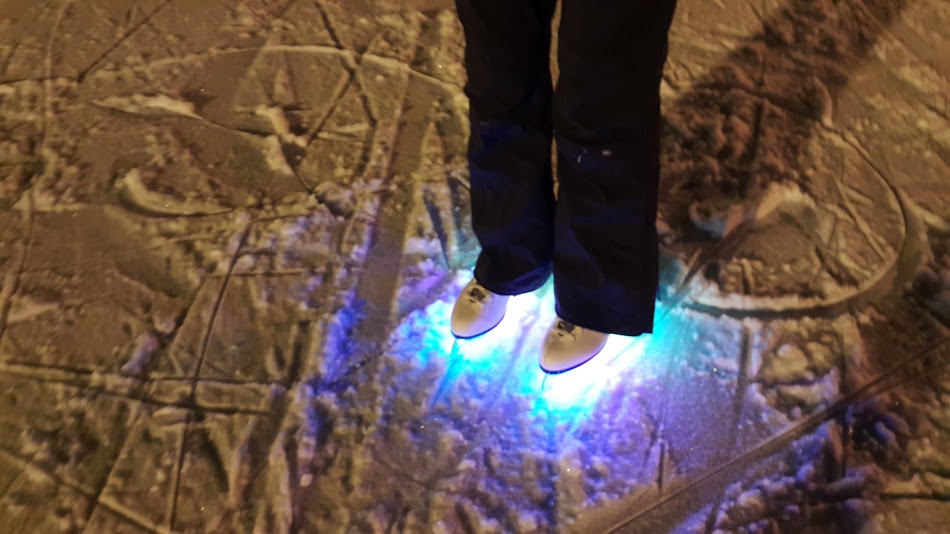

Field Test and Play!
I love this color!!

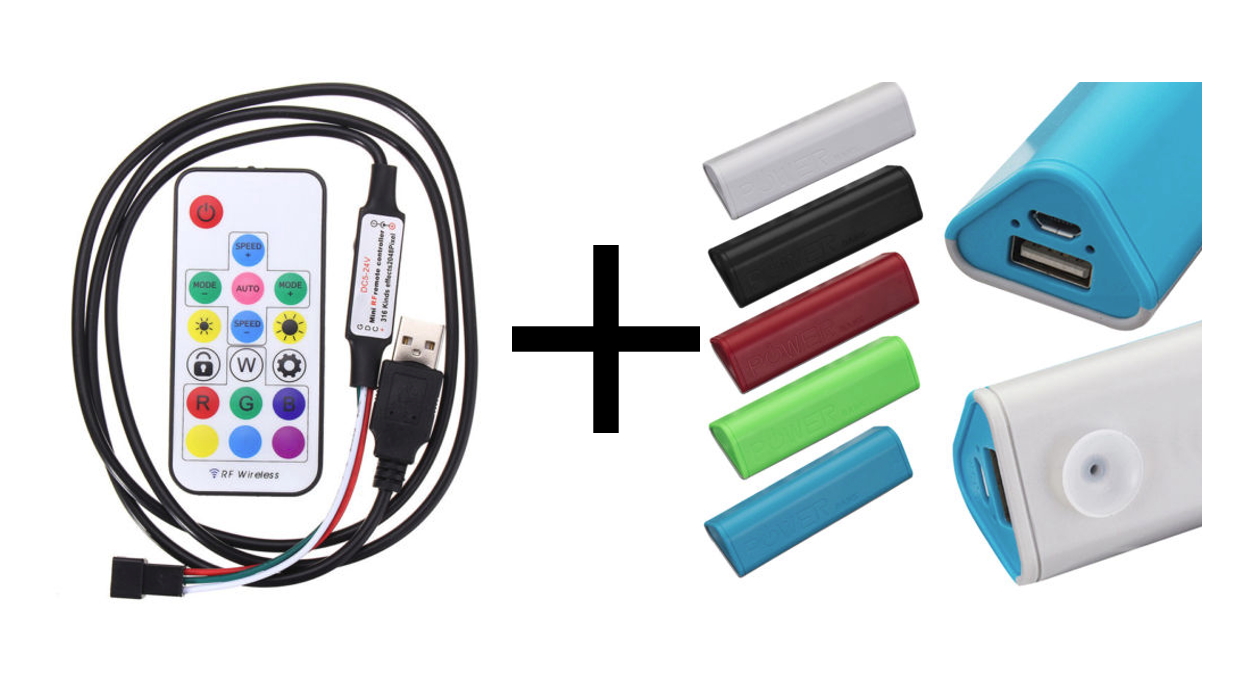

Alternative Way
If you don’t want to make by yourselves, you can buy this product. But it is not be customized.
Remote Controller For WS2812B http://ebay.to/2EQnW2b WS2812B LED Stip 60/M http://ebay.to/2ommdLM 5v USB battery http://ebay.to/2sNSzDE
