How to Make LED Chaser Using 4017 and LM555 IC

by Utsource123 in Circuits > LEDs

1464 Views, 1 Favorites, 0 Comments

How to Make LED Chaser Using 4017 and LM555 IC


Hii friend,

Today I am going to make LED Chaser circuit using CD4017 IC and LM555 IC.In previous I made LED Chaser using CD4017 IC and RGB LED.

Let's get started,

Take All Components As Shown Below


Parts required -

(1.) LED Chaser circuit of RGB LED.

(2.) IC - LM555 x1

(3.) Resistor - 22K x1

(4.) Capacitor - 4.7uf x1

(5.) Battery

(6.) Battery clipper

(7.) Connecting wires

(8.) Potentiometer - 50K x1

Remove Resistors From Circuit


Firstly we have to remove 1K and 470 ohm Resistors,RGB LED and Battery clipper from the circuit.

Circuit Diagram


This is the circuit diagram of this project.

~ Connect all components according to this circuit diagram.

Connect Pin-4 to Pin-8 of LM555 IC


Solder pin-4 to pin-8 of LM555 IC using jumper wire as you can see in the picture.

Connect Pin-2 and Pin-6 of LM555 IC


Next Solder pin-2 to pin-6 of LM555 IC using jumper wire as you can see in the picture.

Connect 22K Resistor


Solder 22K resistor between pin-7 and pin-8 of the IC.

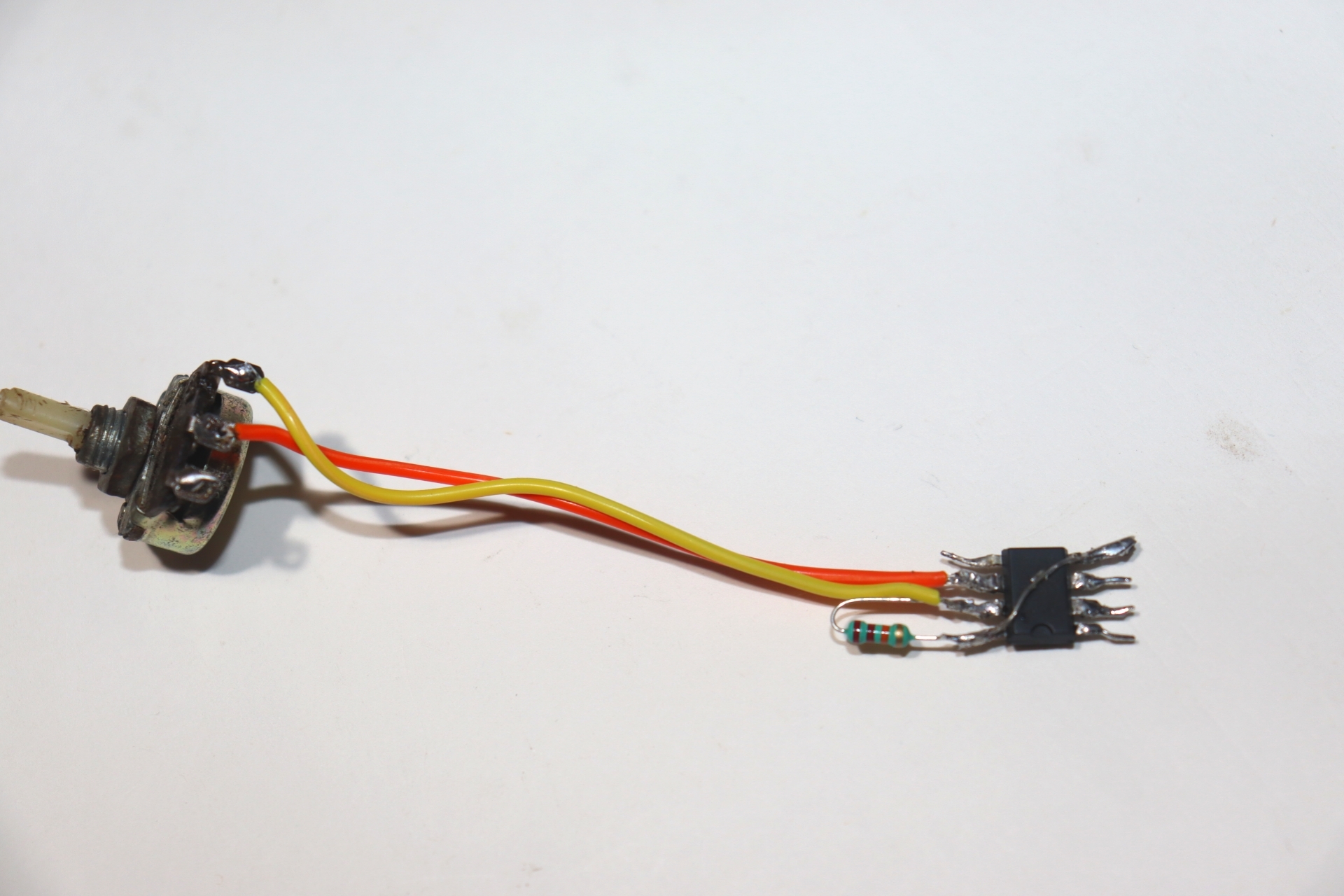

Connect Potentiometer to the Circuit


Connect potentiometer to the circuit and

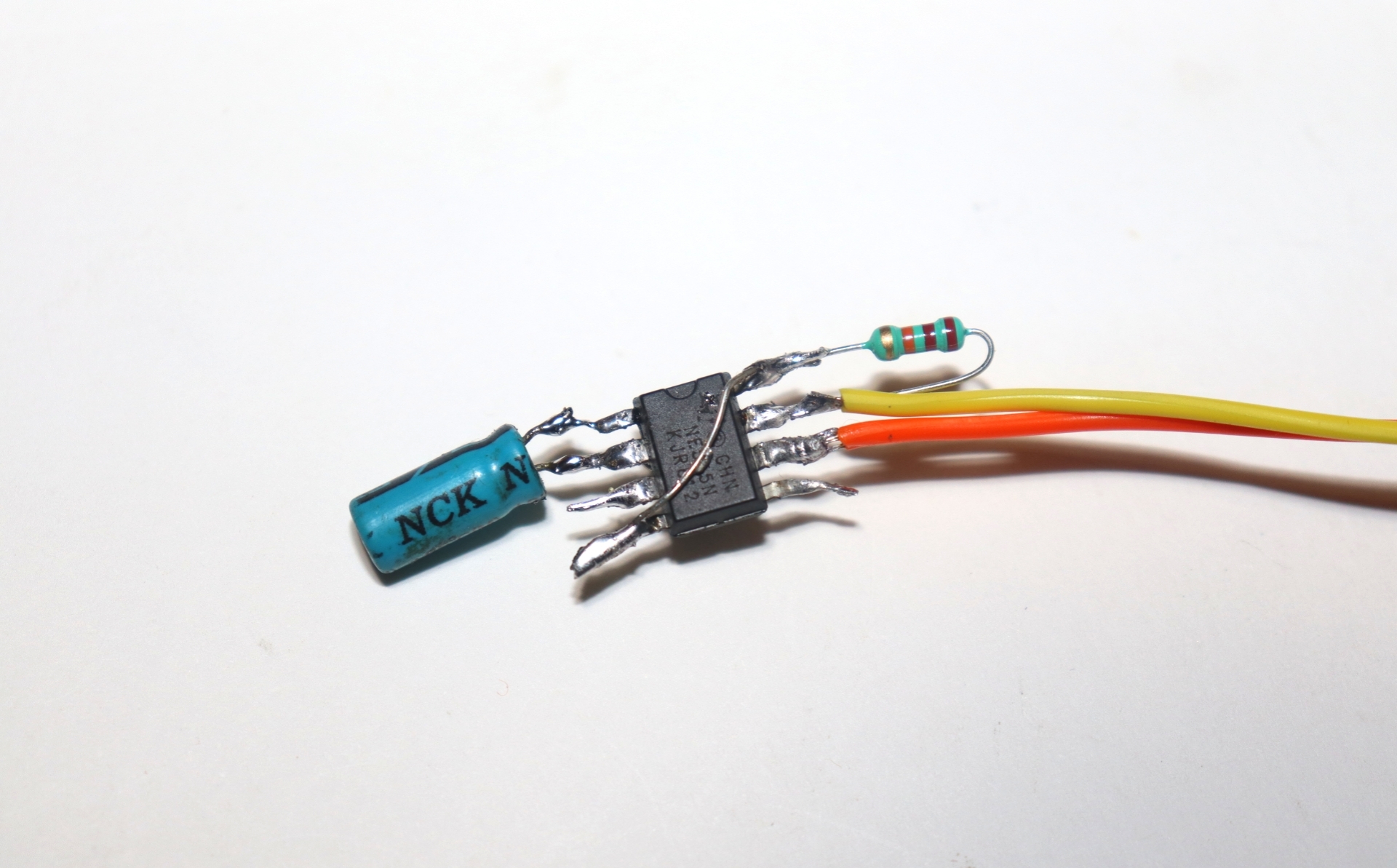

Connect +ve pin of 4.7uf electrolytic capacitor to pin-2 of LM555 IC and -ve of capacitor to pin-1 of LM555 IC.

Connect 1K Resistor


Next solder 1K resistor between -ve of all LEDs to pin-1 of LM555 IC as you can see in the picture.

Connect Wires


[1] Connect pin-8/13/15 of CD4017 to pin-1 of LM555 IC.

[2] Solder pin-16 of CD4017 to pin-4/8 of LM555 IC.

[3] Now solder a wire from pin-3 of LM555 IC to pin-14 of CD4017 IC as solder in the picture.

Connect Battery Clipper Wire


Solder battery clipper wire to the circuit.

Solder +ve wire of battery clipper to pin-8/4 of LM555 IC and

solder -ve wire of battery clipper to pin-1 of LM555 IC.

Connect Battery

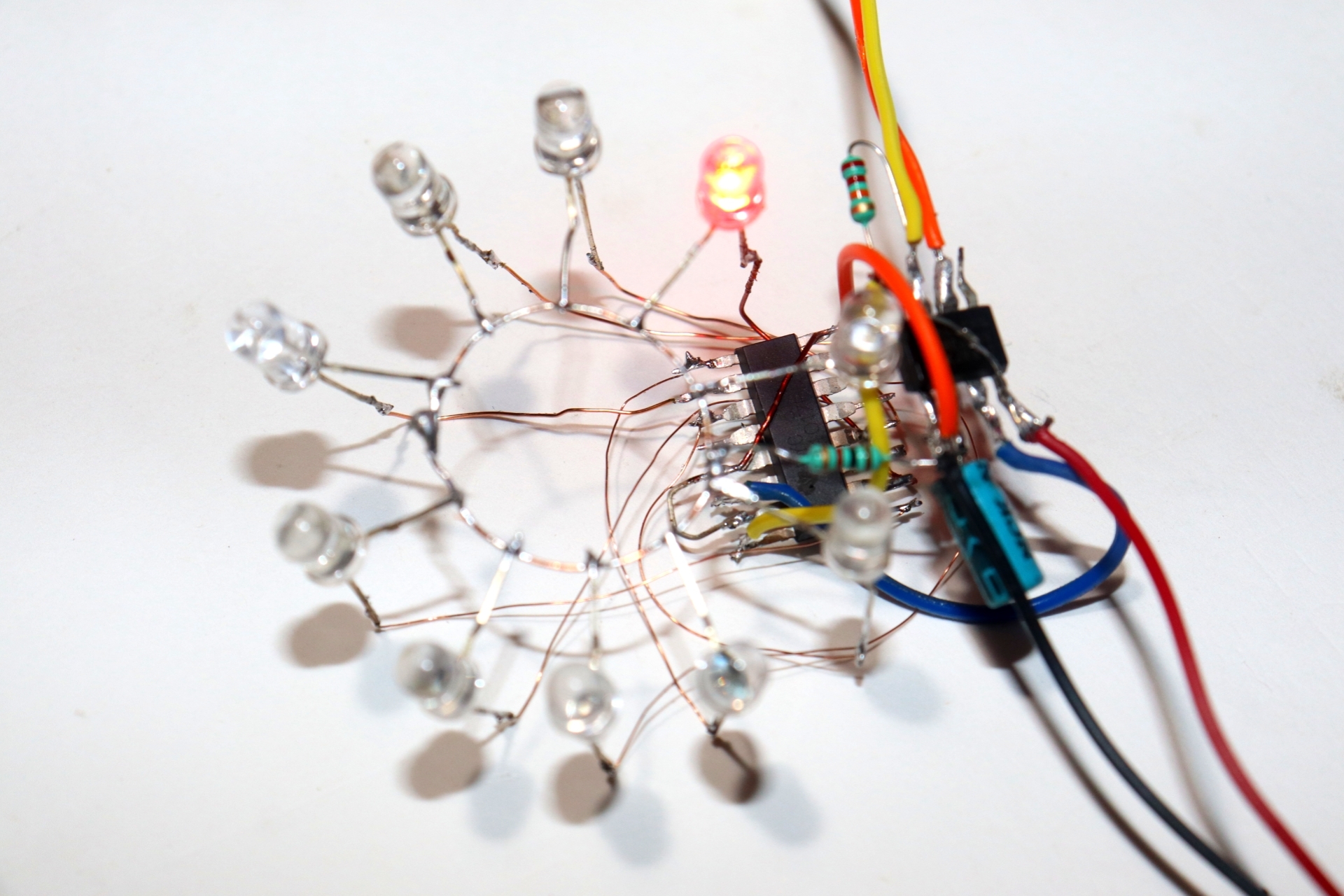

Now circuit is completed so connect battery to the battery clipper.

Result : LEDs are glowing one by one.we can adjust the speed of Glowing LEDs with 50K ohm Potentiometer.
