How to Make Electric Bike at Home
by Technoreview85 in Workshop > Electric Vehicles
31815 Views, 29 Favorites, 0 Comments
How to Make Electric Bike at Home
![how to make electric bike at home part 1](/proxy/?url=https://content.instructables.com/FNK/300U/IZ6CVI0F/FNK300UIZ6CVI0F.jpg&filename=how to make electric bike at home part 1)
![ebike2 copy.jpg](/proxy/?url=https://content.instructables.com/FIO/LW8C/IZ6CVLOD/FIOLW8CIZ6CVLOD.jpg&filename=ebike2 copy.jpg)

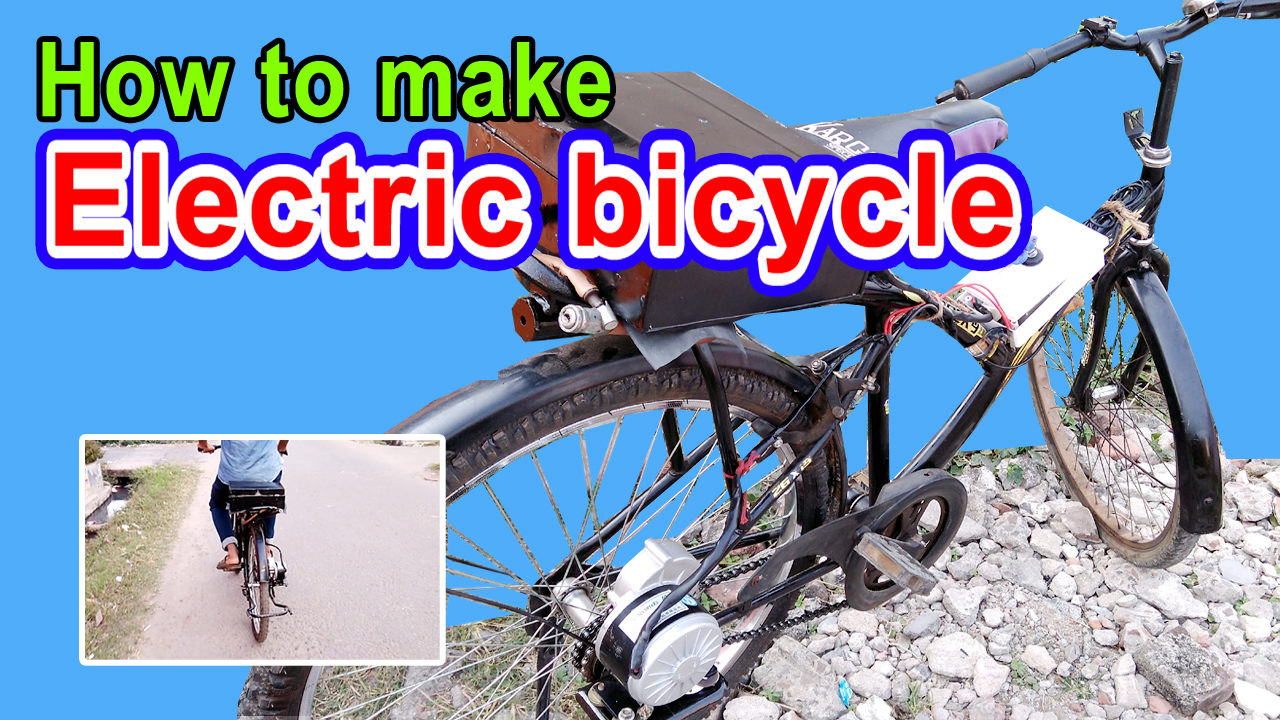

I make an electric bicycle with speedometer from brushed motor it can run 30 -35 km / charge
& speed about 25km/h
Lets start-
Basic Needs
![Snapshot - 17.png](/proxy/?url=https://content.instructables.com/F5L/C5MT/IZ6CVHGH/F5LC5MTIZ6CVHGH.png&filename=Snapshot - 17.png)
![Snapshot - 29.png](/proxy/?url=https://content.instructables.com/FUN/WZXC/IZ6CVHTX/FUNWZXCIZ6CVHTX.png&filename=Snapshot - 29.png)
![Snapshot - 19.png](/proxy/?url=https://content.instructables.com/FXB/4KDF/IZ6CVJ9U/FXB4KDFIZ6CVJ9U.png&filename=Snapshot - 19.png)
![Snapshot - 20.png](/proxy/?url=https://content.instructables.com/FX0/2Z1X/IZ6CVHIL/FX02Z1XIZ6CVHIL.png&filename=Snapshot - 20.png)

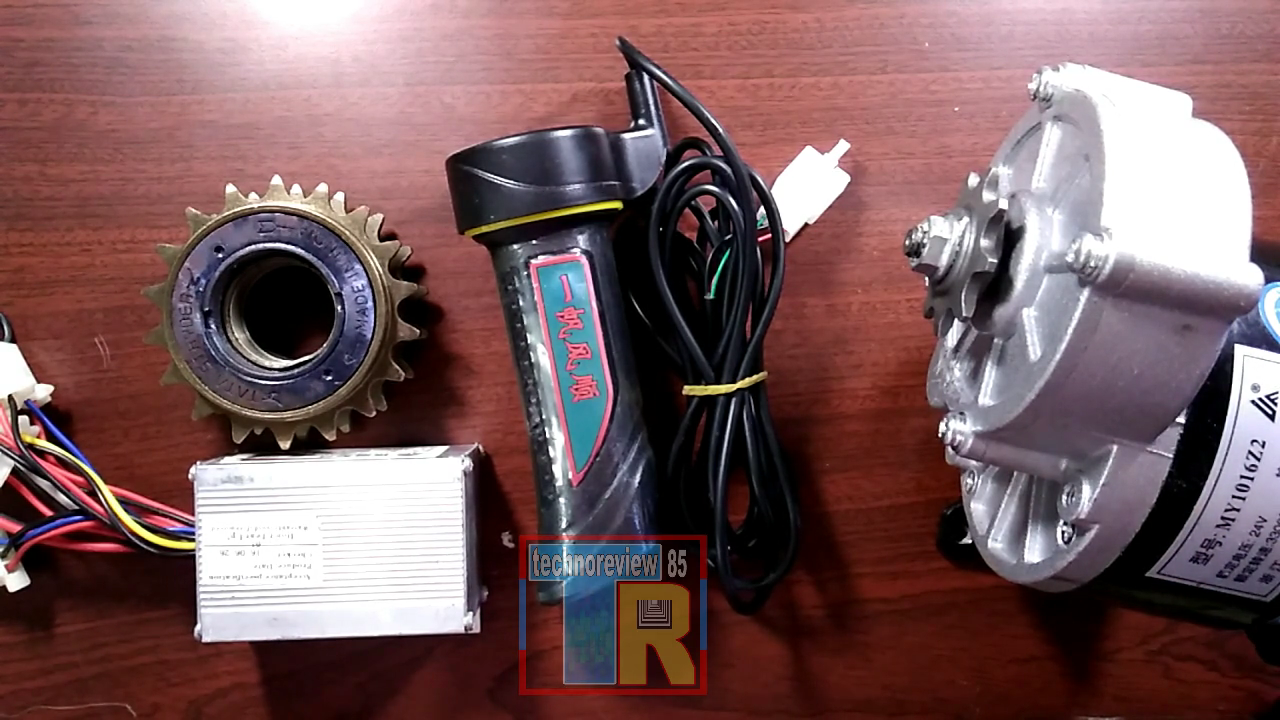

1 ) 24 v DC Geared motor (MY1016Z)
2) controller 24v
3) Throttle 24v
4) battery 12v X2 (14 amp)
5) Dual freewheel ( I make it own)
6) chain
7) wire
8) a bicycle
etc---
Making Dual Freewheel
![Snapshot - 21.png](/proxy/?url=https://content.instructables.com/F46/OWGR/IZ6CVHK3/F46OWGRIZ6CVHK3.png&filename=Snapshot - 21.png)
![Snapshot - 22.png](/proxy/?url=https://content.instructables.com/F7P/YLW2/IZ6CVHKW/F7PYLW2IZ6CVHKW.png&filename=Snapshot - 22.png)
![Snapshot - 23.png](/proxy/?url=https://content.instructables.com/F7M/V0C2/IZ6CVHMC/F7MV0C2IZ6CVHMC.png&filename=Snapshot - 23.png)
![Snapshot - 19.png](/proxy/?url=https://content.instructables.com/F59/KPX6/IZ6CVHGU/F59KPX6IZ6CVHGU.png&filename=Snapshot - 19.png)
I make dual free wheel from van rickshaw rear wheel hub.I cut some thread from it
And joint two normal freewheel together
Fitting Motor & Battery
![Snapshot - 25.png](/proxy/?url=https://content.instructables.com/FAY/MS8L/IZ6CVHO3/FAYMS8LIZ6CVHO3.png&filename=Snapshot - 25.png)
![Snapshot - 26.png](/proxy/?url=https://content.instructables.com/F9R/5EL4/IZ6CVHPQ/F9R5EL4IZ6CVHPQ.png&filename=Snapshot - 26.png)
![Snapshot - 27.png](/proxy/?url=https://content.instructables.com/F4R/5UJW/IZ6CVHR8/F4R5UJWIZ6CVHR8.png&filename=Snapshot - 27.png)
![Snapshot - 28.png](/proxy/?url=https://content.instructables.com/FU9/0SAG/IZ6CVHSZ/FU90SAGIZ6CVHSZ.png&filename=Snapshot - 28.png)
![Snapshot - 29.png](/proxy/?url=https://content.instructables.com/FK6/ER2F/IZ6CVLIU/FK6ER2FIZ6CVLIU.png&filename=Snapshot - 29.png)
I make a stand on rear wheel of my cycle by welding it (but i can remove by unscrew nut)
and insert dual free wheel and small chain.
I fit motor on stand using screw & adjust chain.
I also make a box for carry battery
Connection
![Snapshot - 30.png](/proxy/?url=https://content.instructables.com/FY1/JQG7/IZ6CVHVM/FY1JQG7IZ6CVHVM.png&filename=Snapshot - 30.png)
![Snapshot - 31.png](/proxy/?url=https://content.instructables.com/FW9/JLO1/IZ6CVHXB/FW9JLO1IZ6CVHXB.png&filename=Snapshot - 31.png)
![Snapshot - 32.png](/proxy/?url=https://content.instructables.com/FUL/0Z2E/IZ6CVHY5/FUL0Z2EIZ6CVHY5.png&filename=Snapshot - 32.png)
![Snapshot - 33.png](/proxy/?url=https://content.instructables.com/FVI/KT81/IZ6CVHZO/FVIKT81IZ6CVHZO.png&filename=Snapshot - 33.png)
I install a Throttle and a plastic box for controller
There after connect battery,Throttle,motor to controller
I also use a mofet ignition switch ,it connect to controller.
now it is running.......
