How to Make Dual Shaft DC MOTOR

by ROBO HUB in Craft > Art

6569 Views, 31 Favorites, 0 Comments

How to Make Dual Shaft DC MOTOR


Hello Readers This is a really special instructable in which i modified a single shaft DC Motor to a Double Shaft in Very Easy Way..

Bonus Tip: Check www.letsmakeprojects.com for much more interesting content

Hate Reading? This Video Is for You Https://youtu.be/eD83yzwaECs

How to Make Double Shaft DC MOTOR - 2 Ways For Dual Shaft DC Motor

Complete Video Tutorial Which Shows Modifying Single Shaft to Double Shaft in 2 Ways

Video link https://youtu.be/eD83yzwaECs

Lets Begin

Snapshot 2 (3-14-2018 4-57 PM).png
Snapshot 3 (3-14-2018 4-57 PM).png
Snapshot 4 (3-14-2018 4-57 PM).png
Snapshot 5 (3-14-2018 4-57 PM).png
Snapshot 6 (3-14-2018 4-58 PM).png

  • Have a Look at Your DC Motor!

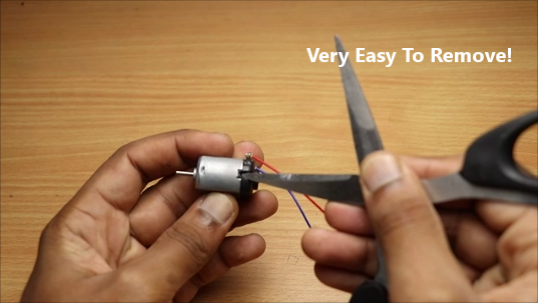

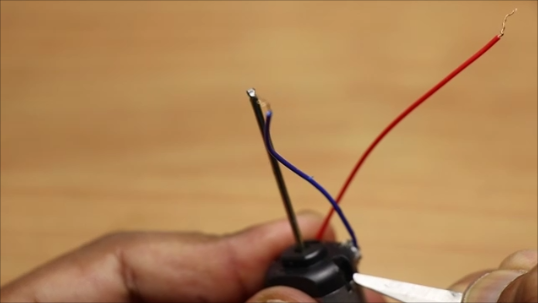

  • Remove it by opening the closed hooks in the side

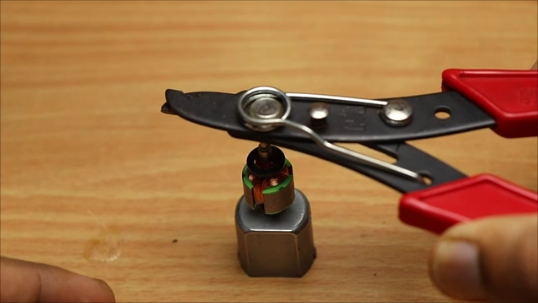

  • Remove the Rotor from Inside
  • Try Hard to remove the shaft(it is little bit tricky to remove shaft)
  • if you didn't get how to remove shaft go back to previous Step!

New Shaft!

Snapshot 7 (3-14-2018 4-58 PM).png
Snapshot 8 (3-14-2018 4-58 PM).png
Snapshot 9 (3-14-2018 4-58 PM).png
Snapshot 10 (3-14-2018 4-58 PM).png
Snapshot 11 (3-14-2018 4-59 PM).png
Snapshot 12 (3-14-2018 4-59 PM).png

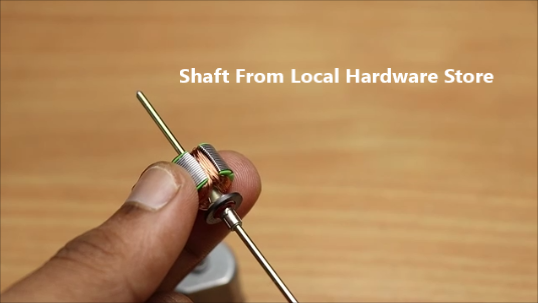

  • After the Old Shaft is Removed,replace it by new one
  • insert the new shaft

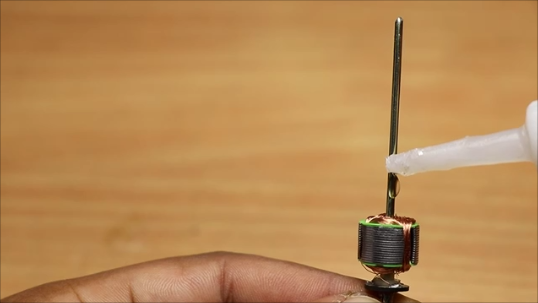

  • Fix it using superglue
  • Put Back Everything in place
  • Now run the motor with battery

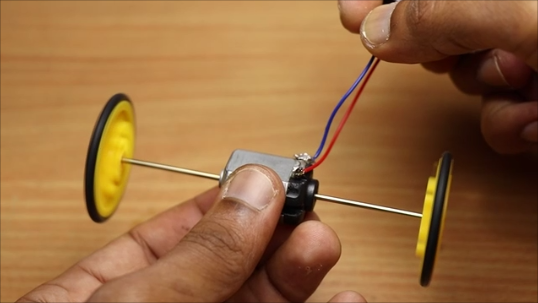

  • Dual shaft Motor is Ready For Action!

If You Liked this instructions Please share with your family and Friends! Have a Great Day.Bye
